AIR BAG SYSTEM

08–10–6

Connector Installation Note

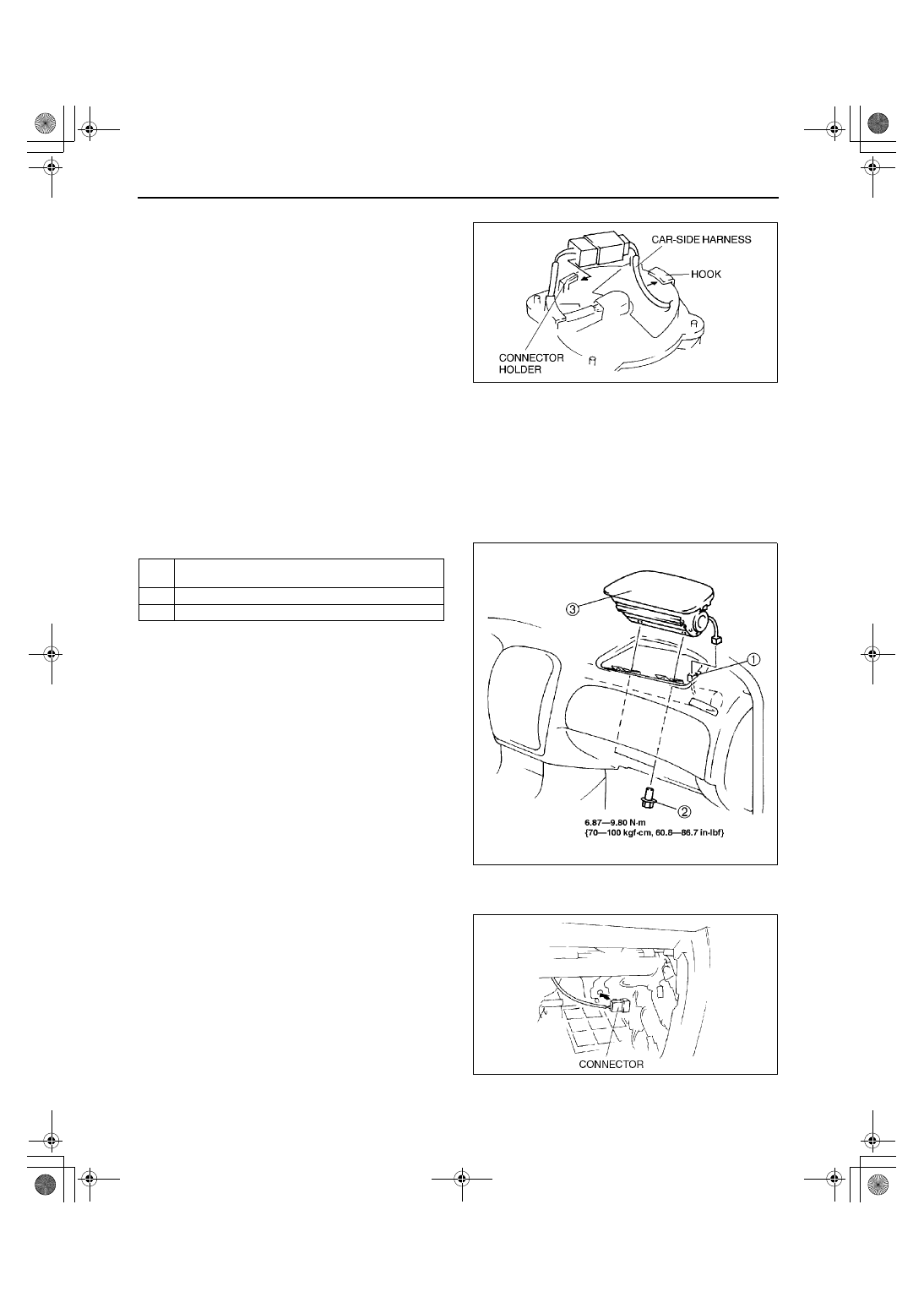

1. Install the connector and secure the car-side

harness onto the hook as shown in the figure.

End Of Sie

PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION

A3U081057050W01

Warning

••••

Handling the air bag module improperly can accidentally deploy the air bag module, which may
seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See 08–10–3 AIR BAG SYSTEM SERVICE WARNINGS.)

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the glove compartment.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

If the air bag system warning light does not
operate in the manner described above, there
are malfunctions in the system. Inspect the
system using the on-board diagnostic
function. (See 08–02–2 FOREWORD.)

Connector Installation Note

1. Install the connector as shown in the figure.

End Of Sie

A3U0810W002

1

Connector
(See 08–10–6 Connector Installation Note)

2

Bolt

3

Passenger-side air bag module

X3U810WAA

Y3U810WAN

1712-1U-01G(08-10).fm  6 ページ  2001年6月29日 金曜日 午前10時24分

AIR BAG SYSTEM

08–10–7

08–10

SIDE AIR BAG MODULE REMOVAL/INSTALLATION

A3U081000147W01

Warning

••••

Handling the air bag module improperly can accidentally deploy the air bag module, which may
seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag
module. (See 08–10–3 AIR BAG SYSTEM SERVICE WARNINGS.)

Warning

••••

If the side air bag module is installed with a foreign body in the seat back, the debris may be
scattered when the side air bag module operates (deploys), causing injury. Verify that there is no
foreign body in the seat back before installing the side air bag module.

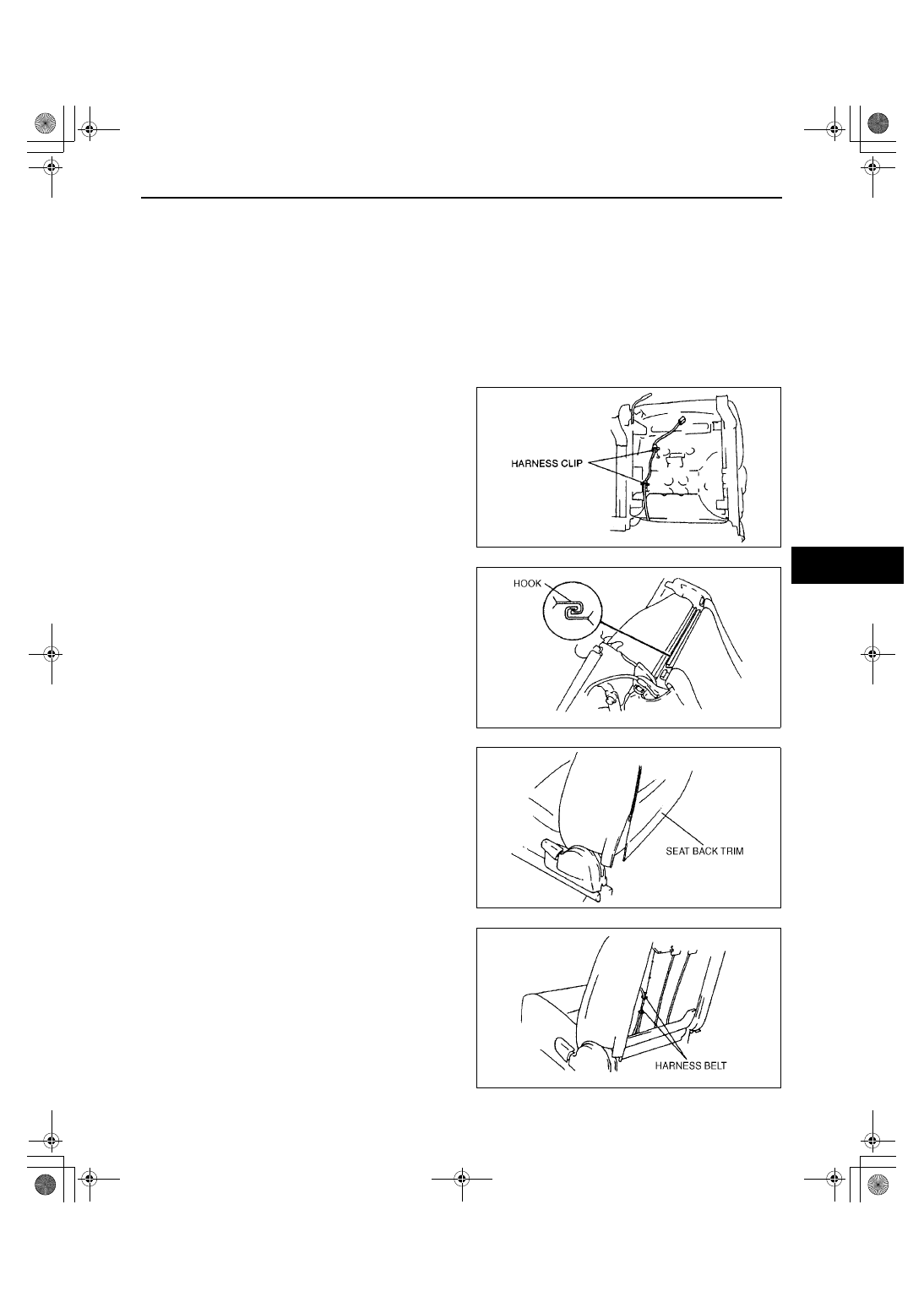

1. Remove the front seat. (See 09–13–1 FRONT SEAT REMOVAL/INSTALLATION.)
2. Remove the harness clips.

3. Undo the hook on the seat back cushion.

4. Unzip the seat back trim.

5. Remove the harness belts.

Y3U810WA2

Y3U810WA3

Y3U810WA4

Y3U810WA5

1712-1U-01G(08-10).fm  7 ページ  2001年6月29日 金曜日 午前10時24分

AIR BAG SYSTEM

08–10–8

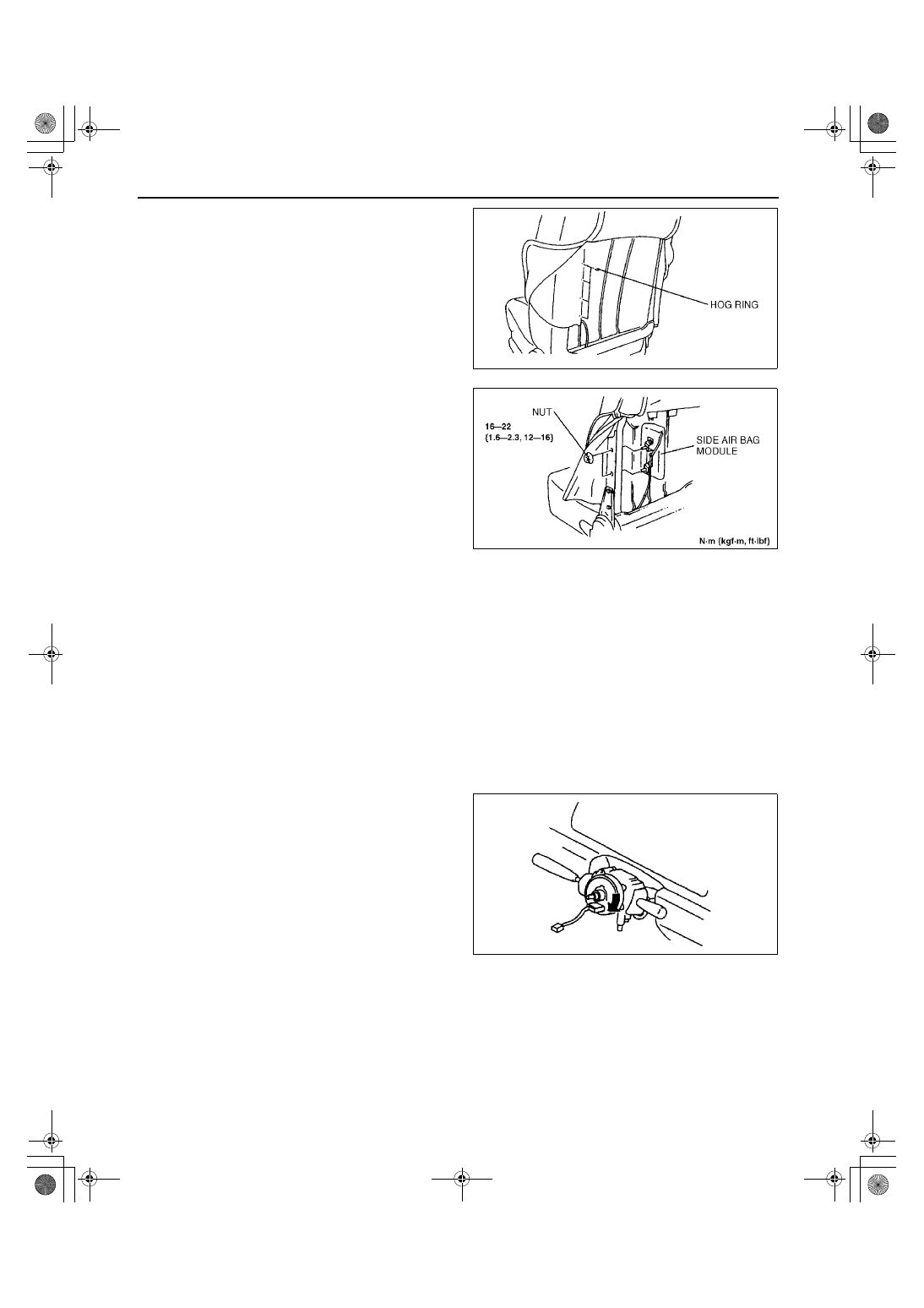

6. Remove the hog rings.
7. Turn over the seat back cushion.

8. Remove the nuts to remove the side air bag

module.

Warning

••••

If the air bag harness is not secured at
the marked point or the harness is
caught, the side air bag module may fail
to operate (deploy) in an accident,
causing a serious accident. Be sure to
secure the air bag harness at the marked
point, and make sure the harness is not
caught during operation of the seat.

9. Install in the reverse order of removal.

10. Turn the ignition switch to ON position.
11. Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.

If the air bag system warning light does not operate in the manner described above, there are malfunctions
in the system. Inspect the system using the on-board diagnostic function. (See 08–02–2 FOREWORD.)

End Of Sie

CLOCK SPRING ADJUSTMENT

A3U081066123W01

Note

The adjustment procedure is also specified on the caution label of the clock spring.

1. Set the front wheels straight ahead.

Caution

••••

The clock spring will break if over-wound. Do not forcibly turn the clock spring when turning it.

2. Turn the clock spring clockwise until it stops.

Y3U810WA6

Y3U810WA7

X3U810WAF

1712-1U-01G(08-10).fm  8 ページ  2001年6月29日 金曜日 午前10時24分

AIR BAG SYSTEM

08–10–9

08–10

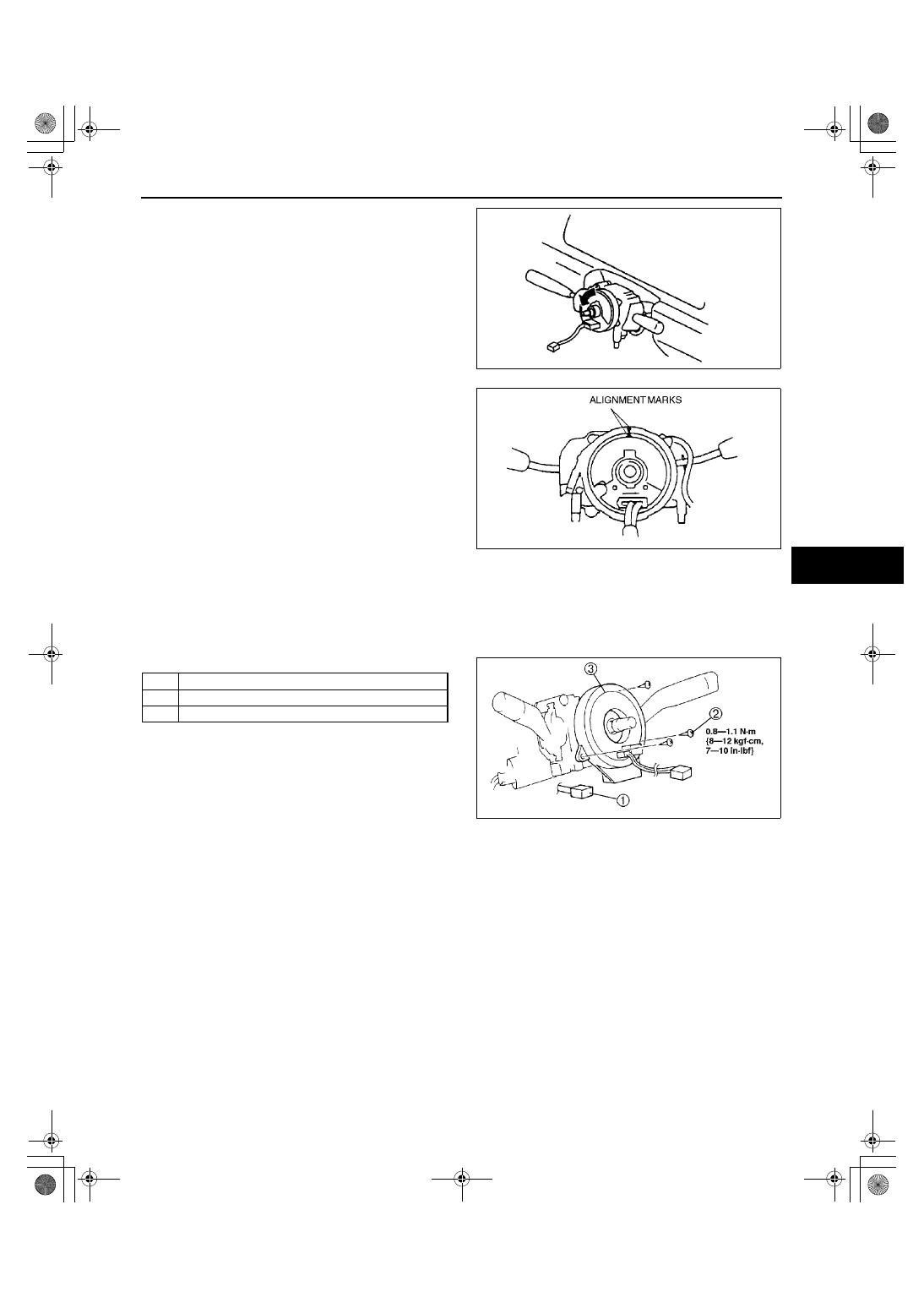

3. Turn the clock spring counterclockwise 2 3/4

turns.

4. Align the mark on the clock spring with the mark

on the outer housing.

End Of Sie

CLOCK SPRING REMOVAL/INSTALLATION

A3U081066123W02

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See 08–10–5 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Remove the steering wheel. (See 06–12–6 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
4. Remove the column cover.
5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

End Of Sie

X3U810WAG

X3U810WAH

1

Connector

2

Screw

3

Clock spring

X3U810WAE

1712-1U-01G(08-10).fm  9 ページ  2001年6月29日 金曜日 午前10時24分
