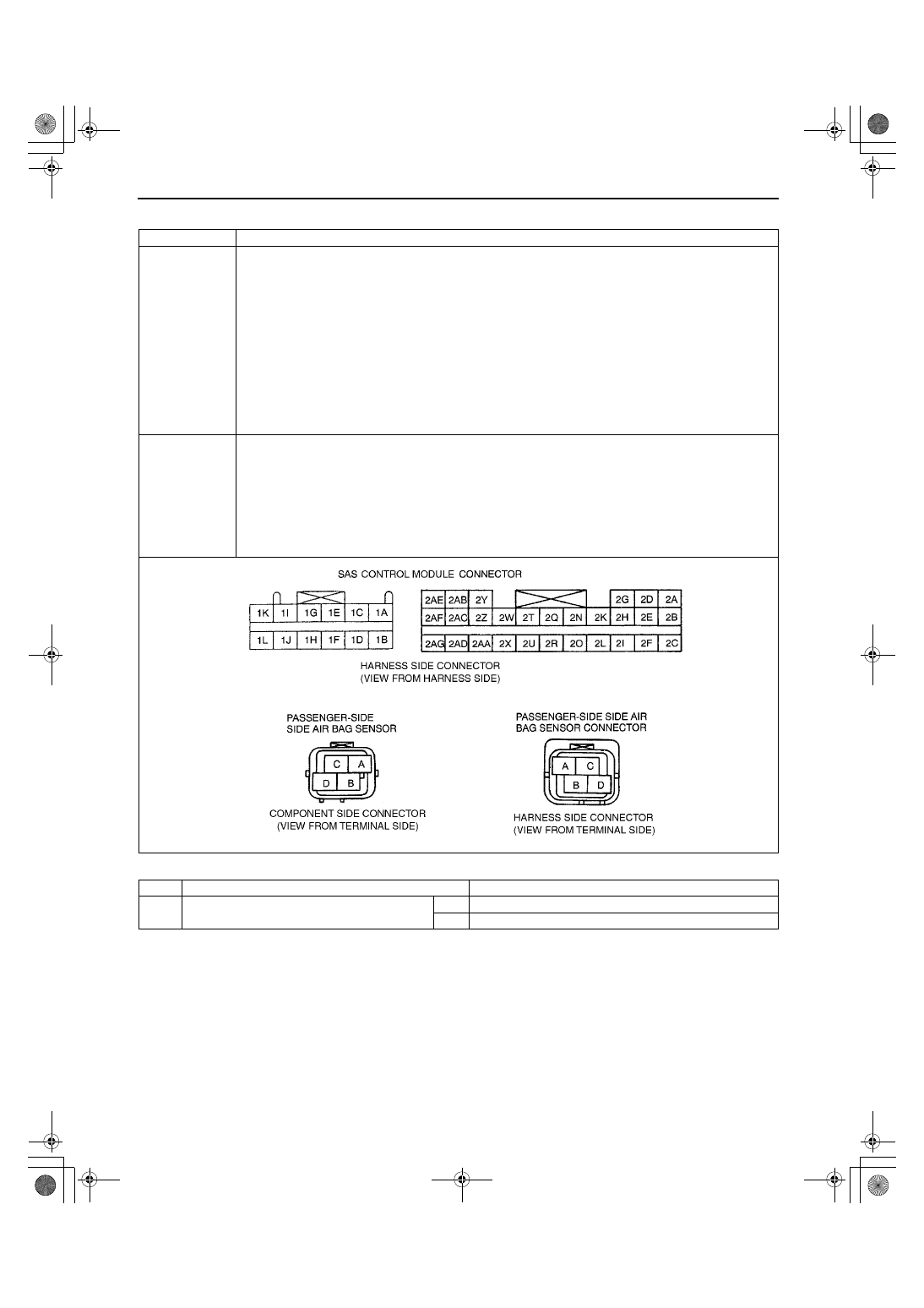

ON-BOARD DIAGNOSTIC

08–02–28

DTC 35

A3U080201046W15

Diagnostic procedure

DTC 35

Passenger-side side air bag sensor system (Communication error)

DETECTION

CONDITION

Warning

••••

Detection conditions are for understanding DTC outline before performing inspection.
Performing inspection with only detection conditions may cause injury due to operating error
or damage the system. When performing inspection, always follow diagnostic procedure.

Note

For vehicles without side air bag, DTC 22, 25, 26, 32, 35, or 37 may be indicated concurrently. In
such a case, perform only the smallest DTC troubleshooting among them.

Vehicles with side air bag

Malfunction in wiring harness between passenger-side side air bag sensor and SAS control module.

Malfunction in passenger-side side air bag sensor circuit.

Vehicles without side air bag

Terminal 2AA of SAS control module connector is open.

POSSIBLE

CAUSE

Vehicles with side air bag

Passenger-side side air bag sensor malfunction.

Open or short circuit in wiring harness between passenger-side side air bag sensor and SAS control
module.

SAS control module malfunction.

Vehicles without side air bag

Malfunction of connector between SAS control module and ground.

Open or short circuit in wiring harness between SAS control module and ground.

SAS control module malfunction.

STEP

INSPECTION

ACTION

1

Is vehicle equipped with side air bag?

Yes

Go to next step.

No

Go to Step 5.

1712-1U-01G(08-02).fm  28 ページ  2001年6月29日 金曜日 午後3時22分

ON-BOARD DIAGNOSTIC

08–02–29

08–02

2

INSPECT WIRING HARNESS BETWEEN
PASSENGER-SIDE SIDE AIR BAG SENSOR
AND SAS CONTROL MODULE

Warning

••••

Handling air bag system components
improperly can accidentally deploy air
bag modules and pre-tensioner seat
belts, which may seriously injure you.
Read AIR BAG SYSTEM SERVICE
WARNINGS before handling air bag
system components.
(See 08–10–3 AIR BAG SYSTEM
SERVICE WARNINGS)

Turn ignition switch to LOCK position.

Disconnect negative battery cable and wait
for more than 1 minute.

Remove column cover.

Disconnect clock spring connector.

Remove glove compartment.

Disconnect passenger-side air bag module
connector.

Disconnect driver- and passenger-side side
air bag module connectors.

Remove B-pillar lower trims.

Disconnect driver-and passenger-side pre-
tensioner seat belt connectors.

Remove left side side wall.

Disconnect all SAS control module
connectors.

Disconnect passenger-side side air bag
sensor connector.

Inspect following wiring harness between
SAS control module connector and
passenger-side side air bag sensor
connector terminals (harness side) for short
to ground, short to power suppiy, and open
circuit:
— 1L and A
— 1J and B
— 1H and C
— 1G and D

Are wiring harnesses okay?

Yes

Present malfunction diagnosis:

Go to next step.

Past malfunction diagnosis:

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION

No

Replace wiring harness.

3

INSPECT PASSENGER-SIDE SIDE AIR BAG
SENSOR

Measure resistance between terminals C
and D of passenger-side side air bag sensor.

Is resistance approximately 1 kilohm?

Yes

Replace SAS control module, then go to next step.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

No

Replace passenger-side side air bag sensor.
(See 08–10–10 SIDE AIR BAG SENSOR REMOVAL/
INSTALLATION)

4

VERIFY WHETHER PASSENGER-SIDE SIDE
AIR BAG SENSOR IS MALFUNCTIONING OR
NOT

Connect all SAS control module connectors
and passenger-side side air bag sensor
connector.

Connect clock spring connector.

Connect passenger-side air bag module
connector.

Connect driver- and passenger-side side air
bag module connectors.

Connect driver- and passenger-side pre-
tensioner seat belt connectors.

Connect negative battery cable.

Turn ignition switch to ON position.

Is DTC 35 indicated?

Yes

Replace passenger-side side air bag sensor.
(See 08–10–10 SIDE AIR BAG SENSOR REMOVAL/
INSTALLATION)

No

Complete inspection by DTC.

STEP

INSPECTION

ACTION

1712-1U-01G(08-02).fm  29 ページ  2001年6月29日 金曜日 午後3時22分

ON-BOARD DIAGNOSTIC

08–02–30

End Of Sie

DTC 37

A3U080201046W16

5

VERIFY THAT SAS CONTROL MODULE
CONNECTOR TERMINAL 2AA IS GROUNDED

Warning

••••

Handling air bag system components
improperly can accidentally deploy air
bag modules and pre-tensioner seat
belts, which may seriously injure you.
Read AIR BAG SYSTEM SERVICE
WARNINGS before handling air bag
system components.
(See 08–10–3 AIR BAG SYSTEM
SERVICE WARNINGS)

Turn ignition switch to LOCK position.

Disconnect negative battery cable and wait
for more than 1 minute.

Remove column cover.

Disconnect clock spring connector.

Remove glove compartment.

Disconnect passenger-side air bag module
connector.

Remove B-pillar lower trims.

Disconnect driver-and passenger-side pre-
tensioner seat belt connectors.

Remove left side side wall.

Disconnect all SAS control module
connectors.

Disconnect driver-side side air bag sensor
connector.

Inspect wiring harness between terminal
2AA of SAS control module connector and
ground for following.
— Short to power supply
— Open circuit

Is wiring harnesses okay?

Yes

Present malfunction diagnosis:

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

Past malfunction diagnosis:

Complete inspection by DTC.

No

Replace wiring harness.

STEP

INSPECTION

ACTION

DTC 37

Passenger-side side air bag module system

DETECTION

CONDITION

Warning

••••

Detection conditions are for understanding DTC outline before performing inspection.
Performing inspection with only detection conditions may cause injury due to operating error
or damage the system. When performing inspection, always follow diagnostic procedure.

Note

For vehicles without side air bag, DTC 22, 25, 26, 32, 35, or 37 may be indicated concurrently. In
such a case, perform only the smallest DTC troubleshooting among them.

Vehicles with side air bag

Resistance detected between terminals 1I and 1K of SAS control module is other than 1.63—2.71
ohm
.

Short circuit in wiring harness related terminal 1I or 1K of SAS control module.

Vehicles without side air bag

Terminal 2AA of SAS control module connector is open.

POSSIBLE

CAUSE

Vehicles with side air bag

Passenger-side side air bag module malfunction.

Malfunction of connectors between passenger-side side air bag module and SAS control module.

Open or short circuit in wiring harness between passenger-side side air bag module and SAS control
module.

SAS control module malfunction.

Vehicles without side air bag

Malfunction of connector between SAS control module and ground.

Open or short circuit in wiring harness between SAS control module and ground.

SAS control module malfunction.

1712-1U-01G(08-02).fm  30 ページ  2001年6月29日 金曜日 午後3時22分

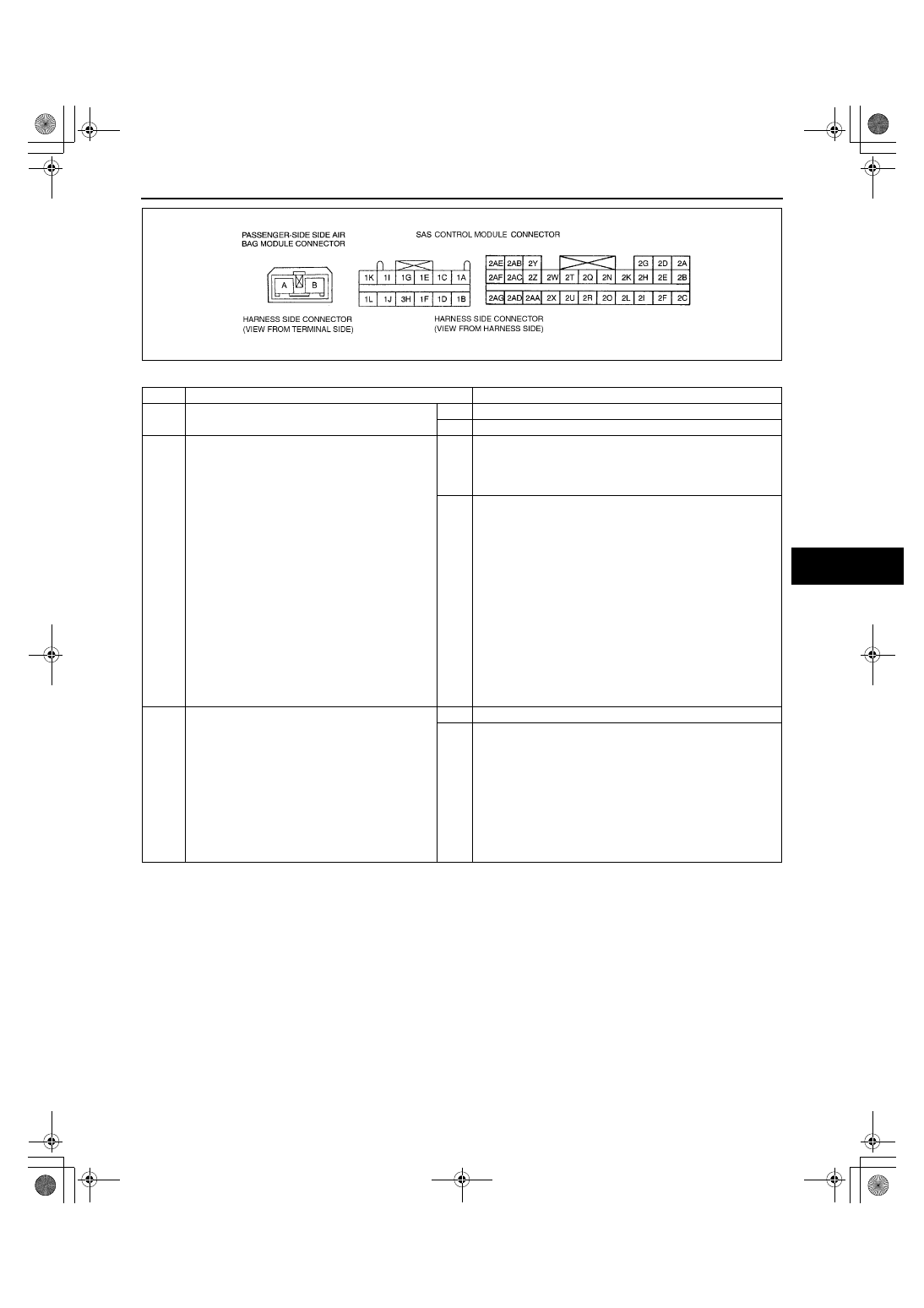

ON-BOARD DIAGNOSTIC

08–02–31

08–02

Diagnostic procedure

STEP

INSPECTION

ACTION

1

Is vehicle equipped with side air bag?

Yes

Go to next step.

No

Go to Step 5.

2

INSPECT SEPARATOR* OF PASSENGER-
SIDE SIDE AIR BAG MODULE CONNECTOR

Warning

••••

Handling air bag system components
improperly can accidentally deploy air
bag modules and pre-tensioner seat
belts, which may seriously injure you.
Read AIR BAG SYSTEM SERVICE
WARNINGS before handling air bag
system components.
(See 08–10–3 AIR BAG SYSTEM
SERVICE WARNINGS)

Turn ignition switch to LOCK position.

Disconnect negative battery cable and wait
for more than 1 minute.

Disconnect passenger-side side air bag
module connector.

Is separator* of passenger-side side air bag
module connector okay?

Yes

Present malfunction diagnosis:

Go to next step.

Past malfunction diagnosis:

Go to Step 3.

No

Replace wiring harness.

3

VERIFY WHETHER MALFUNCTION IS IN
PASSENGER-SIDE SIDE AIR BAG MODULE
OR OTHER PARTS

Connect leads of SST (Fuel And
Thermometer checker) or apply 2 ohms
resistor to passenger-side side air bag
module connector terminals A and B.

Set resistance of SST (Fuel And
Thermometer checker) to 2 ohms.

Connect negative battery cable.

Turn ignition switch to ON position.

Is DTC 37 indicated?

Yes

Go to next step.

No

Replace passenger-side side air bag module.
(See 08–10–7 SIDE AIR BAG MODULE REMOVAL/
INSTALLATION)

1712-1U-01G(08-02).fm  31 ページ  2001年6月29日 金曜日 午後3時22分
