ON-BOARD DIAGNOSTIC

08–02–4

Post-repair Operation
Past malfunction code display cancellation

Caution

••••

Connecting the wrong DLC terminal may possibly cause a malfunction. Carefully connect the
specified terminal only.

1. Turn the ignition switch to the ON position.
2. Wait until the air bag system warning light illuminates approximately 6 seconds and goes off.

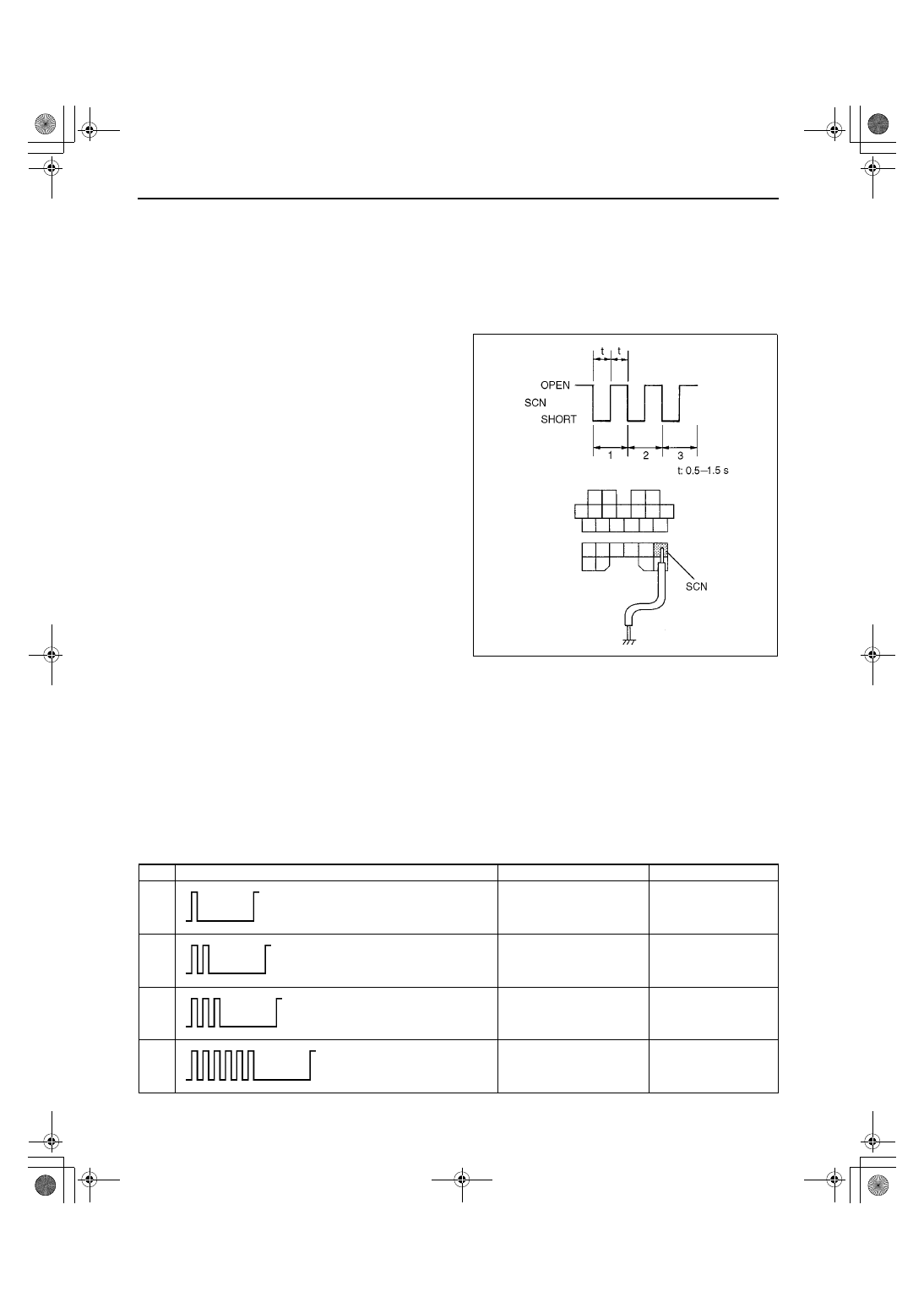

3. Perform both the following steps alternately three

times each at 0.5—1.5 seconds intervals.
(1) Use a jumper wire to short the DLC terminal

SCN to body GND.

(2) Disconnect the jumper wire from body GND.

4. If the DTCs are displayed, wait until they

disappear.

5. Using a jumper wire, short the DLC terminal SCN

to body GND to verify that the DTCs of the past
malfunction are not displayed.

•

If the DTCs are still displayed, perform the
past malfunction display cancellation again.

6. Turn the ignition switch to the LOCK position.
7. Disconnect the jumper wire from the DLC.

End Of Sie

DTC TABLE

A3U080201046W03

•

DTCs are common for present and past malfunction diagnosis.

Note

•

When DTCs not shown in the DTC table are displayed, replace the SAS control module.

•

After a new SAS control module is installed, the air bag system warning light continuously flashes when
the ignition switch is turned to ON position. This is the deployment authorization standby code output by
the SAS control module. Perform the deployment authorization and restore the system to an operational
state.

•

If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is
turned to ON position, inspect and repair the air bag system warning light circuitry and then confirm that
the air bag system warning light is operational.

ZLU0802W001

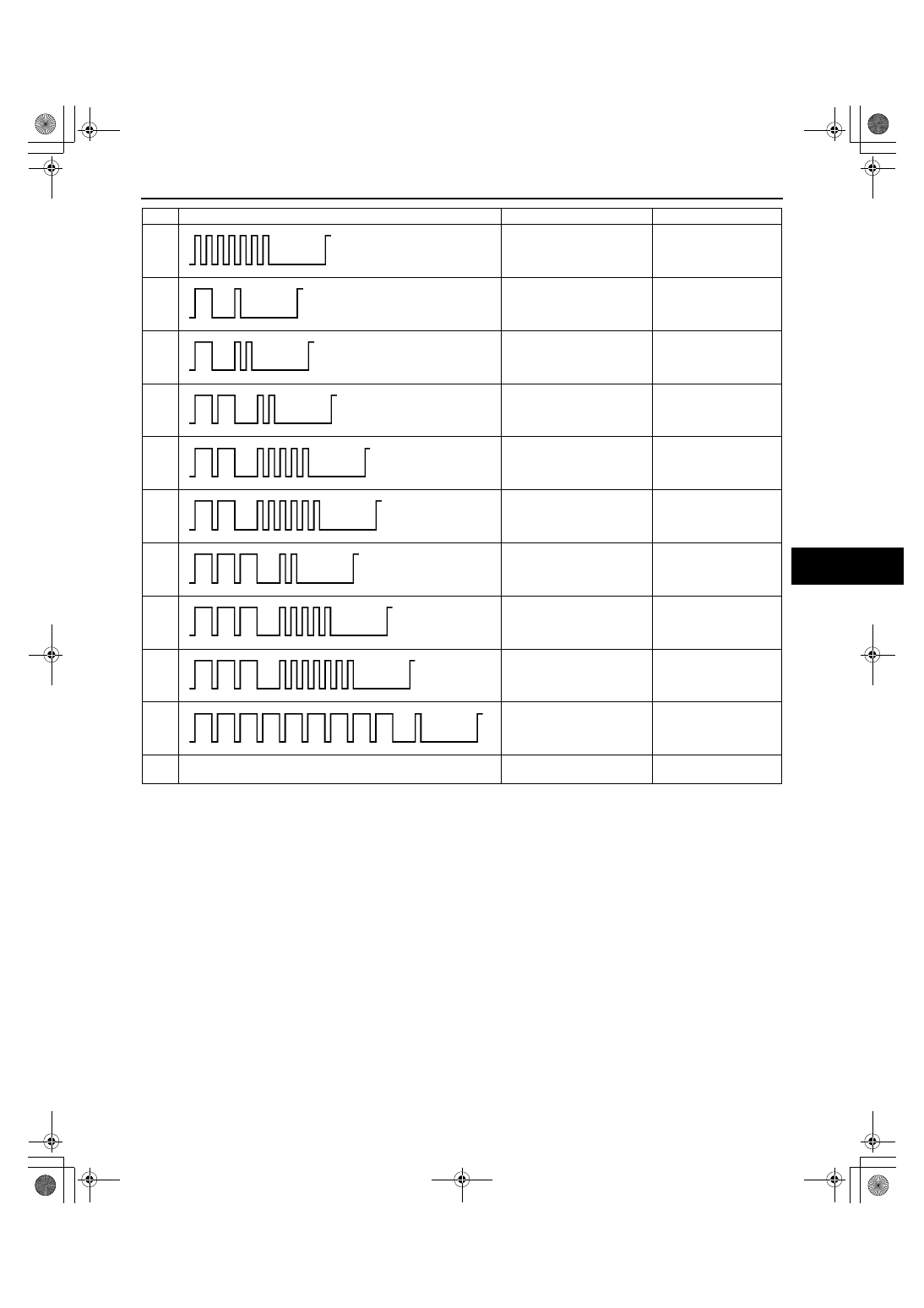

DTC

Output signal

Malfunction location

Page

01

SAS control module
connector poor connection

(See 08–02–6 DTC 01)

02

SAS control module

(See 08–02–7 DTC 02)

03

Power supply of SAS control
module

(See 08–02–8 DTC 03)

06

Driver-side air bag module
system

(See 08–02–9 DTC 06)

1712-1U-01G(08-02).fm  4 ページ  ２００１年６月２９日 金曜日 午後３時２２分

ON-BOARD DIAGNOSTIC

08–02–5

08–02

End Of Sie

07

Passenger-side air bag
module system

(See 08–02–12 DTC
07)

11

Driver-side pre-tensioner
seat belt system

(See 08–02–13 DTC
11)

12

Passenger-side pre-
tensioner seat belt system

(See 08–02–15 DTC
12)

22

Driver-side side air bag
sensor system (Internal
circuit abnormal)

(See 08–02–17 DTC
22)

25

Driver-side side air bag
sensor system
(Communication error)

(See 08–02–20 DTC
25)

26

Driver-side side air bag
module system

(See 08–02–22 DTC
26)

32

Passenger-side side air bag
sensor system (Internal
circuit abnormal)

(See 08–02–25 DTC
32)

35

Passenger-side side air bag
sensor system
(Communication error)

(See 08–02–28 DTC
35)

37

Passenger-side side air bag
module system

(See 08–02–30 DTC
37)

91

Air bag system warning light
system

(See 08–02–33 DTC
91)

-

Continuously flashes

Deployment authorization
standby code

—

DTC

Output signal

Malfunction location

Page

1712-1U-01G(08-02).fm  5 ページ  ２００１年６月２９日 金曜日 午後３時２２分

ON-BOARD DIAGNOSTIC

08–02–6

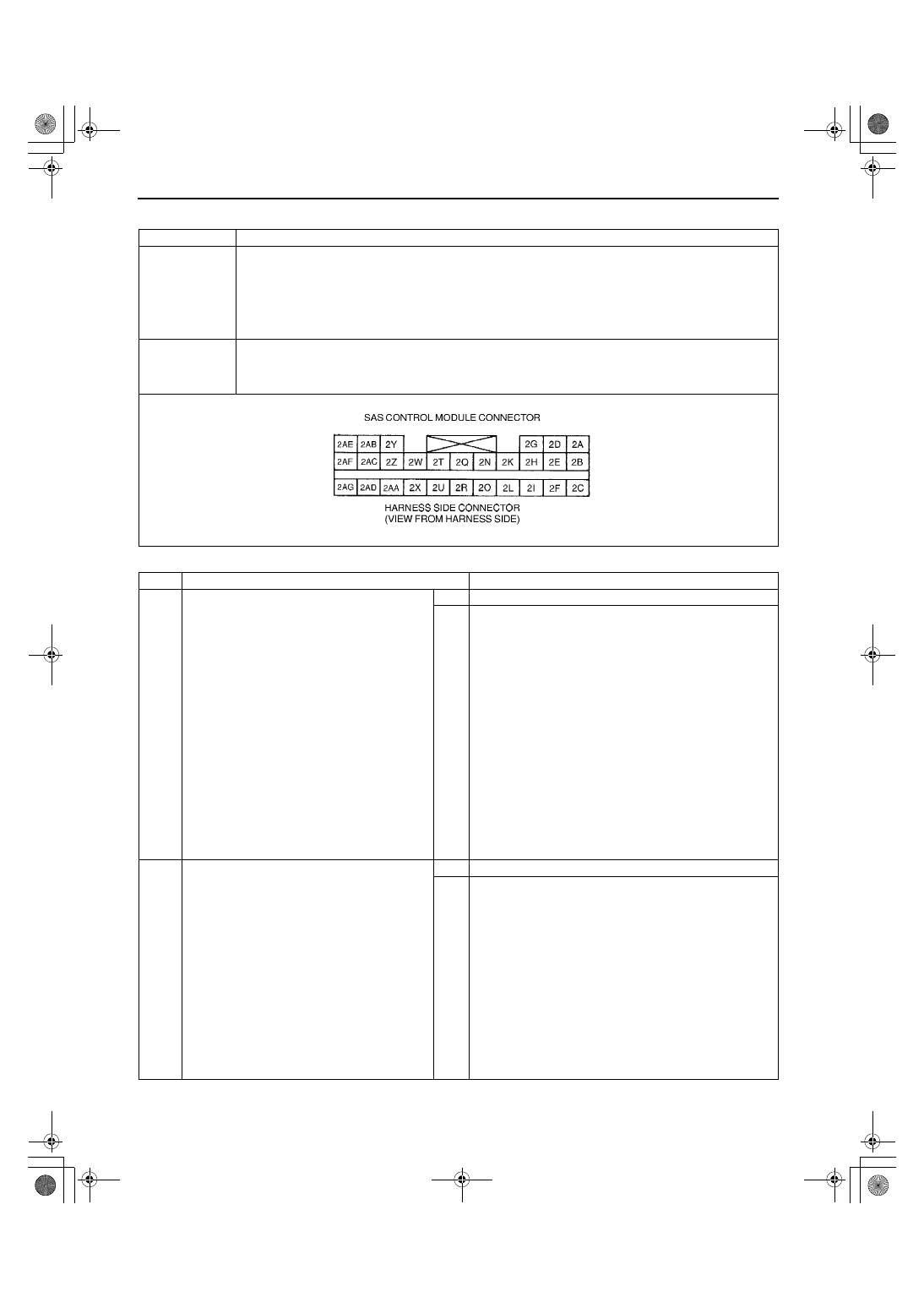

DTC 01

A3U080201046W04

Diagnostic procedure

DTC 01

SAS control module connector poor connection

DETECTION

CONDITION

Warning

••••

Detection conditions are for understanding DTC outline before performing inspection.
Performing inspection with only detection conditions may cause injury due to operating error
or damage the system. When performing inspection, always follow diagnostic procedure.

•

There is no continuity between poor connection detector bar terminals of SAS control module.

•

Terminal 2AA of SAS control module connector is open. (Vehicles without side air bag)

POSSIBLE

CAUSE

•

Poor connection of any SAS control module connectors.

•

Malfunction of any SAS control module connectors.

•

Open or short circuit in wiring harness between SAS control module and ground.

•

SAS control module malfunction.

STEP

INSPECTION

ACTION

1

VERIFY THAT ALL SAS CONTROL MODULE
CONNECTORS ARE CONNECTED WITH SAS
CONTROL MODULE

Warning

••••

Handling air bag system components
improperly can accidentally deploy air
bag modules and pre-tensioner seat
belts, which may seriously injure you.
Read AIR BAG SYSTEM SERVICE
WARNINGS before handling air bag
system components.
(See 08–10–3 AIR BAG SYSTEM
SERVICE WARNINGS)

•

Turn ignition switch to LOCK position.

•

Disconnect negative battery cable and wait
for more than 1 minute.

•

Remove left side side wall.

•

Are all SAS control module connectors
securely connected?

Yes

Go to next step.

No

Reconnect connector properly.

2

INSPECT ALL SAS CONTROL MODULE
CONNECTORS

•

Remove column cover.

•

Disconnect clock spring connector.

•

Remove glove compartment.

•

Disconnect passenger-side air bag module
connector.

•

Disconnect driver- and passenger-side side
air bag module connectors. (Vehicles with
side air bag)

•

Remove B-pillar lower trims.

•

Disconnect driver-and passenger-side pre-
tensioner seat belt connectors.

•

Disconnect all SAS control module
connectors.

•

Are poor connection detector bars of all SAS
control module connectors okay?

Yes

Go to next step.

No

Replace wiring harnesses.

1712-1U-01G(08-02).fm  6 ページ  ２００１年６月２９日 金曜日 午後３時２２分

ON-BOARD DIAGNOSTIC

08–02–7

08–02

End Of Sie

DTC 02

A3U080201046W05

Diagnostic procedure

End Of Sie

3

•

Is vehicle equipped with side air bag?

Yes

Present malfunction diagnosis:

•

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

Past malfunction diagnosis:

•

Complete inspection by DTC.

No

Go to next step.

4

VERIFY THAT TERMINAL 2AA OF SAS
CONTROL MODULE CONNECTOR IS
GROUNDED

•

Inspect wiring harness between terminal
2AA of SAS control module connector and
ground for following.
— Short to power supply
— Open circuit

•

Is wiring harness okay?

Yes

Present malfunction diagnosis:

•

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

Past malfunction diagnosis:

•

Complete inspection by DTC.

No

Replace wiring harness.

STEP

INSPECTION

ACTION

DTC 02
