ON-BOARD DIAGNOSTIC

05–02–64

DTC P0772

A3U050201030W32

Diagnostic procedure

DTC P0772

Shift solenoid E stuck ON

DETECTION

CONDITION

When any of DTC P0731, P0733, and P0734 are not generated, and all of following conditions satisfied
under each of following throttle conditions.
— ATF temperature 20

°°°°

C {68

°°°°

F} or above.

— Driving in 4GR at D range.
— Engine run.
— Turbine speed within 225—4,988 rpm.
— Vehicle speed below 70 km/h {43 mph}.
— Torque converter clutch (TCC) no operation
— Difference between engine speed and turbine speed below 50 rpm

Throttle conditions.
— FS engine

Throttle opening angle (TP PID) above 6.25% and 10 seconds or more have passed.

Throttle opening angle (TP PID) within 3.13—6.25% and 3 seconds or more have passed.

Throttle opening angle at closed throttle position and 10 seconds or more have passed.

—  ZM engine

Throttle opening angle (TP PID) above 7.03% and 10 seconds or more have passed.

Throttle opening angle (TP PID) within 1.56—7.03% and 3 seconds or more have passed.

Throttle opening angle at closed throttle position and 10 seconds or more have passed.

Diagnostic support note:

This is a continuous monitor (CCM).

MIL illuminates if PCM detects the above malfunction conditions during two consecutive drive cycles.

PENDING CODE is available.

FREEZE FRAME DATA is available.

O/D OFF indicator light flashes.

DTC is stored in the PCM memory.

POSSIBLE

CAUSE

ATF level low

Deteriorated ATF

Shift solenoid E stuck

Control valve stuck

PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

Has FREEZE FRAME PID DATA been
recorded?

Yes Go to next step.

No

Record FREEZE FRAME PID DATA on repair order, then
go to next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

Check for related Service Bulletins availability.

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

If vehicle is not repaired, go to next step.

No

Go to next step.

3

CHECK ATF CONDITION

Turn ignition key to OFF.

Check ATF condition.
— Clear red: Normal
— Milky: Water mixed in fluid
— Reddish brown: Deteriorated ATF

Is it okay?

(See 05–17–17 Automatic Transaxle Fluid (ATF)
Condition Inspection.)

Yes Go to next step.

No

If ATF color milky or reddish brown, replace ATF, then go to
Step 5.
(See 05–17–18 AUTOMATIC TRANSAXLE FLUID (ATF)
REPLACEMENT.)

4

CHECK ATF LEVEL

Start engine.

Warm up ATX.

Is ATF level within specification?

(See 05–17–18 Automatic Transaxle Fluid (ATF)
Level Inspection.)

Yes Go to next step.

No

Adjust ATF level, then go to Step 7.
(See 05–17–18 Automatic Transaxle Fluid (ATF) Level
Inspection.)

1712-1U-01G(05-02).fm  64 ページ  2001年6月29日 金曜日 午後4時35分

ON-BOARD DIAGNOSTIC

05–02–65

05–02

End Of Sie

5

INSPECT LINE PRESSURE

Start engine.

Measure line pressure.

Specification
FS engine
Idle: 330—470 kPa {3.4—4.7 kgf/cm

2

, 49—66

psi}
Stall: 1,160—1,320 kPa {11.9—13.4 kgf/cm

2

170—190 psi}
ZM engine
Idle: 330—470 kPa {3.4—4.7 kgf/cm

2

, 49—66

psi}
Stall: 1,200—1,360 kPa {12.3—13.8 kgf/cm

2

175—196 psi}

Is line pressure within specification?

(See 05–17–12 Line Pressure Test.)

Yes Go to next step.

No

All ranges: Replace oil pump or control valve body, then
go to Step 7.

Any ranges: Replace ATX, then go to Step 7.

(See 05–17–31 AUTOMATIC TRANSAXLE (ATX)
REMOVAL/INSTALLATION.)
(See ATX Workshop Manual FN4A-EL (9999-95-FN4A-
99).)

6

CHECK OPERATION OF EACH VALVE AND
EACH SPRING

Turn ignition key to OFF.

Remove control valve body.

Disassemble control valve body.

Is each valve operation okay and is return
spring okay?

(See 05–17–36 CONTROL VALVE BODY
REMOVAL/INSTALLATION.)
(See ATX Workshop Manual FN4A-EL (9999-95-
FN4A-99).)

Yes Replace ATX, then go to next step

(See ATX Workshop Manual FN4A-EL (9999-95-FN4A-
99).)

No

Repair or replace shift valve and return spring, then go to
next step.
(See 05–17–36 CONTROL VALVE BODY REMOVAL/
INSTALLATION.)
(See ATX Workshop Manual FN4A-EL (9999-95-FN4A-
99).)

7

VERIFY TROUBLESHOOTING OF DTC P0772
COMPLETED

Make sure to reconnect all disconnected
connectors.

Clear DTC from memory using WDS or
equivalent.

Start engine.

Warm up ATX.

Drive the vehicle under the following conditions
and make sure that gears shift smoothly from
1GR to 4GR.
— ATF temperature: 20

°°°°

C {68

°°°°

F} or above

— Drive in D range
— Vehicle speed (VSS PID): below 70 km/h

{43 mph} (4th gear only)

Is pending code present?

Yes Replace PCM, then go to next step.

(See 01–40A–7 PCM REMOVAL/INSTALLATION [ZM].)
(See 01–40B–7 PCM REMOVAL/INSTALLATION [FS].)

No

Go to next step.

8

VERIFY AFTER REPAIR PROCEDURE

Perform “After Repair Procedure”.

(See 05–02–6 AFTER REPAIR PROCEDURE.)

Are any DTCs present?

Yes Go to applicable DTC inspection.

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

1712-1U-01G(05-02).fm  65 ページ  2001年6月29日 金曜日 午後4時35分

ON-BOARD DIAGNOSTIC

05–02–66

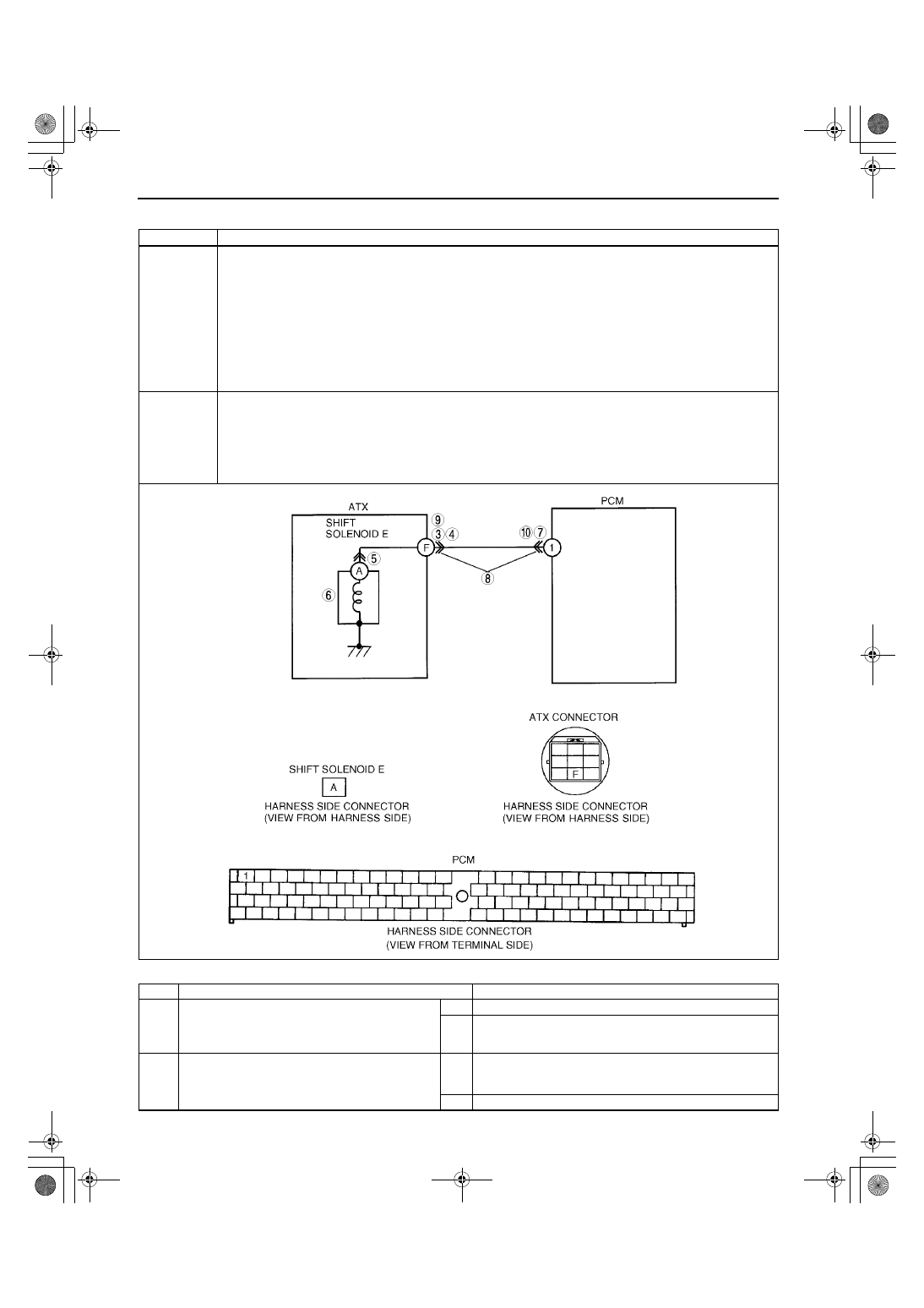

DTC P0773

A3U050201030W33

Diagnostic procedure

DTC P0773

Shift solenoid E malfunction (electrical)

DETECTION

CONDITION

If PCM detects either of following conditions while driving in 4GR at D range with TCC operation, PCM
determines that shift solenoid E circuit has a malfunction:
— Shift solenoid E voltage is stuck at B+ after engine start.
— Shift solenoid E voltage is stuck at 0 V after engine start.

Diagnostic support note:

This is a continuous monitor (CCM).

MIL illuminates if PCM detects the above malfunction conditions during first drive cycle.

PENDING CODE is not available.

FREEZE FRAME DATA is available.

O/D OFF indicator light flashes.

DTC is stored in the PCM memory.

POSSIBLE

CAUSE

Shift solenoid E malfunction

Short to ground between ATX connector terminal F and PCM terminal 1

Short to power between ATX connector terminal F and PCM terminal 1

Open circuit between shift solenoid E terminal A and ATX connector terminal F

Open circuit between ATX connector terminal F and PCM terminal 1

Damaged connector between shift solenoid E and PCM

PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

Has FREEZE FRAME PID DATA been
recorded?

Yes Go to next step.

No

Record FREEZE FRAME PID DATA on repair order, then
go to next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

Check for related Service Bulletins availability.

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

If vehicle is not repaired, go to next step.

No

Go to next step.

1712-1U-01G(05-02).fm  66 ページ  2001年6月29日 金曜日 午後4時35分

ON-BOARD DIAGNOSTIC

05–02–67

05–02

End Of Sie

3

INSPECT ATX CONNECTOR FOR POOR
CONNECTION

Turn ignition key to OFF.

Disconnect ATX connector.

Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).

Is connection okay?

Yes Go to next step.

No

Repair or replace connector and/or terminals, then go to
Step 11.

4

INSPECT RESISTANCE

Inspect resistance between ATX connector
terminal F (transaxle case side) and body
ground.

Is resistance within 10.9—26.2 ohms?

(See 05–17–28 Inspection of Resistance (On-
vehicle).)

Yes Go to Step 7.

No

Go to next step.

5

INSPECT SHIFT SOLENOID E CONNECTOR
FOR POOR CONNECTION

Disconnect shift solenoid E connector.

Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).

Is connection okay?

Yes Go to next step.

No

Repair or replace connector and/or terminal, then go to
Step 11.

6

INSPECT RESISTANCE

Inspect resistance between shift solenoid E
terminal A (part-side) and body ground.

Is resistance within 10.9—26.2 ohms?

(See 05–17–29 Resistance Inspection (Off-
vehicle).)

Yes Replace solenoid harness, then go to Step 11.

No

Verify shift solenoid E installation.

If solenoid installed correctly, replace solenoid, then go
to Step 11.

(See 05–17–30 SOLENOID VALVES REMOVAL/
INSTALLATION.)

7

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

Disconnect PCM connector.

Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).

Is connection okay?

Yes Go to next step.

No

Repair or replace connector and/or terminals, then go to
Step 11.

8

INSPECT ATX CONNECTOR CIRCUIT FOR
OPEN

Inspect for continuity between PCM terminal 1
(harness-side) and ATX connector terminal F
(vehicle harness-side).

Is there continuity between terminals?

Yes Go to next step.

No

Repair or replace harness, then go to Step 11.

9

INSPECT ATX CONNECTOR CIRCUIT FOR
SHORT TO POWER

Turn ignition key to ON (engine OFF).

Inspect voltage at ATX connector terminal F
(vehicle harness-side).

Is voltage 0 V?

Yes Go to next step.

No

Repair or replace harness, then go to Step 11.

10

INSPECT PCM CIRCUIT FOR SHORT TO
GROUND

Turn ignition key to OFF.

Inspect for continuity between PCM terminal 1
(harness-side) and body ground.

Is there continuity?

Yes Repair or replace harness, then go to Step 11.

No

Go to next step.

11

VERIFY TROUBLESHOOTING OF DTC P0773
COMPLETED

Make sure to reconnect all disconnected
connectors.

Clear DTC from memory using WDS or
equivalent.

Drive vehicle in D range and make sure that
gears shift smoothly from 1GR to 4GR.

Are any DTCs present?

Yes Replace PCM, then go to next step.

(See 01–40A–7 PCM REMOVAL/INSTALLATION [ZM].)
(See 01–40B–7 PCM REMOVAL/INSTALLATION [FS].)

No

No concern is detected. Go to next step.

12

VERIFY AFTER REPAIR PROCEDURE

Perform “After Repair Procedure”.

(See 05–02–6 AFTER REPAIR PROCEDURE.)

Are any DTCs present?

Yes Go to applicable DTC inspection.

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

1712-1U-01G(05-02).fm  67 ページ  2001年6月29日 金曜日 午後4時35分
