ON-BOARD DIAGNOSTIC

04–02–10

Active Command Modes Table

Note

•

When operating, the ABS motor and each valve forcibly turn ABS_POWER on, and then each command
on. ABS_POWER regulates the power supply for the ABS motor and 8 valves.

End Of Sie

LR_WSPD
(Left rear ABS wheel-
speed sensor input)

KPH/MPH

•

Vehicle is stopped: 0KPH
{0MPH}

•

Indicates vehicle speed

Inspect ABS wheel-speed
sensor/sensor rotor.
(See 04–13–9 FRONT/
REAR ABS WHEEL-
SPEED SENSOR
INSPECTION)

C, F

PMP MTR
(ABS motor relay output
state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(ABS motor is activated/
deactivated)

•

Not ABS and/or EBD
control: OFF
(ABS motor is deactivated)

Inspect ABS HU/CM
connector and ABS HU/CM
(See 04–13–3 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
SYSTEM INSPECTION)

—

PMPSTAT
(ABS motor output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(ABS motor is activated/
deactivated)

•

Not ABS and/or EBD
control: OFF
(ABS motor is deactivated)

Inspect ABS HU/CM
connector and ABS HU/CM
(See 04–13–3 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
SYSTEM INSPECTION)

—

RF_WSPD
(Right front ABS wheel-
speed sensor input)

KPH/MPH

•

Vehicle is stopped: 0KPH
{0MPH}

•

indicates vehicle speed

Inspect ABS wheel-speed
sensor/sensor rotor.
(See 04–13–9 FRONT/
REAR ABS WHEEL-
SPEED SENSOR
INSPECTION)

D, G

RR_WSPD
(Right rear ABS wheel-
speed sensor input)

KPH/MPH

•

Vehicle is stopped: 0KPH
{0MPH}

•

indicates vehicle speed

Inspect ABS wheel-speed
sensor/sensor rotor.
(See 04–13–9 FRONT/
REAR ABS WHEEL-
SPEED SENSOR
INSPECTION)

A, B

ABSVLVRLY
(Fail-safe relay output
state)

ON/OFF

•

Ignition key at ON: ON

•

Other condition (Power
supply circuit is open):
OFF

Inspect ABS HU/CM
connector and ABS HU/CM
(See 04–13–3 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
SYSTEM INSPECTION)

—

Command Name

Definition

Operation

Note

PMP_MOTOR

ABS motor

ON/OFF

Ignition key at ON
(engine OFF),
and driving

RF_OUTLET

Right front ABS pressure reduction solenoid valve

ON/OFF

RF_INLET

Right front ABS pressure retention solenoid valve

ON/OFF

LF_OUTLET

Left front ABS pressure reduction solenoid valve

ON/OFF

LF_INLET

Left front ABS pressure retention solenoid valve

ON/OFF

RR_OUTLET

Right rear ABS pressure reduction solenoid valve

ON/OFF

RR_INLET

Right rear ABS pressure retention solenoid valve

ON/OFF

LR_OUTLET

Left rear ABS pressure reduction solenoid valve

ON/OFF

LR_INLET

Left rear ABS pressure retention solenoid valve

ON/OFF

ABS_POWER

Fail-safe relay

ON/OFF

VS_OUTPUT

Vehicle speed signal

KPH/MPH

PID Name

(Definition)

Unit/Condition

Condition/Specification

Action

ABS HU/CM

terminal

1712-1U-01G(04-02).fm  10 ページ  ２００１年６月２９日 金曜日 午前１０時１分

ON-BOARD DIAGNOSTIC

04–02–11

04–02

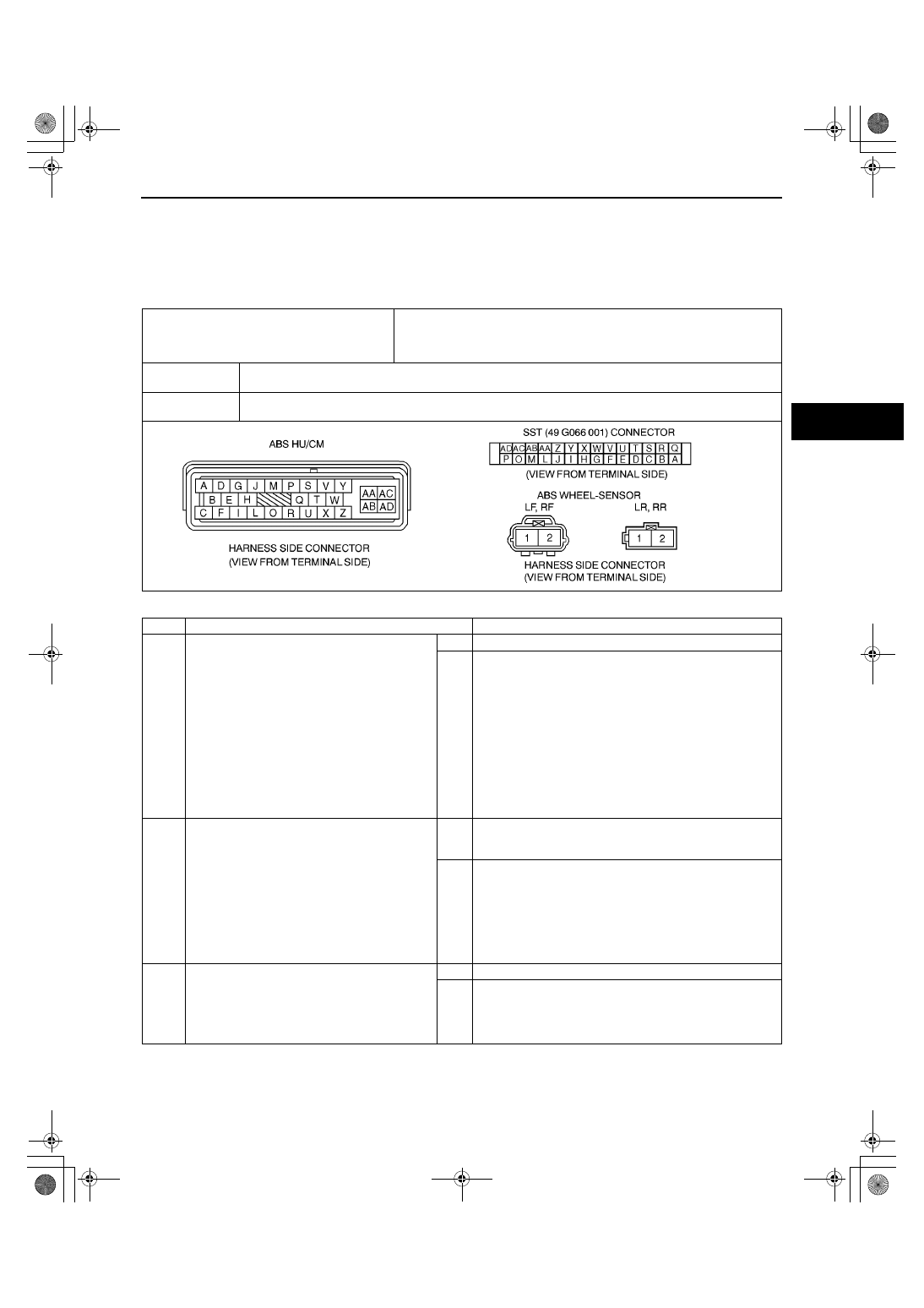

DTC C1145 (11), C1155 (12), C1165 (13), C1175 (14)

A3U040243000W03

Caution

••••

When attaching the tester lead to the ABS HU/CM or the ABS HU/CM harness connector the SST
(49 G066 001) must be used. (See 04–13–6 ABS HYDRAULIC UNIT (HU)/CONTROL MODULE (CM)
INSPECTION.)

Diagnostic procedure

DTC

C1145 (11)
C1155 (12)
C1165 (13)
C1175 (14)

RF ABS wheel-speed sensor
LF ABS wheel-speed sensor
RR ABS wheel-speed sensor
LR ABS wheel-speed sensor

DETECTION

CONDITION

•

When open or short circuit is detected.

POSSIBLE

CAUSE

•

Open circuit or short to power circuit of ABS wheel-speed sensor(s) circuit

•

ABS wheel-speed sensor(s) malfunction

STEP

INSPECTION

ACTION

1

INSPECT ABS WHEEL-SPEED SENSOR
CIRCUIT FOR OPEN CIRCUIT

•

Turn ignition key to OFF.

•

Disconnect ABS HU/CM connector.

•

Connect SST (adapter harness) to ABS HU/
CM connector (harness side) with ABS HU/
CM disconnected.

•

Measure resistance between suspected
sensor terminals of SST.
— RF ABS wheel-speed sensor: G—D
— LF ABS wheel-speed sensor: E—I
— RR ABS wheel-speed sensor: A—B
— LR ABS wheel-speed sensor: C—F

•

Is resistance within 1.3—1.7 kilohm?

Yes

Go to next step.

No

Go to Step 3.

2

INSPECT ABS WHEEL-SPEED SENSOR
CIRCUIT FOR SHORT TO POWER

•

Turn ignition key to ON (engine OFF).

•

Inspect voltage between suspected sensor
terminal(s) of SST (adapter harness) and
ground(s).
— RF ABS wheel-speed sensor: G, D
— LF ABS wheel-speed sensor: I, E
— RR ABS wheel-speed sensor: A, B
— LR ABS wheel-speed sensor: C, F

•

Is there any B+?

Yes

Repair or replace harness for short to power circuit between
ABS HU/CM and ABS wheel-speed sensor(s), then go to
Step 5.

No

Go to Step 5.

3

INSPECT ABS WHEEL-SPEED SENSOR

•

Turn ignition key to OFF.

•

Disconnect suspected sensor connector(s)
and inspect resistance between sensor
terminals (part side).

•

Is resistance within 1.3—1.7 kilohm?

Yes

Go to next step.

No

Replace ABS wheel-speed sensor, then go to Step 5.

1712-1U-01G(04-02).fm  11 ページ  ２００１年６月２９日 金曜日 午前１０時１分

ON-BOARD DIAGNOSTIC

04–02–12

End Of Sie

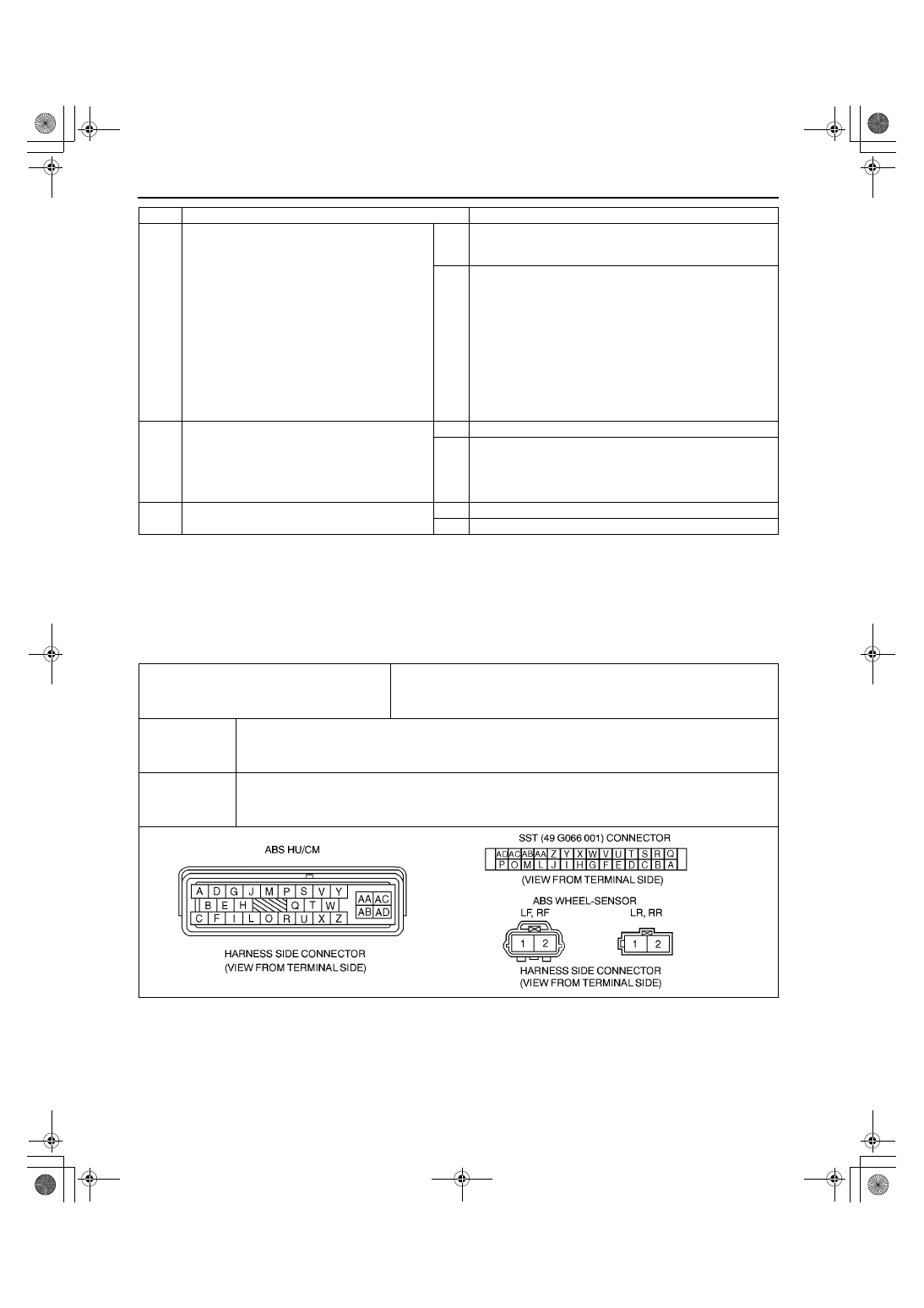

DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48)

A3U040243000W04

Caution

••••

When attaching the tester lead to the ABS HU/CM or the ABS HU/CM harness connector the SST
(49 G066 001) must be used. (See 04–13–6 ABS HYDRAULIC UNIT (HU)/CONTROL MODULE (CM)
INSPECTION.)

4

INSPECT ABS HU/CM TO ABS
WHEEL-SPEED SENSOR CIRCUIT FOR
OPEN CIRCUIT

•

Inspect continuity between suspected sensor
terminal(s) of SST and ABS wheel-speed
sensor connector. (vehicle harness side)
— RF ABS wheel-speed sensor (+): G-1
— RF ABS wheel-speed sensor (–): D-2
— LF ABS wheel-speed sensor (+): I-1
— LF ABS wheel-speed sensor (–): E-2
— RR ABS wheel-speed sensor (+): A-1
— RR ABS wheel-speed sensor (–): B-2
— LR ABS wheel-speed sensor (+): C-1
— LR ABS wheel-speed sensor (–): F-2

•

Is there continuity?

Yes

Repair or replace poor connections of ABS HU/CM
connector and/or ABS wheel-speed sensor connector(s),
then go to next step.

No

Repair or replace harness for open circuits between ABS
HU/CM and ABS wheel-speed sensor(s), then go to next
step.

5

VERIFY TROUBLESHOOTING COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Clear DTC from memory
(See 04–02–4 DTCs Clearing Procedure)

•

Is same DTC present?

Yes

Replace ABS HU/CM, then go to next step.

No

Go to next step.

6

VERIFY AFTER REPAIR PROCEDURE

•

Is there any other DTC present?

Yes

Go to applicable DTC inspection.

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

DTC

C1148 (41), C1234 (45)
C1158 (42), C1233 (46)
C1168 (43), C1235 (47)
C1178 (44), C1236 (48)

RF ABS wheel-speed sensor/sensor rotor
LF ABS wheel-speed sensor/sensor rotor
RR ABS wheel-speed sensor/sensor rotor
LR ABS wheel-speed sensor/sensor rotor

DETECTION

CONDITION

•

C1148 (41), C1158 (42), C1168 (43), C1178 (44): ABS wheel-speed signal is out of specification when
just after vehicle has started to move.

•

C1234 (45), C1233 (46), C1235 (47), C1236 (48): ABS wheel-speed signal malfunction (distortion/
sudden change) is detected during driving.

POSSIBLE

CAUSE

•

Short to ground circuit of ABS wheel-speed sensor(s) circuit

•

ABS wheel-speed sensor(s) malfunction

•

Damaged ABS sensor rotor(s)

•

Incorrect clearance between ABS sensor and sensor rotor

1712-1U-01G(04-02).fm  12 ページ  ２００１年６月２９日 金曜日 午前１０時１分

ON-BOARD DIAGNOSTIC

04–02–13

04–02
