Mazda Protege 5. Manual - part 201

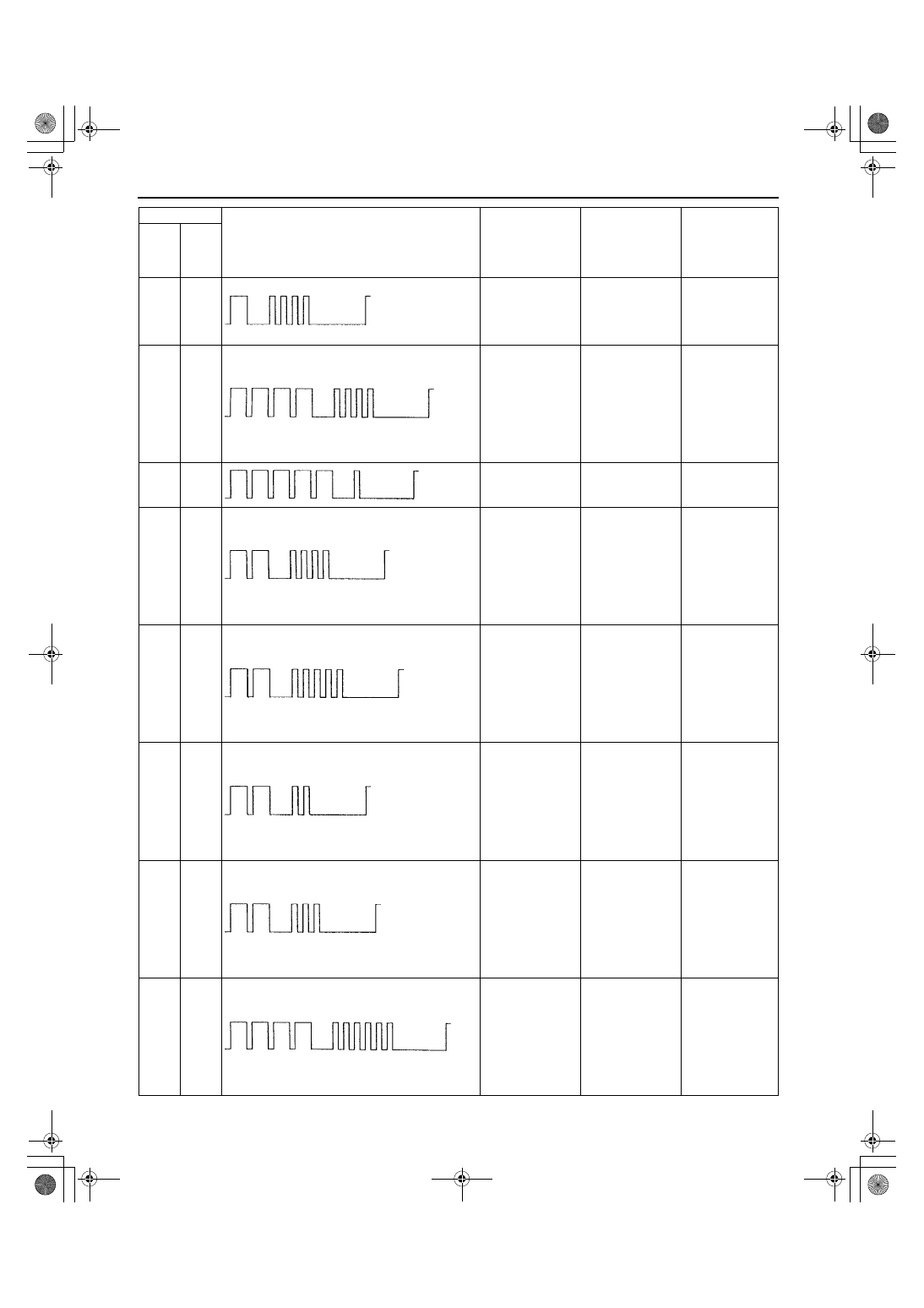

ON-BOARD DIAGNOSTIC

04–02–6

C1175

14

Circuit failure of
LR ABS wheel-
speed sensor

Left rear
wheel-speed
sensor

(See 04–02–11
DTC C1145 (11),
C1155 (12),
C1165 (13),
C1175 (14).)

C1178

44

LR ABS wheel-
speed sensor and/
or sensor rotor
malfunction

Left rear ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

C1186

51

Open circuit of
fail-safe relay

Fail-safe relay

(See 04–02–16
DTC C1186 (51),
C1266 (52).)

C1194

24

LF pressure
reduction solenoid
valve malfunction

Left front ABS
pressure
reduction solenoid
valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1198

25

LF pressure
retention solenoid
valve malfunction

Left front ABS
pressure retention
solenoid valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1210

22

RF pressure
reduction solenoid
valve malfunction

Right front ABS
pressure
reduction solenoid
valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1214

23

RF pressure
retention solenoid
valve malfunction

Right front ABS
pressure retention
solenoid valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1233

46

LF ABS wheel-
speed sensor
input signal
missing

Left front ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

DTC

ABS warning light flashing pattern

DTC definition

Diagnosis

system

component

Page

WDS

or

equi-

valent

ABS

warn-

ing

light

1712-1U-01G(04-02).fm  6 ページ  ２００１年６月２９日 金曜日 午前１０時１分

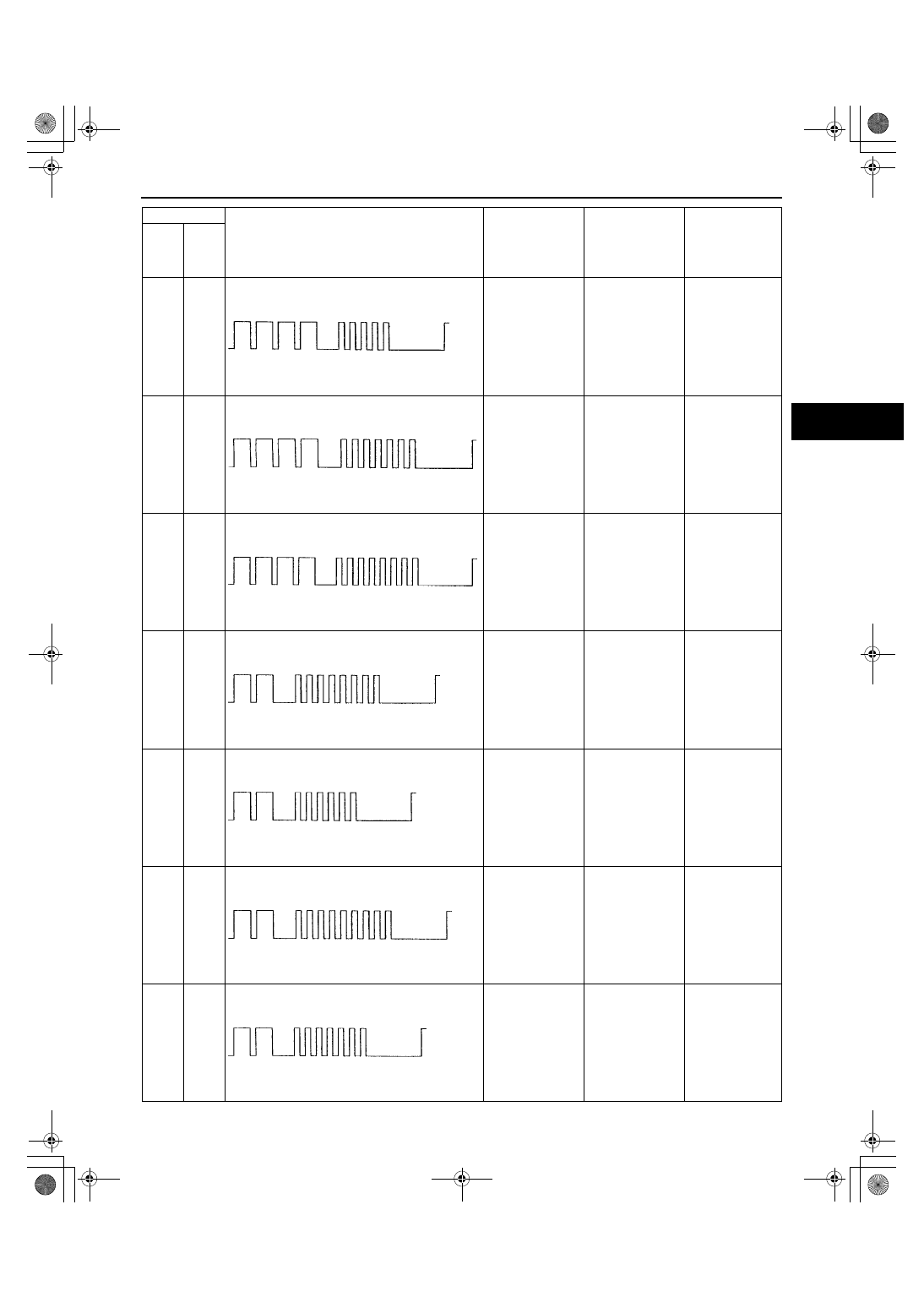

ON-BOARD DIAGNOSTIC

04–02–7

04–02

C1234

45

RF ABS wheel-
speed sensor
input signal
missing

Right front ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

C1235

47

RR ABS wheel-
speed sensor
input signal
missing

Right rear ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

C1236

48

LR ABS wheel-
speed sensor
input signal
missing

Left rear ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

C1242

28

LR pressure
reduction solenoid
valve malfunction

Left rear ABS
pressure
reduction solenoid
valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1246

26

RR pressure
reduction solenoid
valve malfunction

Right rear ABS
pressure
reduction solenoid
valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1250

29

LR pressure
retention solenoid
valve malfunction

Left rear ABS
pressure retention
solenoid valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

C1254

27

RR pressure
retention solenoid
valve malfunction

Right rear ABS
pressure retention
solenoid valve

(See 04–02–14
DTC C1194 (24),
C1198 (25),
C1210 (22),
C1214 (23),
C1242 (28),
C1246 (26),
C1250 (29),
C1254 (27).)

DTC

ABS warning light flashing pattern

DTC definition

Diagnosis

system

component

Page

WDS

or

equi-

valent

ABS

warn-

ing

light

1712-1U-01G(04-02).fm  7 ページ  ２００１年６月２９日 金曜日 午前１０時１分

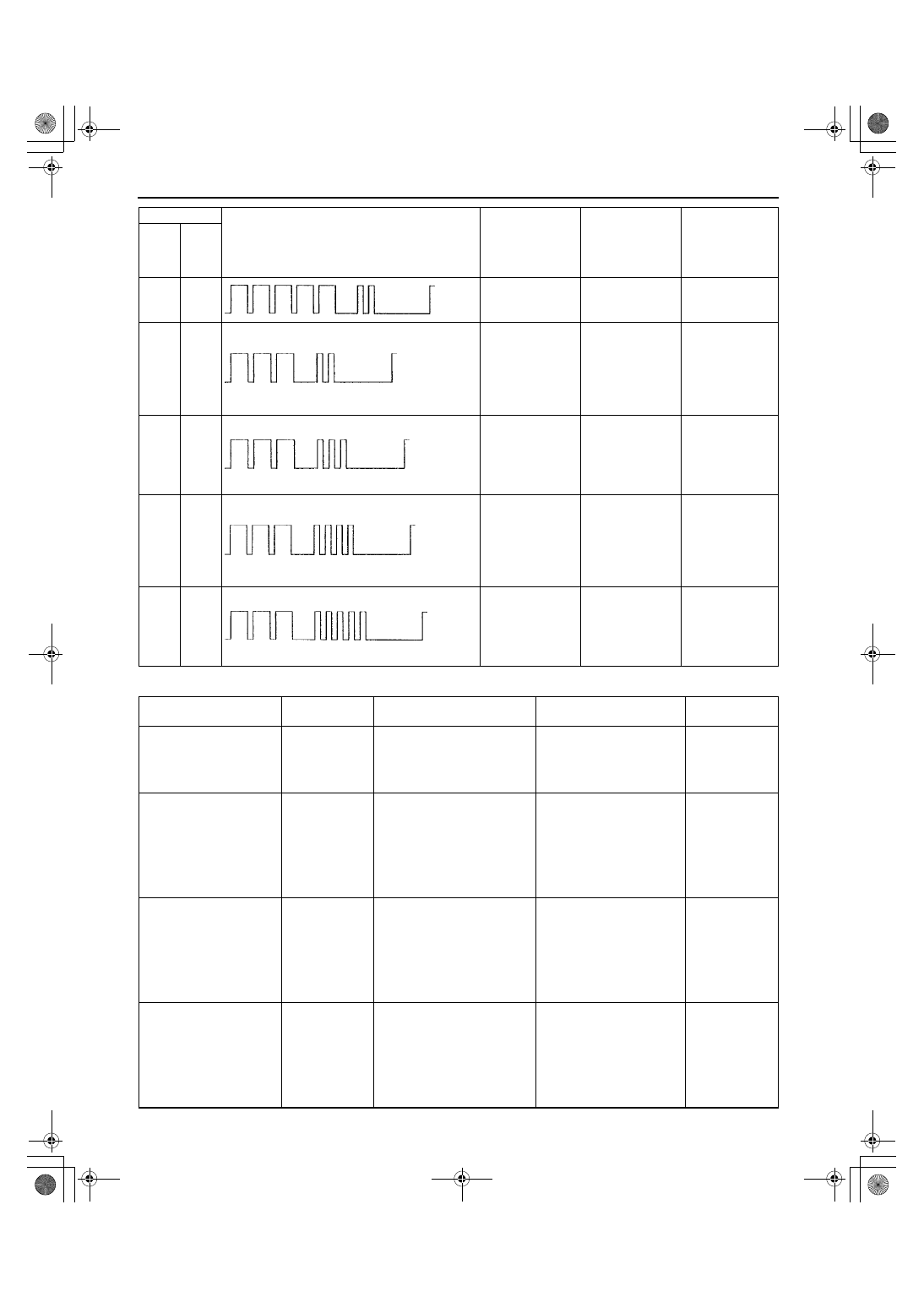

ON-BOARD DIAGNOSTIC

04–02–8

PID/DATA Monitor Table

C1266

52

Circuit failure of
fail-safe relay

Fail-safe relay

(See 04–02–16
DTC C1186 (51),
C1266 (52).)

C1510

32

RF ABS wheel-
speed sensor and/
or ABS HU
malfunction

Right front
solenoid valve,
ABS motor, right
front ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–15
DTC C1510 (32),
C1511 (33),
C1512 (34),
C1513 (35).)

C1511

33

LF ABS wheel-
speed sensor and/
or ABS HU
malfunction

Left front solenoid
valve, ABS motor,
left front ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–15
DTC C1510 (32),
C1511 (33),
C1512 (34),
C1513 (35).)

C1512

34

RR ABS wheel-
speed sensor and/
or ABS HU
malfunction

Right rear
solenoid valve,
ABS motor, right
rear ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–15
DTC C1510 (32),
C1511 (33),
C1512 (34),
C1513 (35).)

C1513

35

LR ABS wheel-
speed sensor and/
or ABS HU
malfunction

Left rear solenoid
valve, ABS motor,
left rear ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–15
DTC C1510 (32),
C1511 (33),
C1512 (34),
C1513 (35).)

PID Name

(Definition)

Unit/Condition

Condition/Specification

Action

ABS HU/CM

terminal

ABS_LAMP
(ABS warning light output
state)

ON/OFF

•

ABS warning light is
illuminated: ON

•

ABS warning light is not
illuminated: OFF

Inspect ABS warning light
(See 09–22–3
INSTRUMENT CLUSTER
REMOVAL/
INSTALLATION)

W

ABSLF_I
(Left front ABS pressure
retention solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

ABSLF_O
(Left front ABS pressure
reduction solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

ABSLR_I
(Left rear ABS pressure
retention solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

DTC

ABS warning light flashing pattern

DTC definition

Diagnosis

system

component

Page

WDS

or

equi-

valent

ABS

warn-

ing

light

1712-1U-01G(04-02).fm  8 ページ  ２００１年６月２９日 金曜日 午前１０時１分

ON-BOARD DIAGNOSTIC

04–02–9

04–02

ABSLR_O
(Left rear ABS pressure
reduction solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

ABSRF_I
(Right front ABS pressure
retention solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

ABSRF_O
(Right front ABS pressure
reduction solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/INSTALLATION

—

ABSRR_I
(Right rear ABS pressure
retention solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

ABSRR_O
(Right rear ABS pressure
reduction solenoid valve
output state)

ON/OFF

•

During ABS and/or EBD
control: ON/OFF
(solenoid valve is
activated/deactivated)

•

Not ABS and/or EBD
control: OFF
(solenoid valve is
deactivated)

Internal fault of ABS HU/
CM. Replace ABS HU/CM
(See 04–13–5 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
REMOVAL/
INSTALLATION)

—

ABS_VOLT
(System battery voltage
value)

V

•

Ignition key at ON: B+

•

Idle: 14—16V

Inspect power supply circuit
(See 04–13–6 ABS
HYDRAULIC UNIT (HU)/
CONTROL MODULE (CM)
INSPECTION)

—

BOO_ABS
(Brake pedal switch input)

ON/OFF

•

Brake pedal is depressed:
ON

•

Brake pedal is released:
OFF

Inspect brake switch
(See 04–11–5 BRAKE
SWITCH INSPECTION)

Y

BRAKE_LMP
(BRAKE system warning
light output state)

ON/OFF

•

BRAKE system warning
light is illuminated: ON

•

BRAKE system warning
light is not illuminated:
OFF

Inspect BRAKE system
warning light
(See 09–22–3
INSTRUMENT CLUSTER
REMOVAL/
INSTALLATION)

X

CCNTABS
(Number of continuous
DTC)

—

•

DTC is detected: 1—255

•

DTC is not detected: 0

Perform inspection using
appropriate DTC
(See 04–02–3 ABS ON-
BOARD DIAGNOSTIC)

—

LF_WSPD
(Left front ABS wheel-
speed sensor input)

KPH/MPH

•

Vehicle is stopped: 0KPH
{0MPH}

•

Indicates vehicle speed

Inspect ABS wheel-speed
sensor/sensor rotor.
(See 04–13–9 FRONT/
REAR ABS WHEEL-
SPEED SENSOR
INSPECTION)

I, E

PID Name

(Definition)

Unit/Condition

Condition/Specification

Action

ABS HU/CM

terminal

1712-1U-01G(04-02).fm  9 ページ  ２００１年６月２９日 金曜日 午前１０時１分
