DRIVE SHAFT

03–13–12

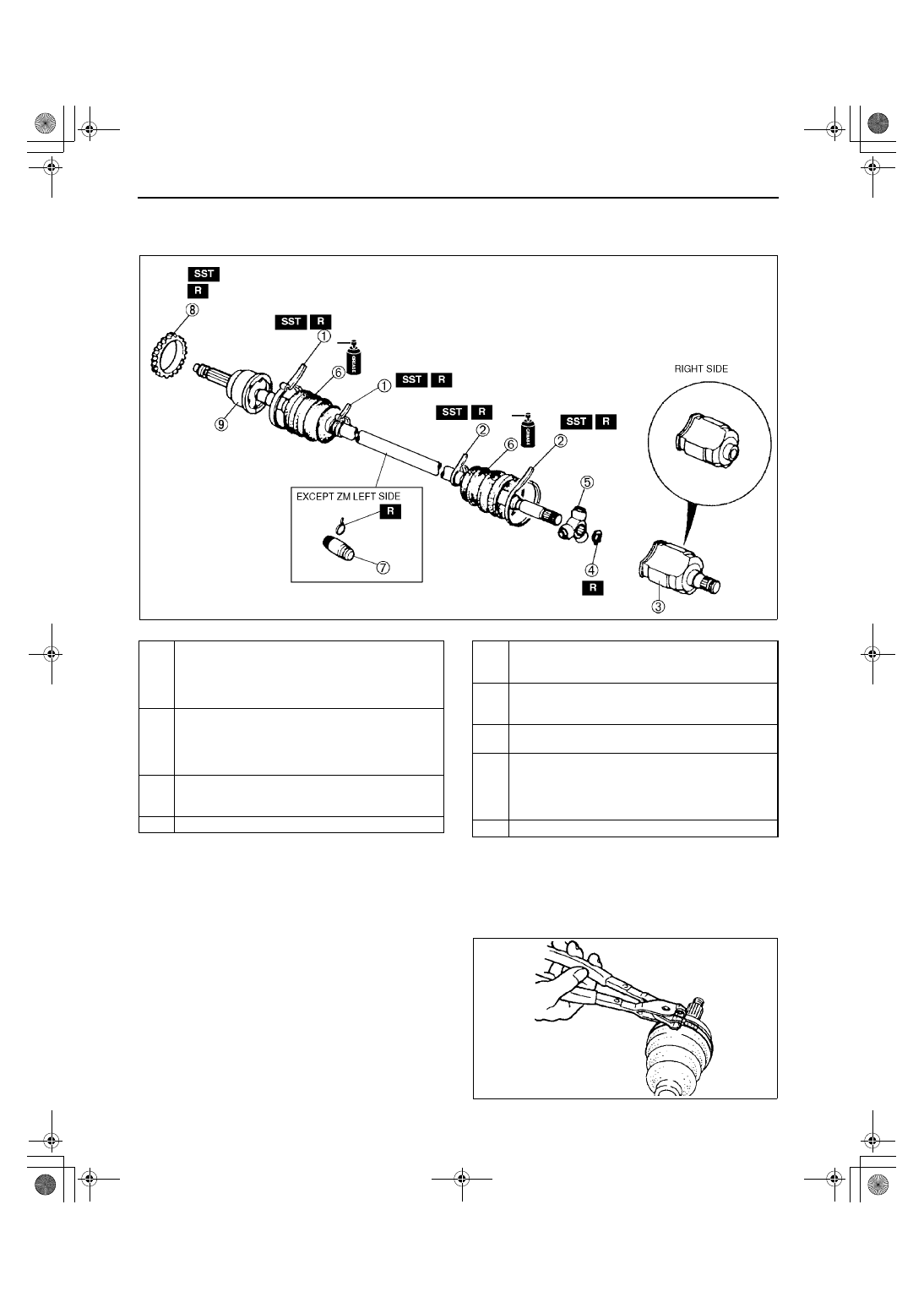

DRIVE SHAFT (ZM, FS ATX, FS MTX RIGHT SIDE) DISASSEMBLY/ASSEMBLY

A3U031325500W04

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

.

Boot Band (Wheel Side) Disassembly Note

Note

•

Thoot band need not to be replaced if removed.

1. Remove the boot clamp with end clamp pliers as

shown and discard the clamp.

A3U0313W004

1

Boot band (wheel side)
(See 03–13–12 Boot Band (Wheel Side)
Disassembly Note)
(See 03–13–16 Boot Band (Wheel Side) Assembly
Note)

2

Boot band (transaxle side)
(See 03–13–13 Boot Band (Transaxle Side)
Disassembly Note)
(See 03–13–16 Boot Band (Transaxle Side)
Assembly Note)

3

Outer ring
(See 03–13–13 Outer Ring Disassembly Note)
(See 03–13–15 Outer Ring Assembly Note)

4

Snap ring

5

Tripod joint
(See 03–13–13 Tripod Joint Disassembly Note)
(See 03–13–15 Tripod Joint Assembly Note)

6

Boot
(See 03–13–13 Boot Disassembly Note)
(See 03–13–14 Boot Assembly Note)

7

Dynamic Damper
(See 03–13–14 Dynamic Damper Assembly Note)

8

ABS sensor rotor (with ABS)
(See 03–13–14 ABS Sensor Rotor (With ABS)
Disassembly Note)
(See 03–13–14 ABS Sensor Rotor (With ABS)
Assembly Note)

9

Shaft and ball joint component

Y3E6316W025

1712-1U-01G(03-13).fm  12 ページ  ２００１年６月２９日 金曜日 午前９時５９分

DRIVE SHAFT

03–13–13

03–13

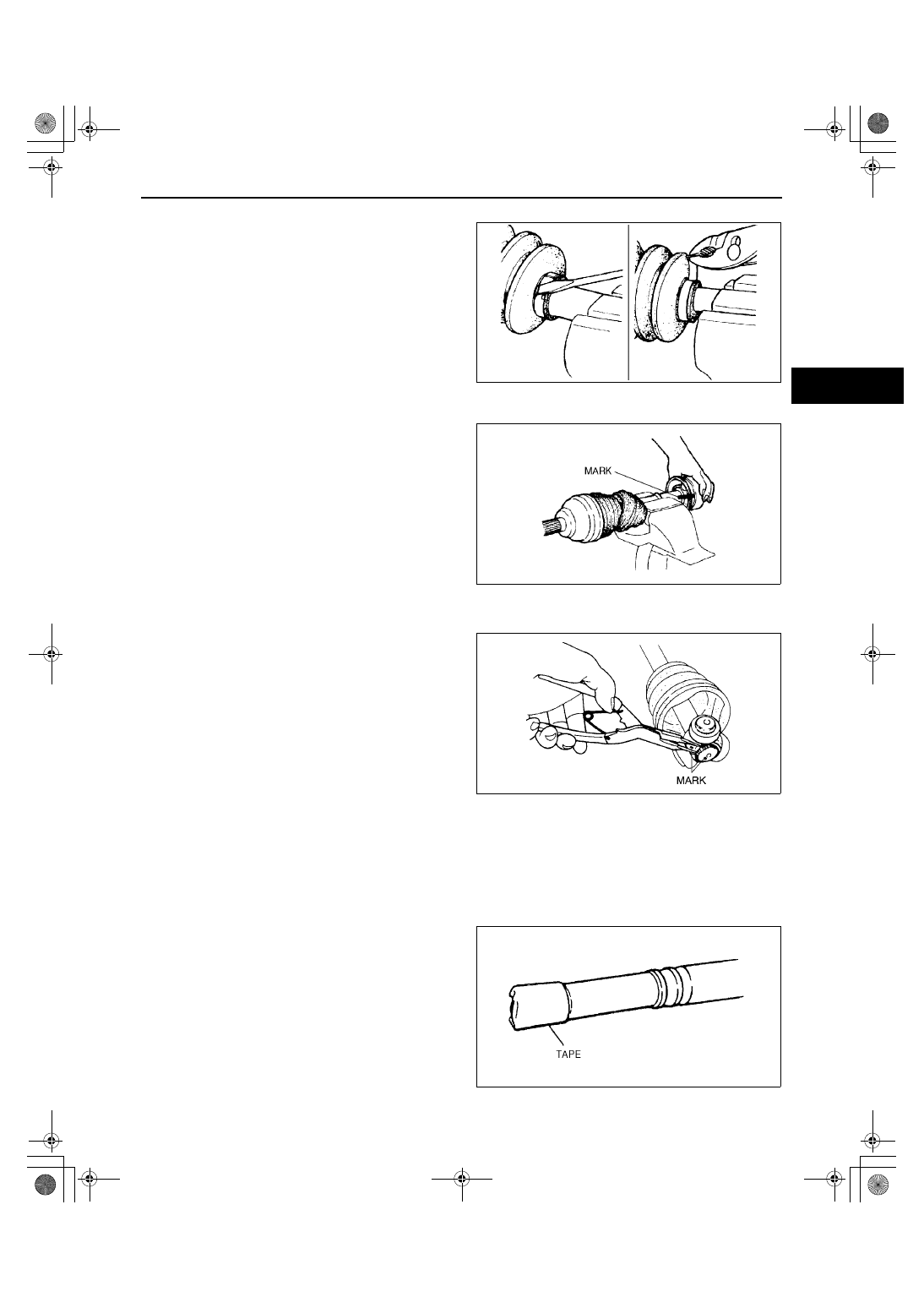

Boot Band (Transaxle Side) Disassembly Note

1. Pry up the locking clips using a screwdriver.
2. Pull back the end of the band.

Outer Ring Disassembly Note

1. Mark the outer ring and the shaft for proper

assembly.

2. Remove the outer ring.

Tripod Joint Disassembly Note

1. Mark the shaft and tripod joint for proper

assembly.

2. Remove the snap ring using snap-ring pliers.
3. Remove the tripod joint from the shaft.

Caution

••••

Do not use a hammer to remove the joint
shaft.

Boot Disassembly Note

Note

•

The wheel side boot does not need to be removed unless replacing the boot or the ball joint and shaft
component.

•

Do not strip the tape until the boot is assembled.

1. Wrap the shaft splines with tape.
2. Remove the boot.

Y3E6316W031

Z3U0313W002

YDE6316W002

Z3U0313W003

1712-1U-01G(03-13).fm  13 ページ  ２００１年６月２９日 金曜日 午前９時５９分

DRIVE SHAFT

03–13–14

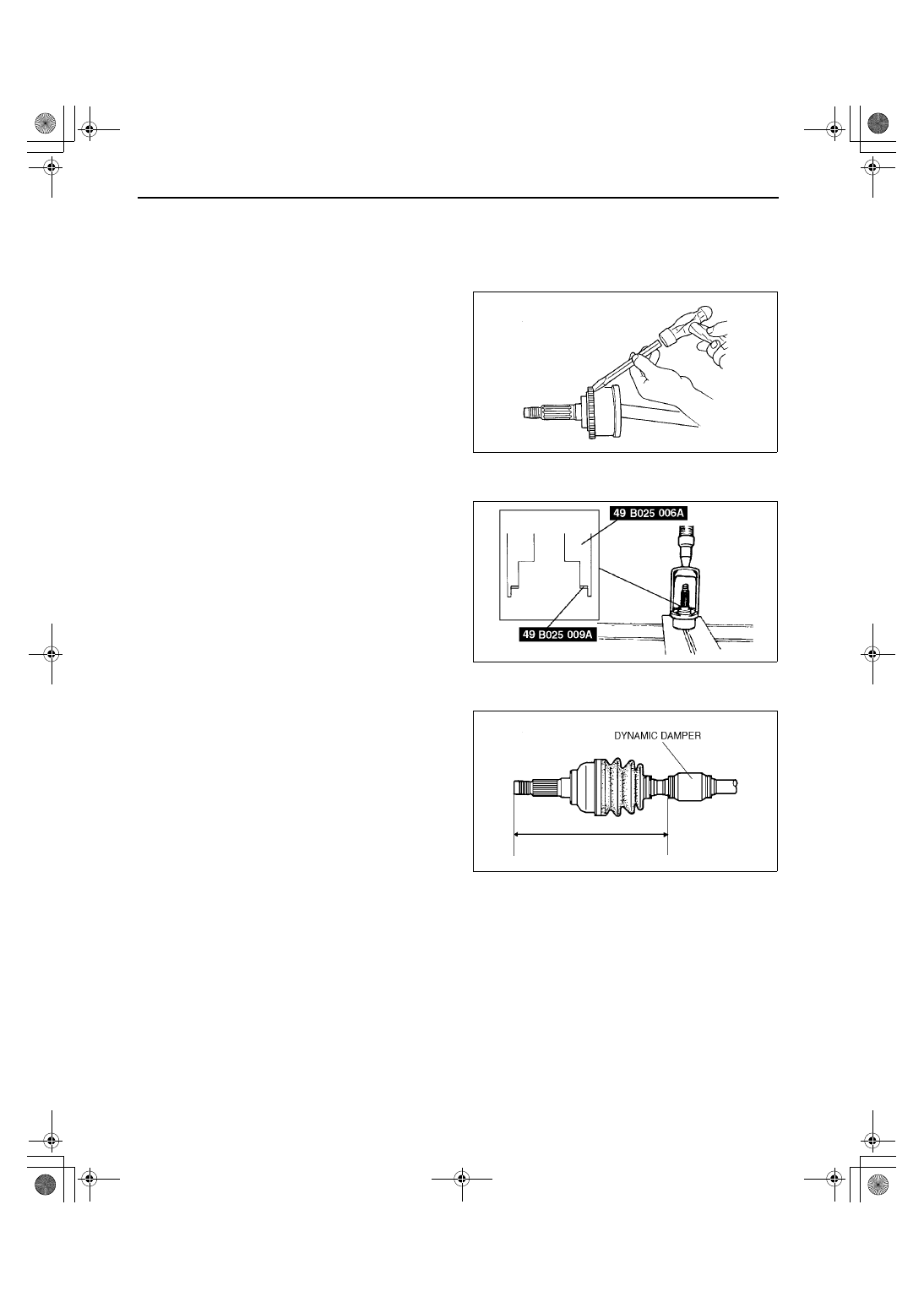

ABS Sensor Rotor (With ABS) Disassembly Note

Caution

••••

Do not remove the sensor rotor unless it is necessary.

••••

Do not reuse the sensor rotor if removed.

1. Tap the ABS sensor rotor off the drive shaft using

a chisel.

ABS Sensor Rotor (With ABS) Assembly Note

1. Set a new ABS sensor rotor on the drive shaft

and press it on using the SSTs.

Dynamic Damper Assembly Note

1. Install the dynamic damper as shown in the

figure.

Standard length

292—298 mm {11.5—11.7 in}

2. Install the new boot band onto the dynamic

damper.

Boot Assembly Note

1. Fill the boot (wheel side) with the specified grease .

Caution

••••

Do not touch grease with your hand. Apply it from the tube to prevent foreign matter from entering
the boot.

Note

•

The wheel side and transaxle side boots are different.

•

Use the specified grease supplied in the boot kit.

Grease amount

ZM: 60—80 g {2.12—2.82 oz}
FS: 75—95 g {2.65—3.35 oz}

ZLU0313W105

Z3U0313W004

ZLU0313W141

1712-1U-01G(03-13).fm  14 ページ  ２００１年６月２９日 金曜日 午前９時５９分

DRIVE SHAFT

03–13–15

03–13

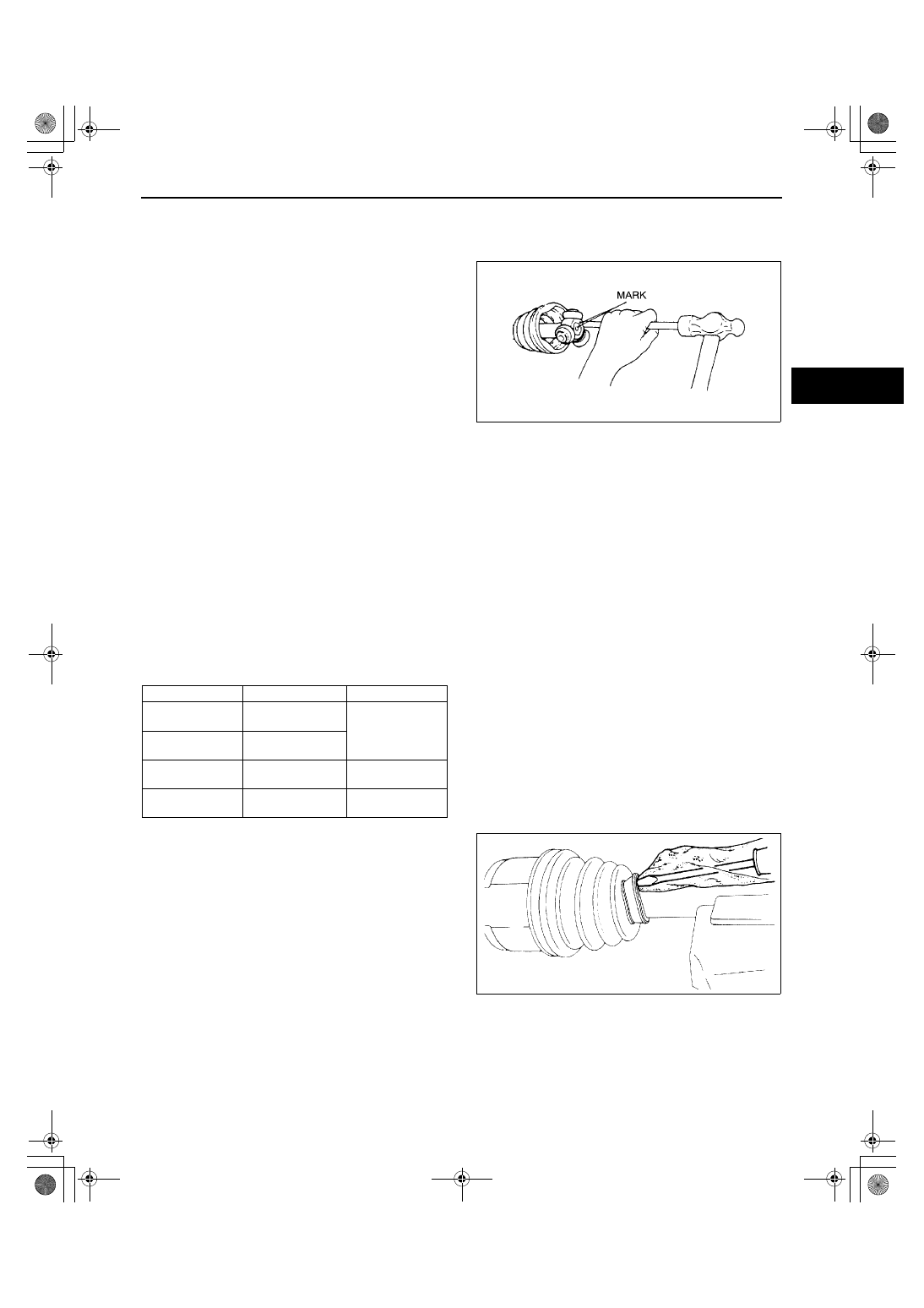

2. Install the boot with the splines of the shaft still wrapped in tape from disassembly.
3. Remove the tape.

Tripod Joint Assembly Note

1. Align the marks and install the tripod joint using a

bar and a hammer.

Caution

••••

Do not damage the roller.

2. Install the new snap ring using a snap-ring pliers.

Caution

••••

Install the snap ring in the shaft groove
securely.

Outer Ring Assembly Note

1. Fill the outer ring and boot (transaxle side) with the specified grease from a tube, not by hand.

Caution

••••

Do not touch grease with your hand. Apply it from the tube to prevent foreign matter from entering
the boot.

Note

•

Use the specified grease supplied in the boot kit.

Grease amount

115—135 g {4.06—4.76 oz}

2. Install the outer ring.
3. Set the drive shaft to the standard length.

Standard length

mm {in}

4. Release any trapped air from the boots by

carefully lifting up the small end of each boot with
a cloth wrapped screwdriver.

Caution

••••

Be careful not to allow the greaseto leak.

••••

Do not damage the boot.

5. Verify that the drive shaft length is within the

specification.

YDE6316W006

Engine

Left side

Right side

ZM (MTX)

642.6—652.6

{25.30—25.69}

607.9—617.9

{23.94—24.32}

ZM (ATX)

626.7—636.7

{24.68—25.06}

FS (MTX)

—

604.6—614.6

{23.81—24.19}

FS (ATX)

627.9—637.9

{24.73—25.11}

608.9—618.9

{23.98—24.36}

Y3E6316W033
