FRONT AXLE

03–11–4

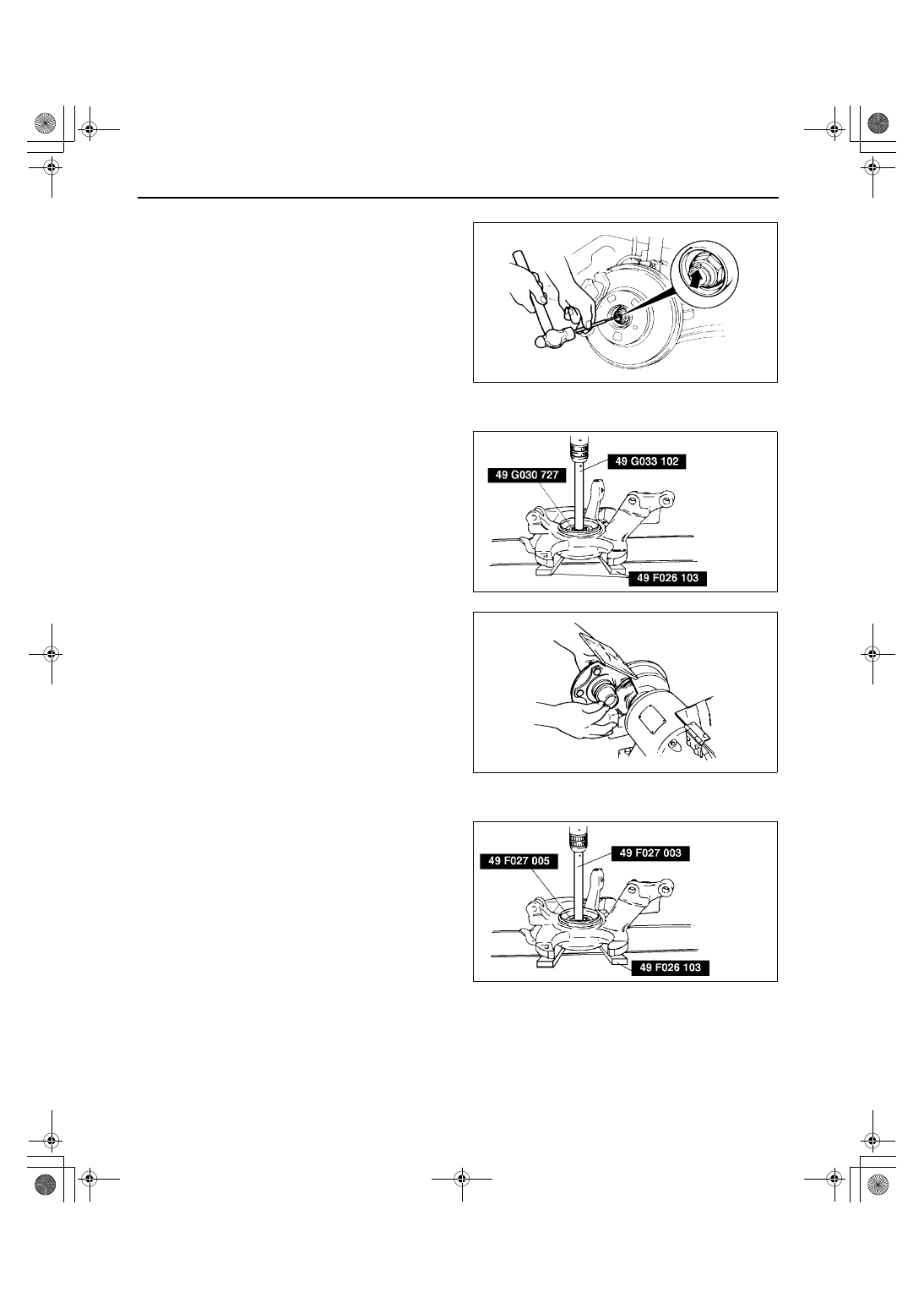

Locknut Removal Note

1. Knock the crimped portion of the locknut outward

using a small chisel and a hammer.

2. Lock the hub by applying the brakes.
3. Remove the locknut.

Wheel Hub Component Removal Note

1. Remove the wheel hub component using the

SSTs.

2. If the bearing inner race remains on the front

wheel hub component, grind a section of the
bearing inner race until approx. 0.5 mm {0.020
in} remains. Then remove it using a chisel.

Wheel Bearing Removal Note

1. Remove the wheel bearing using the SSTs.

X3U311WA5

A3U0311W008

X3U311WA7

A3U0311W009

1712-1U-01G(03-11).fm  4 ページ  ２００１年６月２９日 金曜日 午前９時５７分

FRONT AXLE

03–11–5

03–11

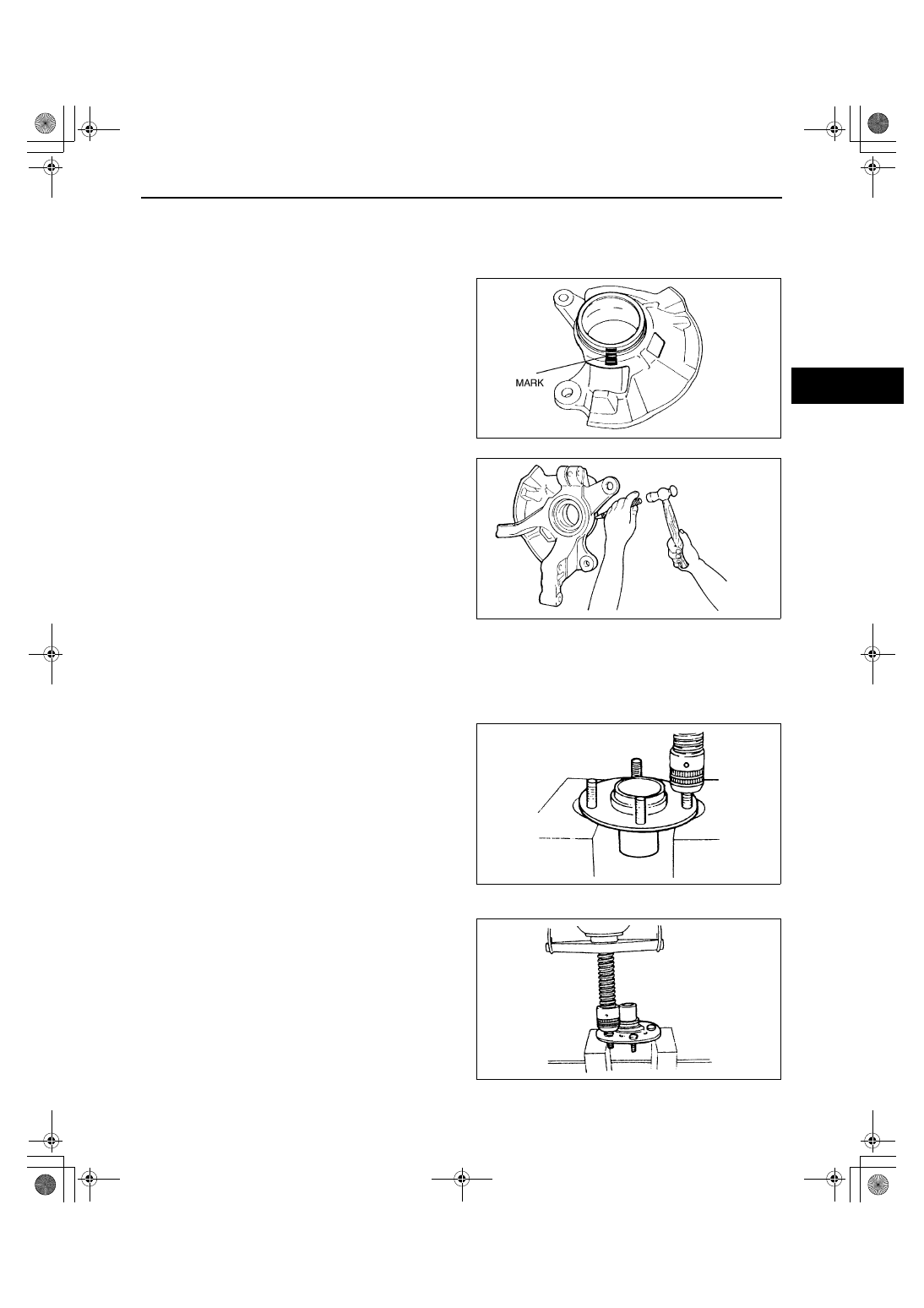

Dust Cover Removal Note

Note

•

The dust cover does not need to be removed unless it is being replaced.

1. Mark the dust cover and steering knuckle for

proper installation.

2. Remove the dust cover using a chisel.

Hub Bolt Removal Note

Note

•

The hub bolts do not need to be removed unless they are being replaced.

1. Remove the hub bolts using a press.

Hub Bolt Installation Note

1. Install the new hub bolts using a press.

Y3U311WA1

X3U311WAA

X3U311WAB

X3U311WAC

1712-1U-01G(03-11).fm  5 ページ  ２００１年６月２９日 金曜日 午前９時５７分

FRONT AXLE

03–11–6

Dust Cover Installation Note

1. Mark the new dust cover in the same way as the

removed one.

2. Align the marks of the new dust cover and the

knuckle.

3. Install the new dust cover using the SSTs.

Wheel Bearing Installation Note

1. Install the new wheel bearing using the SSTs.

Wheel Hub Component Installation Note

1. Install the wheel hub component using the SST.

X3U311WAD

A3U0311W004

A3U0311W005

A3U0311W006

1712-1U-01G(03-11).fm  6 ページ  ２００１年６月２９日 金曜日 午前９時５７分

FRONT AXLE

03–11–7

03–11

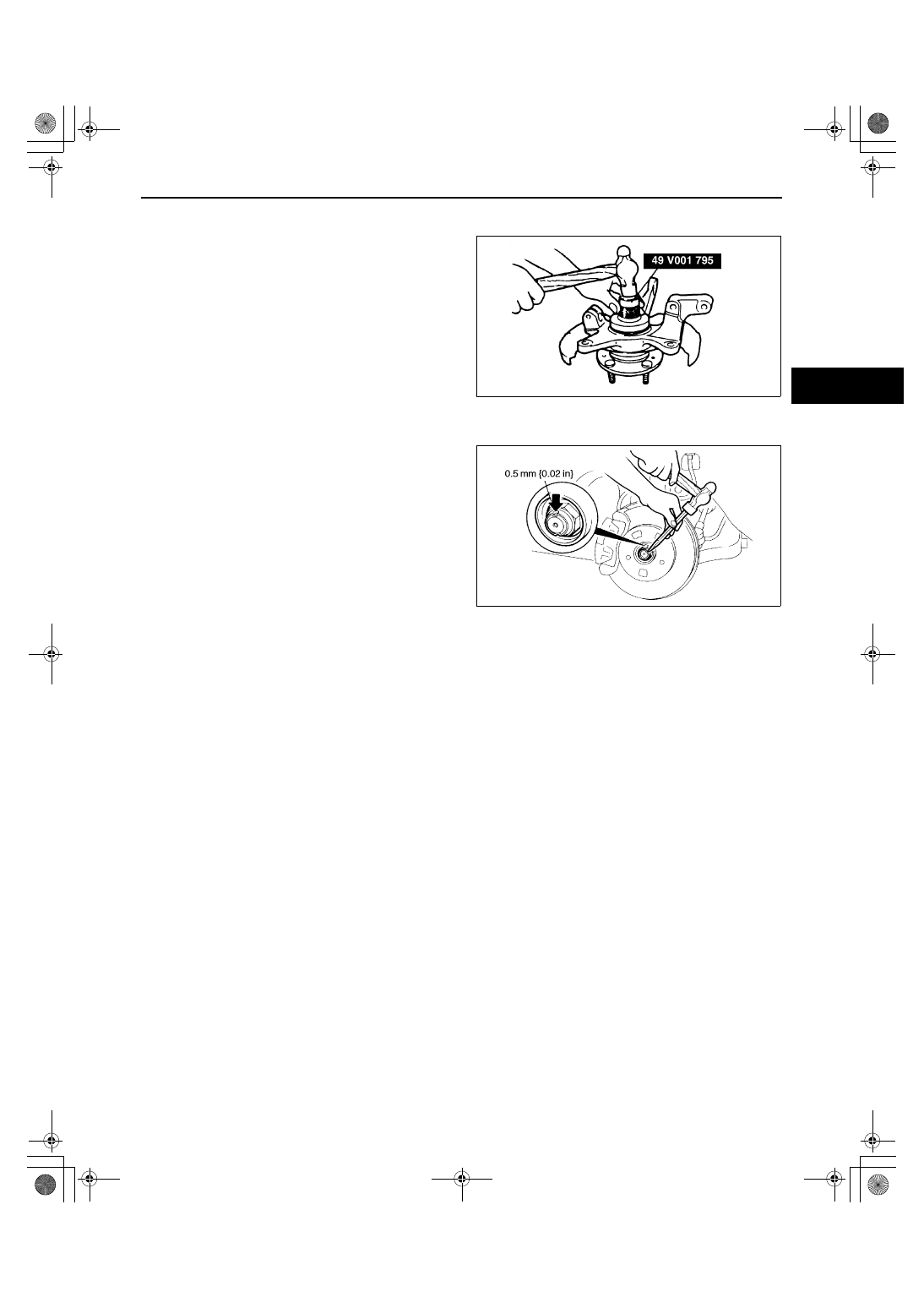

Oil Seal Installation Note

1. Apply grease to the new oil seal lip.
2. Install the new oil seal flush with the knuckle

using the SST.

Locknut Installation Note

1. Install a new locknut and stake it as shown.

End Of Sie
