03–10–1

03

DRIVELINE/AXLE

SECTION

03–10

Toc of SCT

GENERAL PROCEDURES . . . . 03-10
FRONT AXLE  . . . . . . . . . . . . . . 03-11
REAR AXLE  . . . . . . . . . . . . . . . 03-12

DRIVE SHAFT  . . . . . . . . . . . . .  03-13
TECHNICAL DATA  . . . . . . . . .  03-50
SERVICE TOOLS. . . . . . . . . . .  03-60

Toc of SCT

03–10

GENERAL PROCEDURES

PRECAUTION (DRIVELINE/AXLE) . . . . . 03–10–1

Wheel and Tire Removal/Installation  . . 03–10–1
Brake Line

Disconnection/Connection  . . . . . . . . . 03–10–1

Suspension Arm

Removal/Installation   . . . . . . . . . . . . .  03–10–1

End of Toc

PRECAUTION (DRIVELINE/AXLE)

A3U031001018W01

Wheel and Tire Removal/Installation

1. The removal and installation procedures for the wheels and tires are not mentioned in this section. When a

wheel is removed, tighten it to 89—117 N·m {9.0—12.0 kgf·m, 65.1—86.7 ft·lbf}.

Brake Line Disconnection/Connection

Caution

••••

Brake fluid will damage painted surfaces. If brake fluid gets on a painted surface, wipe it off
immediately.

1. Tighten the brake pipe flare nut using the SST (49 0259 770B). Be sure to modify the brake pipe flare nut

tightening torque to allow for use of a torque wrench-SST combination. (See 00–00–15 Torque Formulas.)

•

If any brake line has been disconnected any time during the procedure, add brake fluid, bleed the brakes,
and inspect for leakage after the procedure has been completed.

Suspension Arm Removal/Installation

1. Tighten any part of the suspension that uses rubber bushings only after vehicle has been lowered and

unloaded.

Note

•

Unloaded ... Fuel tank is full. Engine coolant and engine oil are at specified level. Spare tire, jack, and
tools are in designated position.

End Of Sie

1712-1U-01G(03-10).fm  1 ページ  ２００１年６月２９日 金曜日 午前９時５７分

FRONT AXLE

03–11–1

03–11

03–11

FRONT AXLE

FRONT AXLE LOCATION INDEX  . . . . .  03–11–1
WHEEL HUB, STEERING KNUCKLE

PRE-INSPECTION  . . . . . . . . . . . . . . . .  03–11–1

Wheel Bearing Play Inspection  . . . . . .  03–11–1

WHEEL HUB BOLT REPLACEMENT  . .  03–11–2
WHEEL HUB, STEERING KNUCKLE

REMOVAL/INSTALLATION . . . . . . . . .  03–11–3

Locknut Removal Note. . . . . . . . . . . . .  03–11–4
Wheel Hub Component

Removal Note  . . . . . . . . . . . . . . . . . .  03–11–4

Wheel Bearing Removal Note . . . . . . . . 03–11–4
Dust Cover Removal Note  . . . . . . . . . . 03–11–5
Hub Bolt Removal Note. . . . . . . . . . . . . 03–11–5
Hub Bolt Installation Note . . . . . . . . . . . 03–11–5
Dust Cover Installation Note . . . . . . . . . 03–11–6
Wheel Bearing Installation Note  . . . . . . 03–11–6
Wheel Hub Component

Installation Note  . . . . . . . . . . . . . . . . . 03–11–6

Oil Seal Installation Note  . . . . . . . . . . . 03–11–7
Locknut Installation Note . . . . . . . . . . . . 03–11–7

End of Toc

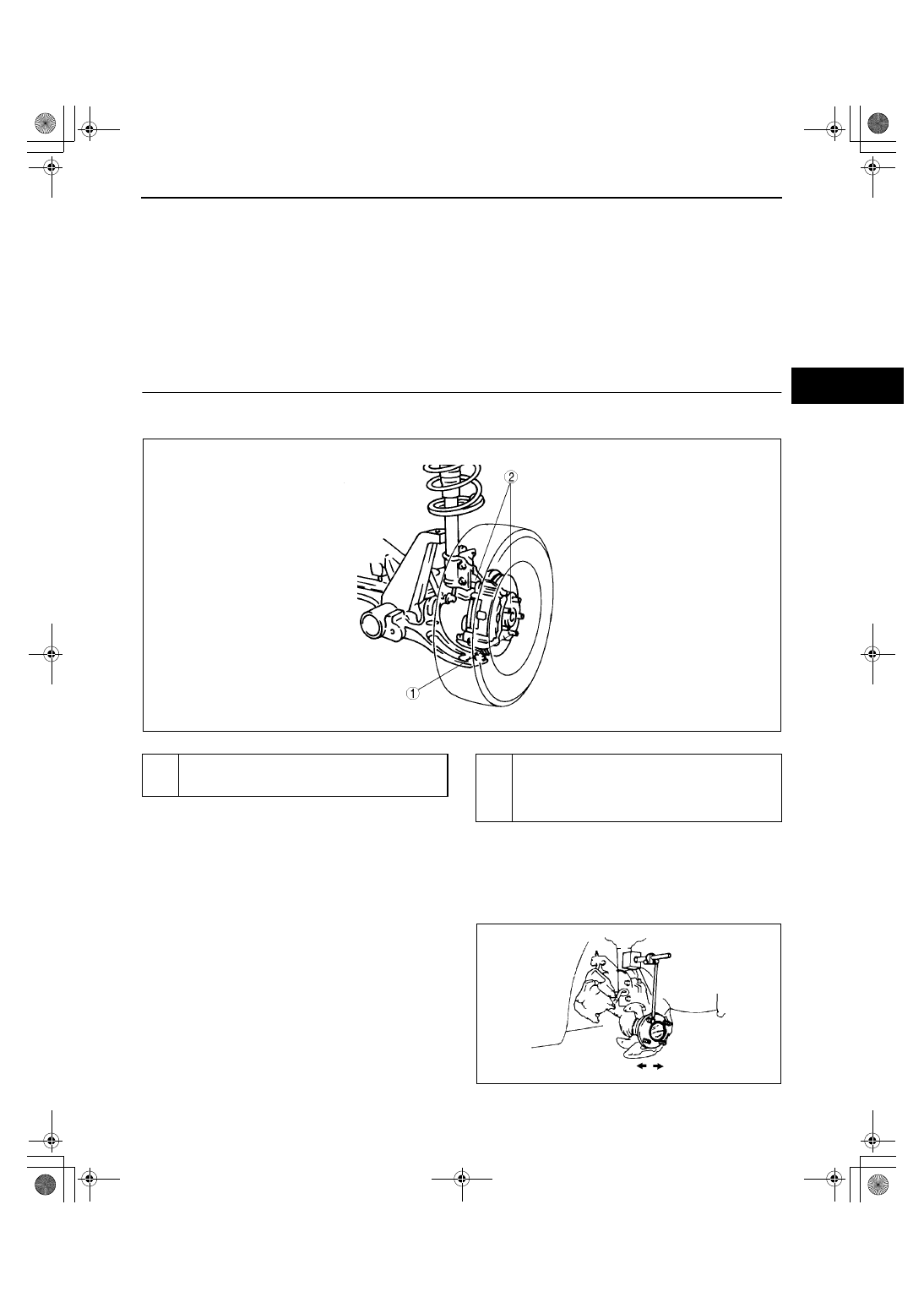

FRONT AXLE LOCATION INDEX

A3U031104000W01

.

End Of Sie

WHEEL HUB, STEERING KNUCKLE PRE-INSPECTION

A3U031104000W02

Wheel Bearing Play Inspection

1. Position a dial indicator against the wheel hub.
2. Push and pull the wheel hub by hand in the axial

direction and measure the wheel bearing play.

•

If the bearing play exceeds the specification,
replace the wheel bearing as necessary and
tighten the locknut to the specified torque and
retest.

Maximum wheel bearing play

0.05 mm {0.002 in}

End Of Sie

Z3U0311W001

1

Hub bolt
(See 03–11–2 WHEEL HUB BOLT
REPLACEMENT)

2

Wheel hub, steering knuckle
(See 03–11–3 WHEEL HUB, STEERING
KNUCKLE REMOVAL/INSTALLATION)
(See 03–11–1 WHEEL HUB, STEERING
KNUCKLE PRE-INSPECTION)

A3U0311W010

1712-1U-01G(03-11).fm  1 ページ  ２００１年６月２９日 金曜日 午前９時５７分

FRONT AXLE

03–11–2

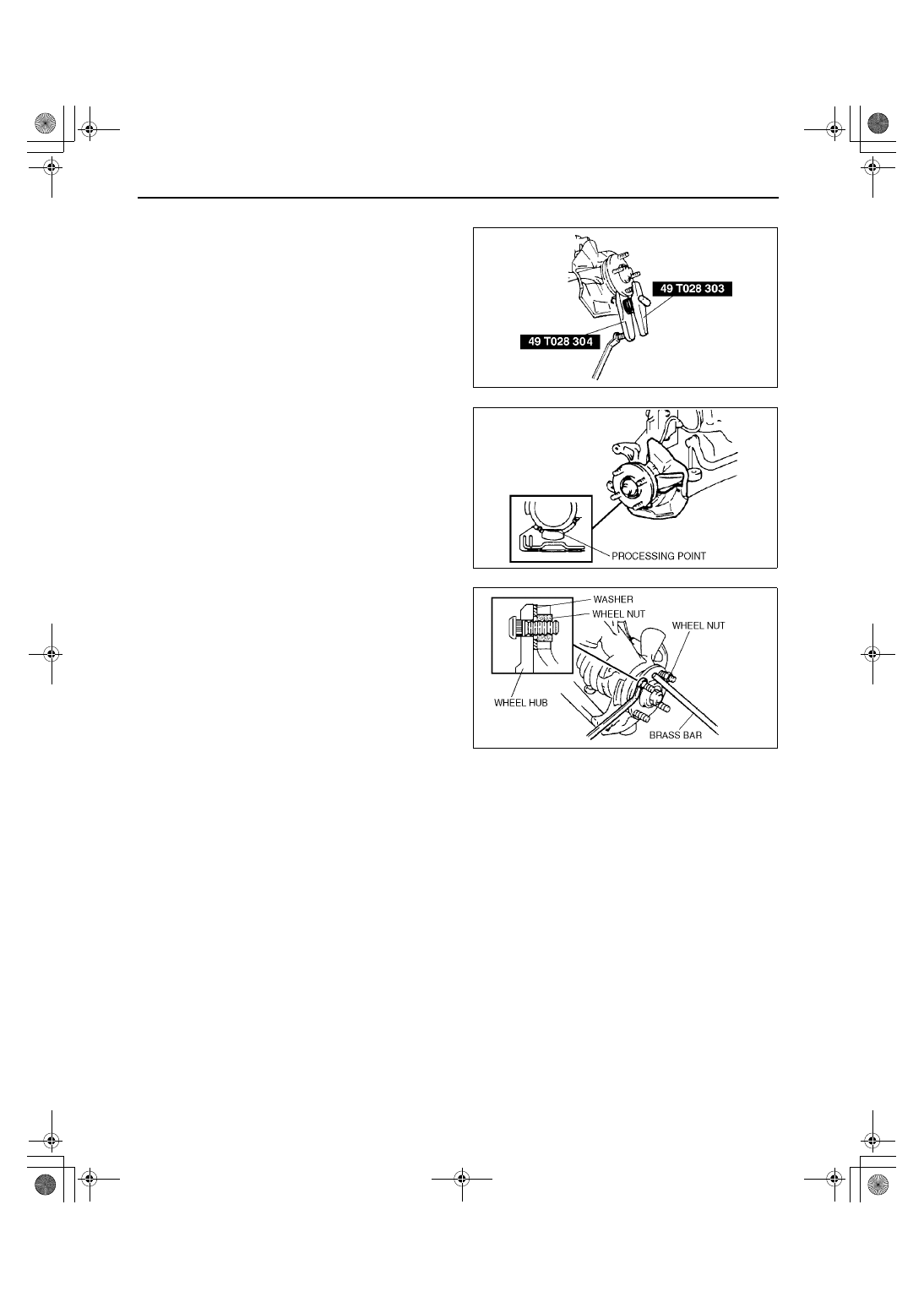

WHEEL HUB BOLT REPLACEMENT

A3U031104000W03

1. Remove the hub bolt using the SSTs.

Note

•

If the dust cover interferes with the wheel
hub bolt and the wheel hub bolt cannot be
removed, tap the part shown in the figure
with a chisel lightly and bend the processing
point back to the steering knuckle side.

2. Install the hub bolt into the wheel hub and install a

washer and hub nut on the hub bolt.

3. Tighten the hub nut while holding the wheel hub

using a brass bar.

End Of Sie

A3U0311W007

A3U0311W002

A3U0311W003

1712-1U-01G(03-11).fm  2 ページ  ２００１年６月２９日 金曜日 午前９時５７分

FRONT AXLE

03–11–3

03–11

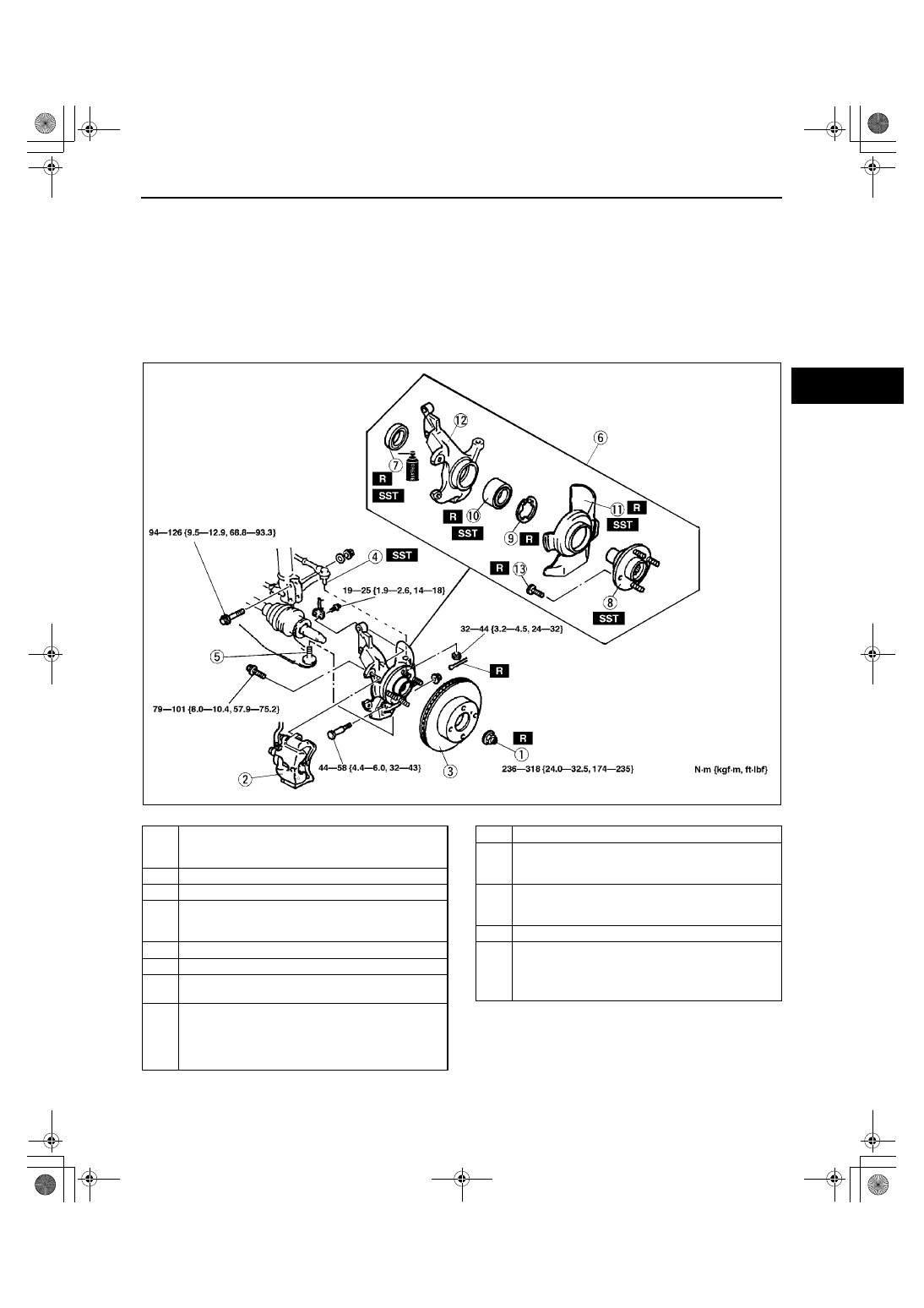

WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

A3U031104000W04

Caution

••••

Performing the following procedures without first removing the ABS wheel-speed sensor may
possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate
place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, inspect the front wheel alignment. (See 02–11–1 FRONT WHEEL ALIGNMENT.)

.

A3U0311W001

1

Locknut
(See 03–11–4 Locknut Removal Note)
(See 03–11–7 Locknut Installation Note)

2

Brake caliper component

3

Disc plate

4

Tie-rod end
(See 06–12–10 Tie-rod End Ball Joint Removal
Note)

5

Lower arm ball joint

6

Wheel hub, steering knuckle, dust cover

7

Oil seal
(See 03–11–7 Oil Seal Installation Note)

8

Wheel hub component
(See 03–11–4 Wheel Hub Component Removal
Note)
(See 03–11–6 Wheel Hub Component Installation
Note)

9

Retaining ring

10

Wheel bearing
(See 03–11–4 Wheel Bearing Removal Note)
(See 03–11–6 Wheel Bearing Installation Note)

11

Dust cover
(See 03–11–5 Dust Cover Removal Note)
(See 03–11–6 Dust Cover Installation Note)

12

Steering knuckle

13

Hub bolt
(See 03–11–5 Hub Bolt Removal Note)
(See 03–11–5 Hub Bolt Installation Note)

1712-1U-01G(03-11).fm  3 ページ  ２００１年６月２９日 金曜日 午前９時５７分
