INTAKE-AIR SYSTEM [FS]

01–13B–10

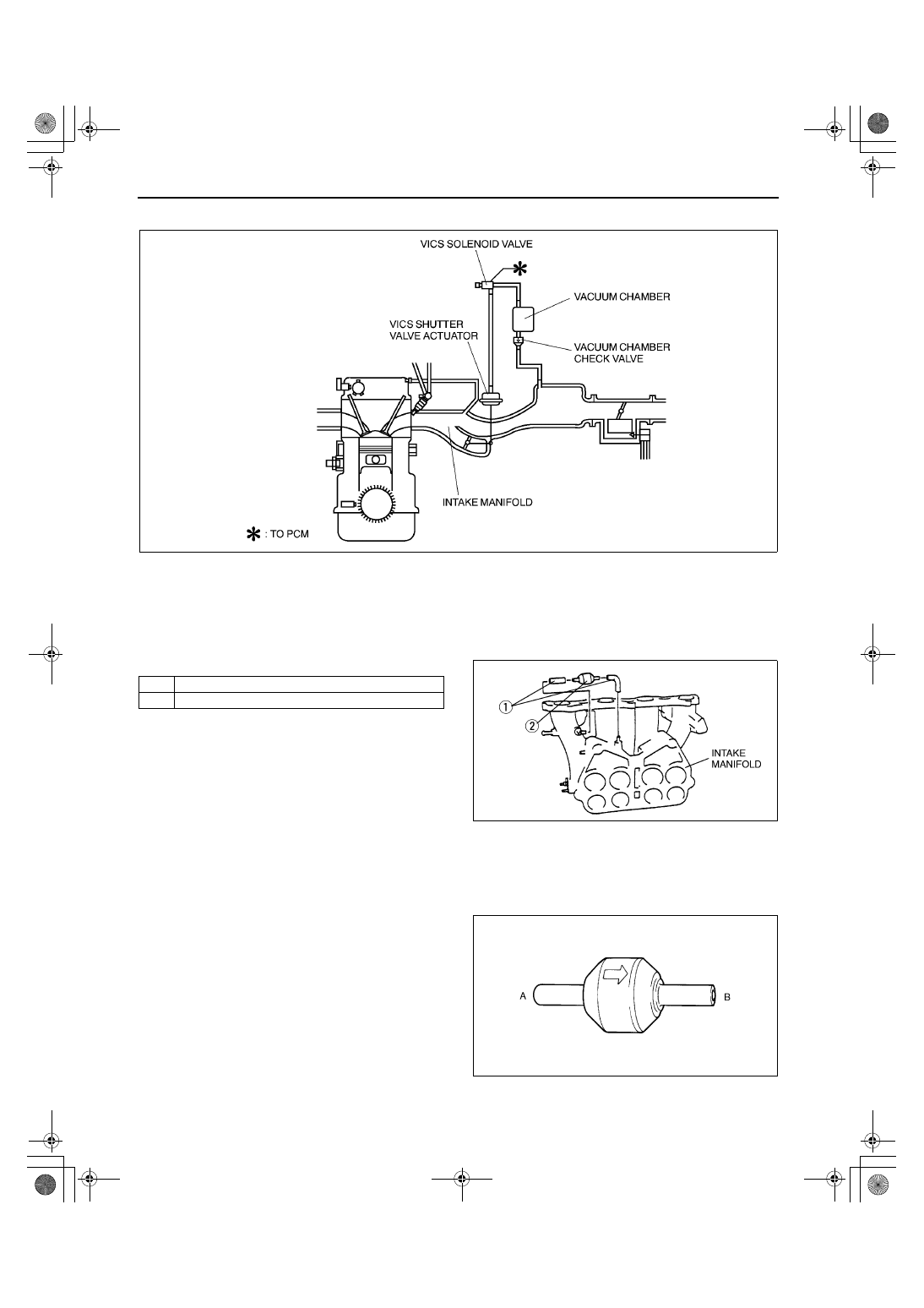

VARIABLE INERTIA CHARGING SYSTEM (VICS) DIAGRAM [FS]

A3U011313011W01

End Of Sie

VARIABLE INERTIA CHARGING SYSTEM (VICS) CHECK VALVE (ONE-WAY) REMOVAL/INSTALLATION
[FS]

A3U011313995W01

1. Disconnect the negative battery cable.
2. Remove the air hose, throttle body and intake manifold. (See 01–13B–6 INTAKE-AIR SYSTEM REMOVAL/

INSTALLATION [FS].)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

VARIABLE INERTIA CHARGING SYSTEM (VICS) CHECK VALVE (ONE-WAY) INSPECTION [FS]

A3U011313995W02

1. Remove the VICS check valve (one-way). (See 01–13B–10 VARIABLE INERTIA CHARGING SYSTEM (VICS)

CHECK VALVE (ONE-WAY) REMOVAL/INSTALLATION [FS].)

2. Blow through port A and verify that the air flows from port B.

•

If not as specified, replace the VICS check valve (one-way).

3. Blow through port B and verify that the air does

not flow from port A.

•

If not as specified, replace the VICS check
valve (one-way).

End Of Sie

Z3U0113W010

Vacuum hose

VICS check valve (one-way)

X3U113WD7

X3U113WD8

1712-1U-01G(01-13B).fm 10 ページ２００１年６月２９日金曜日午前９時４２分

INTAKE-AIR SYSTEM [FS]

01–13B–11

01–13B

VARIABLE INERTIA CHARGING SYSTEM (VICS) SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION
[FS]

A3U011320152W01

1. Disconnect the battery negative cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

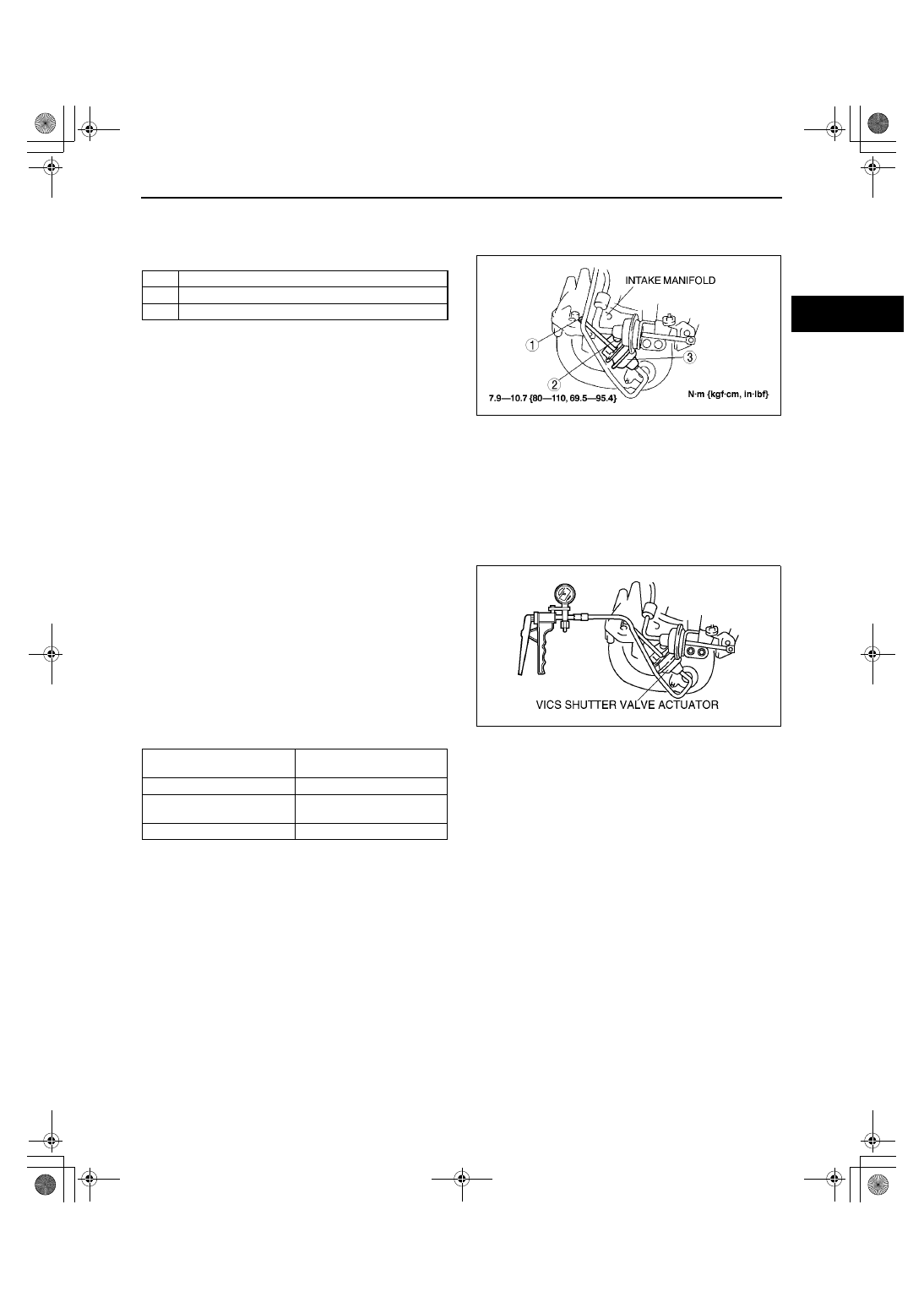

VARIABLE INERTIA CHARGING SYSTEM (VICS) SHUTTER VALVE ACTUATOR INSPECTION [FS]

A3U011320152W02

Operating Inspection

Note

•

Perform the following test only as directed.

1. Carry out the “VICS Operation Inspection”. (See 01–03B–57 VICS Operation Inspection.)

•

If not as specified, perform the further inspection for the VICS shutter valve actuator.

2. Disconnect the vacuum hose from the VICS shutter valve actuator.
3. Connect a vacuum pump to the VICS shutter

valve actuator.

4. Apply pressure slowly and inspect the rod

movement of the VICS shutter valve actuator
under the following condition.

•

If not as specified, replace the VICS shutter
valve actuator. (See 01–13B–11 VARIABLE
INERTIA CHARGING SYSTEM (VICS)
SHUTTER VALVE ACTUATOR REMOVAL/
INSTALLATION [FS].)

•

If as specified, but “VICS Operation
Inspection” failed, inspect the vacuum hoses
for proper routing, kinks or leakage.

5. Disconnect the vacuum pump from the VICS shutter valve actuator.
6. Reconnect the vacuum hose to the VICS shutter valve actuator.

End Of Sie

E ring

Bolt

VICS shutter valve actuator

Z3U0113W011

Pressure (kPa {mmHg,

inHg})

Rod movement

Above –2.7 {–20, –0.80}

Not pulled

–8.0— –35.3

{–61— –264, –2.4— –10.4}

Starts to move

Below –35.3 {–265, –10.4}

Fully pulled

Z3U0113W017

1712-1U-01G(01-13B).fm 11 ページ２００１年６月２９日金曜日午前９時４２分

INTAKE-AIR SYSTEM [FS]

01–13B–12

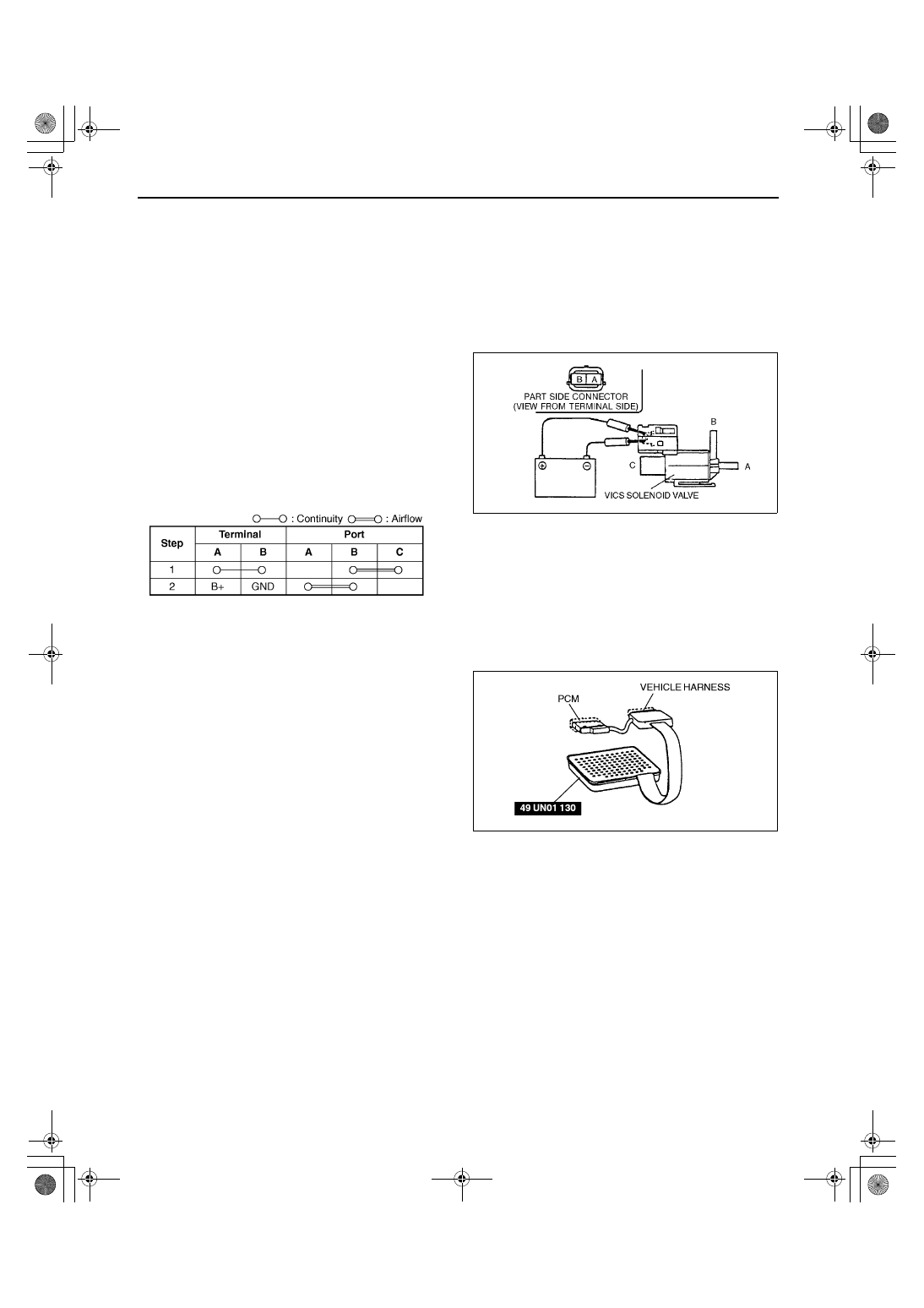

VARIABLE INERTIA CHARGING SYSTEM (VICS) SOLENOID VALVE INSPECTION [FS]

A3U011318740W01

Airflow Inspection

Note

•

Perform the following test only as directed.

1. Carry out the “VICS Operation Inspection”. (See 01–03B–57 VICS Operation Inspection.)

•

If not as specified, perform the further inspection for the VICS solenoid valve.

2. Disconnect the battery negative cable.
3. Remove the VICS solenoid valve.
4. Inspect for airflow between each port under the

following condition.

•

If not as specified, replace the VICS solenoid
valve.

•

If as specified but the “VICS Operation
Inspection” failed, carry out the “Circuit Open/
Short Inspection”.
— If there is an open or short circuit, repair

or replace wiring harnesses.

— If there is no open or short circuit, replace

VICS solenoid valve.

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See 01–40B–7 PCM REMOVAL/INSTALLATION [FS].)
2. Connect the SST (104 Pin Breakout Box) to the

PCM as shown.

3. Tighten the connector attaching screw.

Tightening torque

7.9—10.7 N·m {80—110 kgf·cm, 69.5—95.4

in·lbf}

4. Inspect for an open or short circuit in the following

wiring harnesses by probing the applicable
sensor and SST (104 Pin Breakout Box) terminals
with ohmmeter leads.
Open circuit

•

Power circuit (VICS solenoid valve connector
terminal A and main relay connector terminal D)

•

Control circuit (VICS solenoid valve connector terminal B and PCM connector terminal 19)

Short circuit

•

Power circuit (VICS solenoid valve connector terminal A and main relay connector terminal D to GND)

•

Control circuit (VICS solenoid valve connector terminal B and PCM connector terminal 19 to GND)

5. Reconnect the VICS solenoid valve connector.
6. Reconnect the battery negative cable.

End Of Sie

Y3U113WAB

X3U113WDF

X3U113WDG

1712-1U-01G(01-13B).fm 12 ページ２００１年６月２９日金曜日午前９時４２分

INTAKE-AIR SYSTEM [FS]

01–13B–13

01–13B

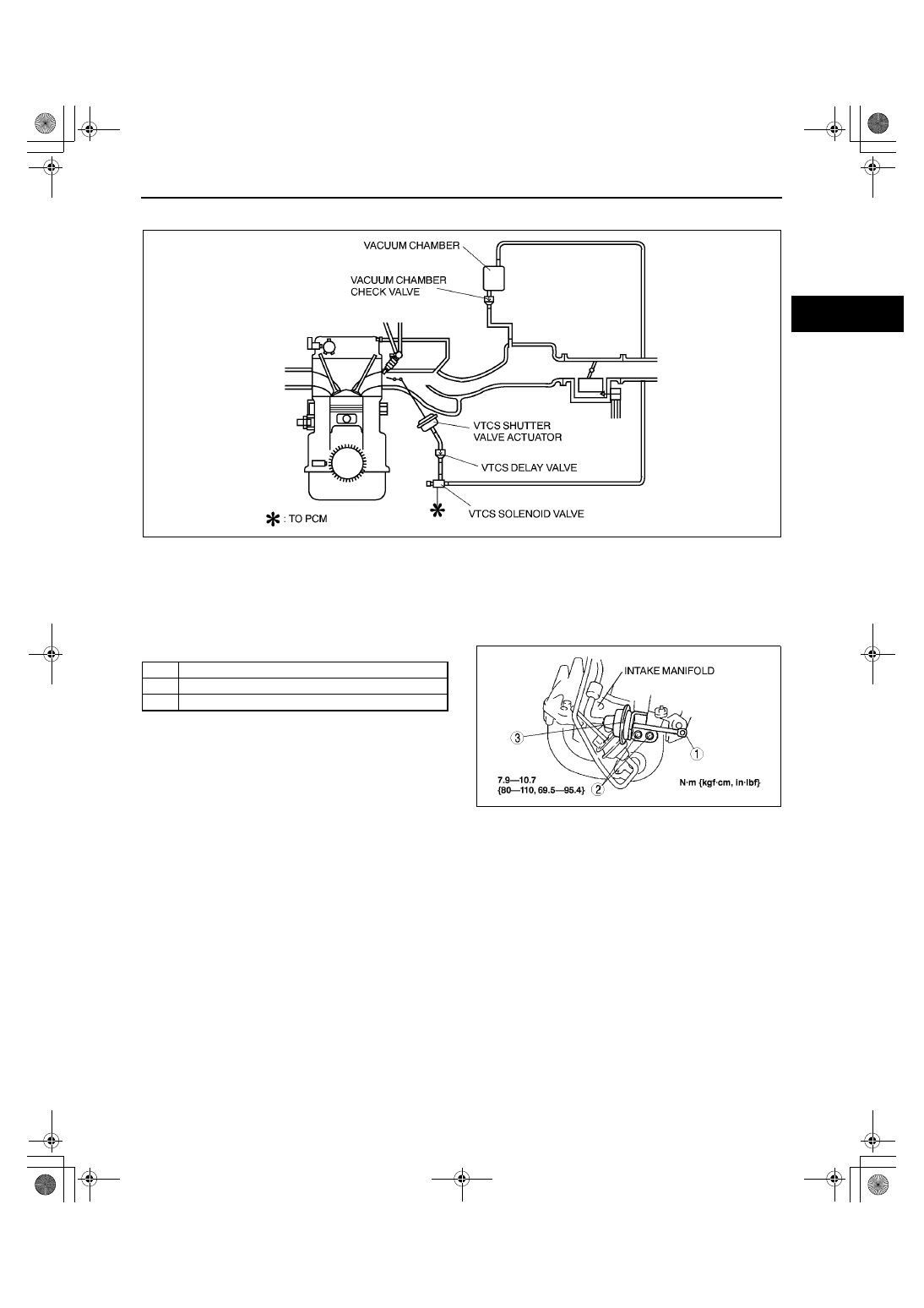

VARIABLE TUMBLE CONTROL SYSTEM (VTCS) DIAGRAM [FS]

A3U011313012W01

End Of Sie

VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION
[FS]

A3U011320153W01

1. Disconnect the battery negative cable.
2. Remove the air hose, throttle body and intake manifold. (See 01–13B–6 INTAKE-AIR SYSTEM REMOVAL/

INSTALLATION [FS].)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

Z3U0113W012

E-ring

Bolts

VTCS shutter valve actuator

Z3U0113W013

1712-1U-01G(01-13B).fm 13 ページ２００１年６月２９日金曜日午前９時４２分
