LUBRICATION

01–11–8

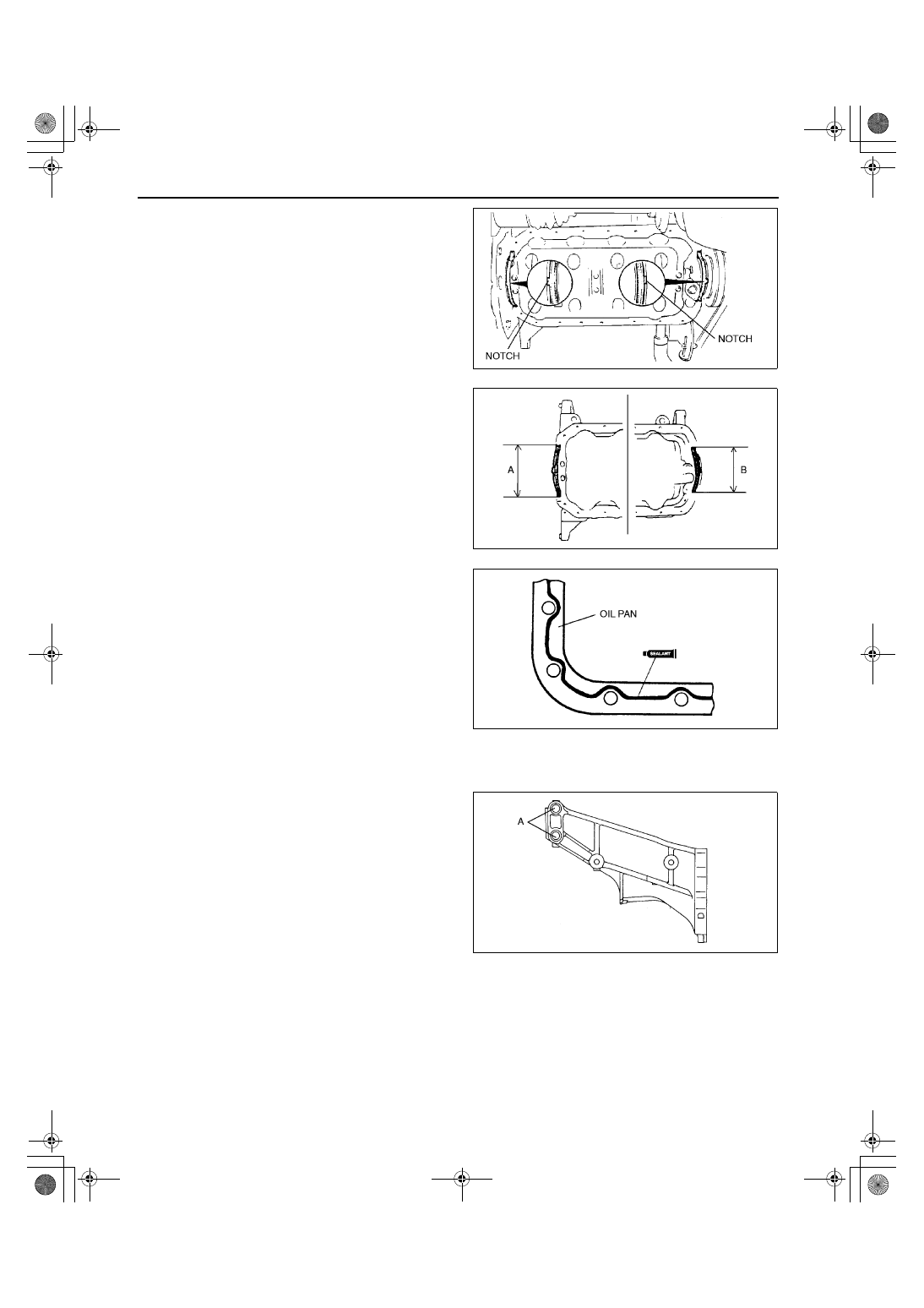

2. Install the new gaskets onto the oil pump body

and the rear cover with the projections in the
notches as shown. (ZM model)

3. Apply silicone sealant onto the area of oil pan

gasket indicated by A and B. (ZM model)

Thickness

2.0 mm {0.079 in}

4. Apply silicone sealant to the oil pan along the

inside of the bolt holes and overlap the ends.

Thickness

ZM: 2.5—3.5 mm {0.099—0.137 in}
FS: 2.0—3.0 mm {0.079—0.118 in}

Integrated Stiffener Installation Note
ZM

1. Hand-tighten the lock bolt A.

X3U111WAH

X3U111WAJ

X3U111WAK

X3U111WAL

1712-1U-01G(01-11).fm  8 ページ  2001年6月29日 金曜日 午前9時40分

LUBRICATION

01–11–9

01–11

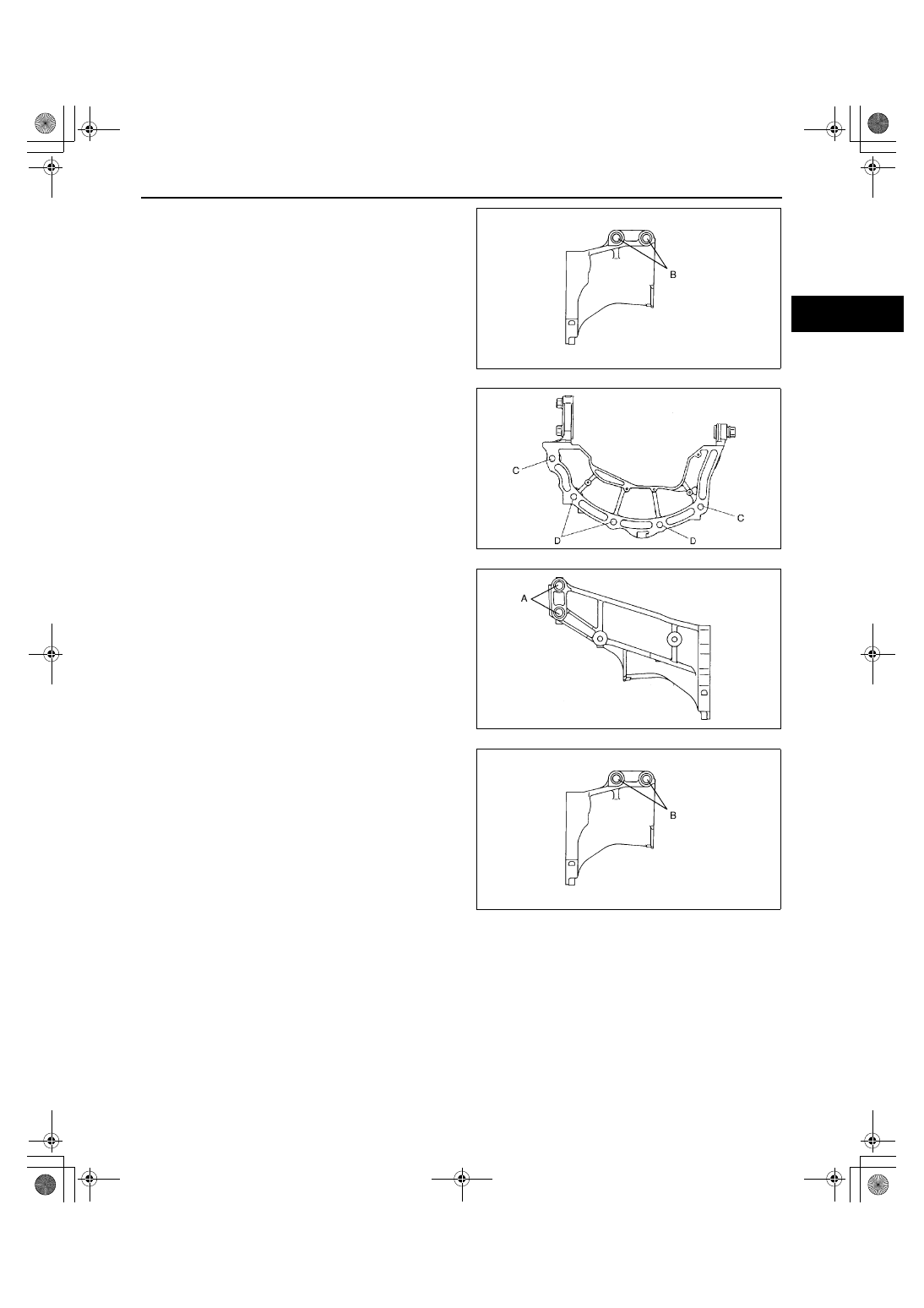

2. Hand-tighten the lock bolt B.

3. Tighten the lock bolt C.

Tightening torque

37—52 N·m {3.8—5.3 kgf·m, 27.3—38.3 ft·lbf}

4. Tighten the lock bolt D.

Tightening torque

37—52 N·m {3.8—5.3 kgf·m, 27.3—38.3 ft·lbf}

5. Tighten the lock bolt A .

Tightening torque

37—52 N·m {3.8—5.3 kgf·m, 27.3—38.3 ft·lbf}

6. Tighten the lock bolt B.

Tightening torque

37—52 N·m {3.8—5.3 kgf·m, 27.3—38.3 ft·lbf}

End Of Sie

X3U111WAM

Y3A1111W001

X3U111WAL

X3U111WAM

1712-1U-01G(01-11).fm  9 ページ  2001年6月29日 金曜日 午前9時40分

LUBRICATION

01–11–10

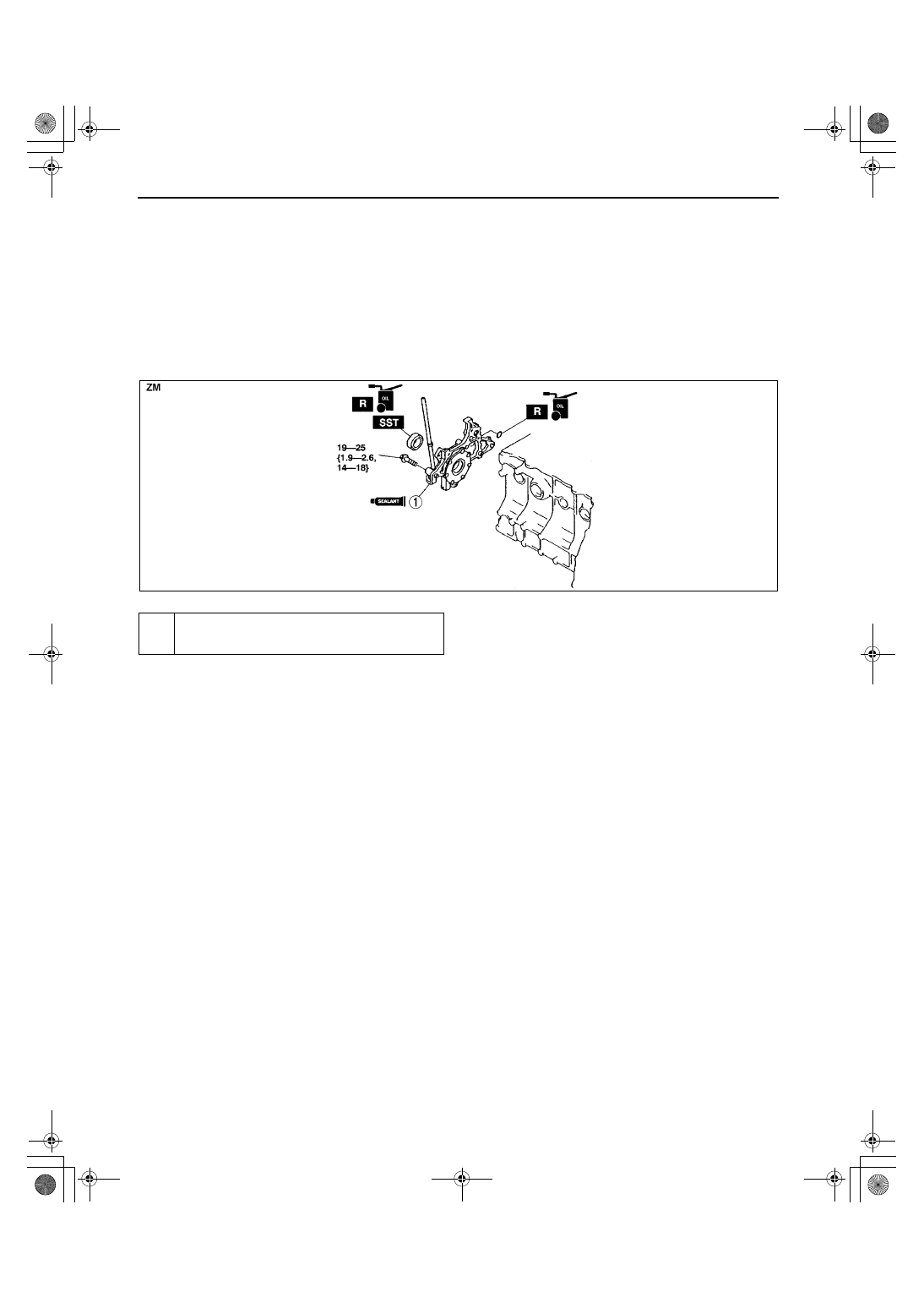

OIL PUMP REMOVAL/INSTALLATION

A3U011119220W01

1. Remove the timing belt. (See 01–10A–9 TIMING BELT REMOVAL/INSTALLATION [ZM].) (See 01–10B–8

TIMING BELT REMOVAL/INSTALLATION [FS].)

2. Remove the timing belt pulley.
3. Remove the oil pan. (See 01–11–4 OIL PAN REMOVAL/INSTALLATION.)
4. Remove the A/C compressor with the pipe still connected.
5. Remove the A/C compressor bracket.
6. Remove the generator. (ZM)
7. Remove the transaxle (FS) (See 05–15B–4 MANUAL TRANSAXLE (MTX) REMOVAL/INSTALLATION

[G15M-R].) (See 05–17–31 AUTOMATIC TRANSAXLE (ATX) REMOVAL/INSTALLATION.)

8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.

.

Y3U111WA1

1

Oil pump
(See 01–11–12 Oil Pump Removal Note)
(See 01–11–12 Oil Pump Installation Note)

1712-1U-01G(01-11).fm  10 ページ  2001年6月29日 金曜日 午前9時40分

LUBRICATION

01–11–11

01–11

.

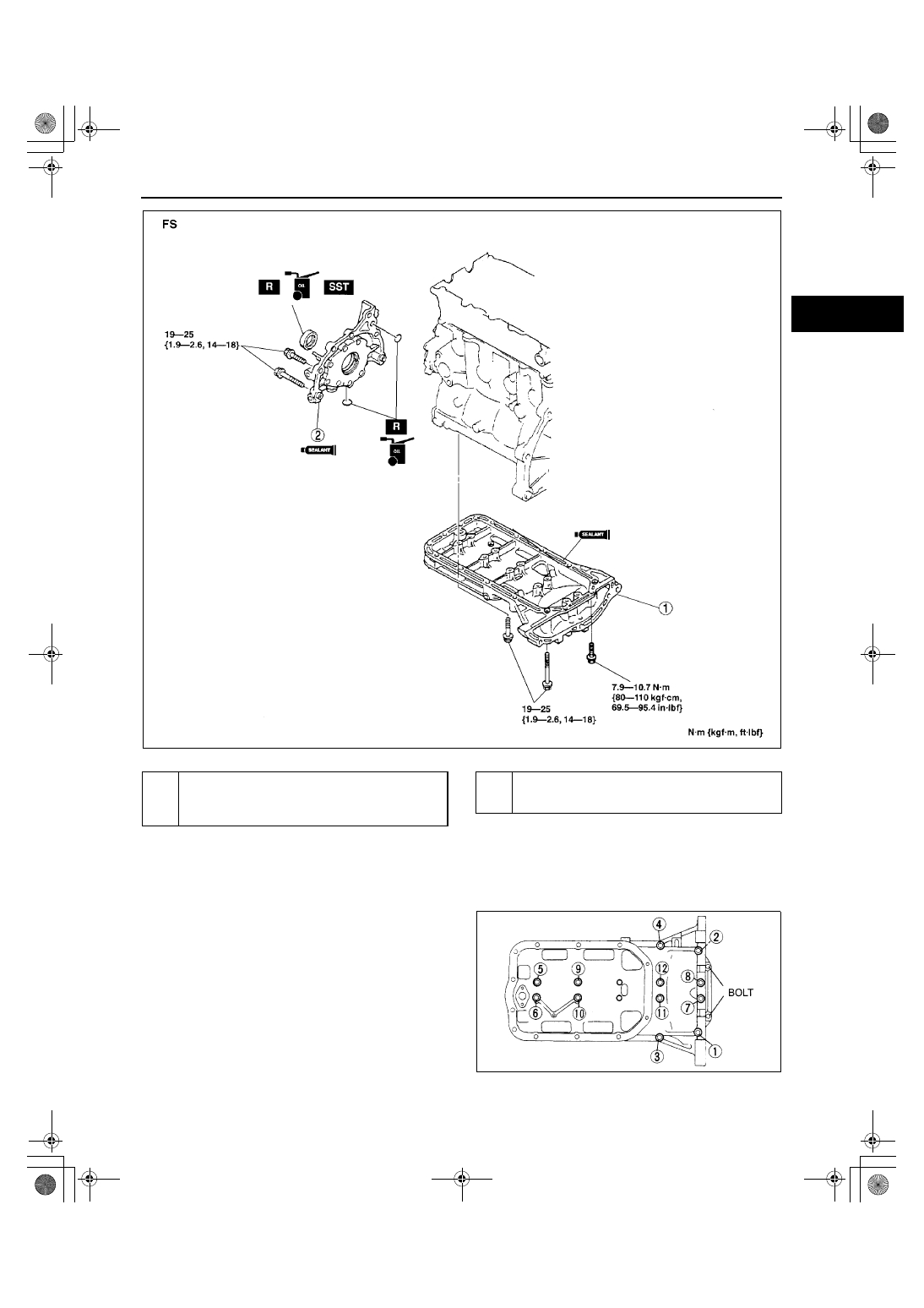

Oil Pan Upper Block Removal Note

1. Remove the two bolts at the rear of the cylinder block.
2. Loosen the oil pan upper block bolts in 2 or 3

steps in the order shown.

Z3U0111W998

1

Oil pan upper block
(See 01–11–11 Oil Pan Upper Block Removal Note)
(See 01–11–13 Oil Pan Upper Block Installation
Note)

2

Oil pump
(See 01–11–12 Oil Pump Removal Note)
(See 01–11–12 Oil Pump Installation Note)

Y3U111WA3

1712-1U-01G(01-11).fm  11 ページ  2001年6月29日 金曜日 午前9時40分
