ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–76

7

VERIFY HIGH-TENSION LEAD CONDITION

•

Remove high-tension lead.

•

Check high-tension lead condition and
resistance.
— Cracks
— Spark shorts to cylinder head through high-

tension lead insulator

•

Is high-tension lead okay?

Yes Go to next step.

No

Replace high-tension lead, then go to Step 13.

8

INSPECT FOR AIR SUCTION AT INTAKE-AIR
SYSTEM

•

Inspect for air leakage at following:
— Around connection of dynamic chamber and

intake manifold

— Around connection of intake manifold and

cylinder head

•

Is air leakage found?

Yes Repair or replace suspected part, then go to Step 13.

No

Go to next step.

9

INSPECT FUEL INJECTOR HARNESS

•

Remove intake-air system parts.

•

Disconnect fuel injector connector on
suspected cylinder.

•

Connect TEST LIGHT (LED) to fuel injector
connector terminals.

•

Check dim of light during cranking.

•

Does TEST LIGHT (LED) illuminate?

Yes Go to next step.

No

Check for fuel injector harnesses.
Repair or replace if necessary, then go to Step 13.

10

INSPECT SEALING OF ENGINE COOLANT
PASSAGE

Warning

••••

Removing radiator cap when radiator is
hot is dangerous, Scalding coolant and
steam may shoot out and cause serious
injury.

••••

When removing radiator cap, wrap thick
cloth around and turn it slowly.

•

Remove radiator cap.

•

Implement procedure to bleed air from engine
coolant, then run engine at idle.

•

Is there any small bubble which makes engine
coolant white at filling opening?

Note

•

Large bubbles are normal since they are
remaining air coming out from engine
coolant passage.

Yes Air gets in from poor sealing on head gasket or other areas

between combustion chamber and engine coolant
passage. Repair or replace faulty parts, then go to Step 13.

No

Go to next step.

11

INSPECT ENGINE COMPRESSION

•

Inspect engine compression.
(See 01–10B–8 COMPRESSION
INSPECTION [FS].)

•

Is engine compression okay?

Yes Go to next step.

No

Overhaul the engine, then go to next step.

12

INSPECT FUEL INJECTOR OPERATION

•

Remove fuel injector from suspected cylinder.

•

Swap injector with injector on other cylinder.

•

Start engine and run it at idle.

•

Does misfire DTC move to cylinder with
suspected injector?

Yes Replace injector, then go to Step 13.

No

Go to next step.

STEP

INSPECTION

ACTION

1712-1U-01G(01-02B).fm  76 ページ  ２００１年６月２９日 金曜日 午後３時２４分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–77

01–02B

End Of Sie

DTC P0325 [FS]

A3U010201085W03

13

VERIFY TROUBLESHOOTING OF MISFIRE DTC
COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Start engine.

•

Clear DTC from PCM memory using WDS or
equivalent.

•

Perform OBD-II DRIVE MODE 1.
(See 01–02B–10 Mode 1 (PCM adaptive
memory procedure drive mode).)

•

Is same PENDING CODE or stored code of
same DTC present?

Yes Replace PCM, then go to next step.

No

Go to next step.

14

VERIFY AFTER REPAIR PROCEDURE

•

Perform “After Repair Procedure”.
(See 01–02B–9 AFTER REPAIR
PROCEDURE [FS].)

•

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02B–15 DTC TABLE [FS].)

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

DTC P0325

Knock sensor circuit malfunction

DETECTION

CONDITION

•

PCM monitors input signal from knock sensor when the following monitoring conditions are met. If PCM
does not receive input signal from knock sensor for 5 seconds, PCM determines that knock sensor circuit
is malfunctioning.

MONITORING CONDITIONS

— Engine load is above 50%
— Engine coolant temperature is above 60

°°°°

C {140

°°°°

F}.

— Engine speed is within 1,500—5,000 rpm.

Diagnostic support note

•

This is a continuous monitor (CCM).

•

MIL illuminates if PCM detects the above malfunction condition during first drive cycle.

•

PENDING CODE is not available.

•

FREEZE FRAME DATA is available.

•

DTC is stored in the PCM memory.

POSSIBLE

CAUSE

•

Knock sensor malfunction

•

Connector or terminal malfunction

•

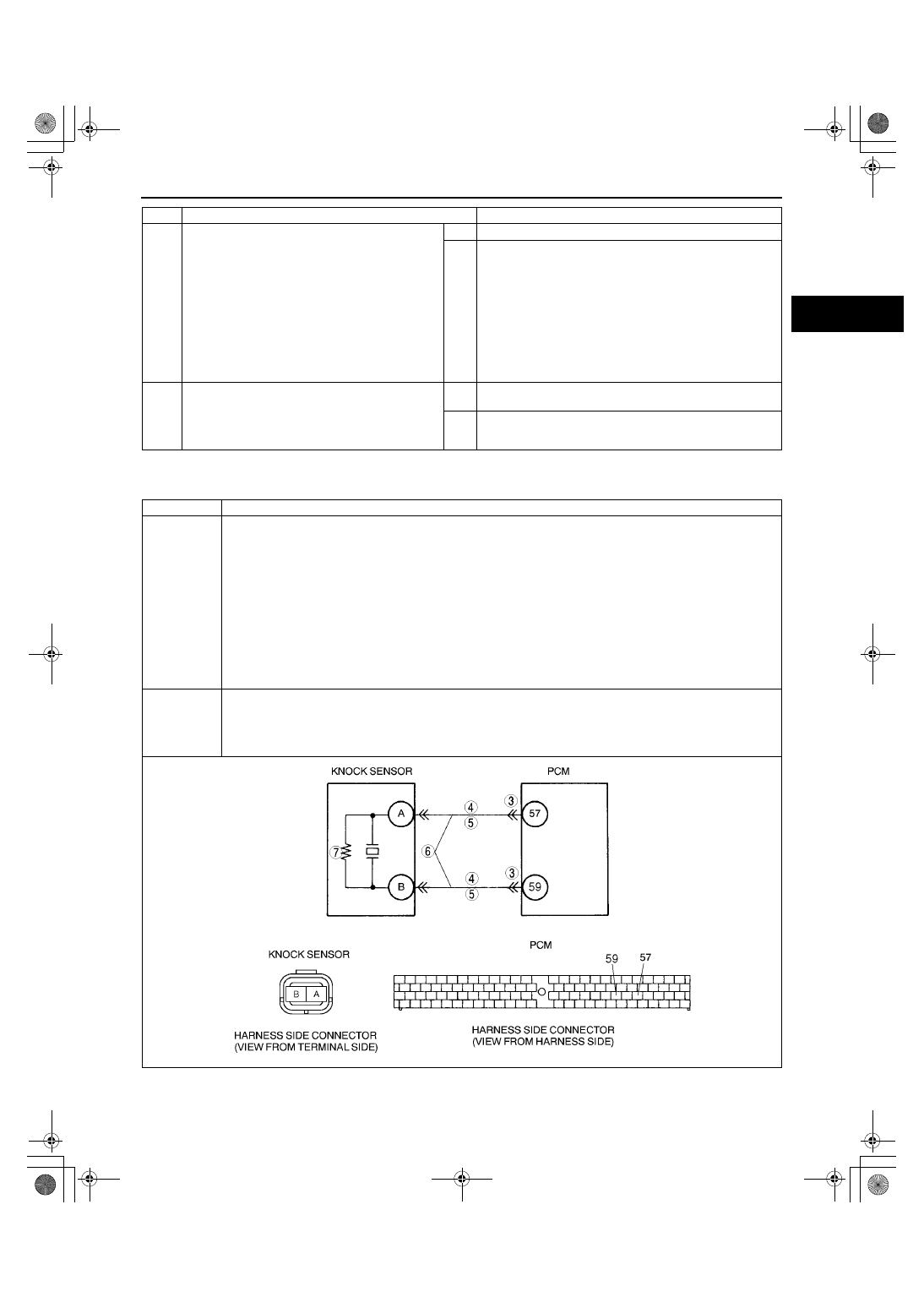

Open or short to ground circuit between knock sensor connector terminal A and PCM terminal 57

•

Open or short to ground circuit between knock sensor connector terminal B and PCM terminal 59

•

Short between two wires of knock sensor

1712-1U-01G(01-02B).fm  77 ページ  ２００１年６月２９日 金曜日 午後３時２４分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–78

Diagnostic procedure

End Of Sie

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

•

Has FREEZE FRAME DATA been recorded?

Yes Go to next step.

No

Record FREEZE FRAME DATA on repair order, then go to
next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

•

Check for related Service Bulletins availability.

•

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

•

If vehicle is not repaired, go to next step.

No

Go to next step.

3

INSPECT PCM CONNECTOR TERMINAL

•

Turn ignition key to OFF.

•

Disconnect PCM connector.

•

Check for poor connection at terminals 57 and
66 (damaged, pulled-out pins, corrosion, etc.).

•

Is there any malfunction?

Yes Repair terminal, then go to Step 8.

No

Go to next step.

4

INSPECT KNOCK SENSOR CIRCUITS FOR
OPEN CIRCUIT

•

Disconnect knock sensor connector.

•

Check continuity between the following circuits:
— Knock sensor female terminal A (harness-

side) and PCM terminal 57 (harness-side)

— Knock sensor female terminal B (harness-

side) and PCM terminal 59 (harness-side)

•

Is there continuity?

Yes Go to next step.

No

Repair or replace suspected wiring harness, then go to
Step 8.

5

INSPECT KNOCK SENSOR CIRCUITS FOR
SHORT TO GROUND

•

Check continuity between following circuits:
— Knock sensor female terminal A (harness-

side) and body ground

— Knock sensor female terminal B (harness-

side) and body ground

•

Is there continuitity?

Yes Repair or replace suspected wiring harness, then go to

Step 8.

No

Go to next step.

6

CHECK FOR SHORT CIRCUITS

•

Check continuity between knock sensor female
terminals A and B (harness-side).

•

Is there continuity?

Yes Repair or replace suspected harness, then go to Step 8.

No

Go to next step.

7

CHECK KNOCK SENSOR RESISTANCE

•

Measure resistance between knock sensor
terminals (part-side).

•

Is resistance approx. 560 kilohms?

Yes Go to next step.

No

Replace knock sensor, then go to next step.

8

VERIFY TROUBLESHOOTING OF DTC P0325
COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Turn ignition key to ON (Engine OFF).

•

Clear DTC from memory using WDS or
equivalent.

•

Start engine.

•

Access ECT, RPM and LOAD PIDs using WDS
or equivalent.

•

Run vehicle more than 5 seconds in the
following conditions:
— ECT: above 60

°°°°

C {140

°°°°

F}

— RPM: 1,500—5,000 rpm
— LOAD: above 50%

•

Is same DTC present?

Yes Replace or reprogram PCM. Then go to next step.

No

Go to next step.

9

VERIFY AFTER REPAIR PROCEDURE

•

Perform “After Repair Procedure”
(See 01–02B–9 AFTER REPAIR
PROCEDURE [FS].)

•

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02B–15 DTC TABLE [FS].)

No

Troubleshooting completed.

1712-1U-01G(01-02B).fm  78 ページ  ２００１年６月２９日 金曜日 午後３時２４分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–79

01–02B

DTC P0335 [FS]

A3U010201085W04

Diagnostic procedure

DTC P0335

CKP sensor circuit malfunction

DETECTION

CONDITION

•

If PCM does not receive input signal from CKP sensor for 4.2 seconds while MAF is 2.2 g/s {0.29 lb/min}
or above, PCM determines that CKP sensor circuit has a malfunction.

Diagnostic support note

•

This is a continuous monitor (CCM).

•

MIL illuminates if PCM detects the above malfunction conditions during first drive cycle. Therefore,
PENDING CODE is not available.

•

FREEZE FRAME DATA is available.

•

DTC is stored in PCM memory.

POSSIBLE

CAUSE

•

CKP sensor malfunction

•

Connector or terminal malfunction

•

CKP sensor is dirty.

•

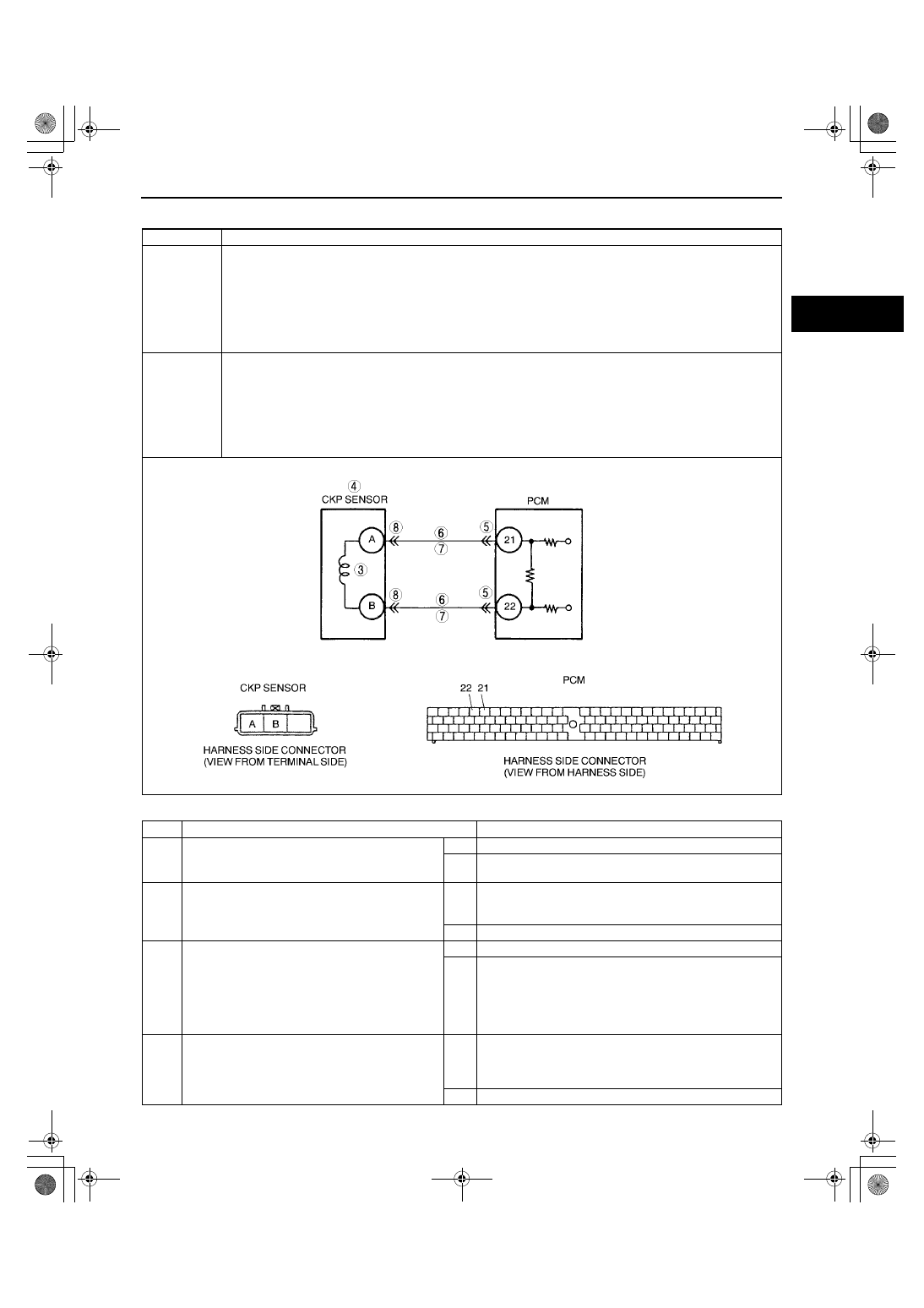

Short to ground between CKP sensor terminal A and PCM terminal 21

•

Short to ground between CKP sensor terminal B and PCM terminal 22

•

Open circuit between CKP sensor terminal A and PCM terminal 21

•

Open circuit between CKP sensor terminal B and PCM terminal 22

•

CKP sensor pulse wheel malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

•

Has FREEZE FRAME DATA been recorded?

Yes Go to next step.

No

Record FREEZE FRAME DATA on repair order, then go to
next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

•

Check for related Service Bulletins availability.

•

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

•

 If vehicle is not repaired, go to next step.

No

Go to next step.

3

VERIFY CKP SENSOR VOLTAGE

•

Disconnect CKP sensor.

•

Connect voltmeter between CKP sensor
terminals A and B (part-side).

•

Check voltage in AC range while cranking the
engine.

•

Is any voltage present?

Yes Go to Step 5.

No

Go to next step.

4

INSPECT CKP SENSOR RESISTANCE

•

Inspect CKP sensor.
(See 01–40B–32 CRANKSHAFT POSITION
(CKP) SENSOR INSPECTION [FS].)

•

Is CKP sensor okay?

Yes Check for poor connection (damaged/pulled-out terminals,

corrosion, etc.), bent terminal of CKP sensor connector or
plate.

•

Repair if necessary, then go to Step 9.

No

Replace CKP sensor, then go to Step 9.
