GENERAL INFORMATION

00–00–21

00–00

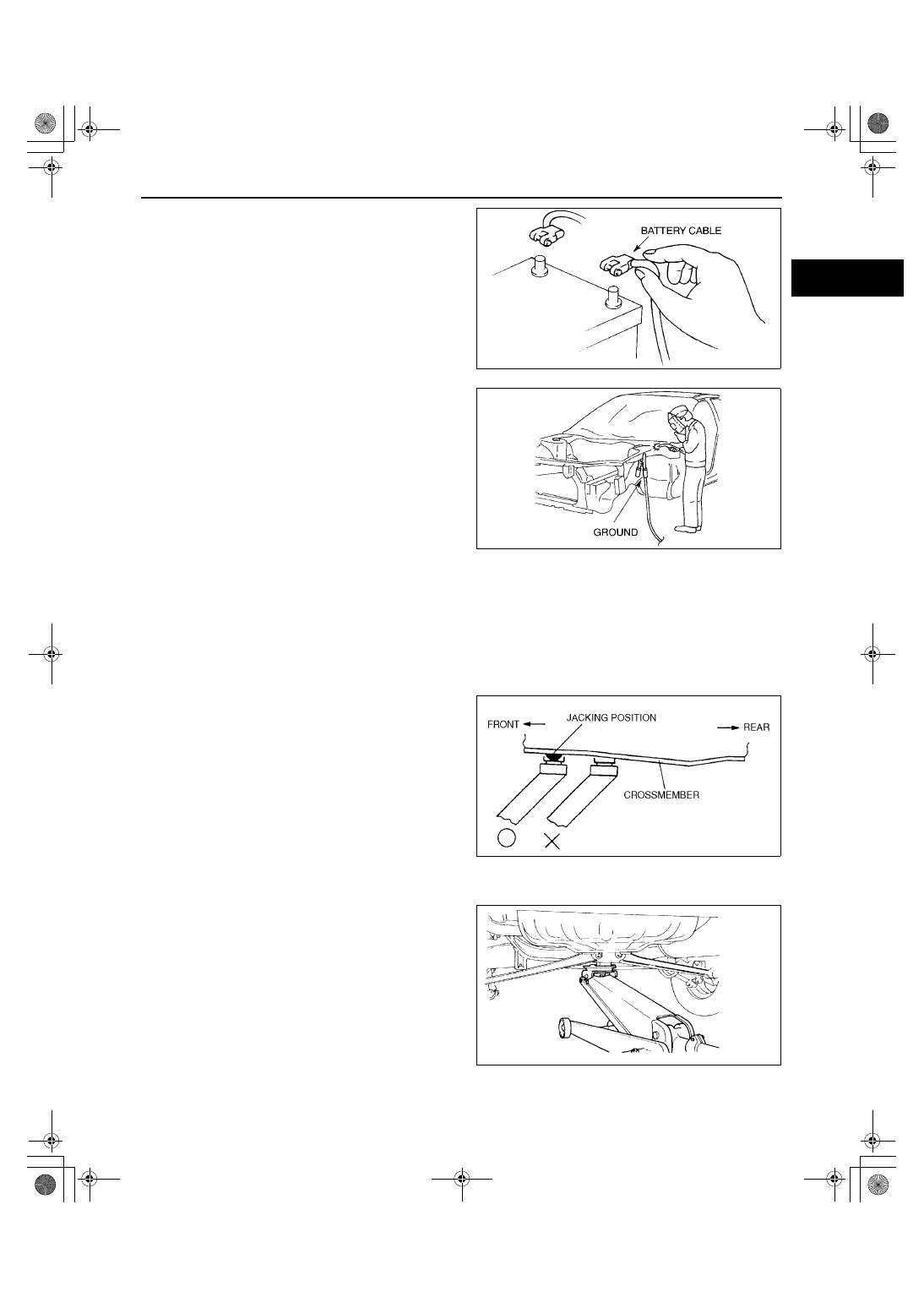

2. Disconnect the battery cables.

3. Securely connect the welding machine ground

near the welding area.

4. Cover the peripheral parts of the welding area to

protect them from weld spatter.

End Of Sie

JACKING POSITIONS

A3U000000007W01

Warning

••••

Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious
injury. Use only the correct front and rear jacking positions and block the wheels.

Use safety stands to support the vehicle after it has been lifted.

Front

At the center of the crossmember

Rear

At the center of the crossmember

End Of Sie

WGIWXX0007E

WGIWXX0008E

WGIWXX0060E

X3U000WBF

GENERAL INFORMATION

00–00–22

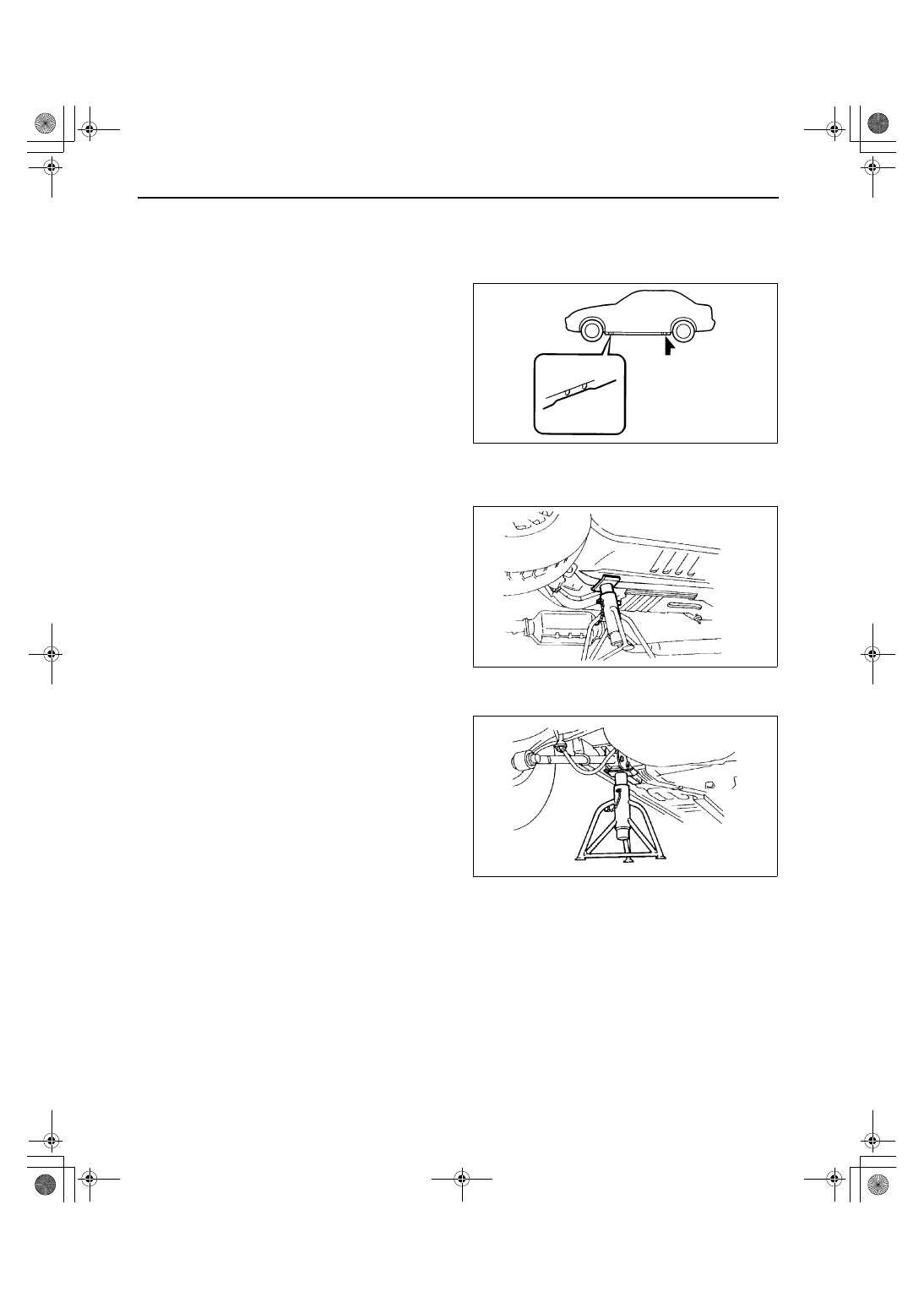

VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITION

A3U000000008W01

Vehicle Lift Positions
Front and rear

Warning

••••

Unstably lifting a vehicle is dangerous.
The vehicle can slip off the lift and cause
serious injury and/or vehicle damage.
Make sure that the vehicle is on the lift
horizontally by adjusting the height of
support at the end of the arm of the lift.

Safety Stand Positions
Front

Both sides of the vehicle, on side sills.

Rear

Both sides of the vehicle, on side sills.

End Of Sie

TOWING

A3U000000009W01

Proper lifting and towing are necessary to prevent damage to the vehicle. State and local laws must be
followed.

A towed vehicle usually should have its front wheels off the ground. If excessive damage or other conditions
prevent this, use wheel dollies.

X3U000WBH

X3U000WBJ

X3U000WBK

GENERAL INFORMATION

00–00–23

00–00

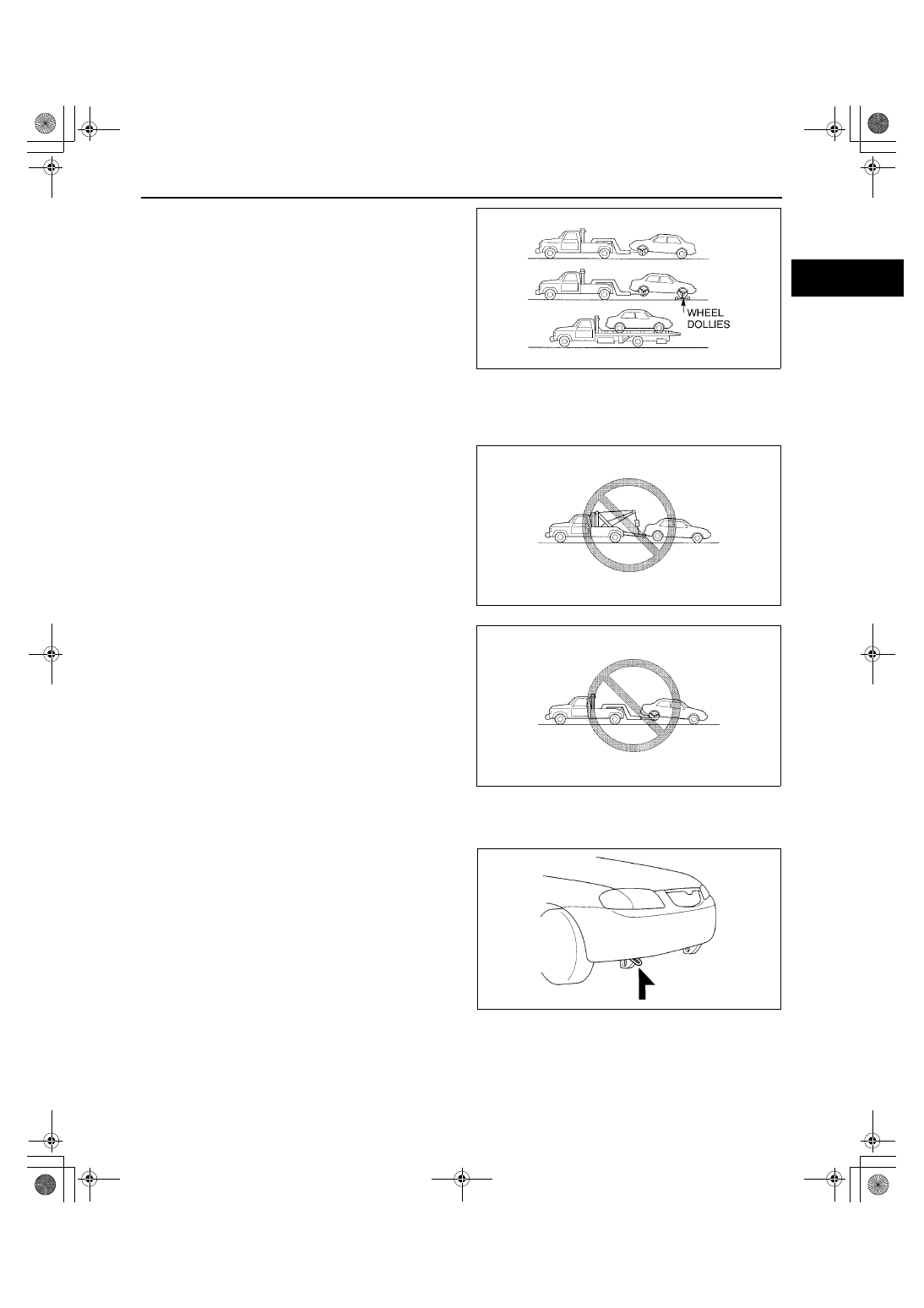

When towing with the rear wheels on the ground,
release the parking brake.

Caution

••••

Do not tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.

Caution

••••

Do not tow the vehicle backward with
driving wheels on the ground. This may
cause internal damage to the transaxle.

Caution

••••

Do not use the hook loops under the
front and rear for towing. They are
designed ONLY for tying down the
vehicle when it is being transported.
Using them for towing will damage the
bumper.

Tiedown Hooks
Front

YLU000WA5

YLU000WA7

YLU000WA6

X3U000WBP

GENERAL INFORMATION

00–00–24

Rear

End Of Sie

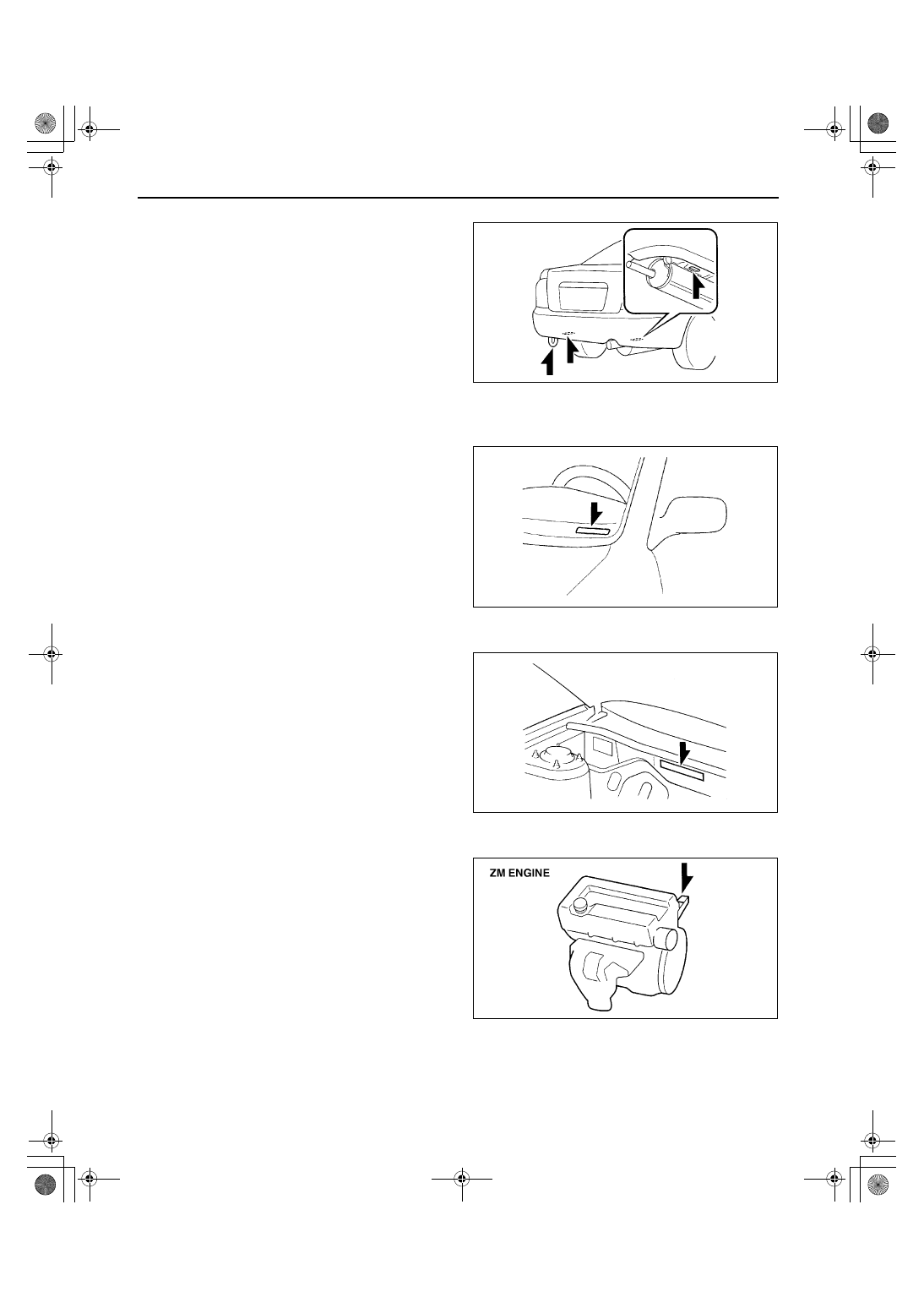

IDENTIFICATION NUMBER LOCATIONS

A3U000000010W01

Vehicle Identification Number (VIN)

Chassis Number

Engine Identification Number

X3U000WBQ

X3U000WBV

X3U000WBR

X3U000WBS
