Mazda MX-5 Miata / Grand Touring. Manual - part 170





Fig. 3: Identifying Starter Insulator

2. Degrease the insulator attachment area.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata



Fig. 4: Identifying Insulator Attachment Area

3. Attach a new insulator to the starter.

Fig. 5: Identifying New Starter Insulator



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata



STARTER INSPECTION [LF]

ON-VEHICLE INSPECTION

1. Verify that the battery is fully charged.

2. The starter is normal if it rotates smoothly and without any noise when the engine is cranked.

If the starter does not operate, inspect the following:

Remove the starter, and inspect the starter unit.

Inspect the related wiring harnesses, the ignition switch, and the transmission range switch
(AT).

NO-LOAD TEST

1. Verify that the battery is fully charged.

2. Connect the starter, battery and a tester as shown in Fig. 6 .

3. Operate the starter and verify that it rotates smoothly.

If the starter does not rotate smoothly, inspect the starter unit.

4. Measure the voltage and current while the starter is operating.

If not within the specification, replace the starter.

Starter no load test voltage

11 V

Starter no load test current

90 A or less



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata



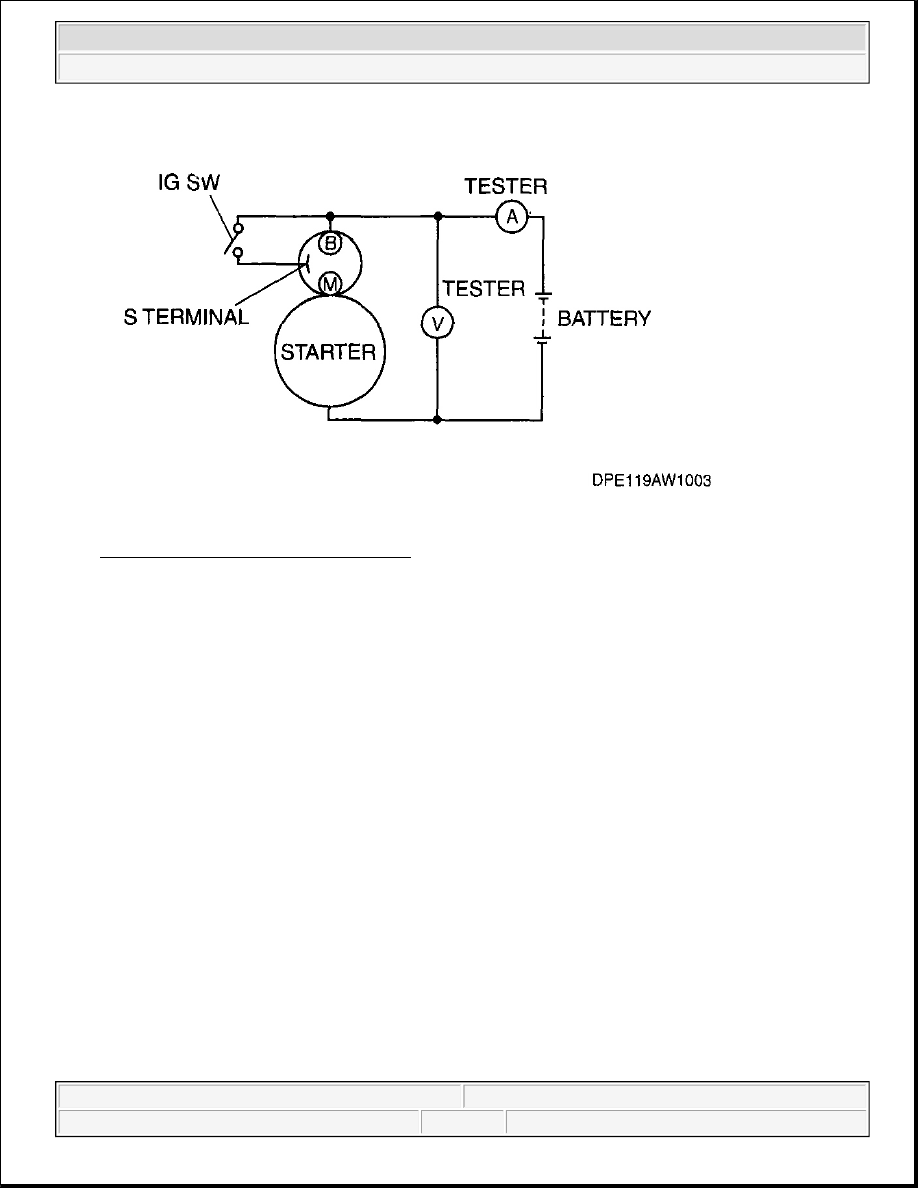

Fig. 6: No - Load Test - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

MAGNETIC SWITCH OPERATION INSPECTION

Pull-out Test

1. Verify that the starter motor pinion is extended while battery positive voltage is connected to terminal S

and the starter body is grounded.

If the starter motor pinion is not extended, repair or replace the starter.

NOTE:

Depending on the battery charge condition, the starter motor pinion may
rotate while in an extended state. This is due to current flowing to the
starter motor through the pull-in coil to turn the starter motor, and does
not indicate an abnormality.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata
