Mazda MX-5 Miata / Grand Touring. Manual - part 167

Fig. 26: Identifying Rear Stabilizer (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

REAR STABILIZER INSTALLATION NOTE

1. Install the rear stabilizer so that the identification mark is on the right side of the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



Fig. 27: Identifying Identification Mark
Courtesy of MAZDA MOTORS CORP.

STABILIZER CONTROL LINK INSTALLATION NOTE

1. Install the stabilizer control link in the proper angle as shown in Fig. 28 .

CAUTION:



Be sure to install the stabilizer control link in the proper
position. If it is not installed properly, the stabilizer control link
may interfere with peripheral components when driving,
causing damage to each other.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



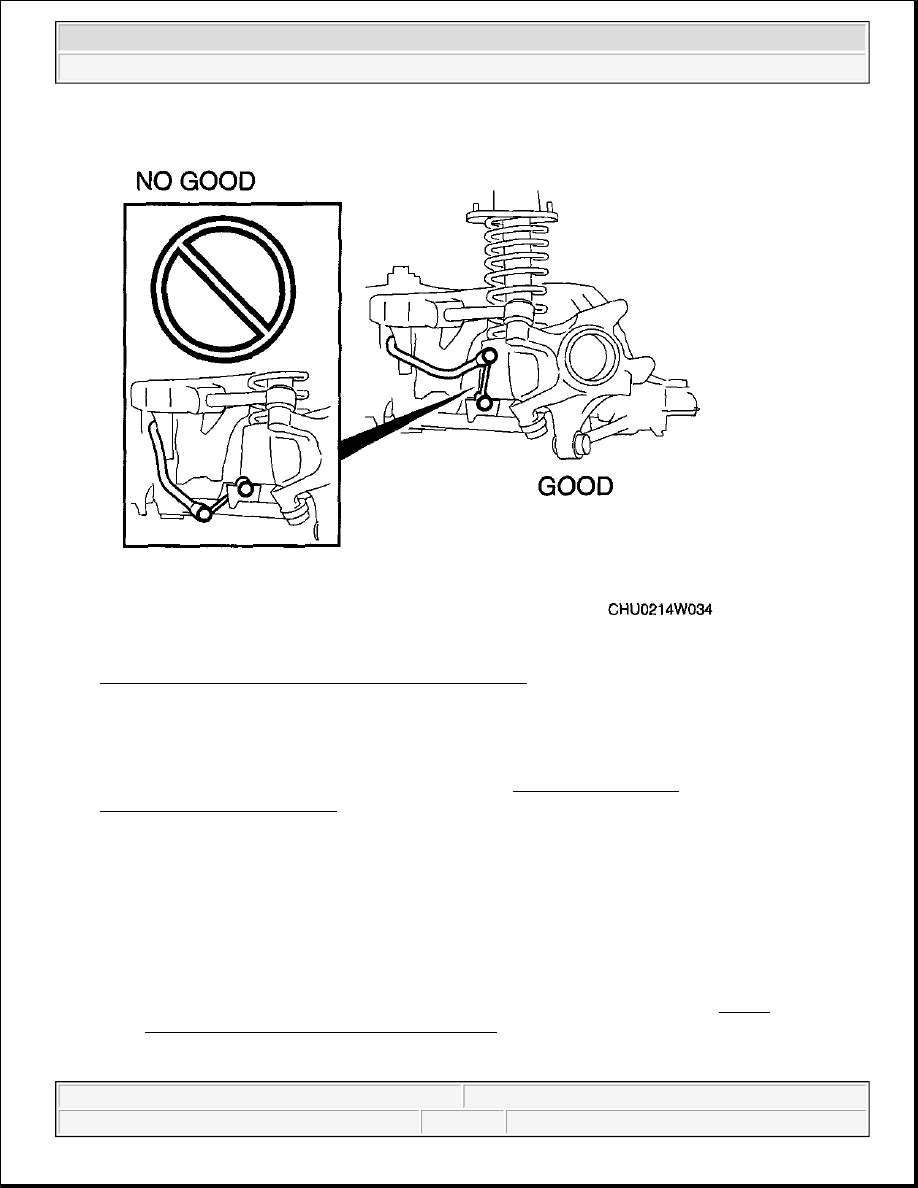

Fig. 28: Precaution For Stabilizer Control Link (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

2. Place the vehicle on, the ground and verify that the stabilizer control link is installed in the angle shown

in Fig. 29 .



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



Fig. 29: Precaution For Stabilizer Control Link (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

REAR STABILIZER CONTROL LINK INSPECTION

1. Remove the stabilizer control link from the vehicle. (See REAR STABILIZER

REMOVAL/INSTALLATION .)

2. Inspect the link for bending or damage. If there is any malfunction, replace the link.

3. Rotate the ball joint 10 times, and rock the ball joint 10 times.

4. Measure the ball-joint rotational torque using an Allen wrench and a torque wrench.

Stabilizer control link ball joint rotational torque

0.23-0.47 N.m {2.35-4.79 kgf.cm, 2.04-4.15 in.lbf}



If not within the specification, replace the stabilizer control link ball joint. (See REAR
STABILIZER REMOVAL/INSTALLATION .)
