Fig. 20: Installing Wheel Hub Components Using SST's
Courtesy of MAZDA MOTORS CORP.

LOCKNUT INSTALLATION NOTE

1. Tighten a new locknut.

2. Install a new locknut and indent as shown to crimp the locknut, using a chisel and hammer.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata



Fig. 21: Installing New Locknut
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata



2008 SUSPENSION

Rear Suspension - MX-5 Miata

REAR SUSPENSION LOCATION INDEX

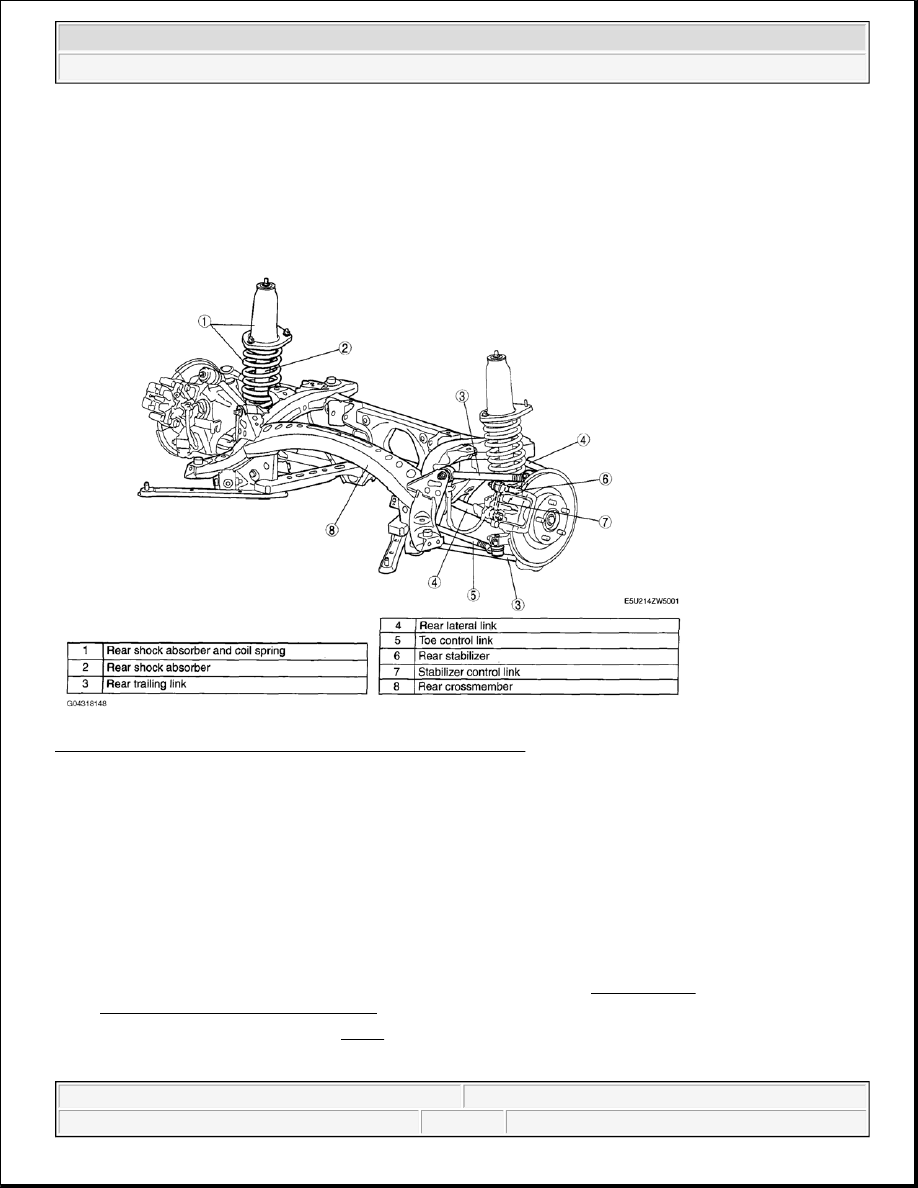

Fig. 1: Identifying Location Of Rear Suspension Components
Courtesy of MAZDA MOTORS CORP.

REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION

1. When working on the left side, remove the fuel tank protector. (See FUEL TANK

REMOVAL/INSTALLATION [LF] .)

2. Remove in the order indicated in Fig. 2 .

3. Install in the reverse order of removal.

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before operations, remove the ABS
wheel-speed sensor (axle side), and move the sensor away from the
harnesses.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



Fig. 2: Identifying Rear Shock Absorber & Coil Spring (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

CALIPER REMOVAL NOTE

1. Remove the caliper, and hang the cable out of the way.

REAR SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY

1. Remove the rear shock absorber and coil spring. (See REAR SHOCK ABSORBER AND COIL

SPRING REMOVAL/INSTALLATION .)

2. Remove in the order indicated in Fig. 3 .

3. Install in the reverse order of removal.

WARNING:



Removing/installing the shock absorber and coil spring is
dangerous. The shock absorber and coil spring could fly off and
cause injury or death, and damage the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata
