Mazda MX-5 Miata / Grand Touring. Manual - part 156

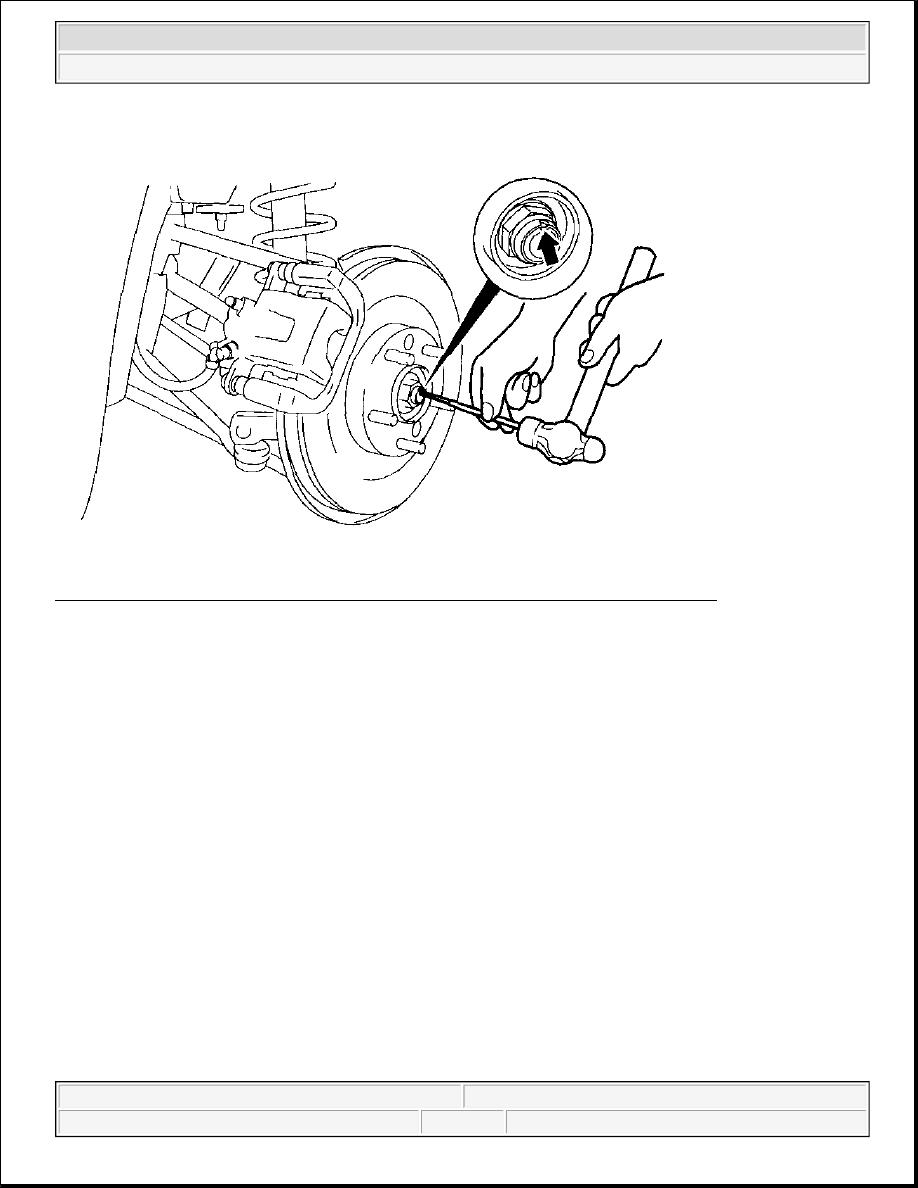

Fig. 4: Knocking Out Crimped Portion Of Locknut Outward Using Chisel & Hammer
Courtesy of MAZDA MOTORS CORP.

BRAKE CALIPER COMPONENT REMOVAL NOTE

1. Suspend the brake caliper component using a cable or equivalent.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata

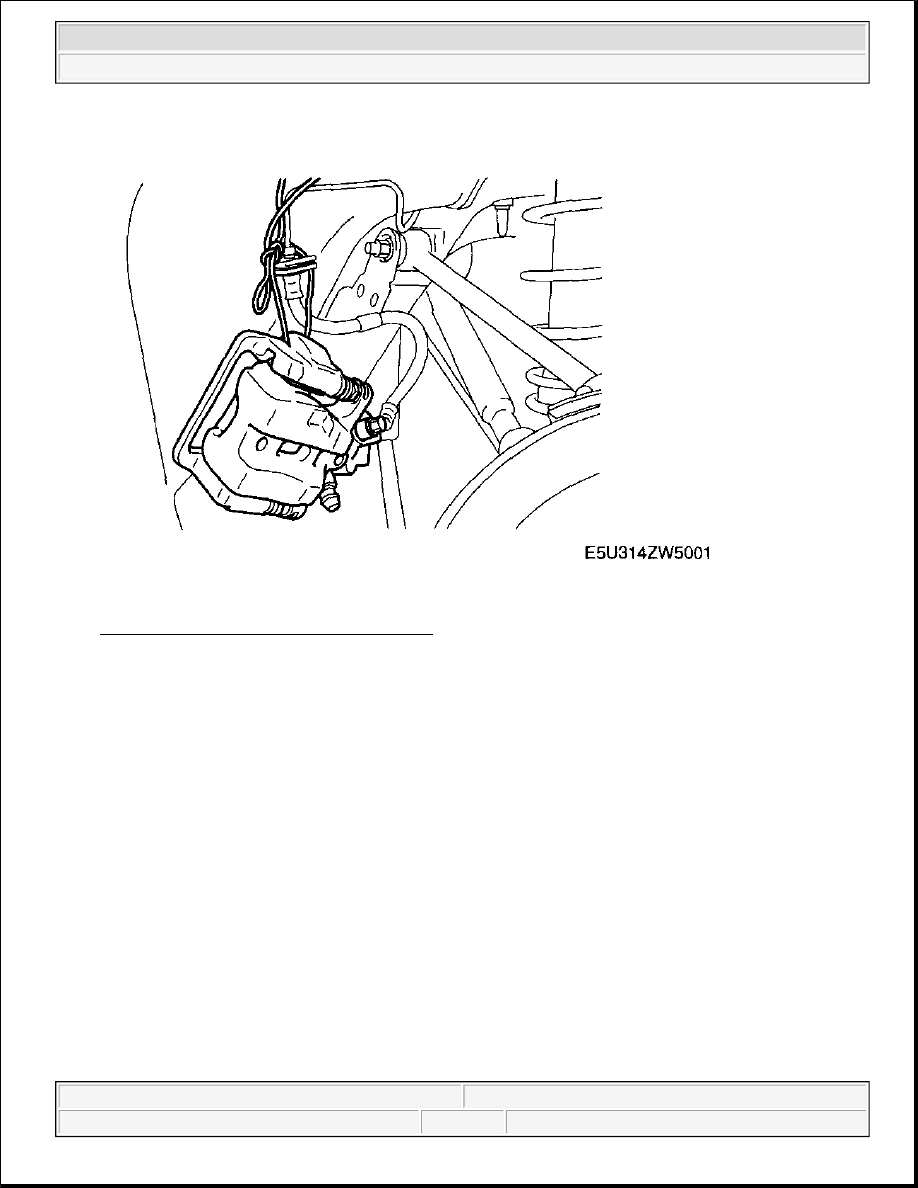

Fig. 5: View Of Brake Caliper Components
Courtesy of MAZDA MOTORS CORP.

REAR DRIVE SHAFT REMOVAL NOTE

1. Temporarily install a spare nut onto the end of the rear drive shaft.

2. Tap the nut with a copper hammer to loosen the drive shaft from the wheel hub.

3. Separate the rear drive shaft from the wheel hub.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata



Fig. 6: Separating Rear Drive Shaft From Wheel Hub
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB COMPONENT REMOVAL NOTE

1. Wind the SST and backing plate contact area with packing tape two times.

2. Remove the wheel hub component using the SSTs.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata



Fig. 7: Removing Wheel Hub Component Using SST's
Courtesy of MAZDA MOTORS CORP.

3. If the bearing inner race remains on the wheel hub component, use a chisel to secure a sufficient space for

installing the SST between wheel hub component and bearing inner race.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata
