Fig. 23: Removing Pinion Shaft Component From Gear Housing
Courtesy of MAZDA MOTORS CORP.

HOLDER DISASSEMBLY NOTE

1. Remove the crimp from the holder and cylinder ends using a hacksaw.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata

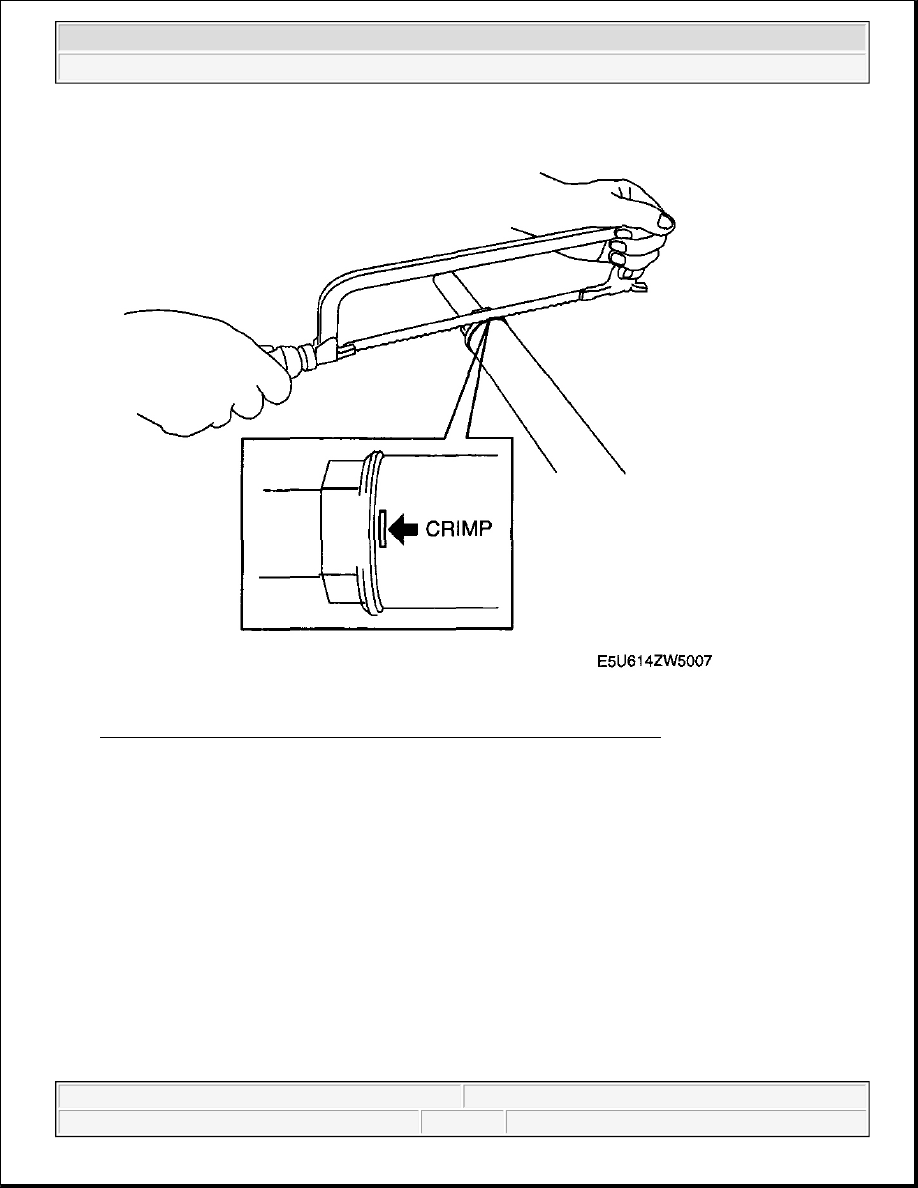

Fig. 24: Removing Crimp From Holder & Cylinder Ends Using Hacksaw
Courtesy of MAZDA MOTORS CORP.

2. Remove the holder using the SST .



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata

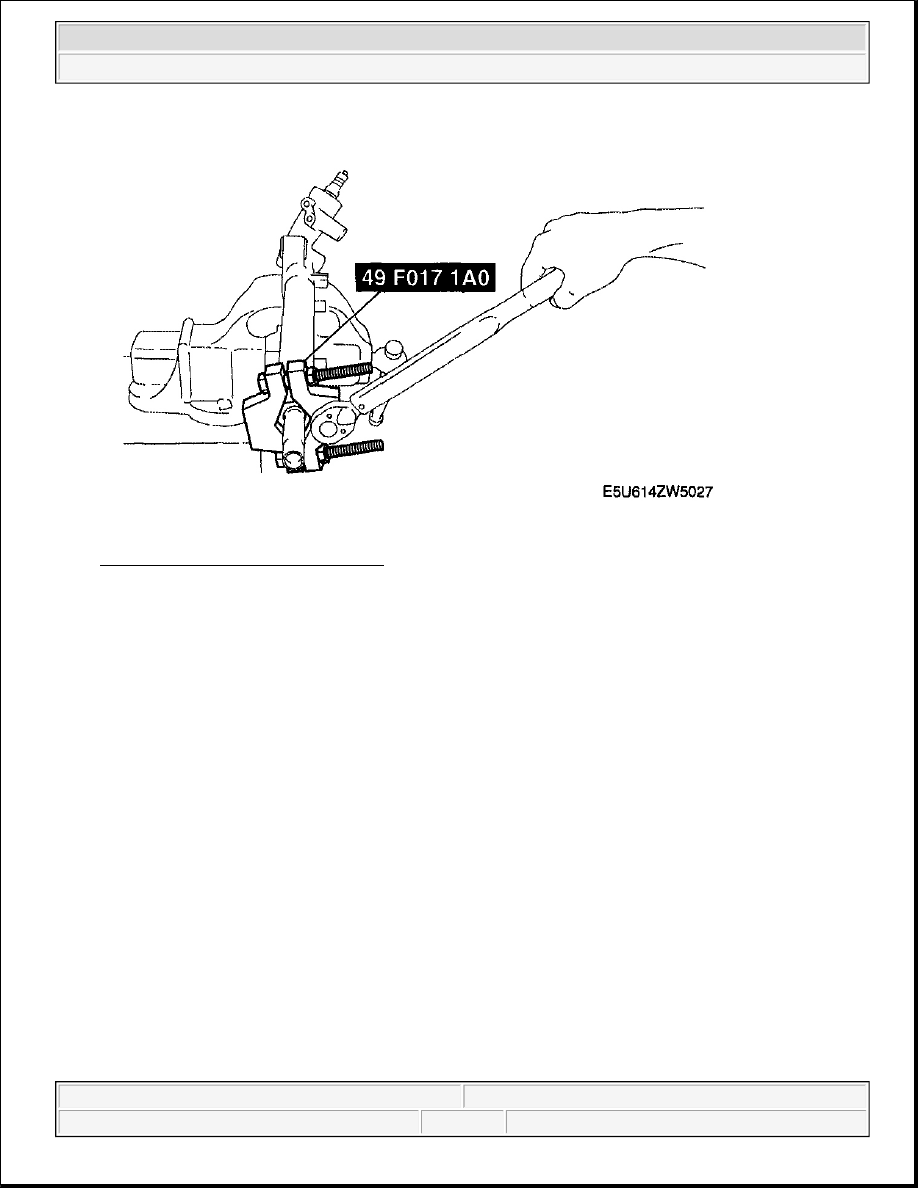

Fig. 25: Removing Holder Using SST
Courtesy of MAZDA MOTORS CORP.

STEERING RACK, OIL SEAL (HOLDER SIDE) DISASSEMBLY NOTE

1. Install the SST to the gear housing.

2. Remove the steering rack and oil seal (holder side) using a press.

3. Remove the oil seal (holder side) from the steering rack.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



Fig. 26: Removing Steering Rack, Oil Seal (Holder Side)
Courtesy of MAZDA MOTORS CORP.

OIL SEAL (GEAR HOUSING SIDE), INNER GUIDE DISASSEMBLY NOTE

1. Set the SSTs as shown.

2. Install the SST to the gear housing.

3. Remove the oil seal (gear housing side) and inner guide using a press.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata
