Mazda MX-5 Miata / Grand Touring. Manual - part 137





Fig. 13: Identifying Tightening Sequence Of Throttle Body Bolts
Courtesy of MAZDA MOTORS CORP.

AIR CLEANER ELEMENT INSPECTION [LF]

1. Remove the air cleaner element. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF] .)

2. Inspect the following items:

If there is any abnormality, clean or replace the air cleaner element.

Has the replacement interval come?

Is the air cleaner element soiled, damaged, or bent?

Are the air cleaner case and the air cleaner element correctly sealed?

Is the correct air cleaner element installed?

THROTTLE BODY INSPECTION [LF]

RESISTANCE INSPECTION

NOTE:

Perform the following inspection only when directed.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

3. Disconnect the throttle body connector.

4. Measure the resistance between throttle actuator terminals A and B.

If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM
REMOVAL/INSTALLATION [LF]
 .)

If as specified, carry out the Circuit Open/Short Inspection .

Specification

AMBIENT TEMPERATURE SPECIFICATION

Fig. 14: Identifying Throttle Actuator Connector Terminals
Courtesy of MAZDA MOTORS CORP.

CIRCUIT OPEN/SHORT INSPECTION

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF] .)

2. Inspect the following wiring harnesses for open or short (continuity check).

Ambient temperature (°C {°F})

Resistance (ohm)

Approx. 20 {68}

0.3-100



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



Fig. 15: Identifying Throttle Valve Actuator & PCM Connector Terminals
Courtesy of MAZDA MOTORS CORP.

Open Circuit

If there is no continuity, the circuit is open. Repair or replace the wiring harness.

Throttle valve actuator terminal A and PCM terminal 2B

Throttle valve actuator terminal B and PCM terminal 2A

Short Circuit



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



If there is continuity, the circuit is shorted. Repair or replace the wiring harness.

Throttle valve actuator terminal A and power supply

Throttle valve actuator terminal A and ground

Throttle valve actuator terminal B and power supply

Throttle valve actuator terminal B and ground

VARIABLE INTAKE AIR SOLENOID VALVE REMOVAL/INSTALLATION [LF]

1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF] .)

2. Remove the battery cover.

3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

4. Move the variable tumble solenoid valve (AT), slightly out of the way. (See VARIABLE TUMBLE

SOLENOID VALVE REMOVAL/INSTALLATION [LF].)

5. Remove in the order indicated in the table. .

6. Install in the reverse order of removal.

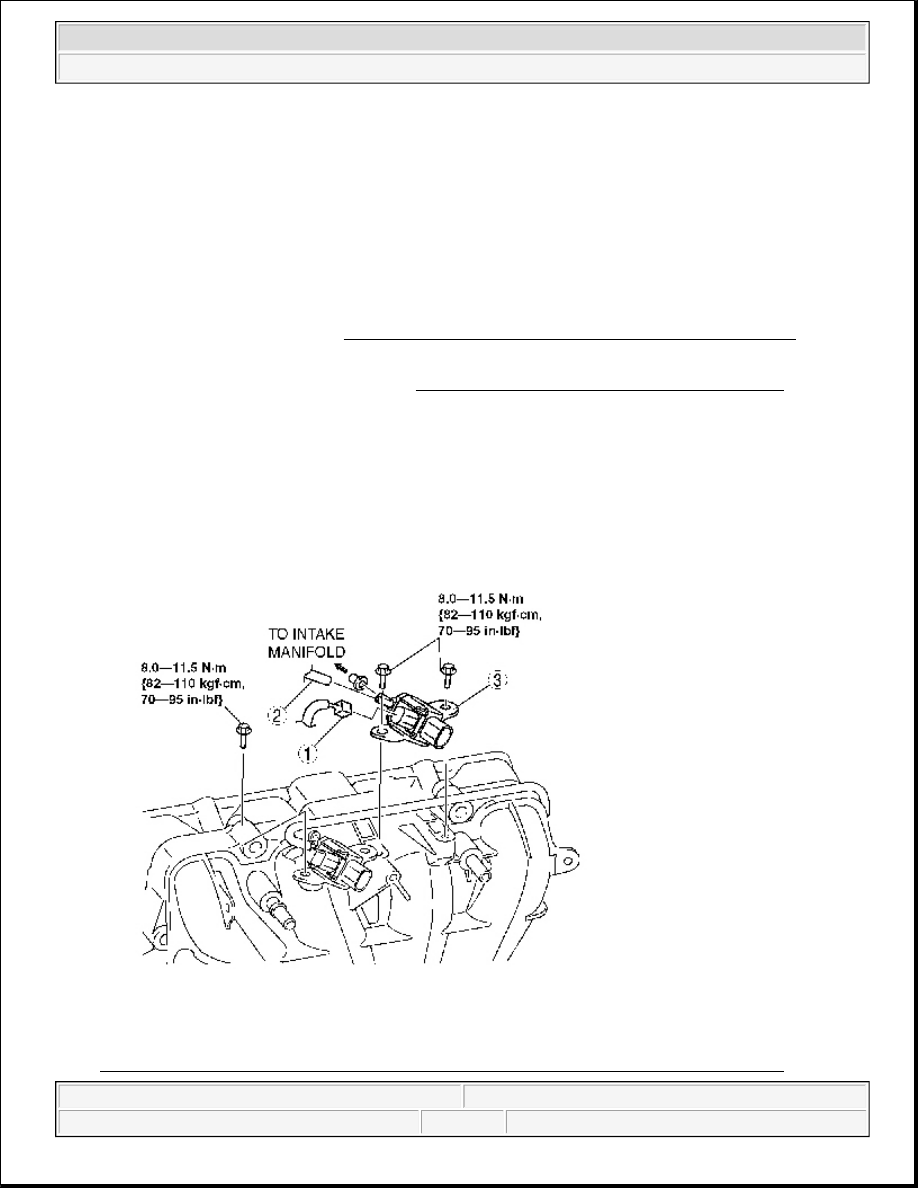

Fig. 16: Identifying Removal Order Of Variable Intake Air Solenoid Valve (With Torque



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata
