1. If there is carbon adhering to the spark plug, perform no-load racing at 4,000 rpm for 2 min, 2 times .

VISUAL INSPECTION

1. Inspect the following items:



If any of the following malfunction are indicated, replace the spark plug.



Insulator breakage



Worn electrode



Damaged gasket



Badly burned insulator (sparking side)

there is any malfunction such as rough idling or start difficulty due to
carbon adhesion causing plug fouling, burn off the carbon by
performing no-load racing of the engine.



When performing the no-load racing, apply the side brake and foot
brake, move the shift lever to neutral (MT), or the selector lever to P
position (AT) to prevent an accident and serious injury.



To avoid possible damage to the spark plug tip, do not use a wire
brush for cleaning.

NOTE:



To avoid possible damage to the tip, use gasoline to clean the spark plugs
after removing dirt.



If the accelerator pedal is depressed continuously for a specified time, the
engine speed may decrease to the idle speed. This is due to the fuel cut
control operation, which prevents overheating, and it does not indicate a
malfunction.



Do not perform no-load racing at high engine speed continuously for 10s
or more.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Ignition System - MX-5 Miata



Fig. 4: Inspecting Spark Plug
Courtesy of MAZDA MOTORS CORP.

RESISTANCE INSPECTION

1. Measure the resistance of the spark plug using a tester as shown in Fig. 5 .



If not within the specification, replace the spark plug.

Spark plug resistance [25°C {77°F}]

3.0-7.5 kilohms



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Ignition System - MX-5 Miata



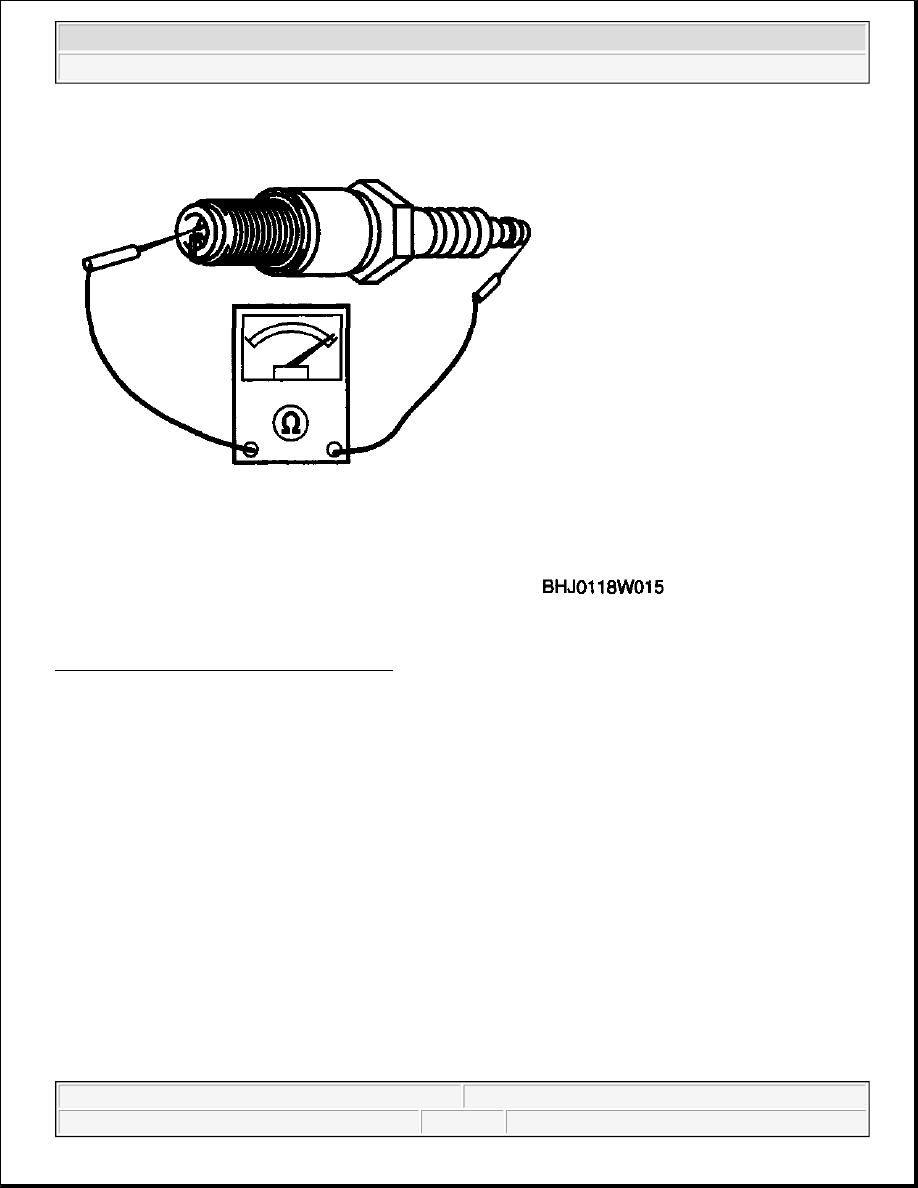

Fig. 5: Measuring Resistance Of Spark Plug
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Ignition System - MX-5 Miata



2008 ENGINE PERFORMANCE

Intake Air System - MX-5 Miata

INTAKE AIR SYSTEM LOCATION INDEX [LF]

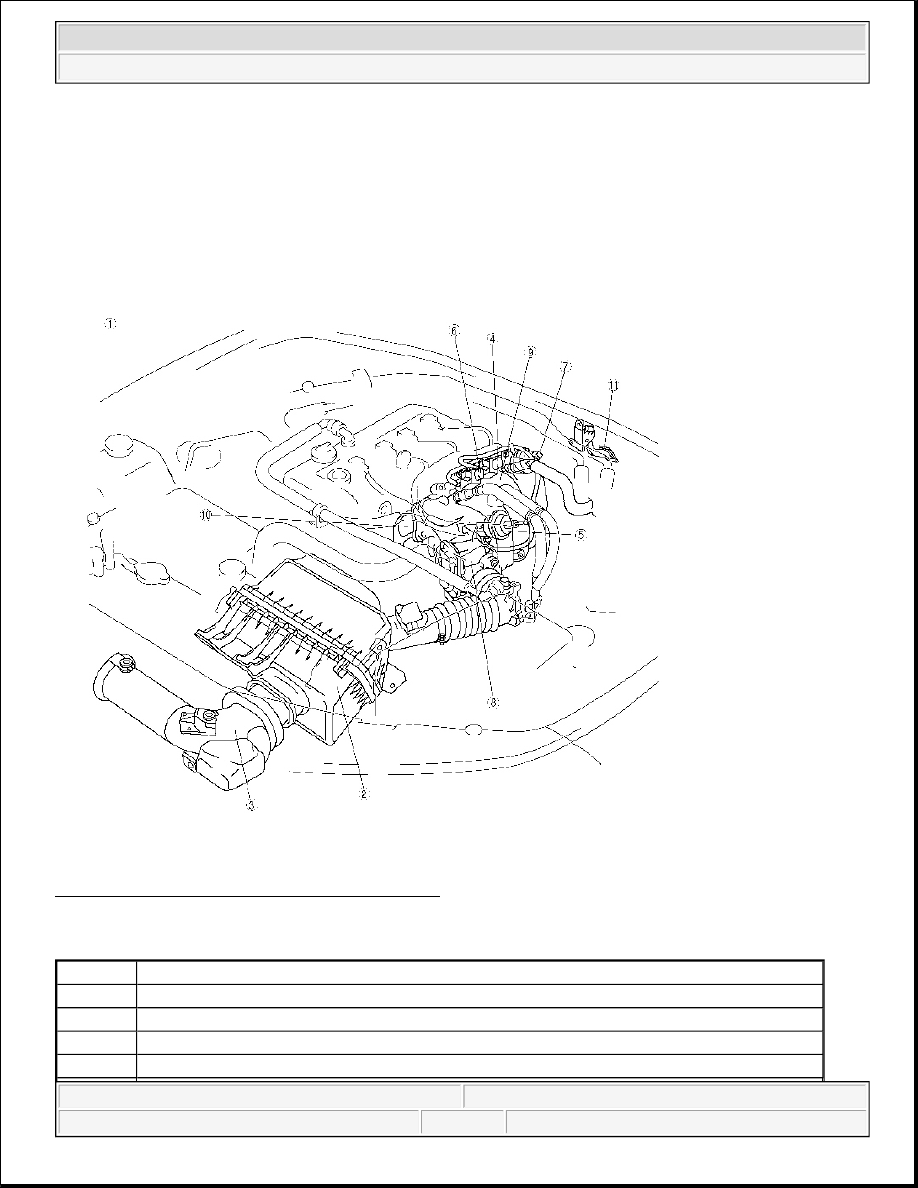

Fig. 1: Identifying Intake Air System Components
Courtesy of MAZDA MOTORS CORP.

Intake Air System Location Index [LF]

1

Intake-air system

2

Air cleaner

3

Fresh-air duct

4

Variable intake air solenoid valve

5

Variable intake air shutter valve actuator
