Fig. 2: Identifying Removal Order Of Ignition Coil (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

IGNITION COIL INSPECTION [LF]

IGNITION COIL INSPECTION

1. Perform the spark test and identify the malfunctioning cylinder.

2. Replace the ignition coil of the malfunctioning cylinder with that of a normal cylinder, and re-perform the

spark test.



If the spark is not normal due to a malfunctioning ignition coil, replace that ignition coil.



It is unlikely that all four ignition coils fail to operate properly. To prevent replacing a normal
component, perform the above procedure, identify the malfunctioning ignition coil, and replace it.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Ignition System - MX-5 Miata



IGNITION COIL WITH BUILT-IN IGNITER INSPECTION

1. Disconnect the ignition coil connector.

2. Measure the resistance between each terminal on the ignition coil connector using an analog circuit tester.



If the measurement corresponds to the table, replace the ignition coil.

TESTER CONNECTION POSITION

Item

Tester Connection Position

Condition

Positive

Negative

Terminal

C

A

0 ohm is not normal

(Infinity ohm is normal)

A

C

C

B

B

C

A

B

Infinity or 0 ohm is not

normal (several kilohm is

normal)

B

A



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Ignition System - MX-5 Miata

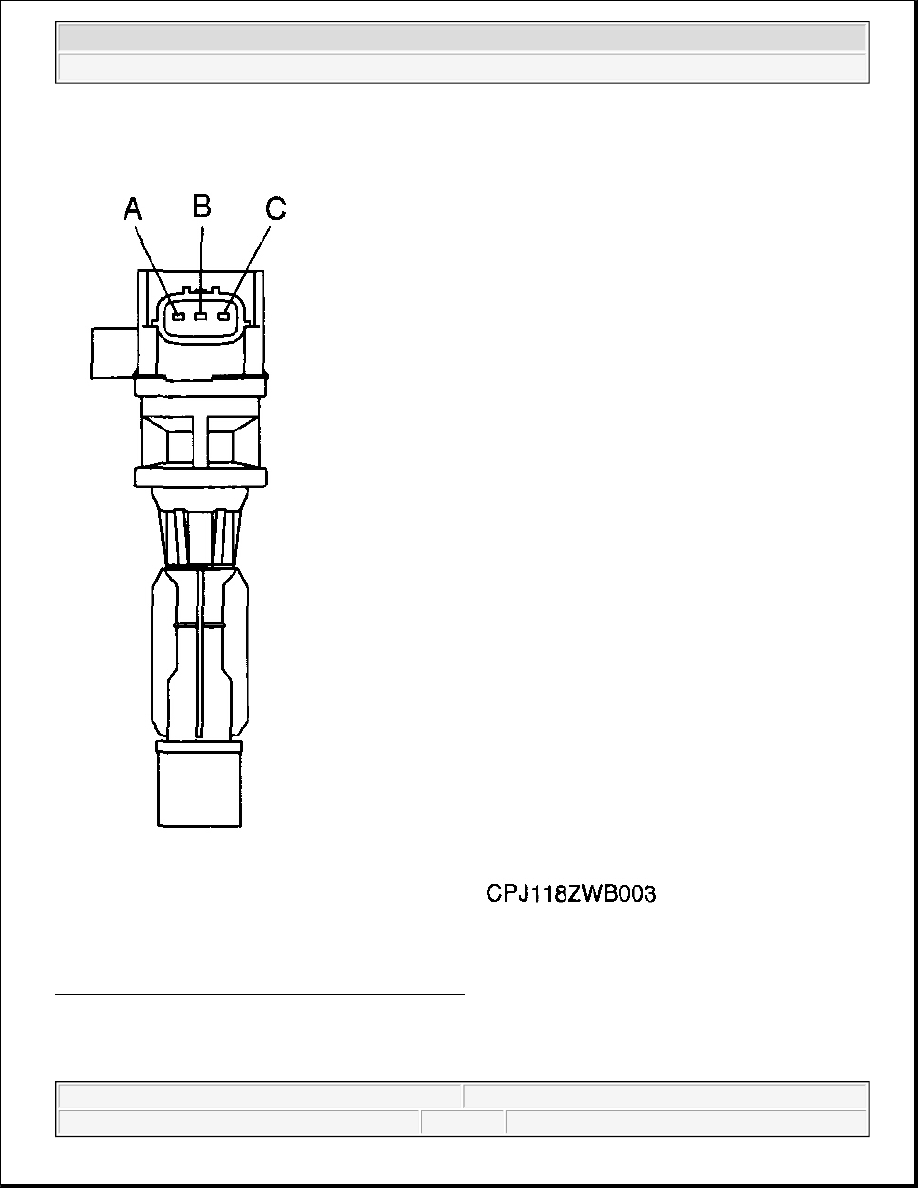

Fig. 3: Identifying Ignition Coil Connector Terminals
Courtesy of MAZDA MOTORS CORP.

SPARK PLUG REMOVAL/INSTALLATION [LF]



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Ignition System - MX-5 Miata



1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF] .)

4. Remove the front suspension tower bar (joint). (See FRONT SUSPENSION TOWER BAR

REMOVAL/INSTALLATION .)

5. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [LF] .)

6. Remove the spark plugs using a plug-wrench.

7. Install in the reverse order of removal.

Tightening torque

10-14 N.m {1.1-1.4 kgf.m. 8-10 ft.lbf}

SPARK PLUG INSPECTION [LF]

SPECIFICATION

Spark plug type

L3G2 18 110, L3Y1 18 110

PLUG GAP INSPECTION

1. Measure the spark plug gap using a wire type plug gap gauge.



If it exceeds the specification, replace the spark plug.

Spark plug gap

1.25-1.35 mm {0.050-0.053 in}

CLEANING

CAUTION:



If a spark plug that is not as specified is installed, engine
performance will be deteriorated. Install only the specified spark plug
when replacing.

CAUTION:



To avoid possible damage to the tip, do not adjust the plug gap.



To prevent damaging the tip, use a wire type plug gap gauge when
inspecting the plug gap.

CAUTION:



Carbon may adhere to the tip of the spark plug during vehicle
delivery or repeated short distance driving during the winter time. If
