1. Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.



If there is any malfunction, replace it with a new one.

2. Apply a small amount of clean engine oil to the sealing surface of the fuel pipe.

3. Install a new retainer to the quick release connector.

NOTE:



If the quick release connector O-ring is damaged or has slipped, replace
the piping component.



A checker tab is integrated with the quick release connector for new fuel
hoses and evaporative hoses. Remove the checker tab from the quick
release connector after the connector is completely engaged with the fuel
pipe.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Fuel System - MX-5 Miata



Fig. 36: Identifying Quick Release Connector
Courtesy of MAZDA MOTORS CORP.

4. Reconnect the hose straight to the pipe until a click is heard.

5. Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected

securely.

6. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [LF] .)

FUEL INJECTOR REMOVAL/INSTALLATION [LF]



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Fuel System - MX-5 Miata



1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel

from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION [LF] .)

2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF] .)

3. Remove the battery cover.

4. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

5. Disconnect the fuel injector connector and move the harness slightly out of the way.

6. Remove in the order indicated in Fig. 37 .

WARNING:



Fuel is very flammable liquid. If fuel spills or leaks from the
pressurized fuel system, it will cause serious injury or death and
facility breakage. Fuel can also irritate skin and eyes. To prevent
this, always complete the "

FUEL LINE SAFETY PROCEDURE

", while

referring to the BEFORE SERVICE PRECAUTION [LF] .



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Fuel System - MX-5 Miata



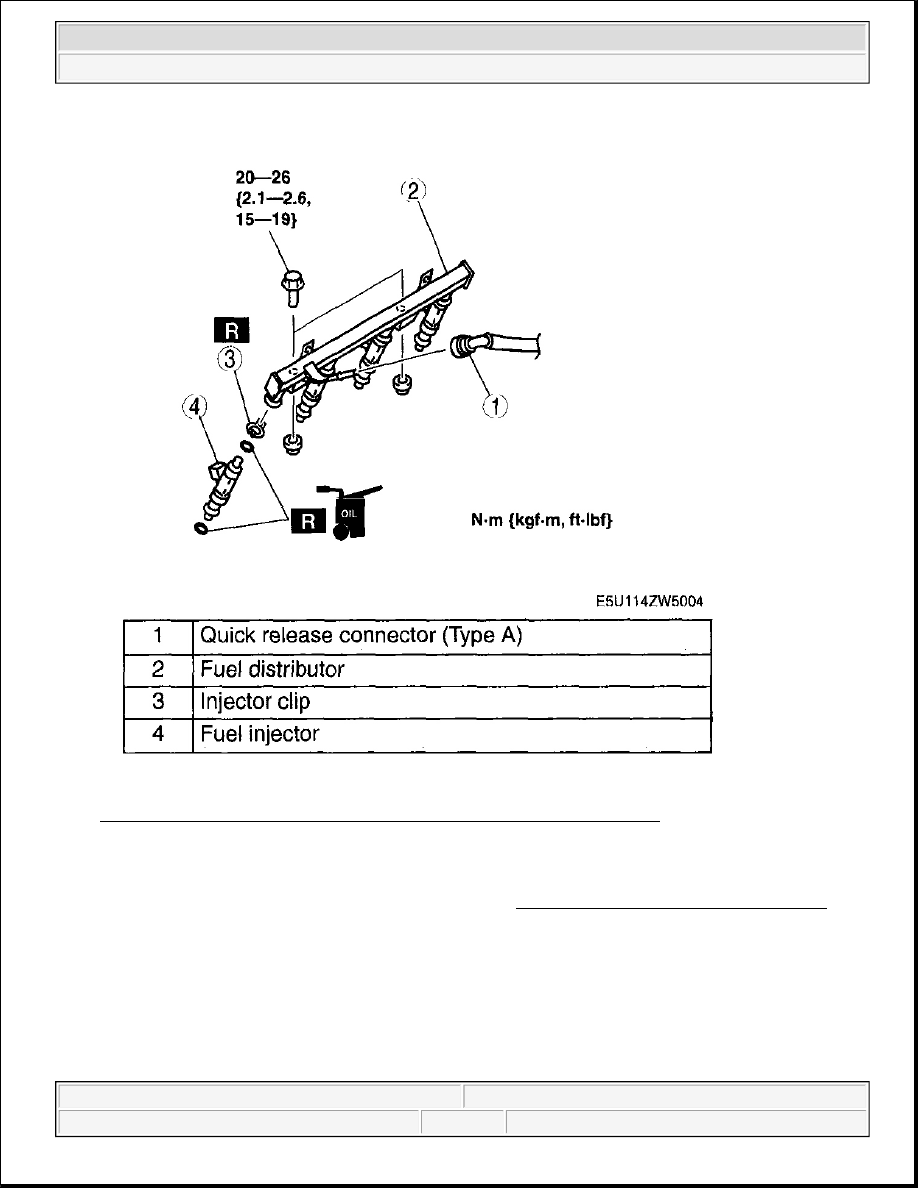

Fig. 37: View Of Fuel Injector Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

7. Install in the reverse order of removal.

8. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [LF] .)

FUEL INJECTOR REMOVAL NOTE

CAUTION:



Use of a deformed injector clip will cause the fuel injector to be
connected incorrectly and could result in fuel leakage. It will also
cause the injector to rotate. Therefore, always replace the clip when
the injector is removed.
