Mazda MX-5 Miata / Grand Touring. Manual - part 110





Fig. 31: Identifying Front Crossmember Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

AXLE AND HUB COMPONENT REMOVAL NOTE

1. Loosen the front upper arm inner bolts.

2. Remove the axle and hub component.

FRONT CROSSMEMBER COMPONENT REMOVAL NOTE



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



1. Secure the chain to install the SST to the position shown in Fig. 32 using the bolts (M10 x 1.5 , length 30

mm {1.18 in} ).

Fig. 32: Identifying Chain Bolt Location
Courtesy of MAZDA MOTORS CORP.

2. Suspend the engine.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 33: Suspending Engine
Courtesy of MAZDA MOTORS CORP.

3. Support the front crossmember using a jack.

4. Lower the front crossmember component slightly.

5. Remove the engine mounting rubber, pipes and hoses installed to the front crossmember.

6. Remove the front crossmember component.

WARNING:

Verify that the crossmember component is securely supported
by a jack. If the crossmember component falls, it could cause
serious injury or death, or damage to the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



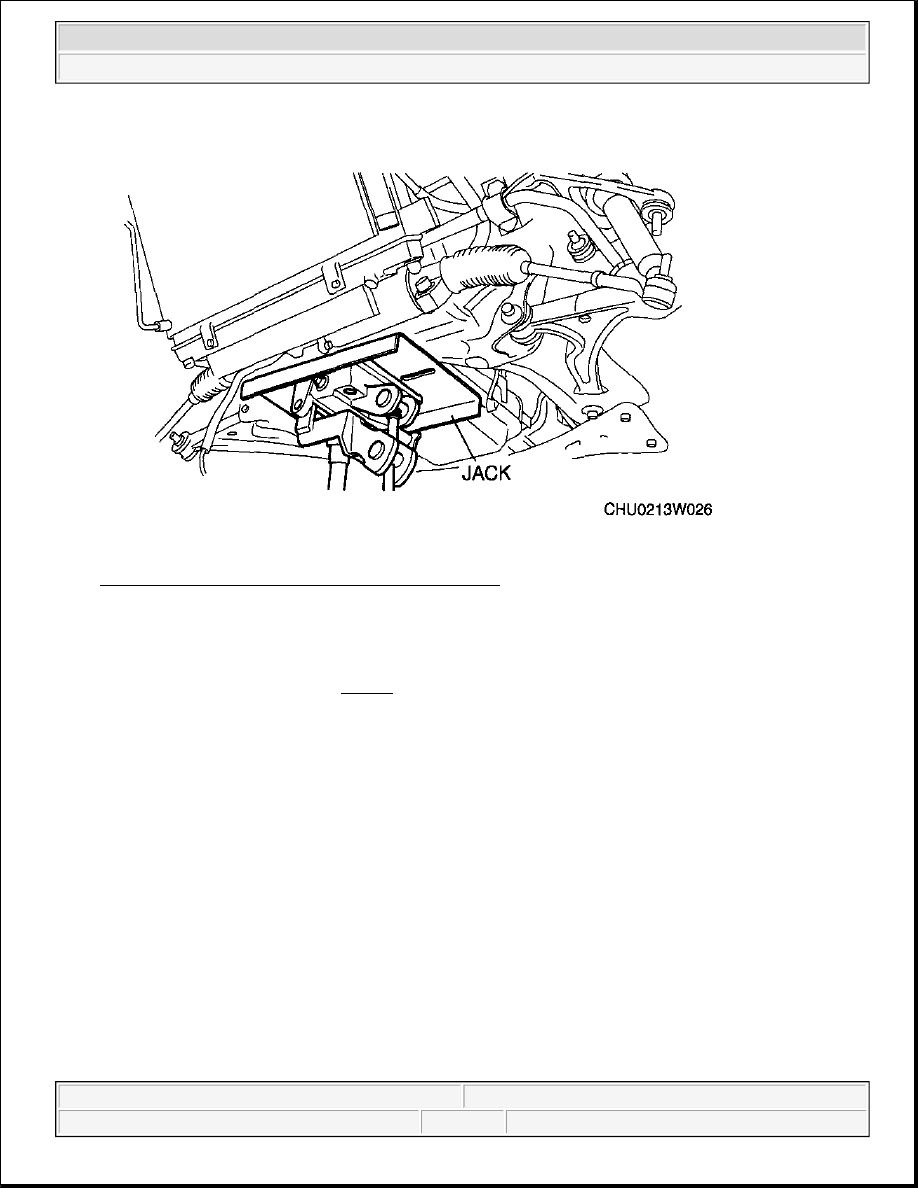

Fig. 34: Supporting Front Crossmember Using Jack
Courtesy of MAZDA MOTORS CORP.

TRANSVERSE MEMBER REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 35 .

2. Install in the reverse order of removal.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata
