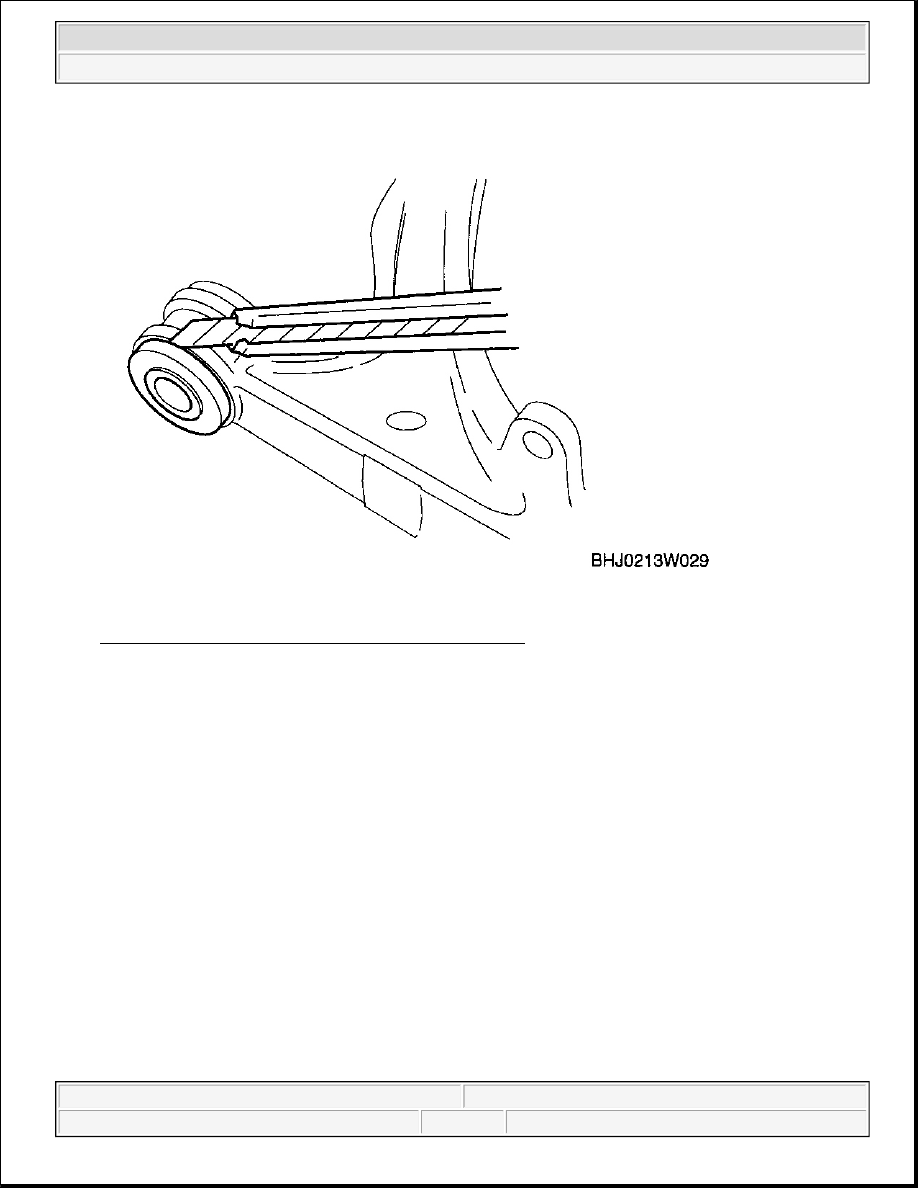

Fig. 14: Cutting Off Stopper Plate Rubber Using Razor
Courtesy of MAZDA MOTORS CORP.

2. Cut off 5-6 mm {0.20-0.23 in} from each side of the knob end of the bushing using a hacksaw.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 15: Cutting Off From Each Side Of Knob End Of Bushing Using Hacksaw
Courtesy of MAZDA MOTORS CORP.

3. Remove the bushing using the SSTs .



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 16: Removing Bushing Using SST's
Courtesy of MAZDA MOTORS CORP.

BUSHING (SHOCK ABSORBER LOWER SIDE CONNECTING PART) REMOVAL NOTE

1. Remove the bushing using the SSTs .

CAUTION:



Be careful not to damage the front lower arm. If it is damaged,
replace it.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 17: Removing Bushing Using SSTs
Courtesy of MAZDA MOTORS CORP.

BUSHING (SHOCK ABSORBER LOWER SIDE CONNECTING PART) INSTALLATION NOTE

1. Compress the bushing using the SSTs .



2008 Mazda MX-5 Miata Grand Touring
