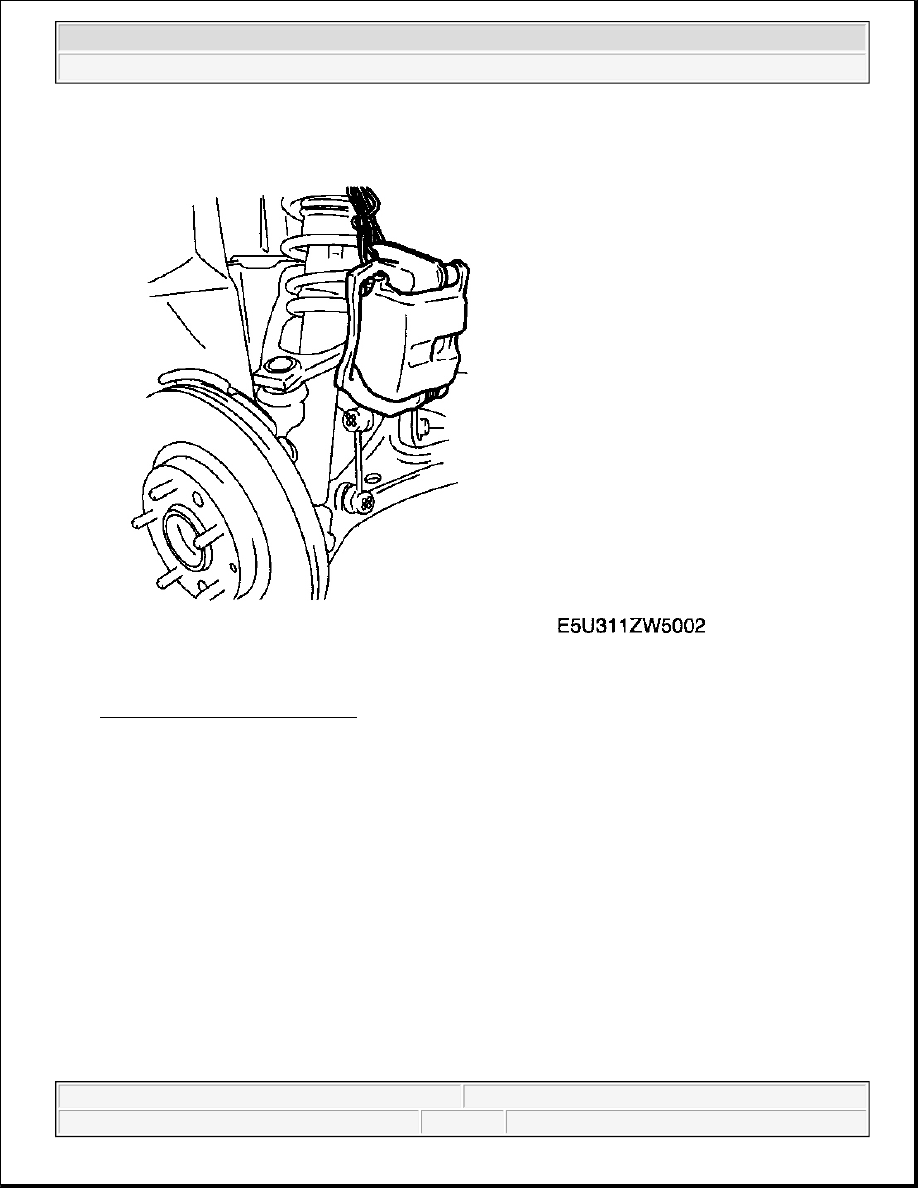

Fig. 6: Suspending Brake Caliper
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB BOLT REMOVAL NOTE

1. Remove the wheel hub bolts from the wheel hub using a press.

NOTE:

Remove the wheel hub bolt only if there is an abnormality.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Front Axle - MX-5 Miata



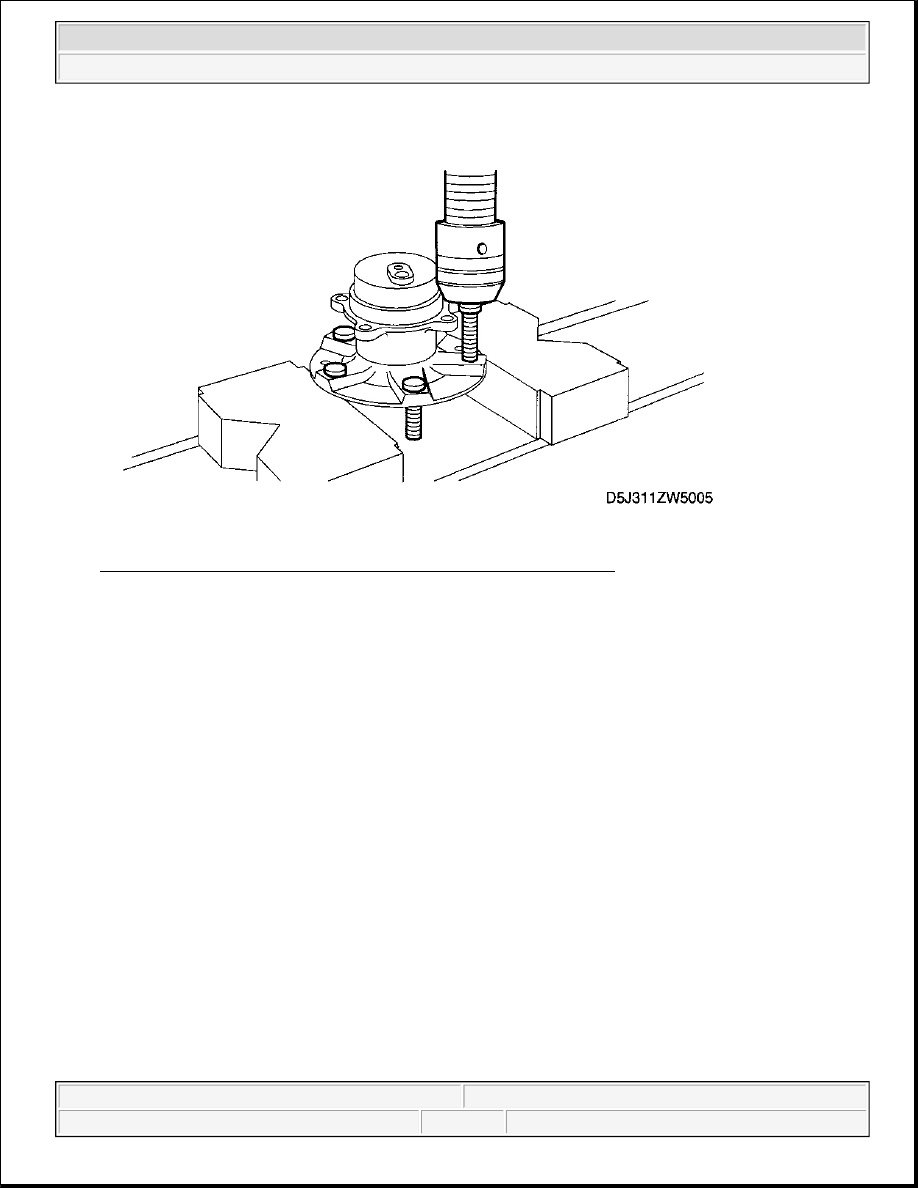

Fig. 7: Removing Wheel Hub Bolts From Wheel Hub Using Press
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB BOLT INSTALLATION NOTE

1. Press in new wheel hub bolts into the wheel hub using a press.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Front Axle - MX-5 Miata



Fig. 8: Pressing New Wheel Hub Bolts Into Wheel Hub Using Press
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Front Axle - MX-5 Miata



2008 SUSPENSION

Front Suspension - MX-5 Miata

FRONT SUSPENSION LOCATION INDEX

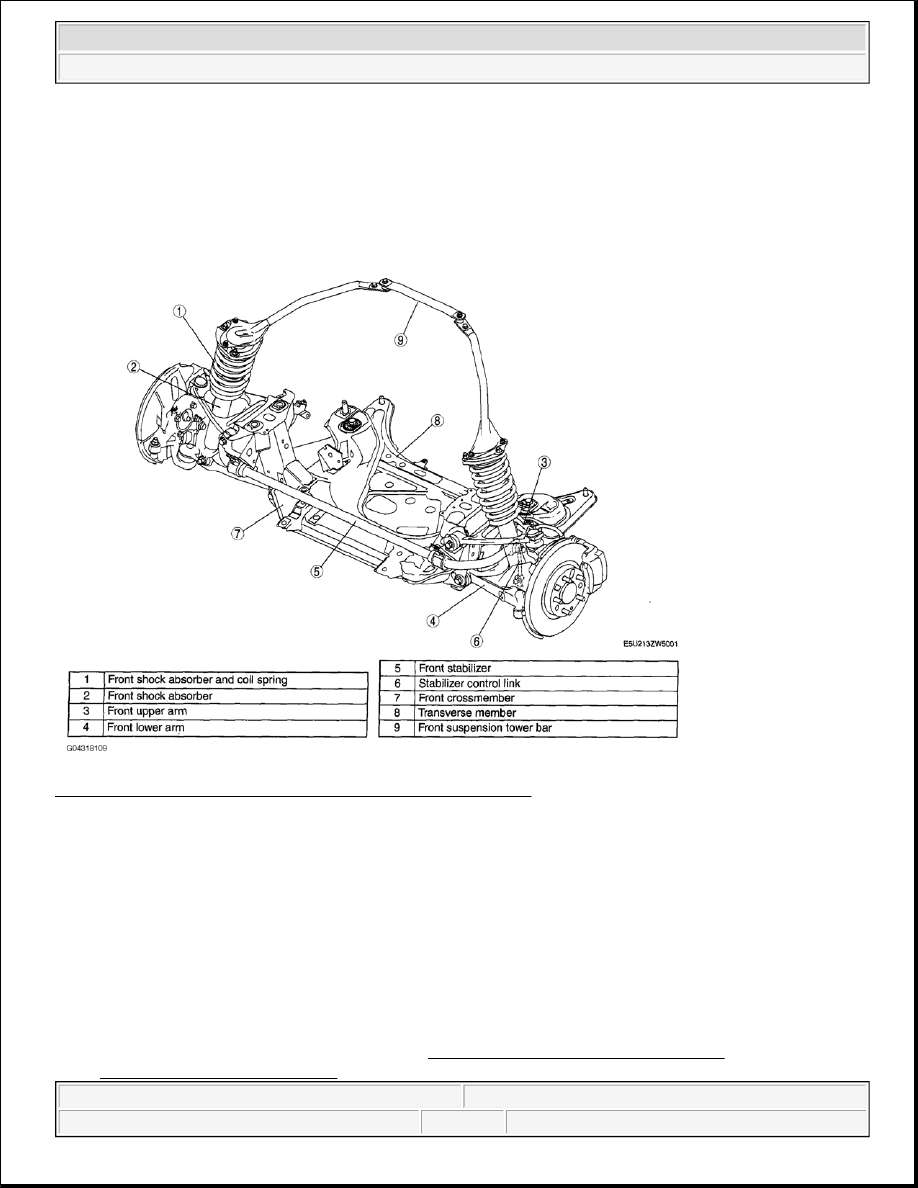

Fig. 1: Identifying Location Of Front Suspension Components
Courtesy of MAZDA MOTORS CORP.

FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION

1. Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR

REMOVAL/INSTALLATION .)

CAUTION:

Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before performing the following
procedures, remove the ABS wheel-speed sensor (axle side) and fix
it to an appropriate place where the sensor will not be pulled while
servicing the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata
