EVAPORATIVE CHAMBER INSPECTION [LF]

1. Remove the evaporative chamber.

2. Blow from port A and verify that there is airflow from port B.



If not as specified, replace the evaporative chamber.

Fig. 37: Inspecting Evaporative Chamber Ports
Courtesy of MAZDA MOTORS CORP.

QUICK RELEASE CONNECTOR (EMISSION SYSTEM)
REMOVAL/INSTALLATION [LF]

QUICK RELEASE CONNECTOR TYPE

CAUTION:



There are four types of quick release connectors. Verify the type and
location, and install/remove properly.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Emission System - MX-5 Miata



Fig. 38: Identifying Locations Of Different Quick Release Connectors
Courtesy of MAZDA MOTORS CORP.

TYPE A REMOVAL

1. Rotate the release tab on the quick release connector to the stopper position.

CAUTION:



The quick release connector may be damaged if the release tab is
bent excessively. Do not expand the release tab over the stopper.

NOTE:



The evaporative hose can be removed by pushing it to the joint port side
to release the lock.

NOTE:



The retainer is attached to the pipe even after the connector is
disconnected.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Emission System - MX-5 Miata

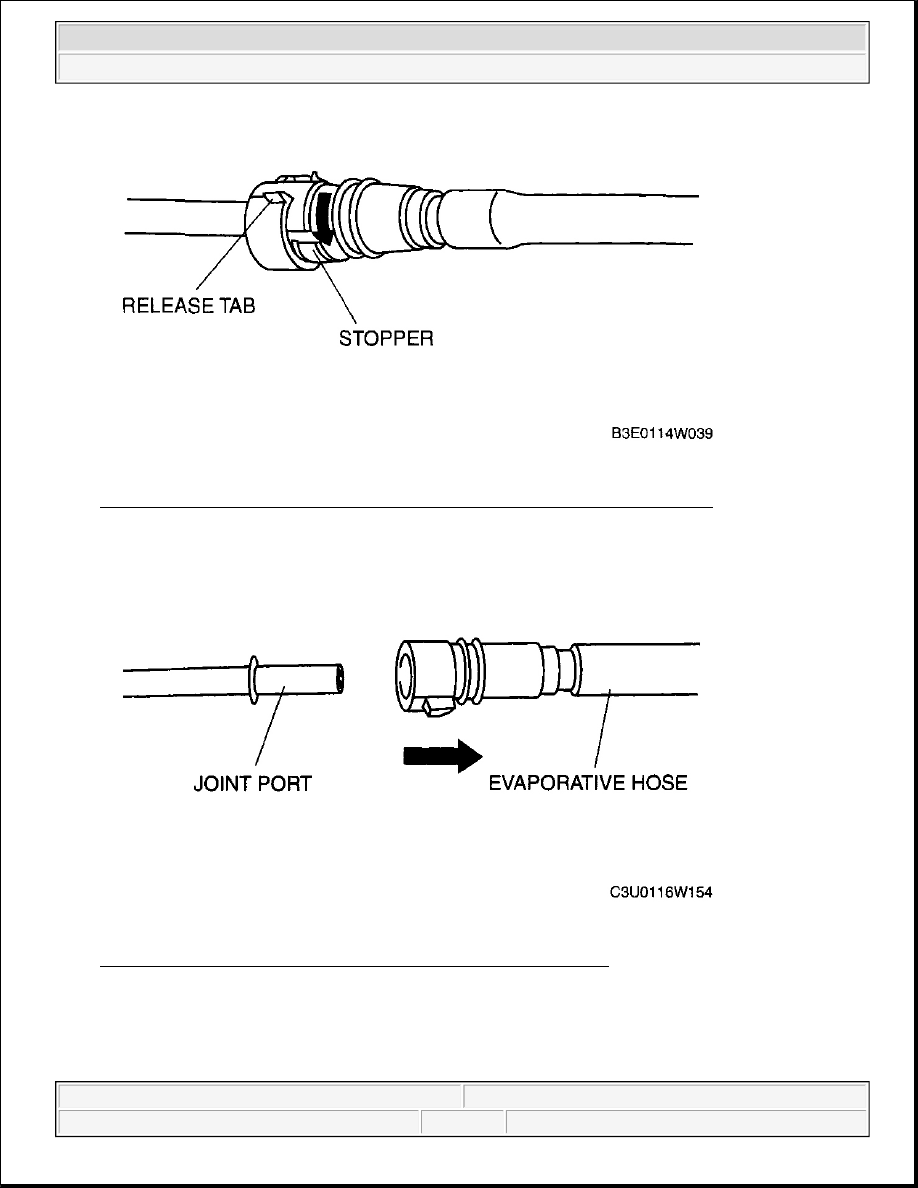

Fig. 39: Rotating Release Tab On Quick Release Connector To Stopper Position
Courtesy of MAZDA MOTORS CORP.

2. Pull out the evaporative hose straight from the joint port and disconnect it.

Fig. 40: Disconnecting Evaporative Hose Straight From Joint Port
Courtesy of MAZDA MOTORS CORP.

3. Cover the disconnected quick release connector and joint port with vinyl sheeting or a similar material to

prevent it from scratches or dirt.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Emission System - MX-5 Miata



Fig. 41: Covering Disconnected Quick Release Connector
Courtesy of MAZDA MOTORS CORP.

TYPE B REMOVAL

1. Squeeze the release tab until the locks are released.

2. Pull the quick release connector straight outward.

NOTE:



The retainer has two internal locking tabs which retain the joint port.
Be sure that the squeezing place on the retainer is squeezed until it
can be released from the joint port.

NOTE:



The retainer is attached to the pipe even after the connector is
disconnected.
