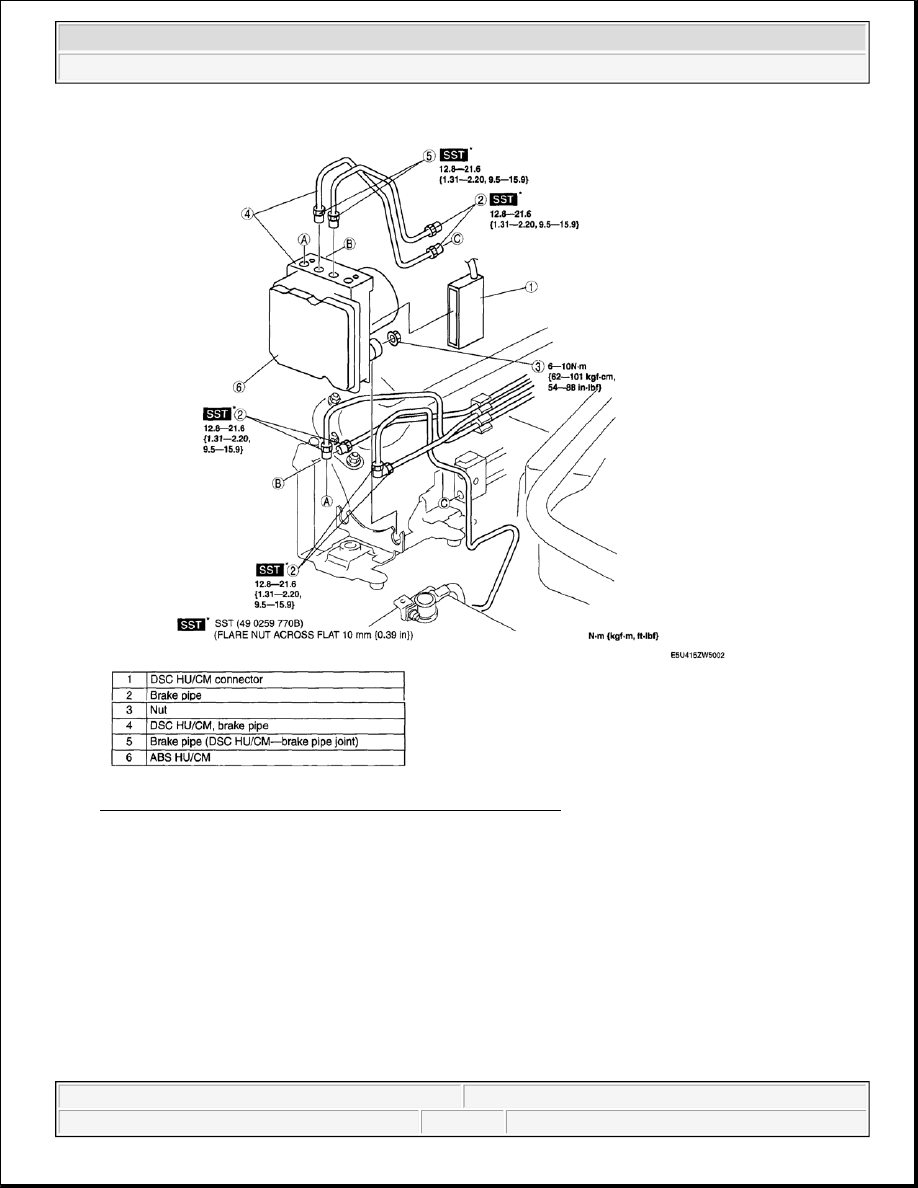

Fig. 5: Identifying DSC HU/CM With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

DSC HU/CM CONNECTOR REMOVAL NOTE

1. Pull the lock lever up in the direction of the arrow.

2. Pull the connector toward the vehicle rear and remove it.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



Fig. 6: Identifying Lock Lever Position
Courtesy of MAZDA MOTORS CORP.

BRAKE PIPE REMOVAL NOTE

1. Place an alignment mark on the brake pipe and DSC HU/CM.

2. Apply protective tape to the connector to prevent brake fluid from entering.

3. Remove the brake pipe.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



Fig. 7: Brake Pipe At DSC HU/CM
Courtesy of MAZDA MOTORS CORP.

BRAKE PIPE (DSC HU/CM-BRAKE PIPE JOINT) INSTALLATION NOTE

1. Align with the mark made before removing the brake pipe and temporarily install the brake pipe to the

DSC HU/CM.

BRAKE PIPE INSTALLATION NOTE

1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint

referring to the figure.

2. Tighten the brake pipe to the specified torque using the SST (49 0259 770B).

CAUTION:



If the brake pipe is tightened to the specified torque, it may be
difficult to install it to the vehicle. Therefore, only temporarily
tighten the brake pipe so that it can still be moved.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



Fig. 8: Identifying DSC HU/CM
Courtesy of MAZDA MOTORS CORP.

DSC HU/CM CONNECTOR INSTALLATION NOTE

1. After connecting the connector, verify that the lock lever is completely pushed in.
