Mazda MX-5 Miata / Grand Touring. Manual - part 48

Fig. 10: Removing Rear Drive Shaft & Rear Knuckle Components
Courtesy of MAZDA MOTORS CORP.

2. Pull the rear drive shaft and rear knuckle component to the outer side, and detach the rear drive shaft from

the rear differential.

3. To hold the rear drive shaft and rear knuckle component, install the rear lateral link (upper) to the rear

knuckle temporarily after disconnecting the rear drive shaft.

REAR DIFFERENTIAL REMOVAL/INSTALLATION NOTE

1. Remove or install the rear differential, while supporting it securely with a jack, and moving the jack

gradually.

WARNING:



If the rear differential falls off, it can cause serious injuries or death,
and damage to the vehicle. When removing/installing the rear
differential, verify that it is supported securely with a jack.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata

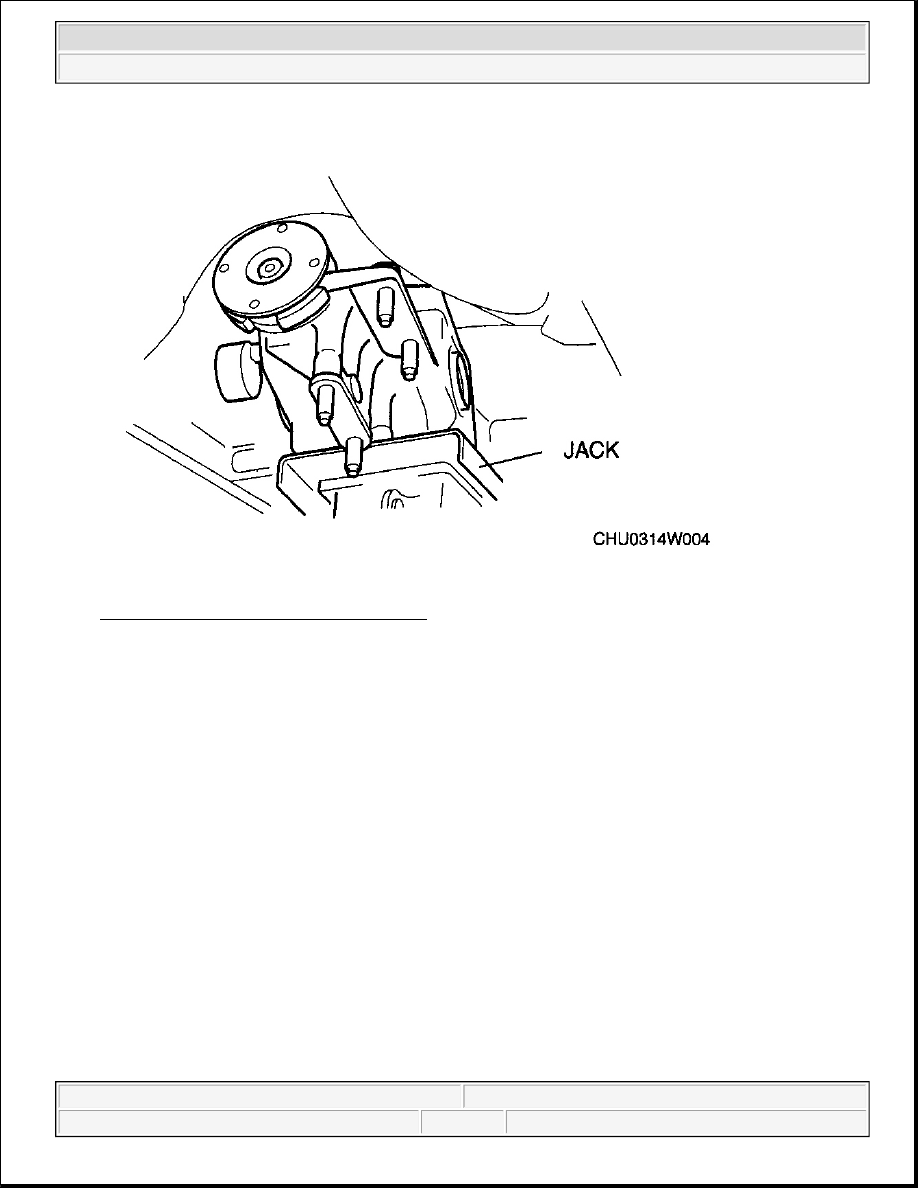

Fig. 11: Supporting Differential With Jack
Courtesy of MAZDA MOTORS CORP.

REAR DRIVE SHAFT, REAR KNUCKLE COMPONENT INSTALLATION NOTE

1. Install a new drive shaft clip to the clip groove at the top of the rear drive shaft with the clip opening

facing upward and the clip width within the specification.

Standard

31.2 mm {1.23 in}

2. After installing the clip, measure the outer diametric if it exceeds the specification, reinstall a new clip.

3. Apply differential oil to the differential oil seal lip.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



Fig. 12: View Of Drive Shaft Clip To Clip Groove At Top Of Rear Drive Shaft
Courtesy of MAZDA MOTORS CORP.

4. Insert the rear drive shaft into the rear differential with the clip opening facing upward.

5. After installation, verify that the rear drive shaft is securely held by the clip by pulling the outer ring on

the differential side towards the axle.

REAR DIFFERENTIAL DISASSEMBLY

1. Disassemble in the order indicated in Fig. 13 .

CAUTION:



The sharp edges of the rear drive shaft can slice or puncture the
oil seal Be careful not to damage the oil seal when installing the
rear drive shaft from the rear differential.

WARNING:



The engine stand is equipped with a self-lock mechanism, however,
if the rear differential is tilted, the self-lock mechanism could
become inoperative. If the rear differential unexpectedly rotates, it
could cause injury, therefore do not maintain the rear differential
tilted. When turning the rear differential, grasp the rotation handle
firmly.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



Fig. 13: Exploded View Of Rear Differential Components
Courtesy of MAZDA MOTORS CORP.

DIFFERENTIAL COMPONENT DISASSEMBLY NOTE

1. Install the differential component to the SSTs .
