Mazda MX-5 Miata / Grand Touring. Manual - part 45

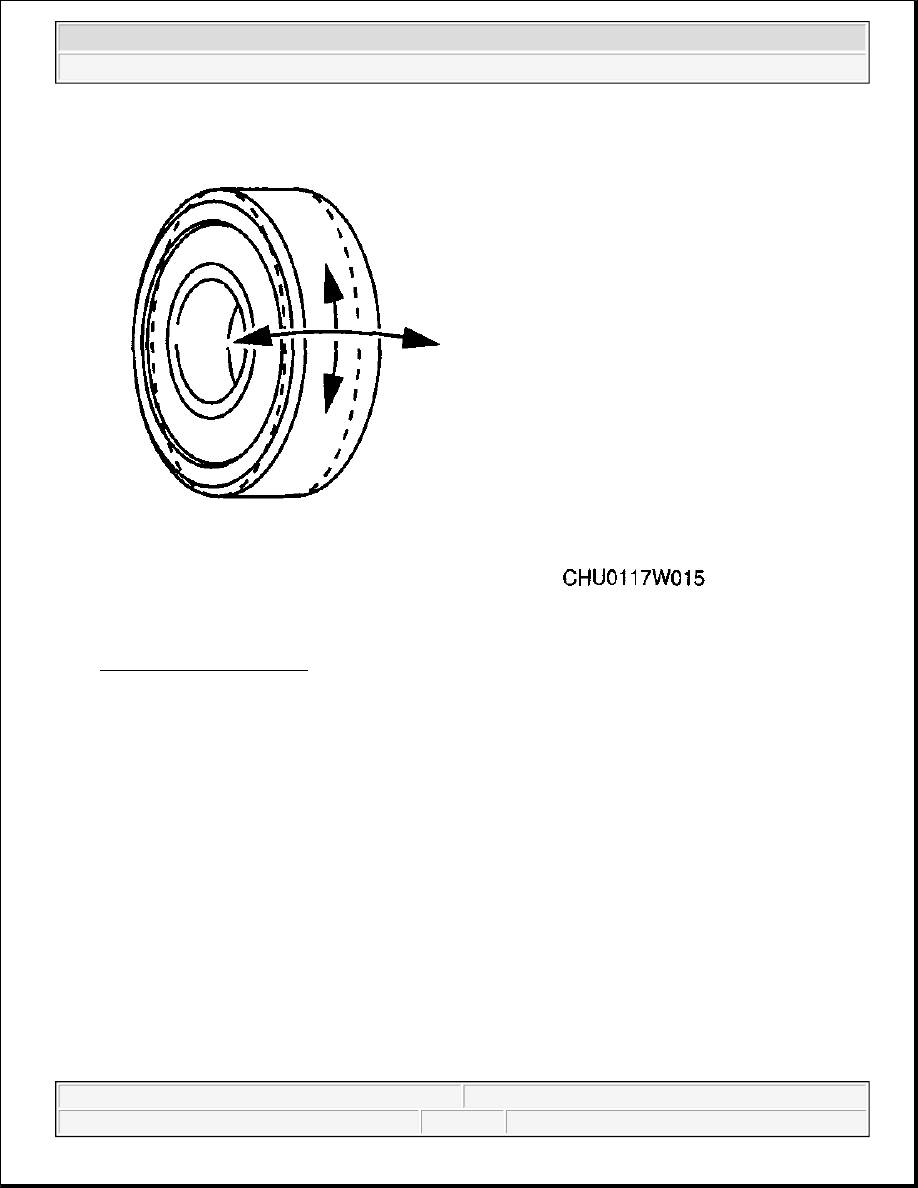

Fig. 19: Inspecting Bearing
Courtesy of MAZDA MOTORS CORP.

GENERATOR DISASSEMBLY/ASSEMBLY [LF]

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

CAUTION:



Melt the solder quickly, otherwise the diodes (rectifier) and regulator
will be damaged by excessive heat.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



Fig. 20: Identifying Disassemble Order Of Generator (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



2008 DRIVELINE/AXLES

Differential - MX-5 Miata

REAR DIFFERENTIAL LOCATION INDEX

Fig. 1: Identifying Location Of Rear Differential Components
Courtesy of MAZDA MOTORS CORP.

DIFFERENTIAL OIL INSPECTION

1. Park the vehicle on level ground for approx. 5min. to stabilize the differential oil.

2. Remove the oil-fill plug and the washer.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



Fig. 2: Identifying Oil-Fill Plug
Courtesy of MAZDA MOTORS CORP.

3. Inspect if the oil level is close to the rim of the oil-fill plug hole.

4. If the oil level is lower than approx. 12 mm {0.47 in} from the lower end of the oil-fill plug hole, inspect

for oil leakage and add the specified oil.

NOTE:



Each vehicle is filled with a specified amount of oil (0.7 +/- 0.1 L)
when it is delivered, therefore, the oil level is lower than the lower
end of the plug hole as shown in the figure. However, this has no
affect on the differential function.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata
