Mazda MX-5 Miata / Grand Touring. Manual - part 44





Fig. 15: Inspecting Brushes For Wear
Courtesy of MAZDA MOTORS CORP.

Brush Spring

1. Measure the force of the brush spring using a spring pressure gauge.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



Fig. 16: Measuring Force Of Brush Spring Using Spring Pressure Gauge
Courtesy of MAZDA MOTORS CORP.

2. Read the spring pressure gauge at the brush tip projection of 2 mm {0.079 in}.

Replace the brush spring if necessary.

Generator brush spring force

Standard: 4.1-5.3 N {0.42-0.54 kgf, 0.92-1.19 lbf}

Minimum: 1.7 N {0.17 kgf, 0.38 lbf}

Rectifier (Using an analog circuit tester)

1. Inspect for continuity of the diodes using an analog circuit tester.

If not as specified, replace the rectifier.

Specification

RECTIFIER SPECIFICATION USING AN ANALOG CIRCUIT TESTER

Negative

Positive

Continuity

E

P1, P2, P3, P4, P5, P6

Yes



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



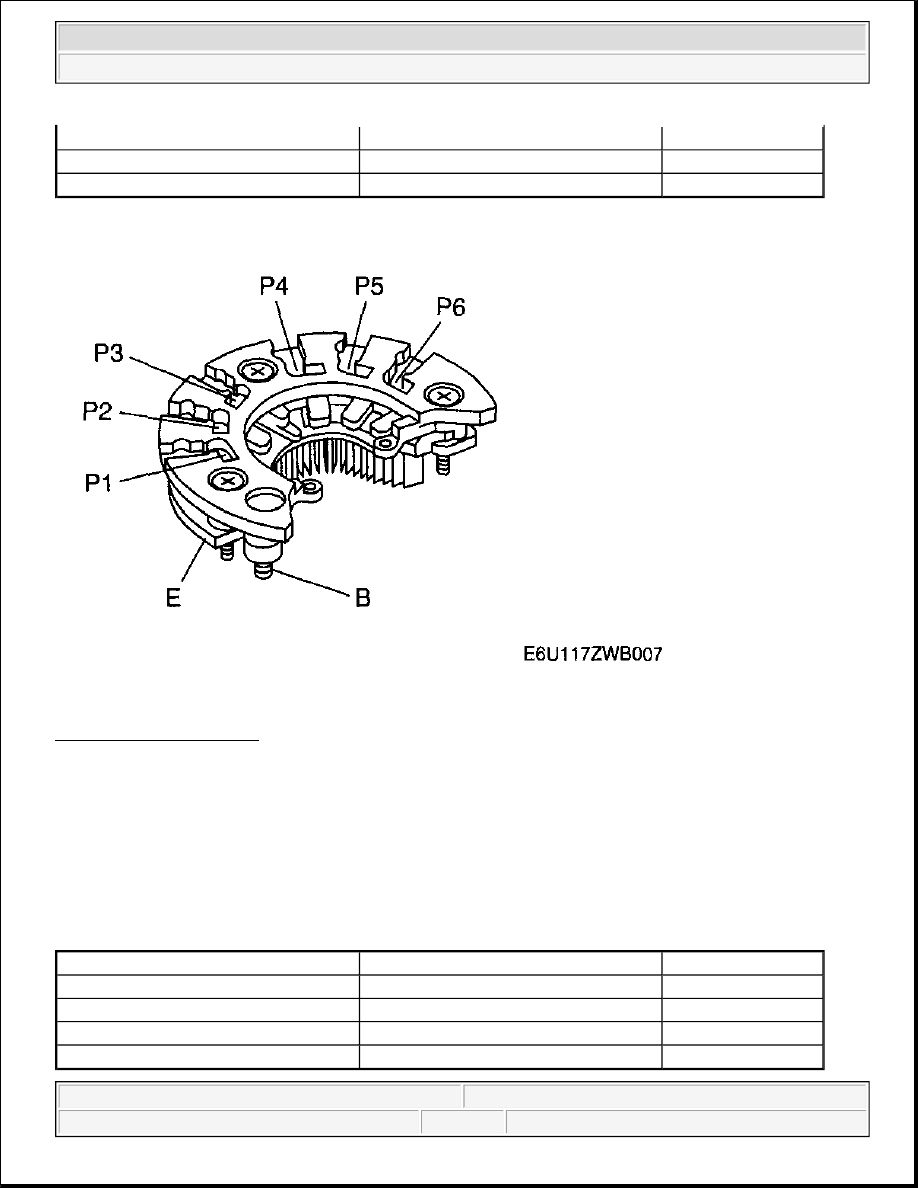

Fig. 17: Identifying Diodes
Courtesy of MAZDA MOTORS CORP.

Rectifier (Using a digital circuit tester)

1. Inspect for continuity of the diodes using a digital circuit tester.

If not as specified, replace the rectifier.

Specification

RECTIFIER SPECIFICATION USING AN DIGITAL CIRCUIT TESTER

B

-

No

P1, P2, P3, P4, P5, P6

E

No

-

B

Yes

Negative

Positive

Continuity

E

P1, P2, P3, P4, P5, P6

No

B

-

Yes

P1, P2, P3, P4, P5, P6

E

Yes

-

B

No



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



Fig. 18: Identifying Diodes
Courtesy of MAZDA MOTORS CORP.

Bearing

1. Inspect for abnormal noise, looseness, and sticking.

Replace the bearing if necessary.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata
