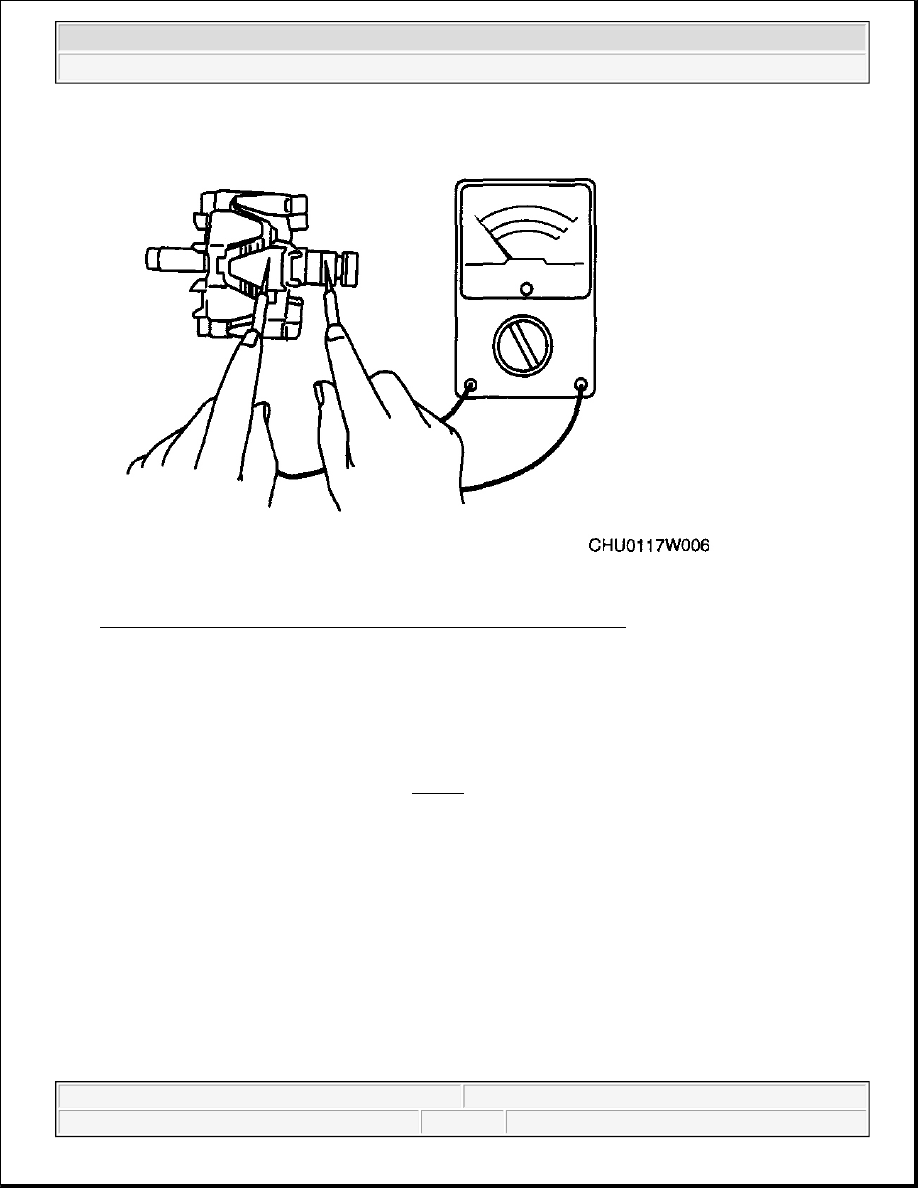

Fig. 11: Verifying There Is No Continuity Between Slip Ring & Core
Courtesy of MAZDA MOTORS CORP.

3. Inspect the slip ring surface condition.

If the slip ring surface is rough, use a lathe or fine sandpaper to repair it.

Stator Coil

1. Verify that the continuity is as indicated in Fig. 12



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



Fig. 12: Stator Coil Terminal Continuity Check Table
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



Fig. 13: Identifying Stator Coil Terminals
Courtesy of MAZDA MOTORS CORP.

If there is any malfunction, replace the stator.

2. Verify that there is no continuity between the stator coil leads and core using a tester.

If there is continuity, replace the stator coil.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata



Fig. 14: Inspecting Continuity Between Stator Coil Leads And Core
Courtesy of MAZDA MOTORS CORP.

Brush

1. Inspect brushes for wear.

If any brush is worn almost to or beyond the limit, replace all of the brushes.

Generator brush length

Standard: 22.5 mm {0.89 in}

Minimum: 5.0 mm {0.20 in}



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata
