5. Install in the reverse order of removal.

6. After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION .)

DUAL PROPORTIONING VALVE REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 24 .



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 24: View Of Dual Proportioning Valve Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

2. Install in the reverse order of removal.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



BRAKE PIPE REMOVAL NOTE

1. Place an alignment mark on the brake pipe and dual proportioning valve.

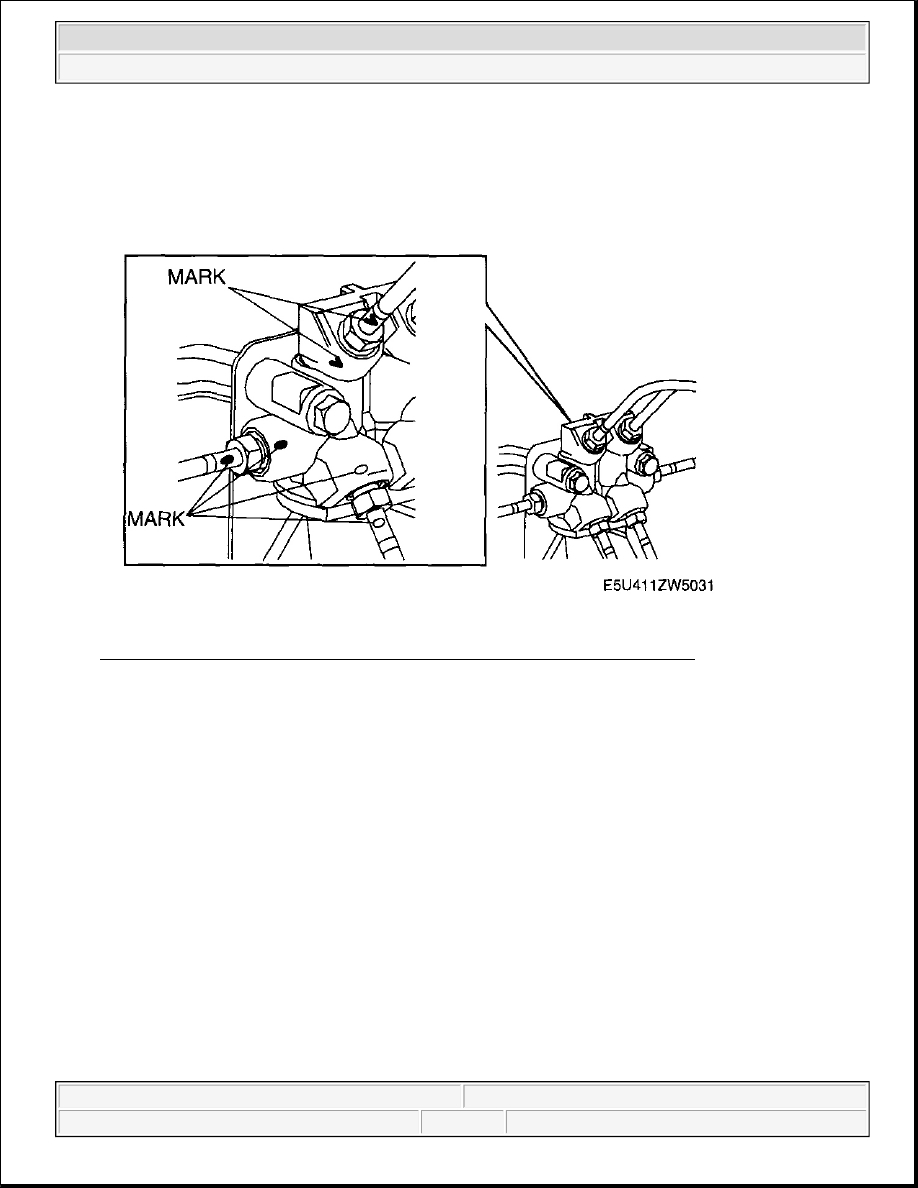

Fig. 25: Placing Alignment Mark On Brake Pipe & Dual Proportioning Valve
Courtesy of MAZDA MOTORS CORP.

DUAL PROPORTIONING VALVE INSTALLATION NOTE

1. Install the dual proportioning valve so that the R marks faces the upper side of the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



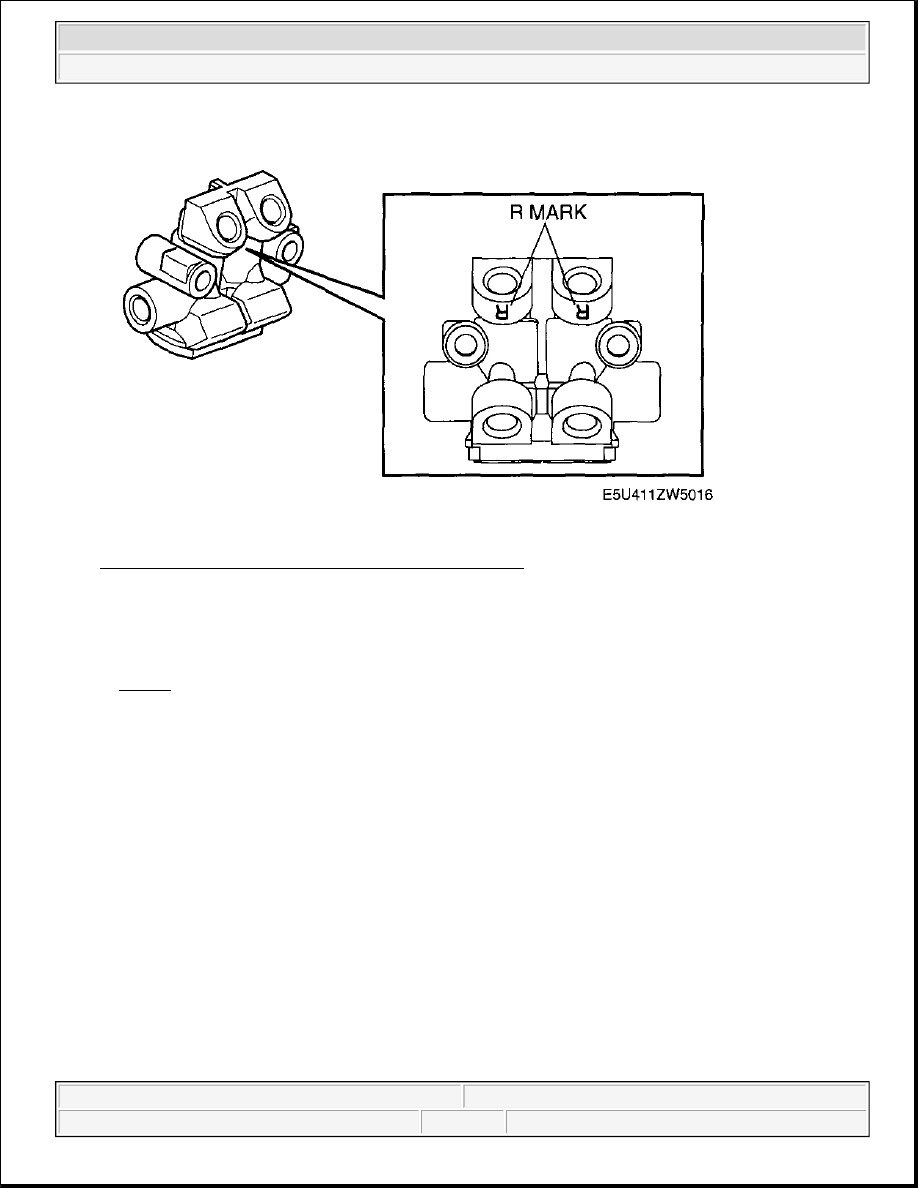

Fig. 26: Identifying Dual Proportioning Valve R Marks
Courtesy of MAZDA MOTORS CORP.

BRAKE PIPE INSTALLATION NOTE

1. Align the marks made before removal and install the brake pipe to the dual proportioning valve referring

to Fig. 27 .
