Fig. 72: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL
PROCEDURES

WARNING:



A live (undeployed) air bag module or pre-tensioner seat belt may
accidentally operate (deploy) when it is disposed of and cause
serious injury. Always refer to the AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT PROCEDURES and dispose
of air bag modules and pre-tensioner seat belts in a deployed
condition.



The air bag modules and the pre-tensioner seat belts are very hot
immediately after they are deployed. You can be burned. Do not
touch an air bag module and pre-tensioner seat belt for at least 15
min after deployment.



Pouring water on the deployed air bag module and pre-tensioner
seat belt is dangerous. The water will mix with the residual gases to
form a gas that can make breathing difficult. Do not pour water on
the deployed air bag module and pre-tensioner seat belt.



The deployed air bag module or pre-tensioner seat belt may contain
deposits of sodium hydroxide, a caustic byproduct of the gas-
generated combustion. If this substance gets into your eyes or on
your hands, it can cause irritation and itching. When handling the



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



1. Remove the deployed air bag module or pre-tensioner seat belt.

2. Put the air bag module or pre-tensioner seat belt in a plastic bag, seal the bag, and then dispose of it.

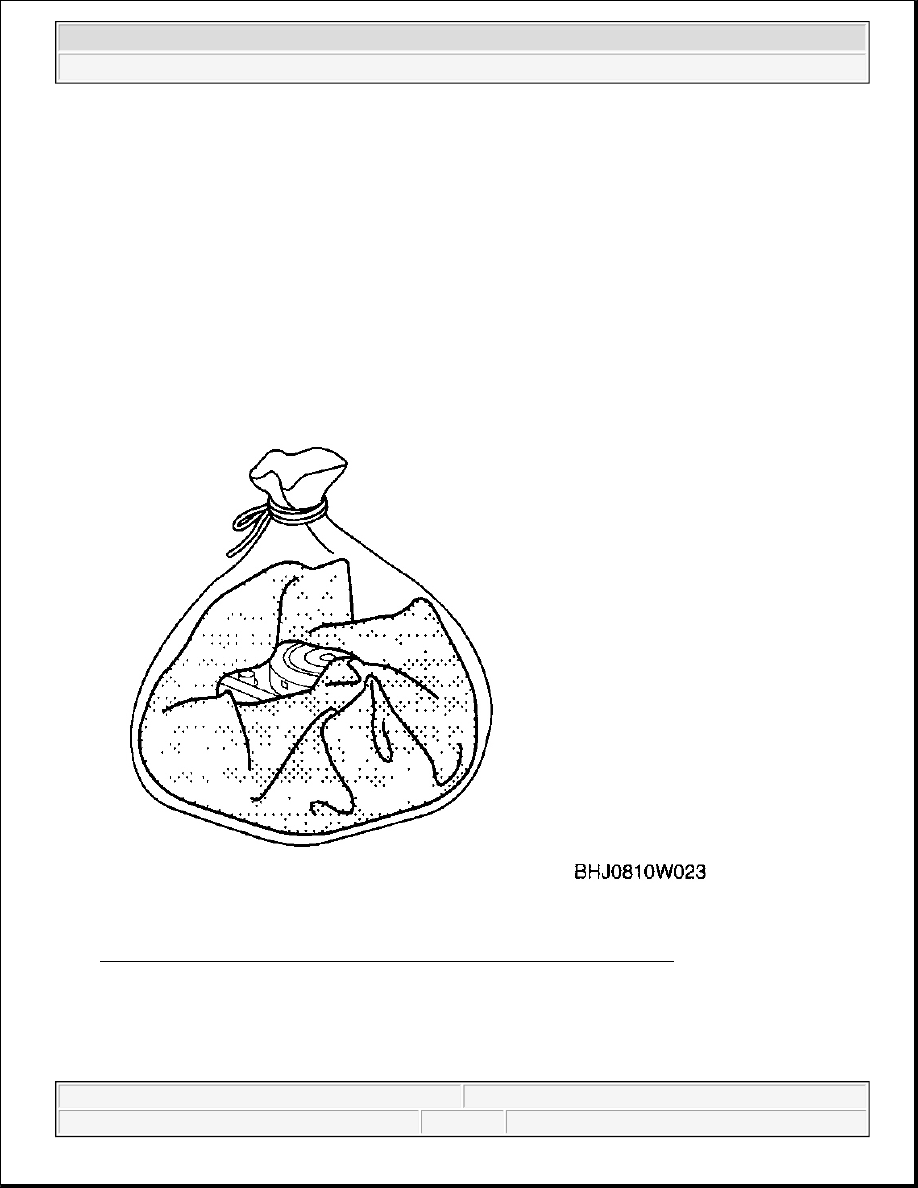

Fig. 73: Putting Air Bag Module Or Pre-Tensioner Seat Belt In Plastic Bag
Courtesy of MAZDA MOTORS CORP.

INSPECTION OF SST (DEPLOYMENT TOOL)

1. Before using the SST (49 H066 002), inspect its operation.

deployed air bag module and pre-tensioner seat belt, wear gloves
and safety glasses.



Due to the adoption of 2-step deployment control in both the driver
and passenger-side air bag modules, depending on the impact force,
it is possible that inflator No. 2 might not operate (deploy). Before
disposing of the air bag module, always follow the inflator
deployment procedures and verify the complete operation
(deployment) of inflators No. 1 and 2.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata

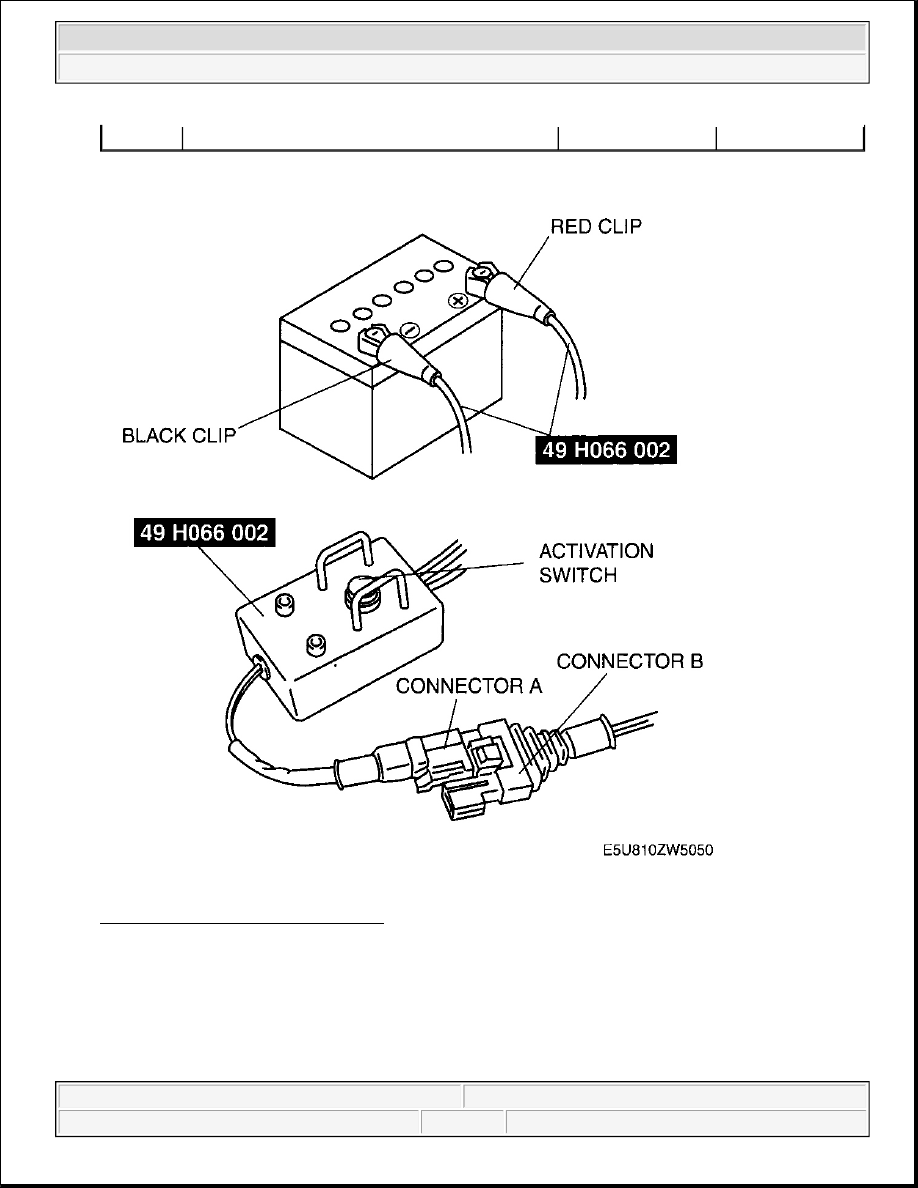

Fig. 74: Inspecting SST (Deployment Tool)
Courtesy of MAZDA MOTORS CORP.

INSPECTION PROCEDURE

1. Follow the steps below to inspect the SST (49 H066 002).



If not as indicated in SST INSPECTION REFERENCE TABLE , replace the SST (49 H066
002) because it has a malfunction.

SST INSPECTION REFERENCE TABLE

WARNING:



Do not use a malfunctioning SST (49 H066 002), otherwise it
could cause the air bag module or pre-tensioner seat belt to
accidentally operate (deploy).

CAUTION:



Because the permissible voltage for the SST (49 H066 002) is 12
V, do not connect a 24 V power source because it will damage
the SST. Always connect only a 12 V power source.

Step

Inspection procedure

Light condition

Green

Red

1

Connect the power supply red clip to the positive
battery terminal, and the black clip to the negative
battery terminal.

On

Off

2

Connect connectors A and B.

Off

On



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 75: Inspecting Activation Switch
Courtesy of MAZDA MOTORS CORP.

3

Press the activation switch.

On

Off
