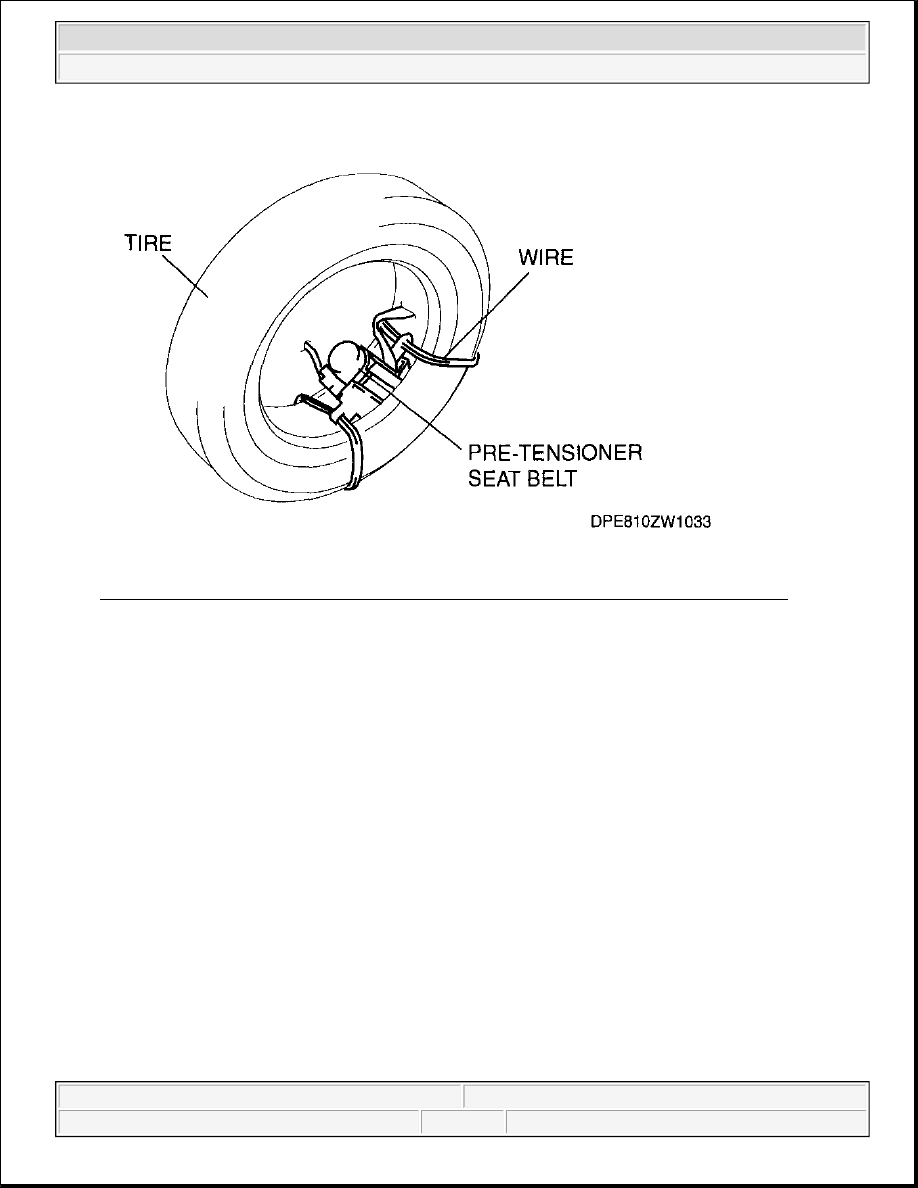

Fig. 68: Putting Pre-Tensioner Seat Belt Inside Tire & Secure To Tire By Wrapping Wire
Courtesy of MAZDA MOTORS CORP.

4. Stack the tire with the pre-tensioner seat belt on two of tires without wheels. Stack a tire without a wheel

on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata

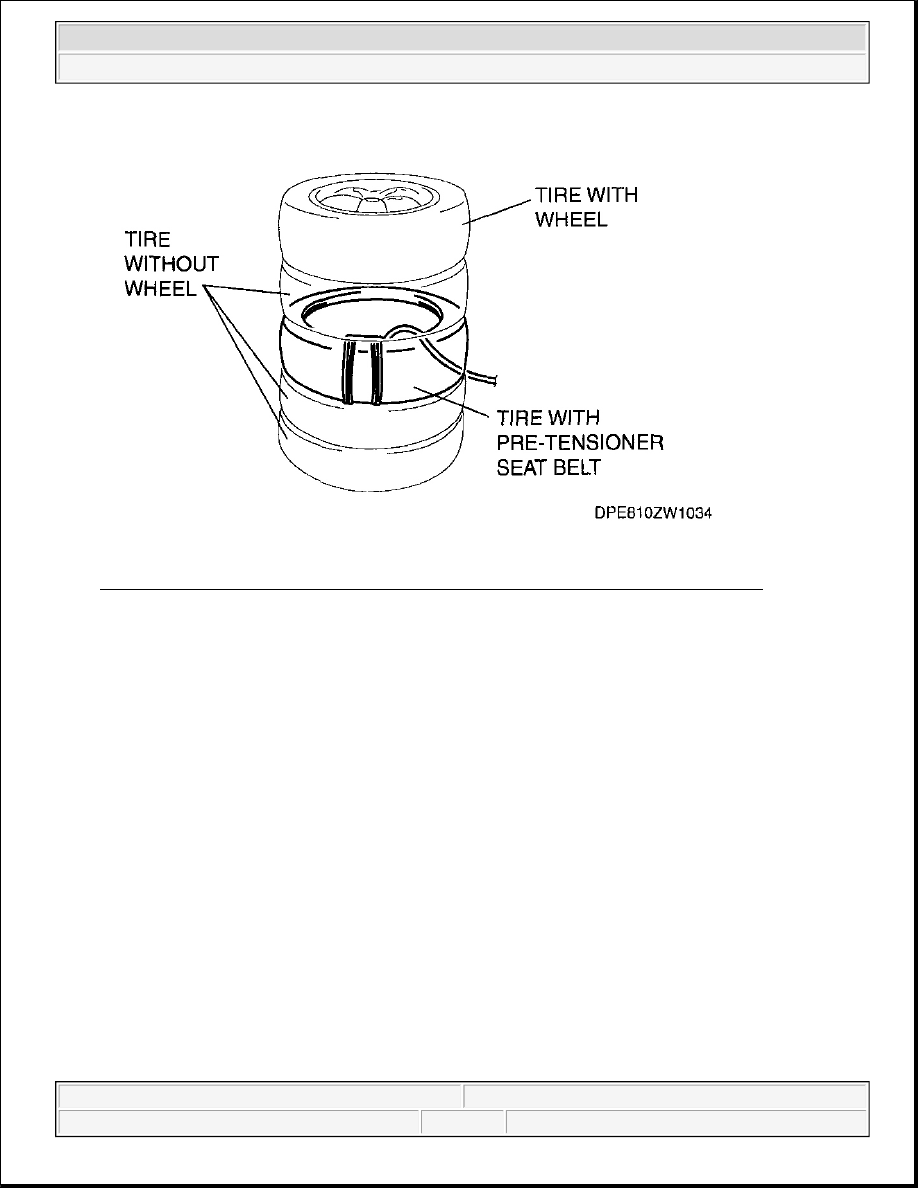

Fig. 69: Stacking Tire With Pre-Tensioner Seat Belt On Two Of Tires Without Wheels
Courtesy of MAZDA MOTORS CORP.

5. Secure the tires with wire.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 70: Tying Tires Together With Wire
Courtesy of MAZDA MOTORS CORP.

6. Connect the SST (Deployment tool) to the SST (Adapter harness).

7. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

8. Verify that the red lamp on the SST (Deployment tool) is illuminated.

9. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 71: Connecting SST (Deployment Tool) To SST (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

10. Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

11. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness).
