Fig. 52: Connecting SSTs (Deployment Tool) To SSTs (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

10. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow

connector) of the SST (Adapter harness), and after 3 s , press the activation switch on the other SST
(Deployment tool) to operate (deploy) the air bag module (both inflators).

WARNING:



Verify that air bag module operation (explosive) sound occurs
twice. If no operation (explosive) sound was heard or a single
operation (explosive) sound was heard, both inflators would
not have operated (deployed) properly. This may cause serious
injury if the air bag module operates (deploy) unexpectedly. If
the two operation (explosive) sounds are not heard, perform
Step 8 again. If a total of two operation (explosive) sounds
cannot be verified even though Step 8 is performed again,
leave the air bag module alone for 30 min or more before
approaching it again.



The air bag module is very hot immediately after it is operated
(deployed). You can be burned. Do not touch the air bag
module for at least 15 min after deployment.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



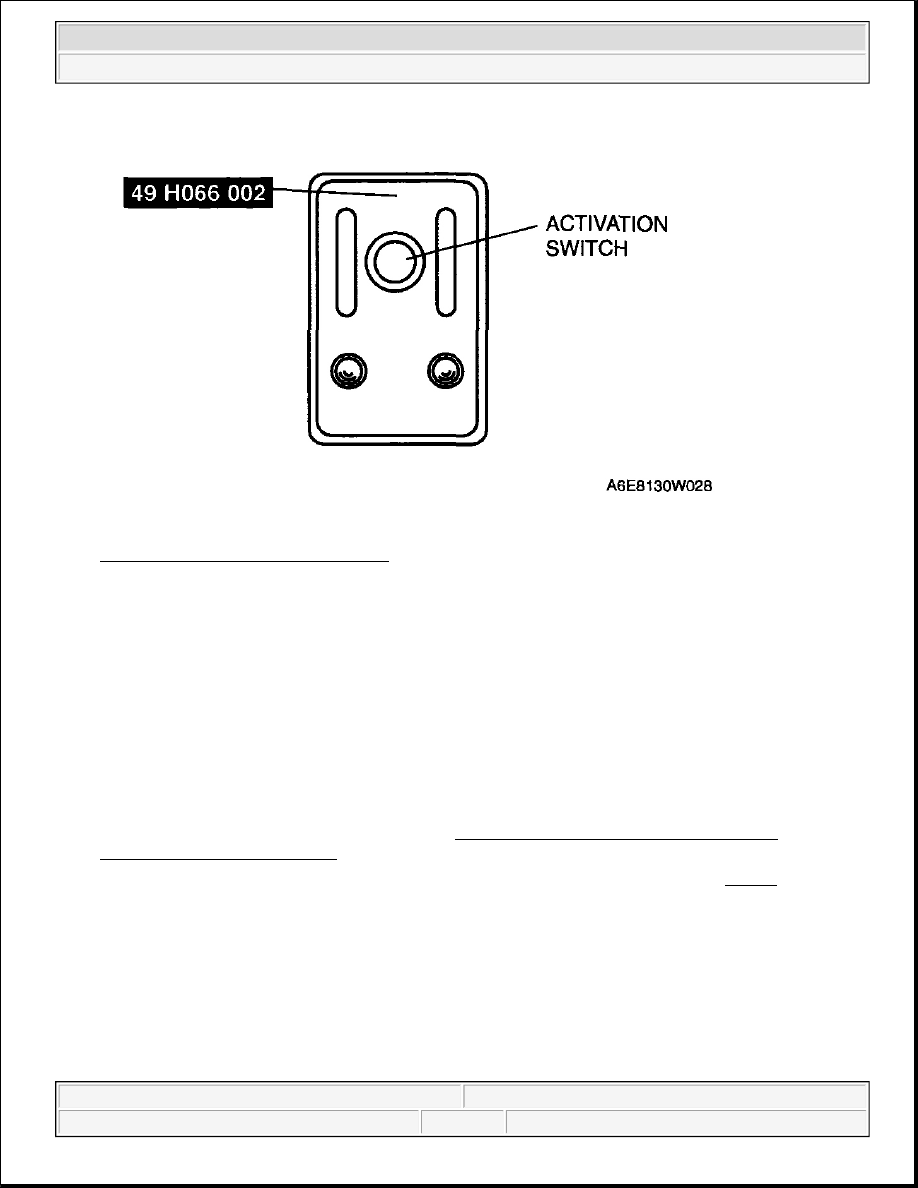

Fig. 53: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

11. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness).

PASSENGER-SIDE AIR BAG MODULE

1. Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

2. Connect the SSTs (Adapter harness) to the passenger-side air bag module as shown in Fig. 54 .

WARNING:



The passenger-side air bag module is a dual inflator type. If one
inflator is forced to operate (deploy), the other may operate (deploy)
accidentally. To prevent injury while disposing of the air bag
module, make sure to operate (deploy) both passenger-side air bag
module inflators simultaneously, following the procedure below.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 54: Connecting SSTs (Adapter Harness) To Passenger-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.

3. Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in

Fig. 55 . To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm

2

 {0.002 in

2

}

or more ) through the tire and the brackets at least 4 times as shown in Fig. 55 .

WARNING:



If the air bag module is not properly secured to the tire, the
tires may fall over by the impact of operation (deployment) and
cause serious injury. To prevent this, secure the air bag
module properly with the padded surface facing the center of
the tire.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 55: Wrapping Wire Through Tire & Brackets
Courtesy of MAZDA MOTORS CORP.

4. Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire

without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with
a wheel on the very top.
