Mazda MX-5 Miata / Grand Touring. Manual - part 9

Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

6. Turn the ignition switch to the ON position.

7. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.



If the air bag system warning light does not operate normally, refer to RESTRAINTS -- ON-
BOARD DIAGNOSTIC system (air bag system) and perform inspection of the system.

CLOCK SPRING INSTALLATION NOTE

1. Adjust the clock spring after installing it. (See CLOCK SPRING ADJUSTMENT .)

CLOCK SPRING ADJUSTMENT

1. Set the front tires straight-ahead.

2. Turn the clock spring clockwise until it stops.

CAUTION:



If the clock spring is not adjusted, the spring wire in the clock spring
could over-wind and break when the steering wheel is turned. Always
adjust the clock spring after installing it.

NOTE:



The adjustment procedure is also specified on the caution label of the
clock spring.

CAUTION:



The clock spring will break if over-wound. Do not forcibly turn
the clock spring.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 31: Turning Clock Spring Clockwise
Courtesy of MAZDA MOTORS CORP.

3. From the stopped position, turn the clock spring counterclockwise 2 3/4 turns .



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



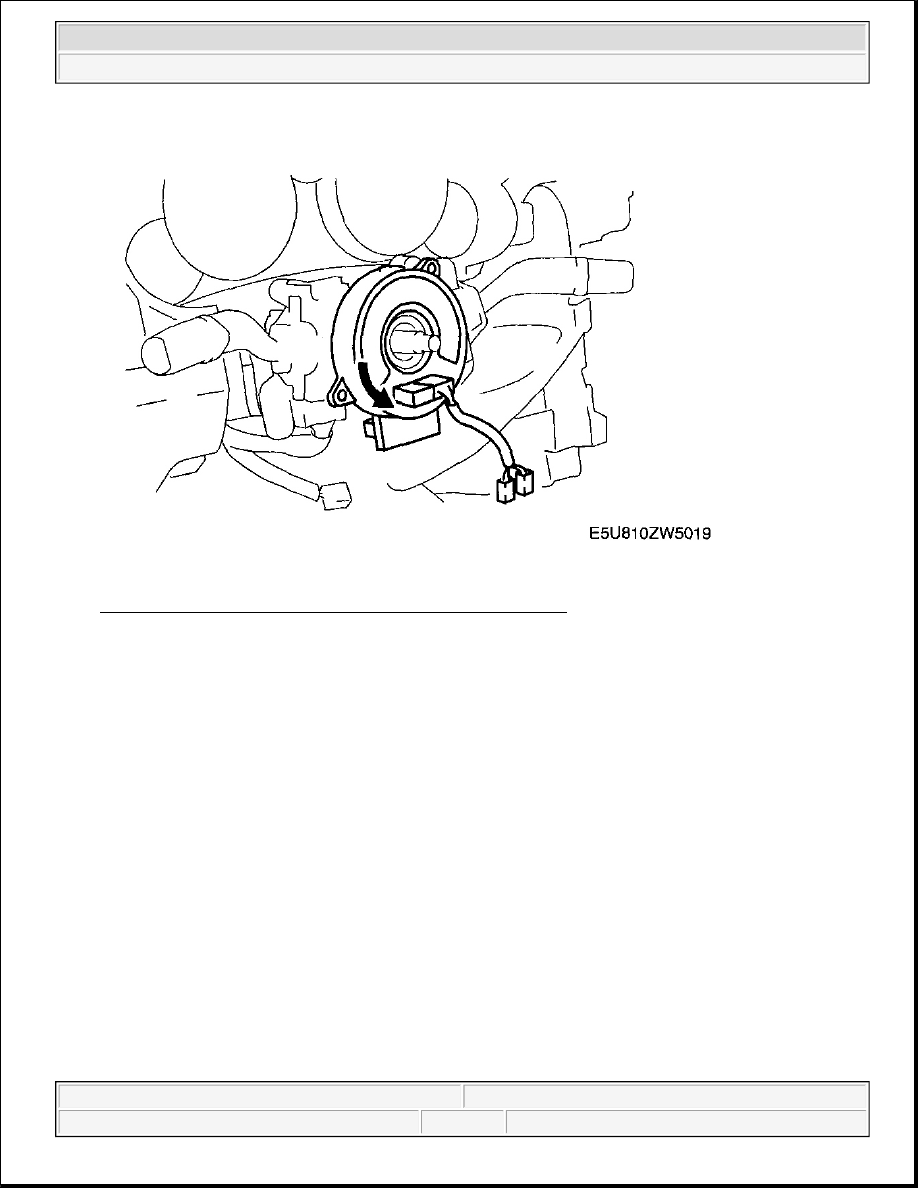

Fig. 32: Turning Clock Spring Counterclockwise 2 3/4 Turns
Courtesy of MAZDA MOTORS CORP.

4. Align the mark on the clock spring with the mark on the outer housing.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



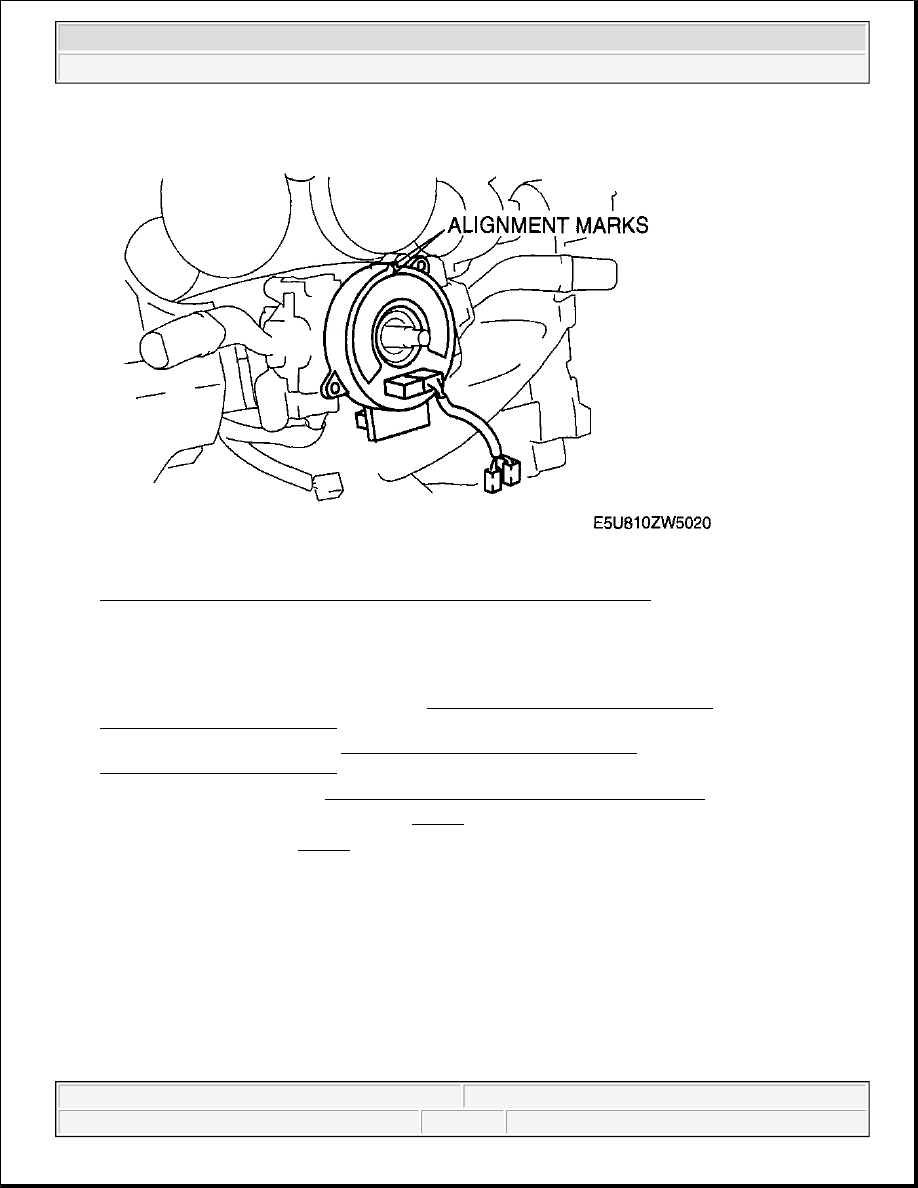

Fig. 33: Aligning Mark On Clock Spring With Mark On Outer Housing
Courtesy of MAZDA MOTORS CORP.

CLOCK SPRING INSPECTION

1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

2. Remove the steering wheel. (See STEERING WHEEL AND COLUMN

REMOVAL/INSTALLATION .)

3. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION .)

4. Verify that the continuity is as indicated in Fig. 34 .



If not as indicated in Fig. 34 , replace the clock spring.

NOTE:



When the vehicle-side connector for the clock spring is
disconnected, terminals 1A, 1B, 1C and 1D are shorted to prevent
unexpected operation (deployment) of the air bag module.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata
