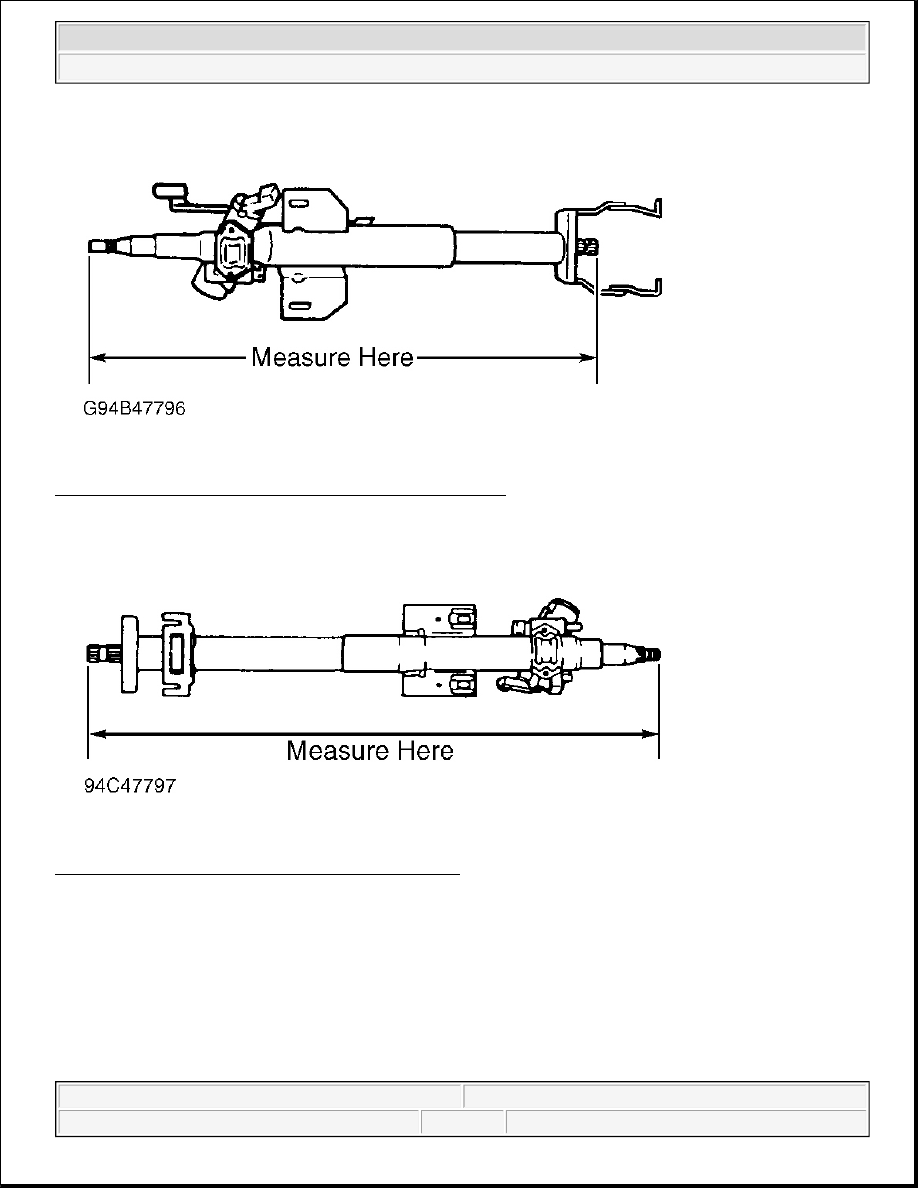

Fig. 16: Measuring Steering Shaft Dimensions (MX-6, 626)
Courtesy of MAZDA MOTORS CORP.

Fig. 17: Measuring Steering Shaft Dimensions (RX7)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns



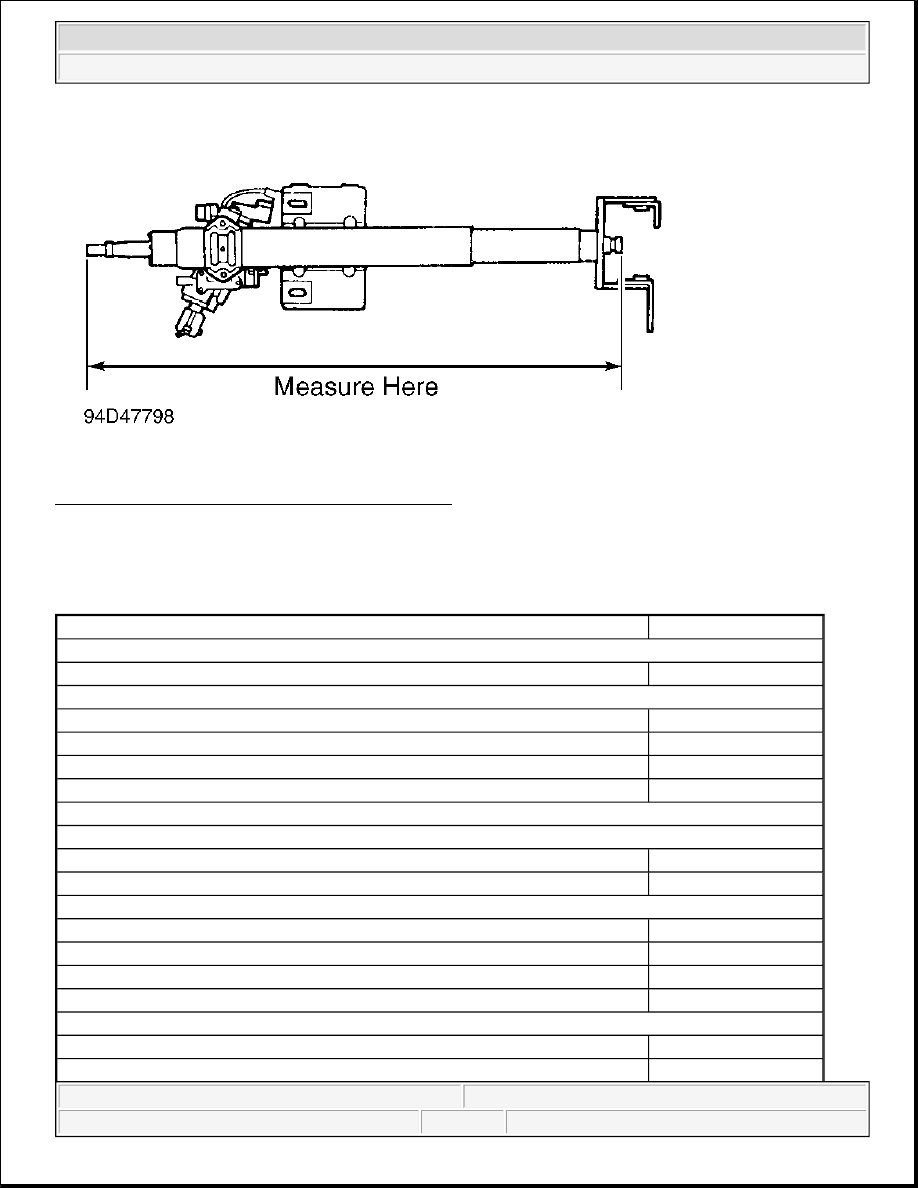

Fig. 18: Measuring Steering Shaft Dimensions (929)
Courtesy of MAZDA MOTORS CORP.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Steering Column Upper Mounting Bolts

Miata, Millenia, MPV, MX-6, RX7, 626 & 929

12-16 (16-22)

Steering Column Lower Mounting Bolts

Miata, RX7 & 929

13-19 (18-26)

Millenia, MX-6 & 626

12-17 (16-23)

Steering Shaft "U" Joint Bolts

13-19 (18-26)

Steering Wheel Lock Nut

29-36 (39-49)

INCH Lbs. (N.m)

Column Lower Bracket Mounting Bolts

MX-3

80-124 (9-14)

Protege

53-80 (6-9)

Driver Air Bag Module Bolts/Nuts

Millenia

80-115 (9-13)

MPV, MX-6, Protege & 626

71-106 (8-12)

Miata

35-53 (4-6)

Key Interlock Cable Bolt

35-53 (4-6)

Steering Column Lower Mounting Nuts

MPV

62-89 (7-10)

MX-3 & Protege

18-53 (2-6)



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns



Steering Column Upper Mounting Bolts

MX-3 & Protege

80-124 (9-14)



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns



1997-98 APPLICATIONS & IDENTIFICATION

Oil Pan Gasket Identification

AUTOMATIC TRANSMISSIONS

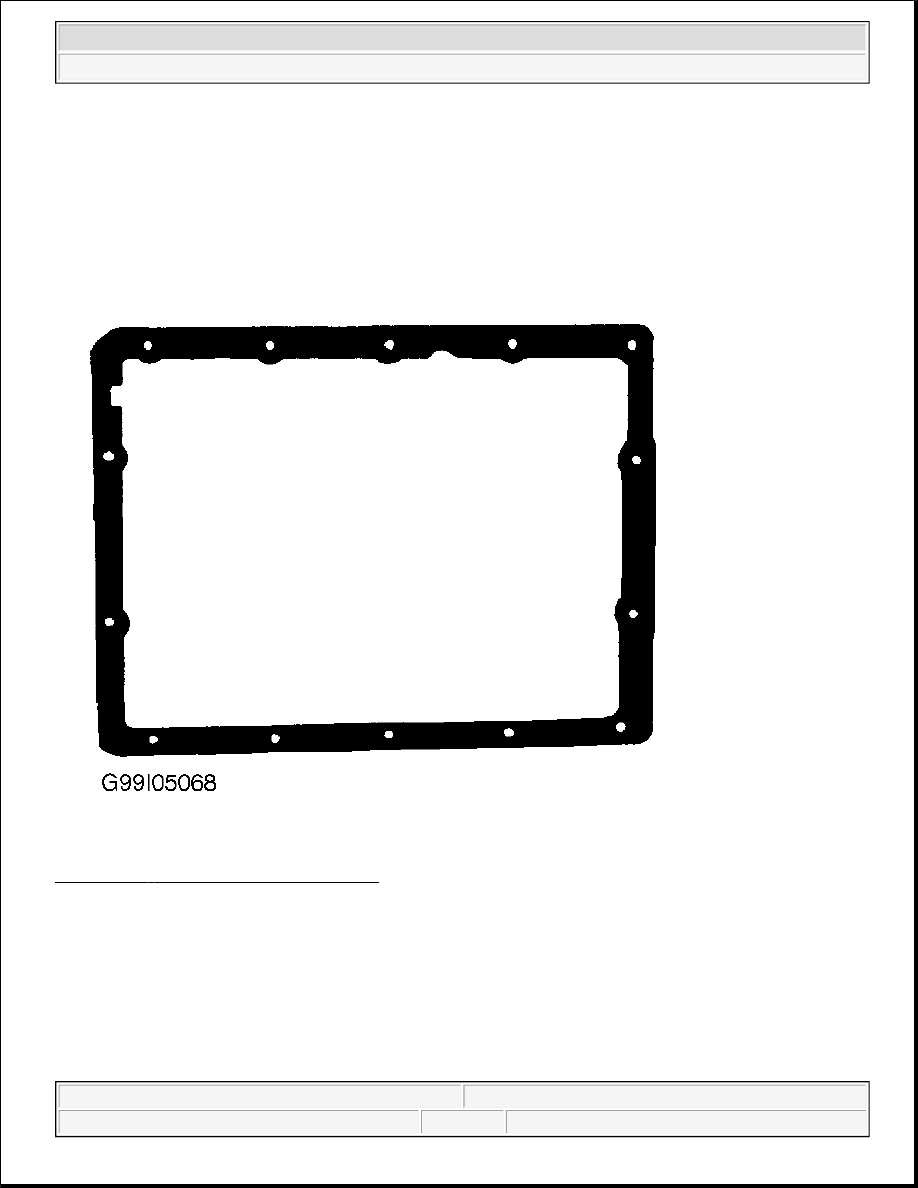

Fig. 1: Aisin-Warner 03-72LE Pan Gasket
