2. Disconnect diagnostic module connectors located at base of steering column and connect Short Circuit

Connectors (49-H066-004 ) to diagnostic module harness connectors. See Fig. 3 .

ACTIVATING SYSTEM (MX-3, RX7 & 929)

1. Ensure negative battery cable is still disconnected. Remove short circuit connectors from diagnostic

module harness connectors. See Fig. 3 . Reconnect diagnostic module harness connectors to diagnostic
module.

2. Reconnect negative battery cable. Turn ignition on. Check AIR BAG warning light to ensure air bag

system is operating properly. See SYSTEM OPERATION CHECK . Activate audio anti-theft function
(if equipped).

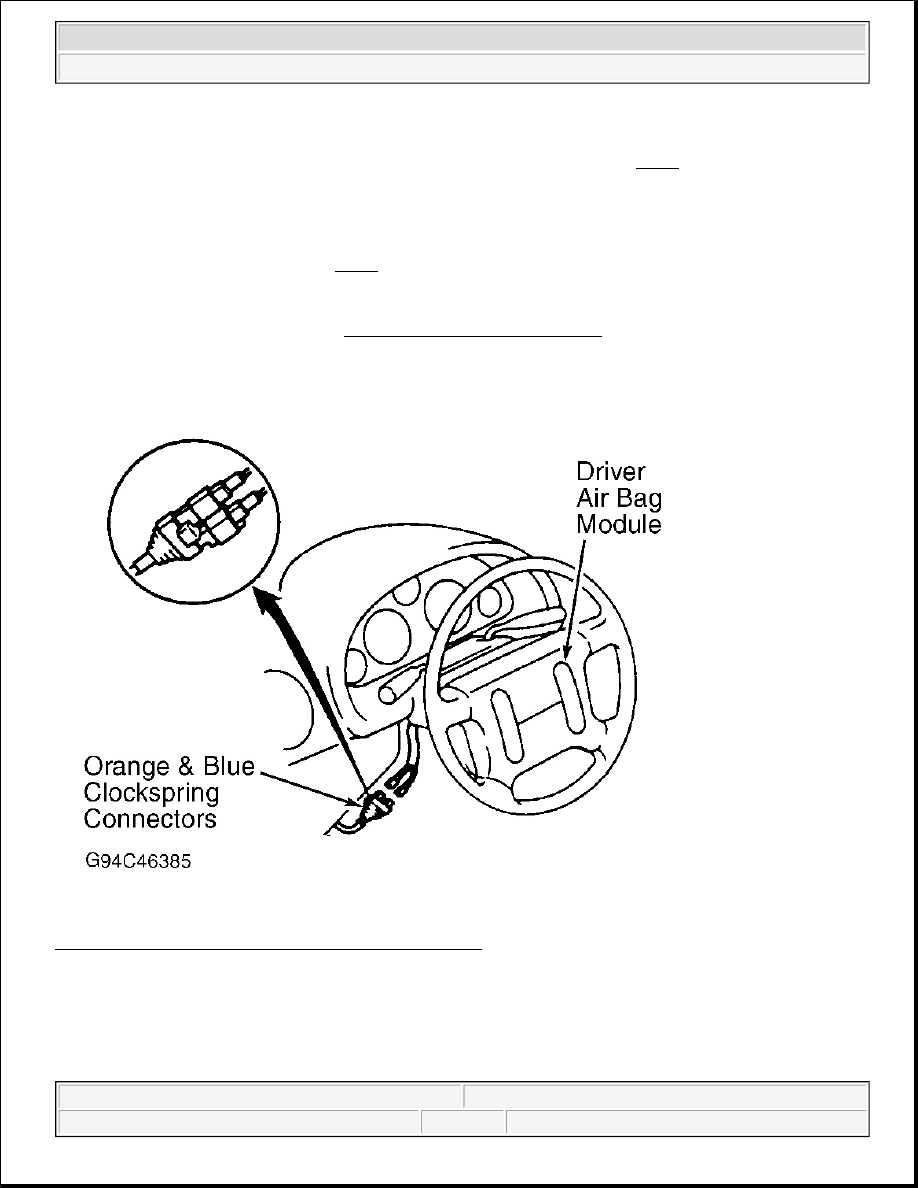

Fig. 1: Disconnecting Clockspring Connectors (Typical)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns

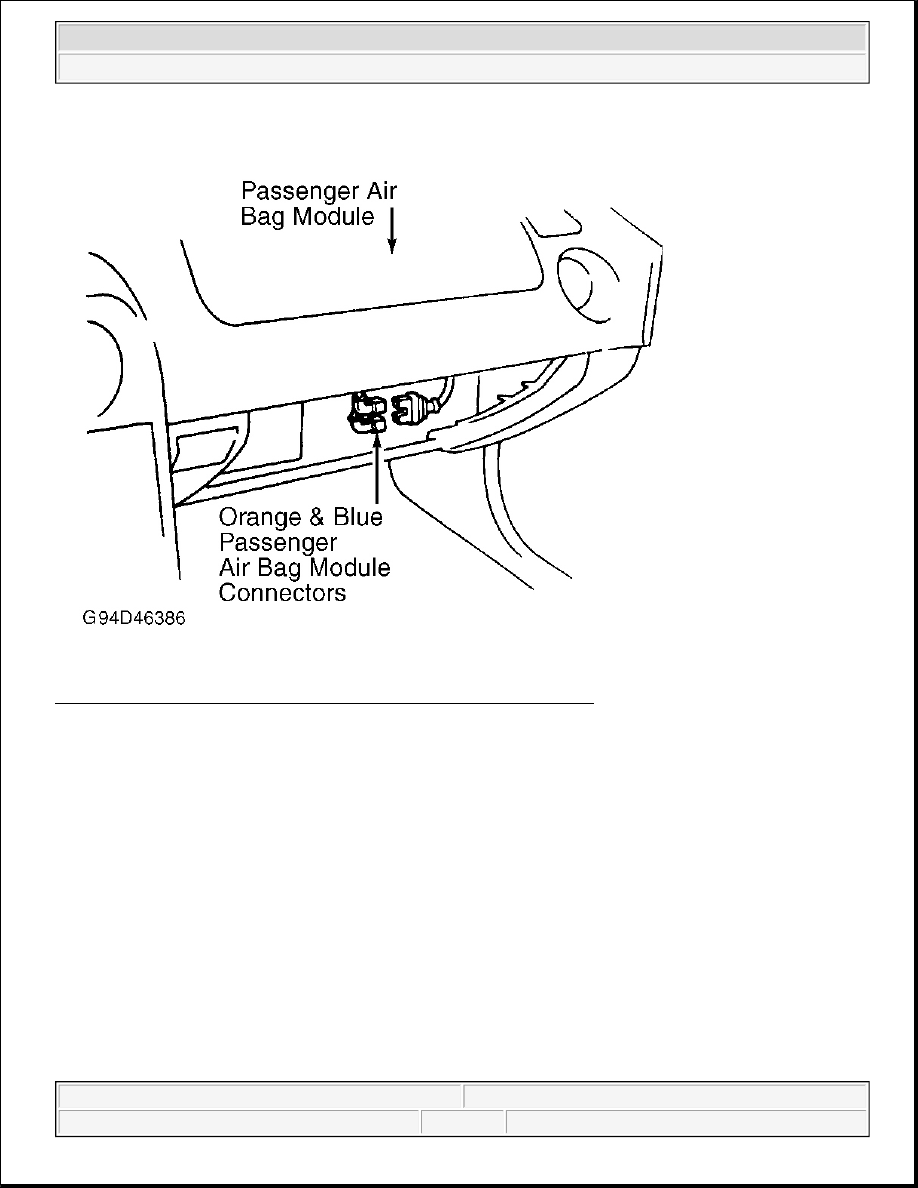

Fig. 2: Disconnecting Passenger Air Bag Module Connectors (Typical)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns

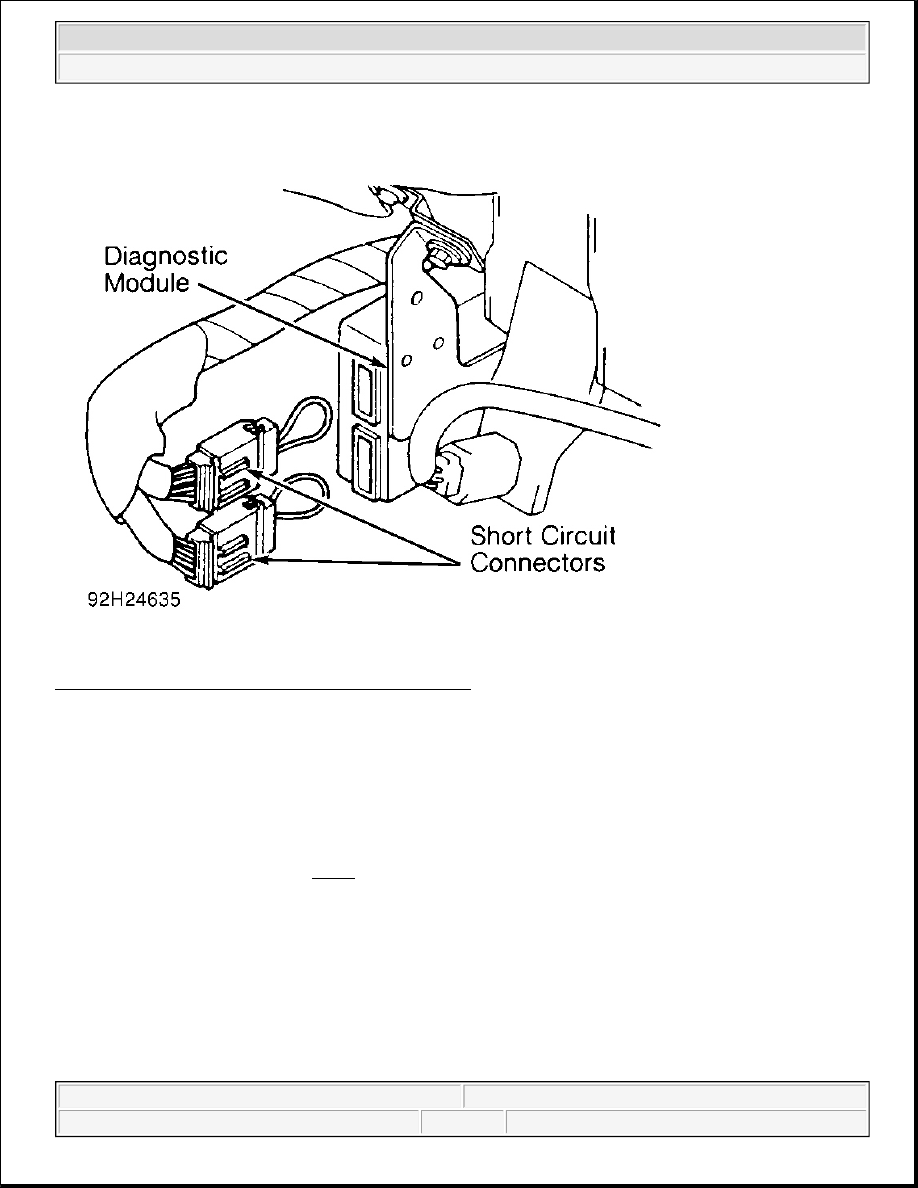

Fig. 3: Connecting Short Circuit Connectors (Typical)
Courtesy of MAZDA MOTORS CORP.

ADJUSTMENTS

CLOCKSPRING CENTERING

Set front wheels in straight-ahead position. Rotate clockspring clockwise until it stops (DO NOT force). Rotate
clockspring 2 3/4 turns counterclockwise. Rotate clockspring further, if necessary, to align arrows on
clockspring and outer housing. See Fig. 4 .



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns

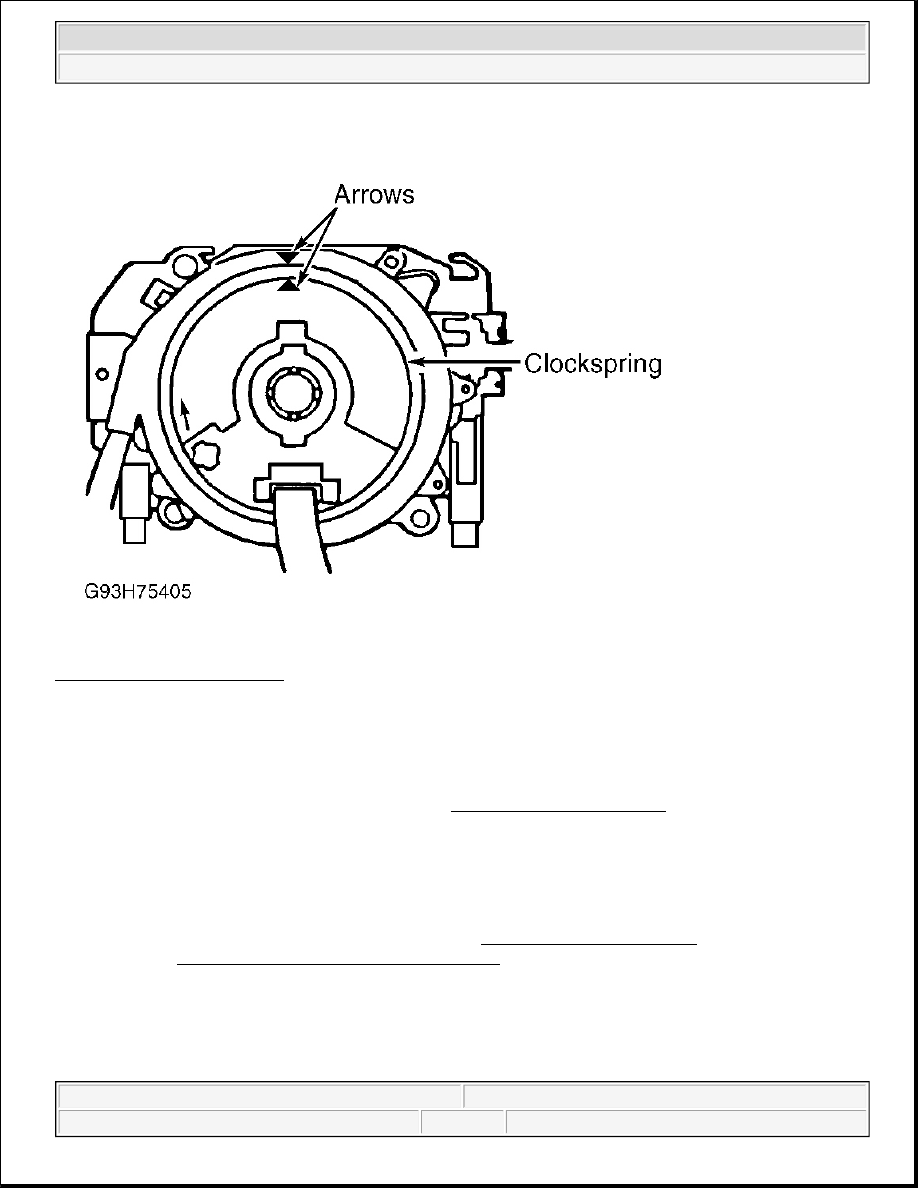

Fig. 4: Centering Clockspring
Courtesy of MAZDA MOTORS CORP.

REMOVAL & INSTALLATION

DRIVER AIR BAG MODULE

Removal

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Disable air bag
system. Refer to AIR BAG DISABLING & ACTIVATING . Remove air bag module bolts or nuts from back
of steering wheel. Disconnect driver air bag module harness connector(s) and support rope. Remove driver air
bag module.

Installation

WARNING:

To avoid injury from accidental air bag deployment, read and carefully
follow all WARNINGS and SERVICE PRECAUTIONS .
