STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear

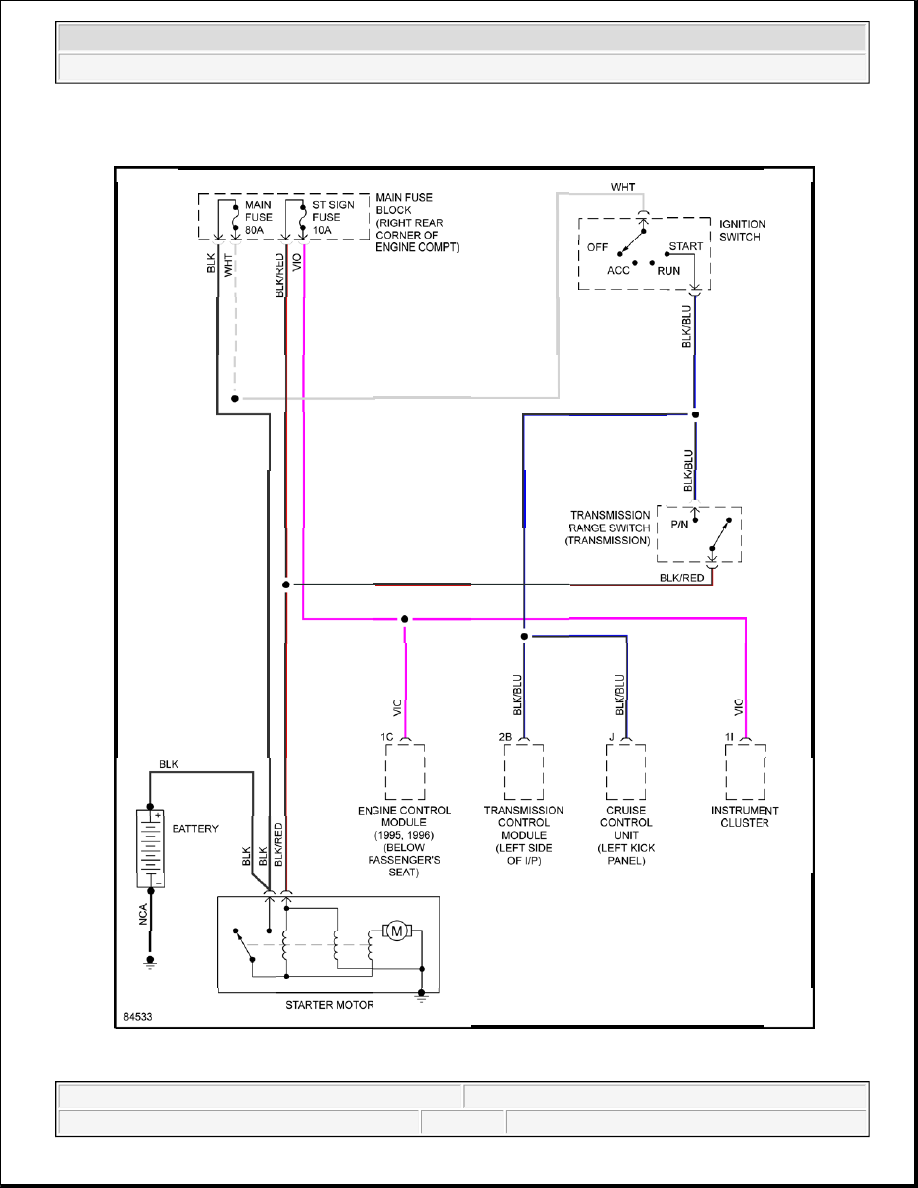

Fig. 5: Starting System Wiring Diagram



1997 Mazda MX-5 Miata

STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear



STEERING COLUMN

1995-97 STEERING Mazda Motors Corp. - Steering Columns

DESCRIPTION & OPERATION

Steering columns are designed to be collapsible upon impact. The steering column consists of solid steering
shaft with a lower joint assembly. Some models are equipped with tilt steering. Turn signal, headlight, ignition
and windshield washer/wiper switches are mounted on column. Switches can be serviced by removing steering
wheel and column covers. All models are equipped with air bag restraint system consisting of an driver air bag
module, passenger air bag module (except 1995 MPV and 1995 Protege) and clockspring connector assembly
located in the steering column.

SYSTEM OPERATION CHECK

1. Turn ignition switch to ON or START position. AIR BAG warning light in instrument cluster should

illuminate for about 4-8 seconds, and then turn off. This indicates air bag system is functioning properly.

2. If any of the following conditions exists, air bag system is malfunctioning and requires servicing.

AIR BAG warning light does not illuminate as specified.

AIR BAG warning light remains illuminated for more than 8 seconds.

AIR BAG warning light illuminates while driving.

3. If air bag system components are replaced for any reason, air bag system must be checked for proper

function after repair. Repeat step 1). If AIR BAG warning light does not illuminate as specified, air bag
system is malfunctioning and servicing is required. See AIR BAG RESTRAINT SYSTEM article.

SERVICE PRECAUTIONS

Observe the following precautions when servicing air bag system.

Disable air bag system before servicing any air bag system or steering column component. See AIR BAG
DISABLING & ACTIVATING
 .

After disabling air bag system, wait at least one minute before servicing. Air bag system voltage is
maintained for approximately one minute after system is disabled. Failure to wait one minute before
servicing system may cause accidental air bag deployment and possible personal injury.

Obtain radio code number from customer and deactivate radio anti-theft function (if equipped) before
disconnecting battery.

Because of the critical operation requirements of system, DO NOT service any air bag system
component. Repairs are made by replacement only.

DO NOT use an ohmmeter to check resistance of air bag module, as it may cause air bag deployment.

When carrying a live (undeployed) air bag module, ensure trim cover is pointed away from your body.

WARNING:

To avoid injury from accidental air bag deployment, read and carefully
follow all WARNINGS and SERVICE PRECAUTIONS .



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns





1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns



This minimizes chance of injury in the event of accidental air bag deployment.

When placing a live air bag module on any surface, always face trim cover upward to reduce motion of
module if it is accidentally deployed.

If an open circuit is present, replace entire wiring harness. DO NOT attempt to repair wire(s).

Air bag system clockspring MUST be aligned in neutral position, since its rotation ability is limited. DO
NOT turn steering wheel or column after removal of steering gear.

A double-lock mechanism is used on clockspring connectors. DO NOT use excessive force when
disconnecting connectors, as damage to connector may occur.

AIR BAG DISABLING & ACTIVATING

DISABLING SYSTEM (MIATA, MILLENIA, MPV, MX-6, PROTEGE & 626)

1. Obtain radio code from customer and deactivate audio anti-theft function (if equipped). Turn ignition off.

Disconnect and shield negative battery cable. Wait at least one minute for back-up power supply to be
depleted. Remove lower cover panel(s) below left side of instrument panel.

2. On MPV, remove lower steering column shroud. On all models, disconnect Orange and Blue clockspring

connectors for driver air bag module. See Fig. 1 . On all models except 1995 Protege and 1995 MPV,
remove glove box compartment. Disconnect Orange and Blue connectors for passenger air bag module.
See Fig. 2 .

ACTIVATING SYSTEM (MIATA, MILLENIA, MPV, MX-6, PROTEGE & 626)

1. Ensure negative battery cable is still disconnected. On all models except 1995 Protege and 1995 MPV,

reconnect Orange and Blue connector for passenger air bag module. Install glove box compartment.

2. On all models, reconnect Orange and Blue clockspring connectors for driver air bag module. Install lower

cover panel(s). On MPV, install lower steering column shroud. On all models, reconnect negative battery
cable.

3. Turn ignition on. Check AIR BAG warning light to ensure air bag system is operating properly. See

SYSTEM OPERATION CHECK . Activate audio anti-theft function (if equipped).

DISABLING SYSTEM (MX-3, RX7 & 929)

1. Obtain radio code from customer and deactivate audio anti-theft function. Turn ignition off. Disconnect

and shield negative battery cable. Wait at least one minute for back-up power supply to be depleted.

WARNING:

Wait about one minute after disabling air bag system before servicing. Air
bag system voltage is maintained for about one minute after system is
disabled. Failure to wait one minute before servicing system may cause
accidental air bag deployment and possible personal injury.

CAUTION: When battery is disconnected, vehicle computer and memory systems

may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle.



1997 Mazda MX-5 Miata

STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
