Mazda MX-5 Miata (1997+). Manual - part 75

Courtesy of MAZDA MOTORS CORP.

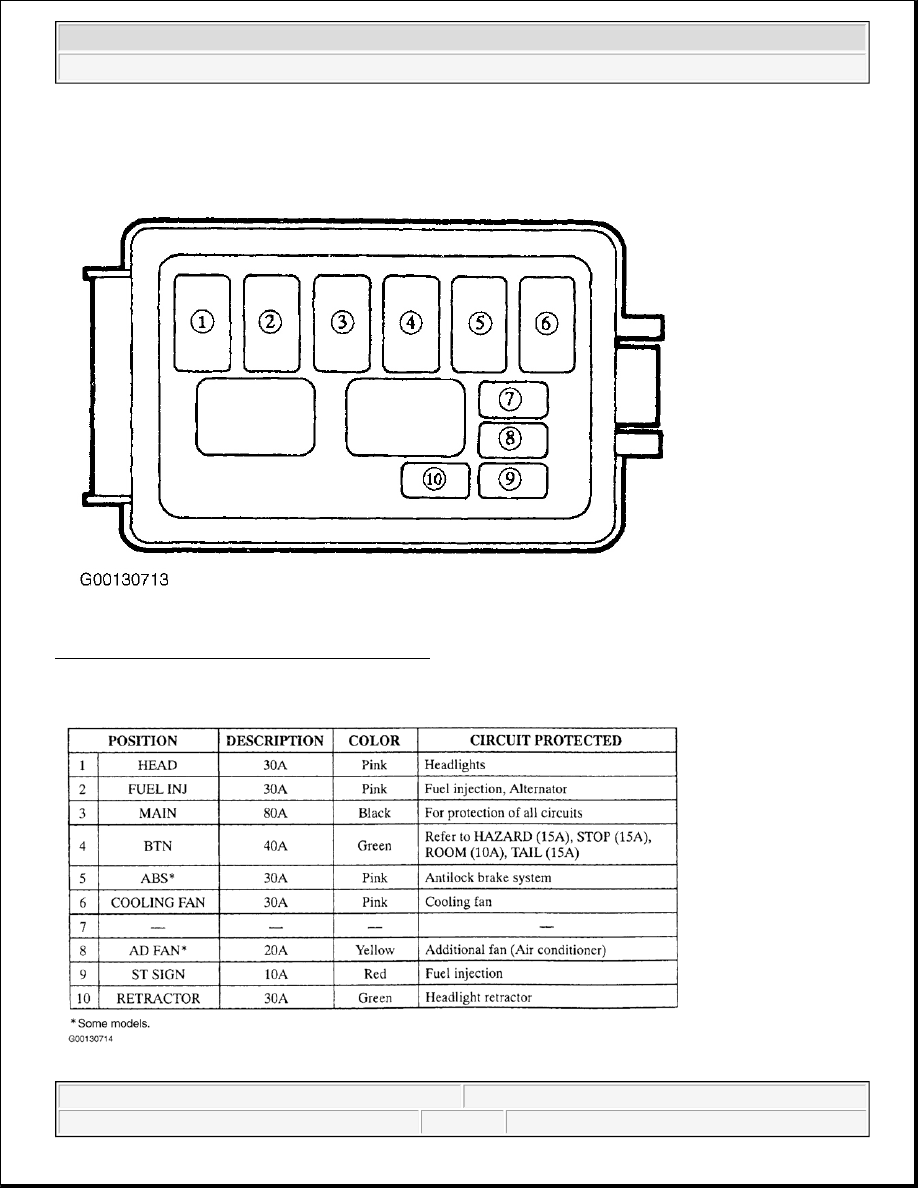

Fig. 2: Identifying Main Fuse Block Components
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

1997 ELECTRICAL Fuses & Circuit Breakers - MX-5 Miata



Fig. 3: Main Fuse Block Legend
Courtesy of MAZDA MOTORS CORP.

FUSE BLOCK

Fuse block is located under driver's side of instrument panel. See Fig. 4 .

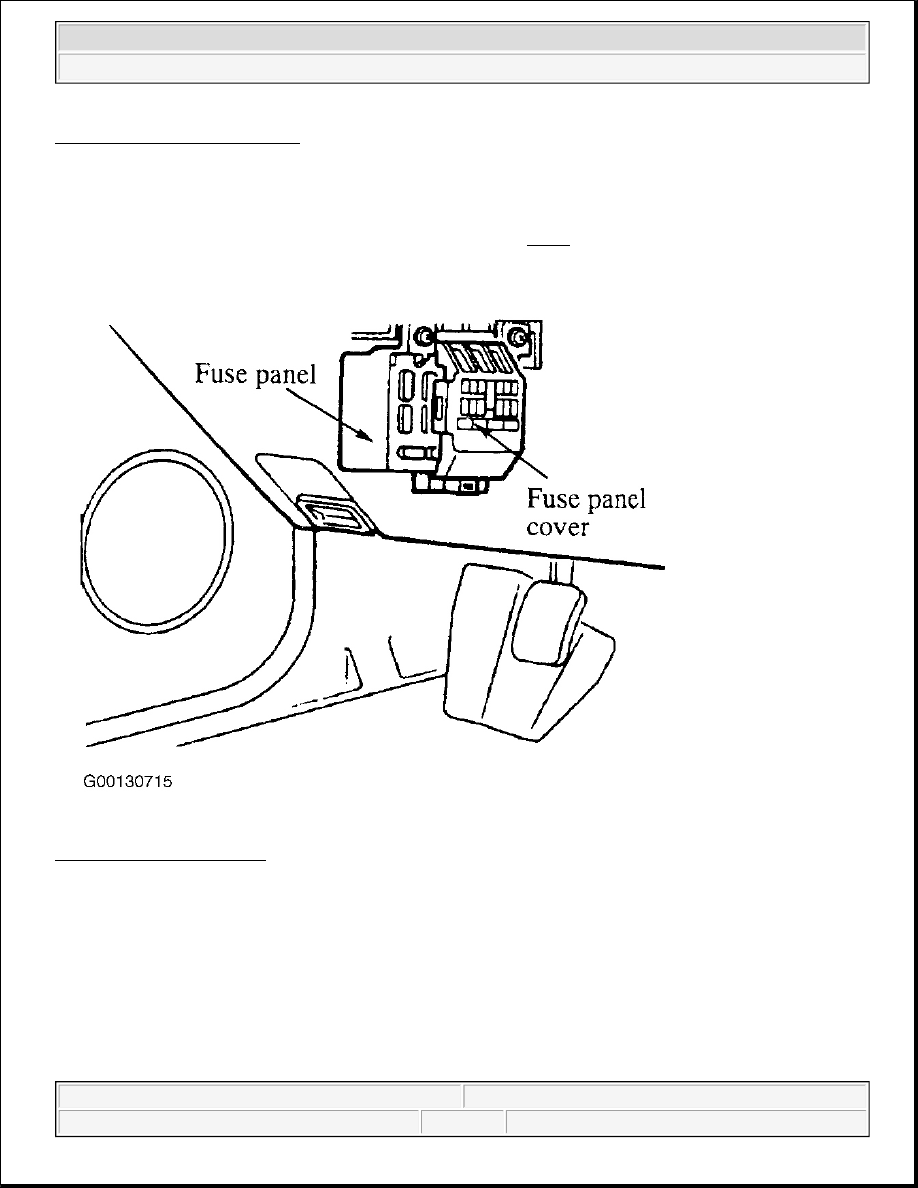

Fig. 4: Locating Fuse Block
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

1997 ELECTRICAL Fuses & Circuit Breakers - MX-5 Miata

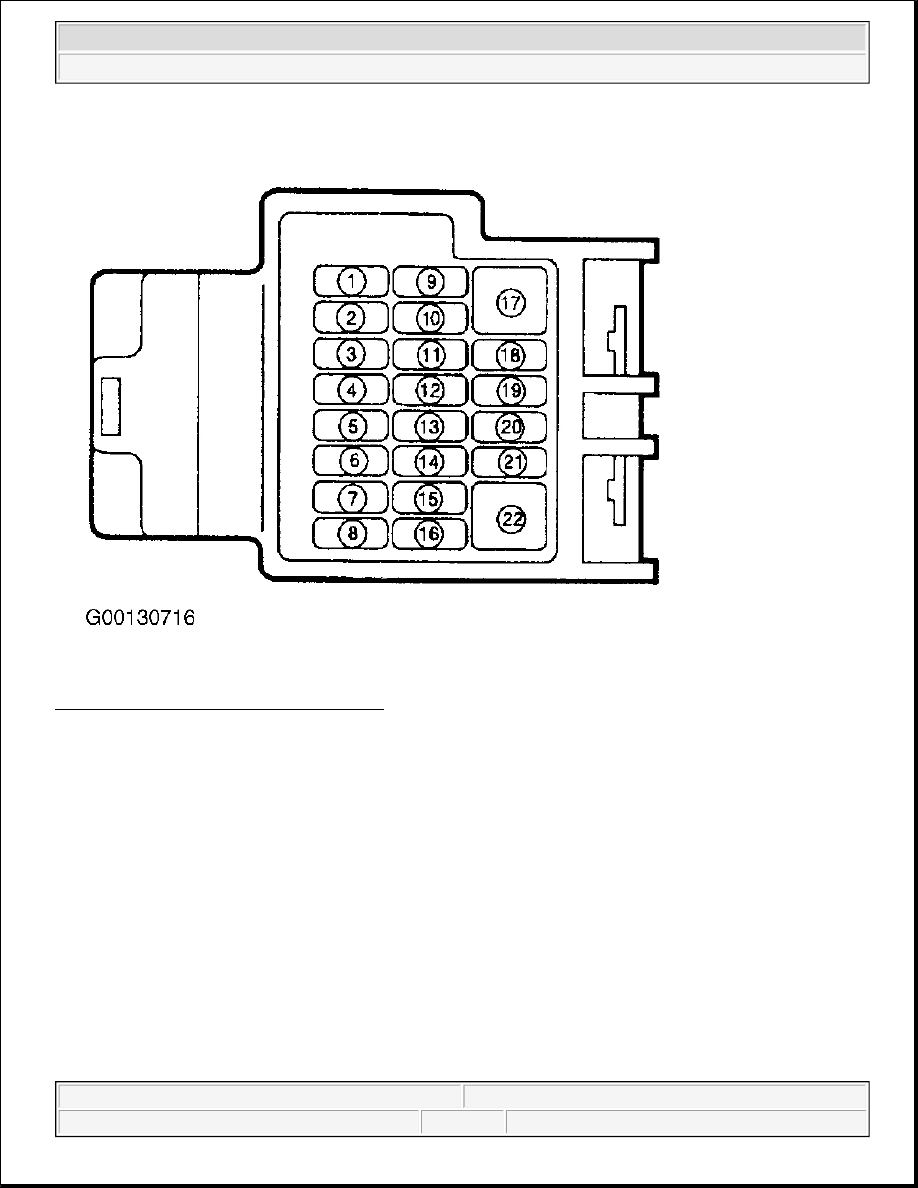

Fig. 5: Identifying Fuse Block Components
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

1997 ELECTRICAL Fuses & Circuit Breakers - MX-5 Miata

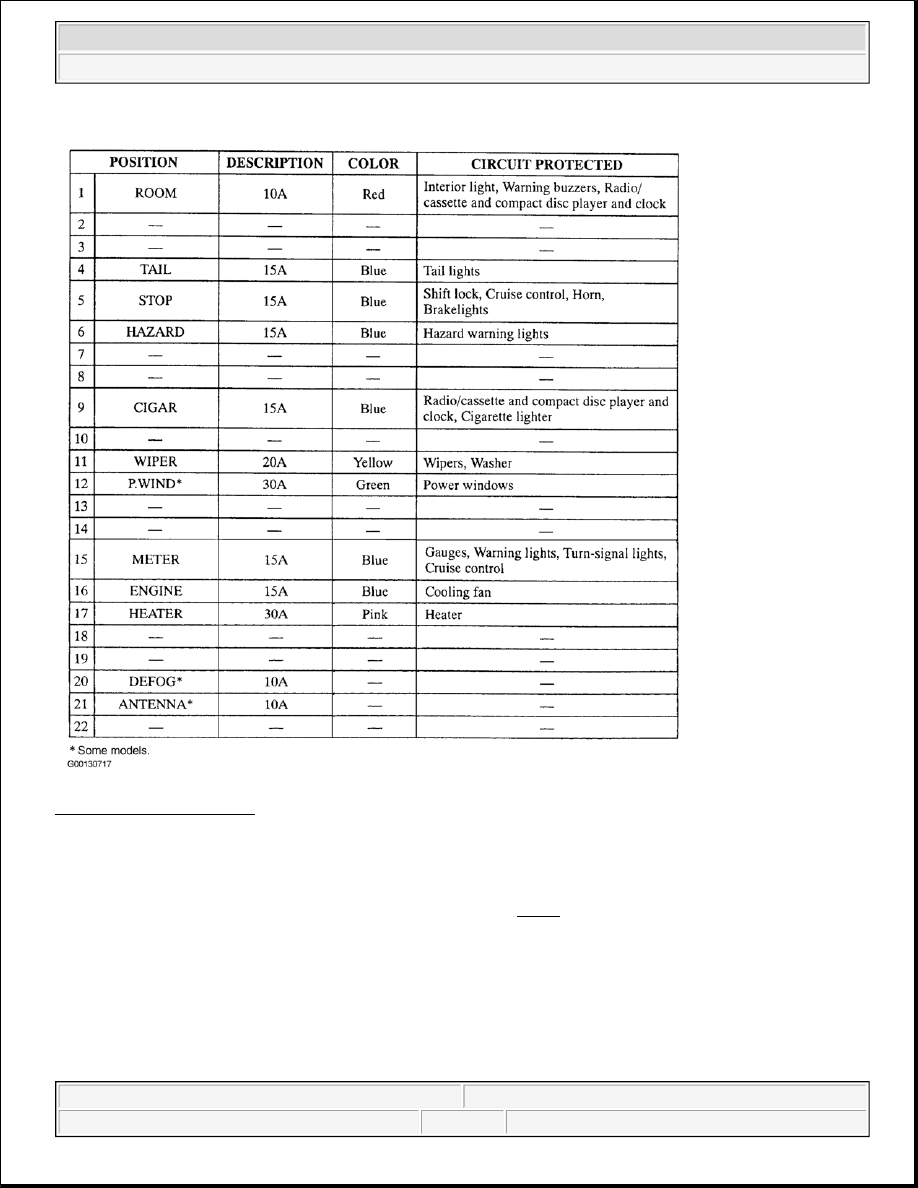

Fig. 6: Fuse Block Legend
Courtesy of MAZDA MOTORS CORP.

TRUNK FUSE BOX

Trunk fuse block is located in passenger's side of the trunk. See Fig. 7 .
