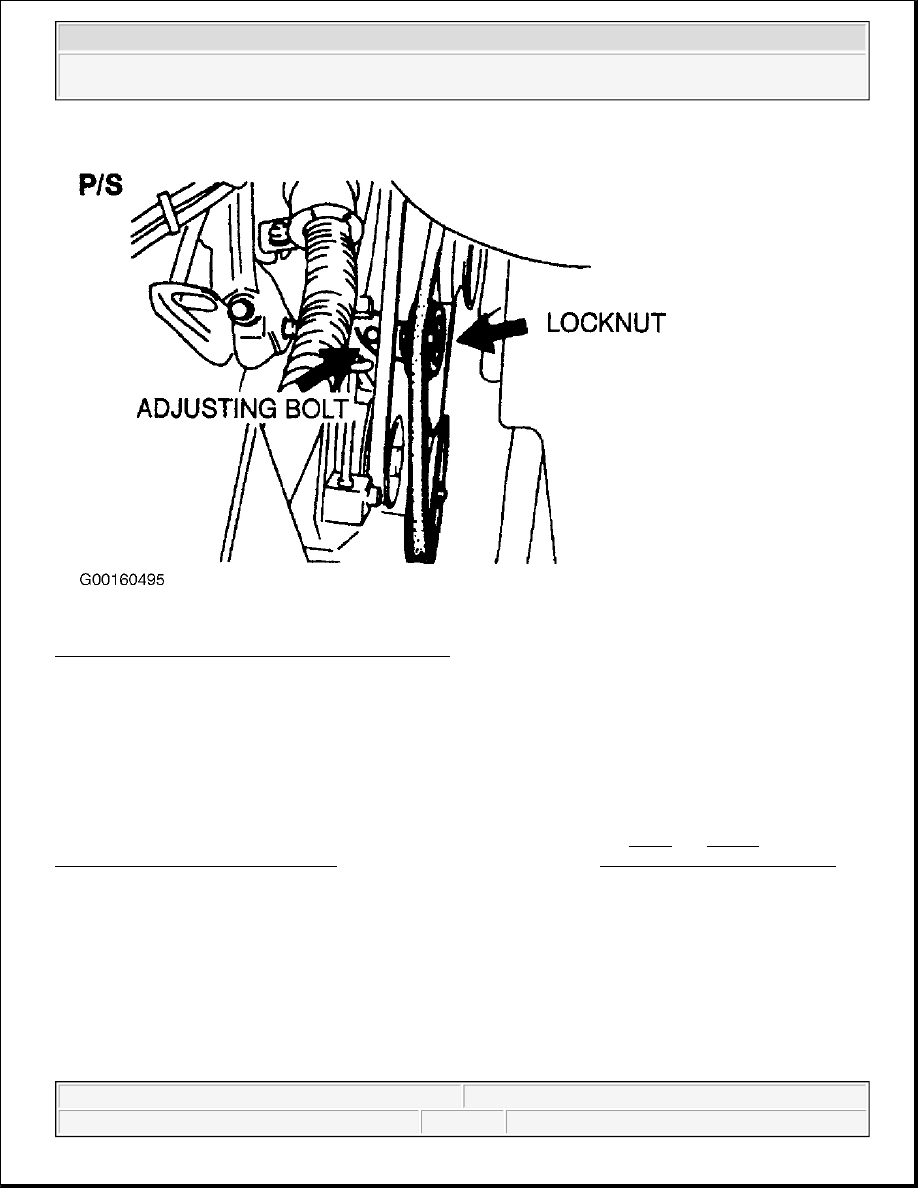

Fig. 8: Adjusting Power Steering Pump Belt (MPV)
Courtesy of MAZDA MOTORS CORP.

MX-5 MIATA

Alternator

Loosen alternator bolts and adjust belt deflection by turning adjusting bolt. See Fig. 9 and Fig. 25 . See
ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

NOTE:

If a new belt is used, adjust belt deflection at midpoint of new belt specification.



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

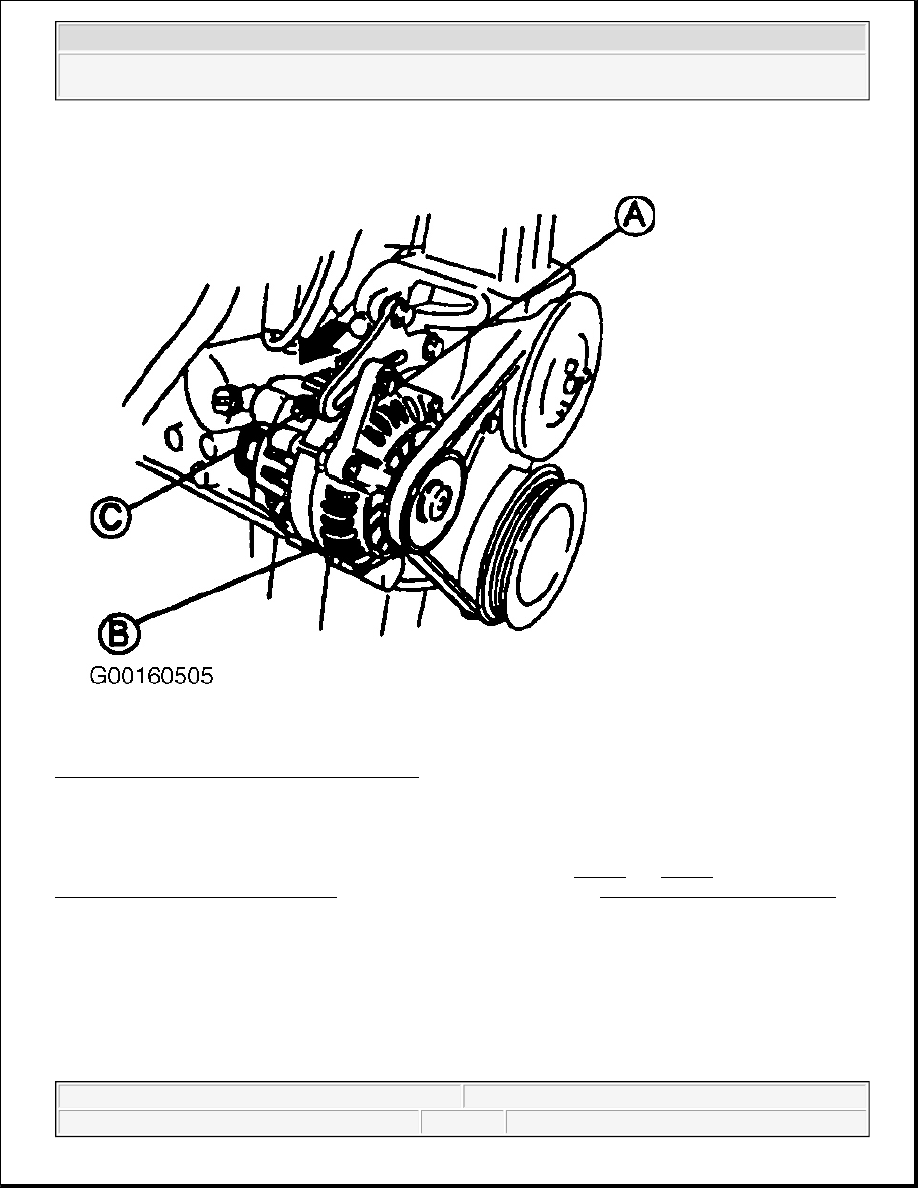

Fig. 9: Adjusting Alternator Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.

A/C Compressor

Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 10 and Fig. 26 . See
ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

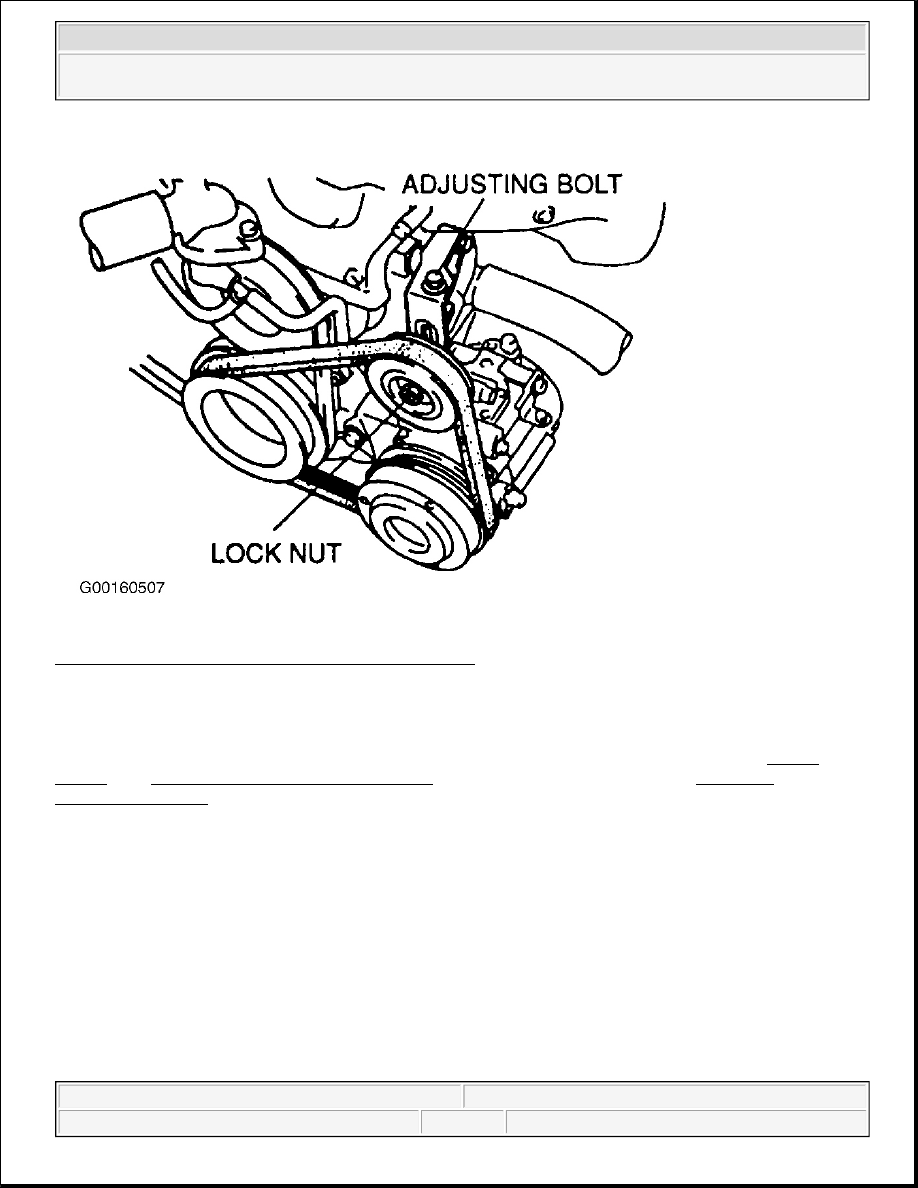

Fig. 10: Adjusting A/C Compressor Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.

Power Steering Pump

Loosen power steering pump nut and bolt, and adjust belt deflection by turning adjusting bolt. See Fig. 11 and
Fig. 25 . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE
SPECIFICATIONS .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

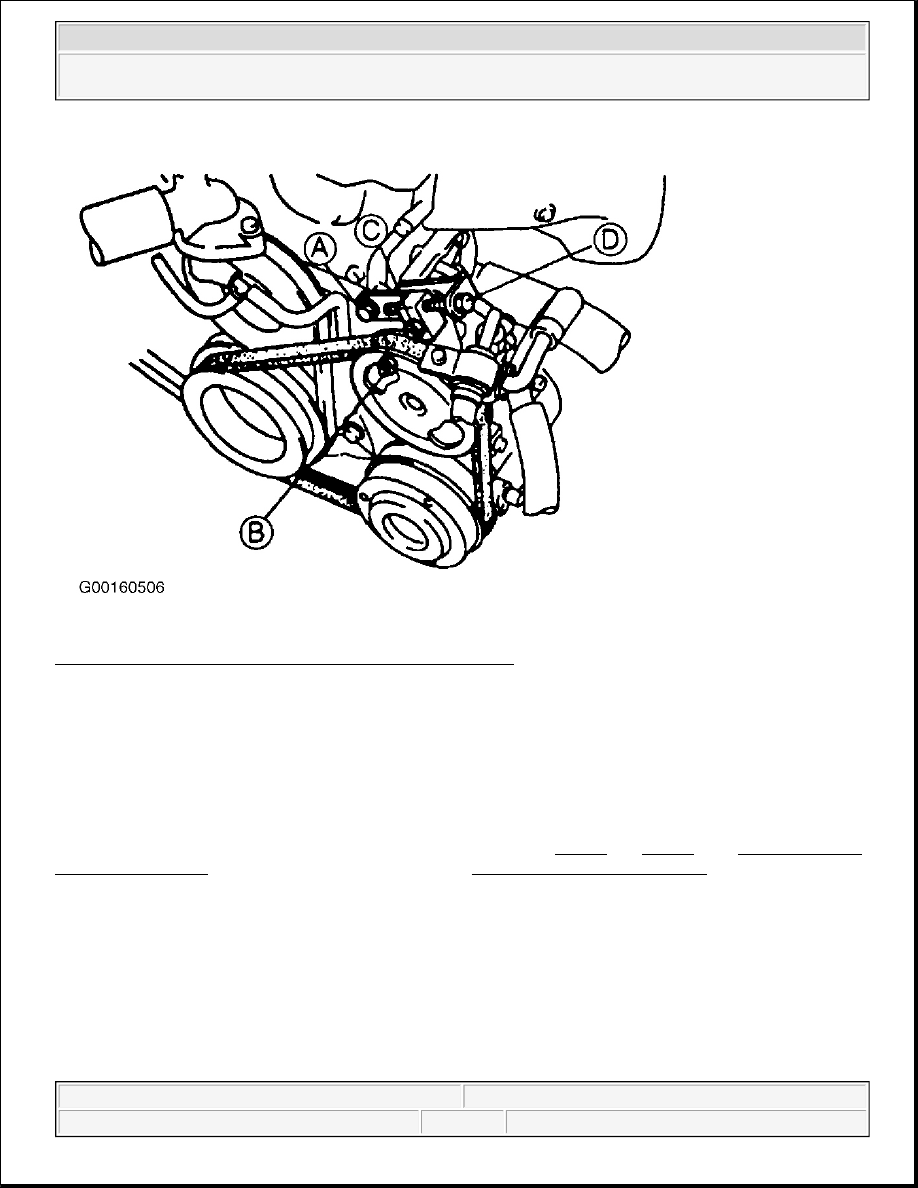

Fig. 11: Adjusting Power Steering Pump Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.

PROTEGE

Alternator

Loosen bolts and adjust belt deflection by turning adjusting bolt. See Fig. 12 and Fig. 27 . See ADJUSTMENT
SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

NOTE:

If a new belt is used, adjust belt deflection at midpoint of new belt specification.
