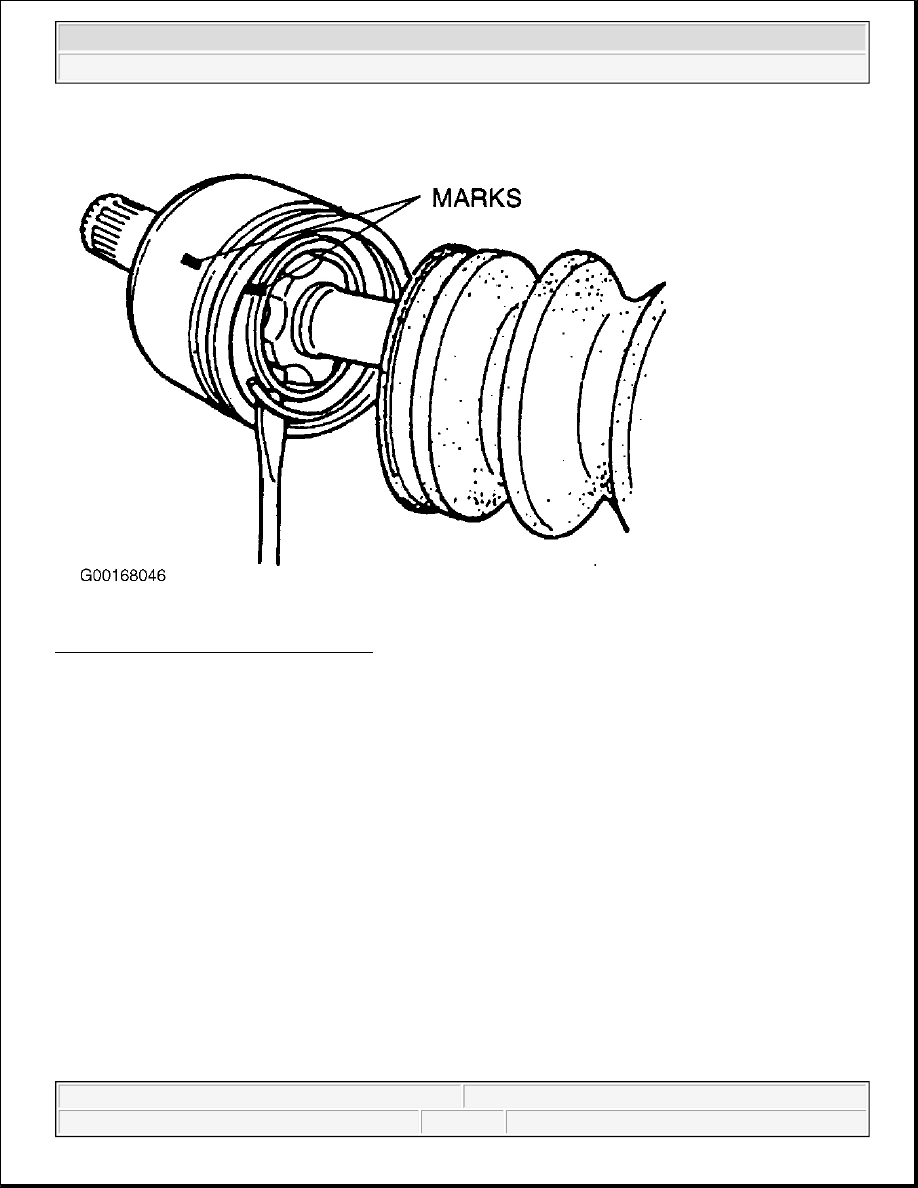

Fig. 6: Marking Axle Shaft & Outer Ring
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

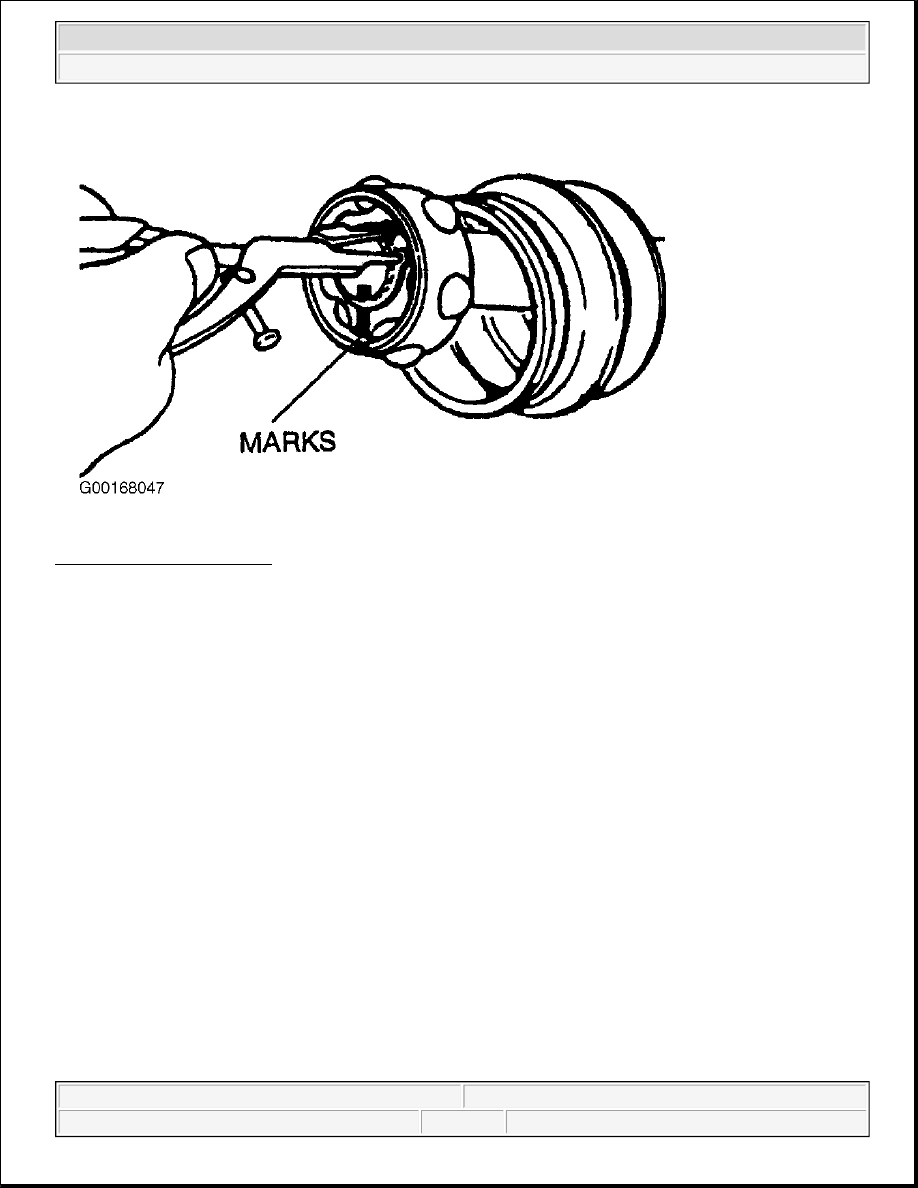

Fig. 7: Removing Snap Ring
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

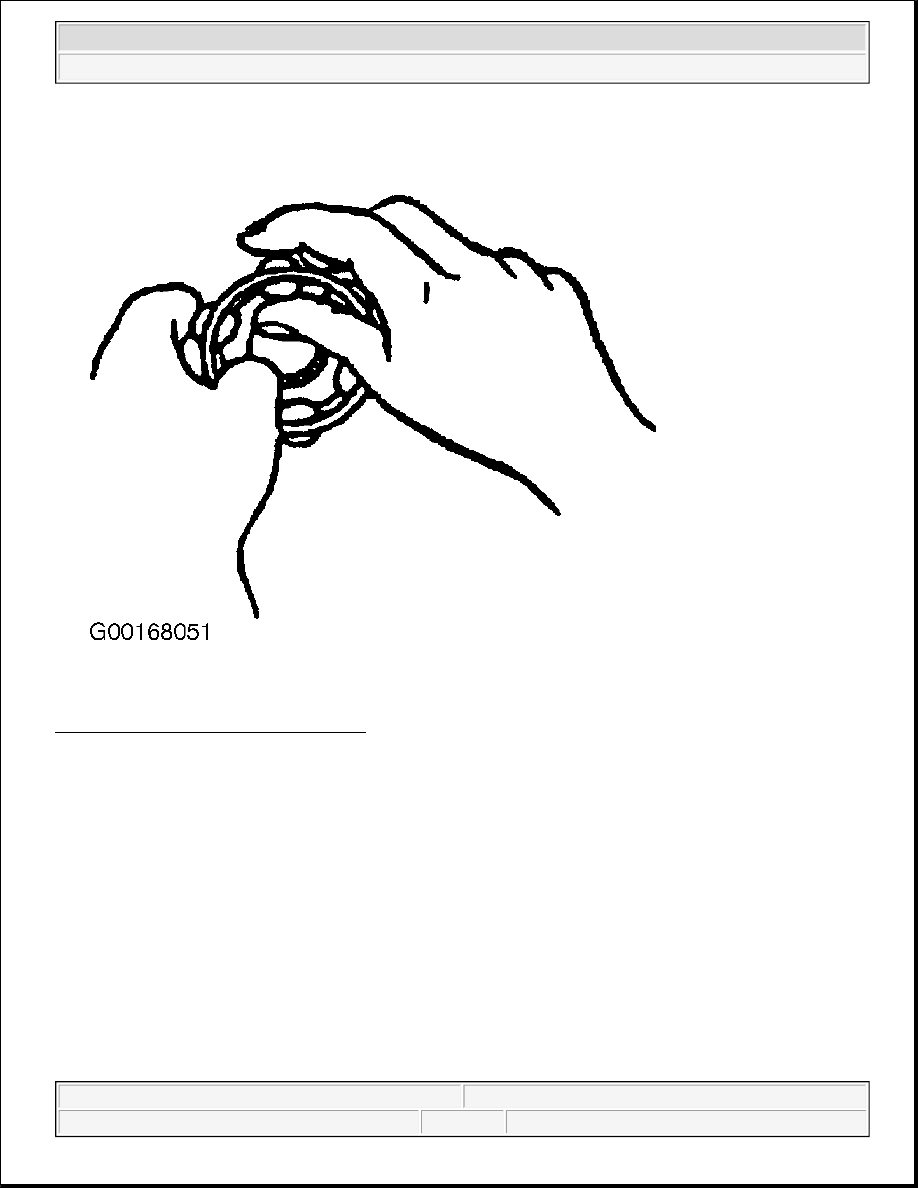

Fig. 8: Removing Balls From Inner Ring
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

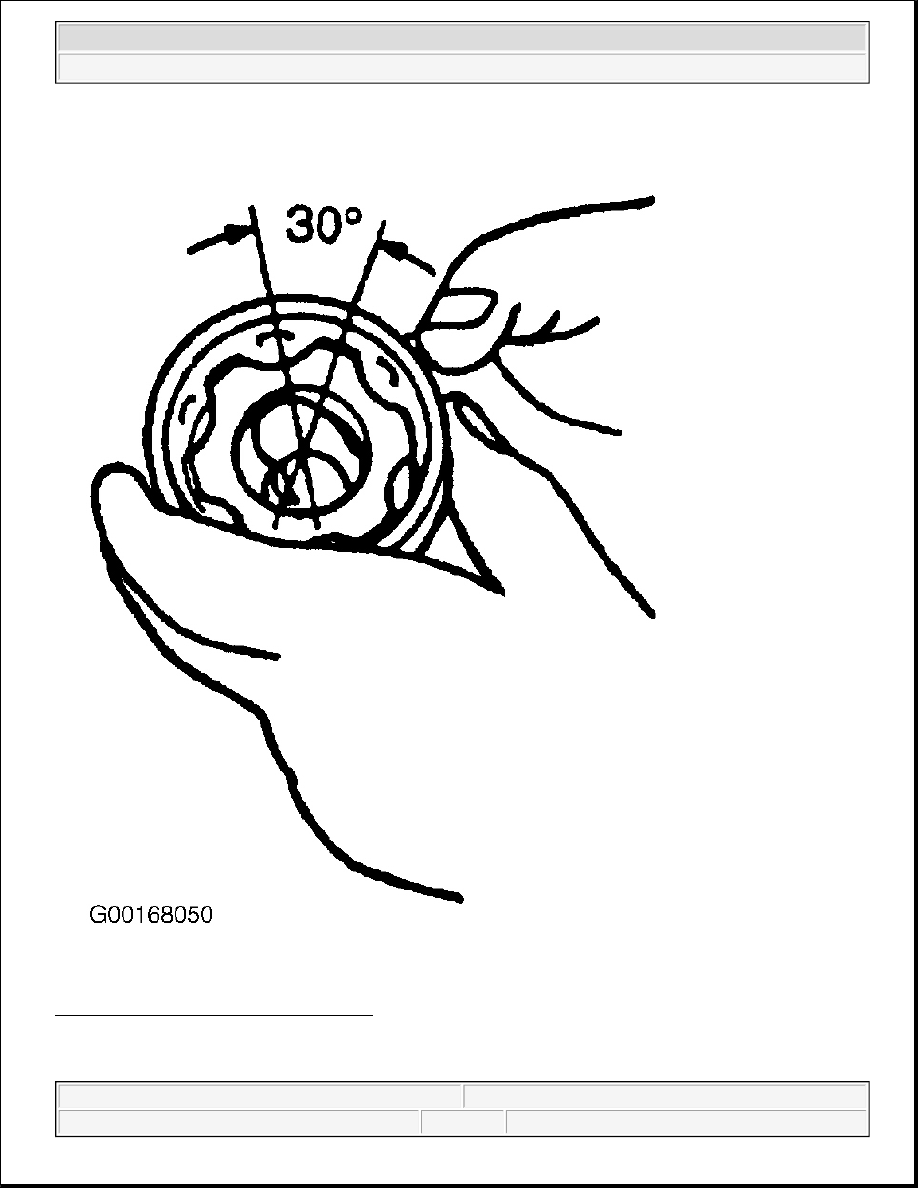

Fig. 9: Separating Inner Ring From Cage
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata
