Mazda MX-5 Miata (1997+). Manual - part 21

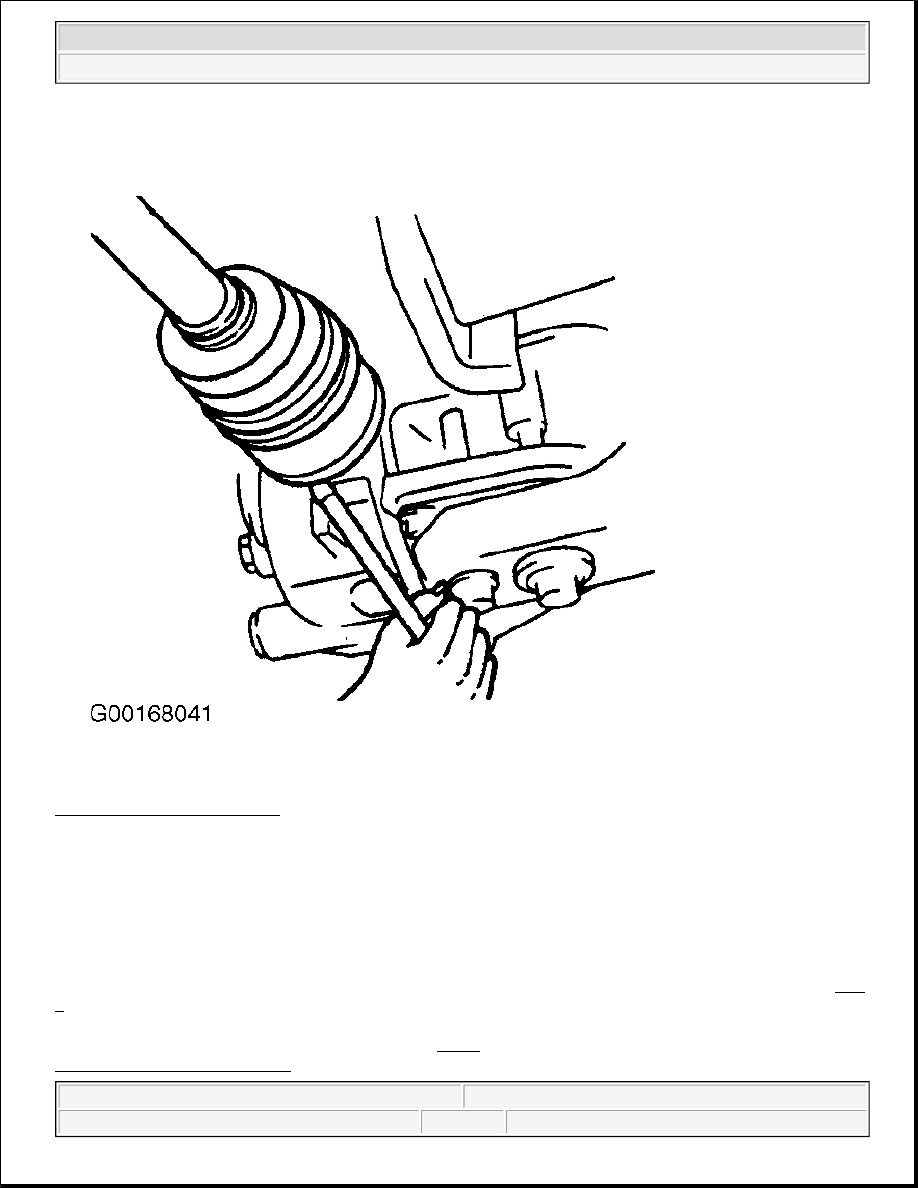

Fig. 2: Prying Out Axle Shaft
Courtesy of MAZDA MOTORS CORP.

Installation

To install, reverse removal procedure. Install NEW clip. Measure outer diameter of clip after installing. See Fig.
3 . Replace clip if it exceeds specification. With the ends of clip facing upward, push axle shaft into deferential.
After installation, pull outward on double offset joint outer ring and verify that axle shaft is securely held by
clip. Install NEW locknut and stake it as shown. See Fig. 4 . Tighten all bolts and nuts to specification. See
TORQUE SPECIFICATIONS .

CAUTION: Sharp edges of axle shaft snap ring can slice or puncture oil seal. Be

careful when installing axle shaft to differential.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

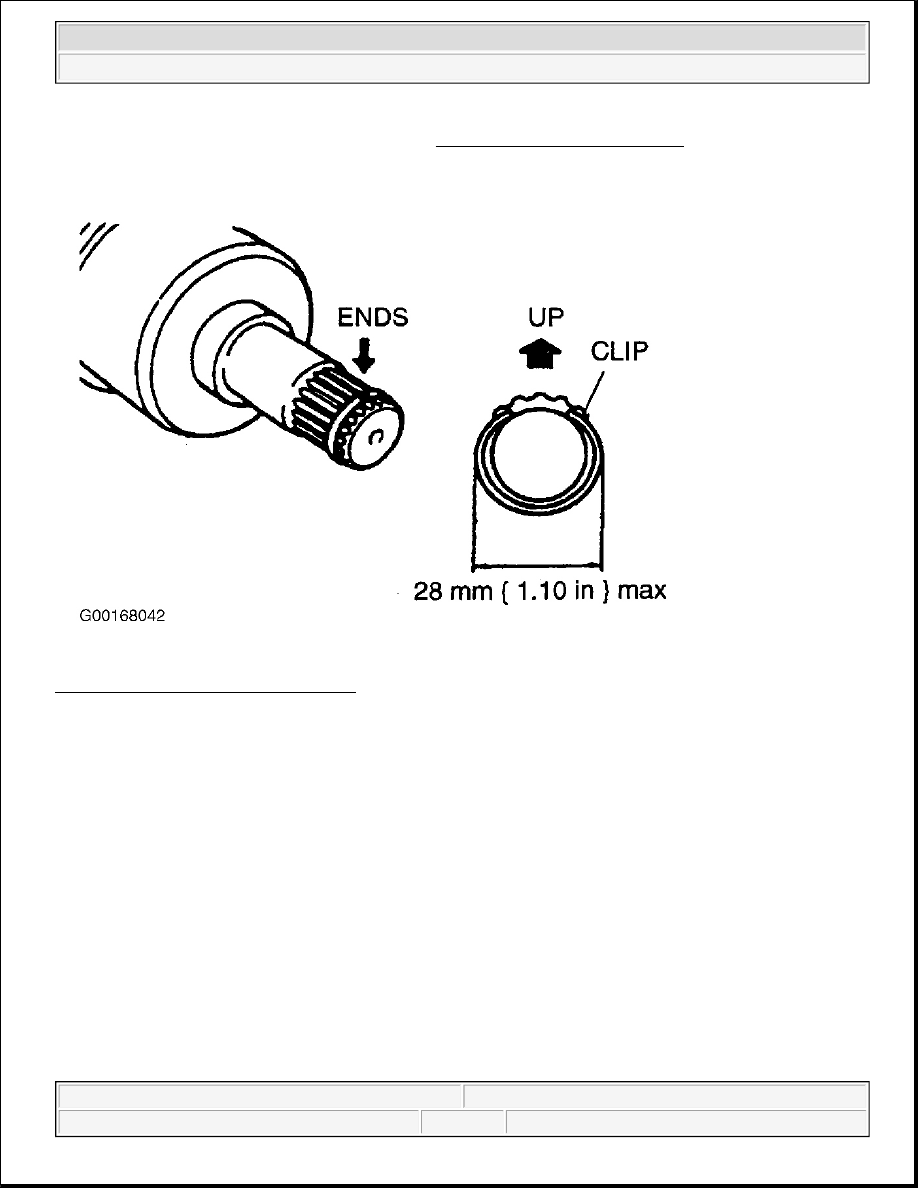

Fig. 3: Measuring Clip Outer Diameter
Courtesy of MAZDA MOTORS CORP.

NOTE:

For rear axle shaft length, see REAR AXLE SHAFT LENGTH table.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

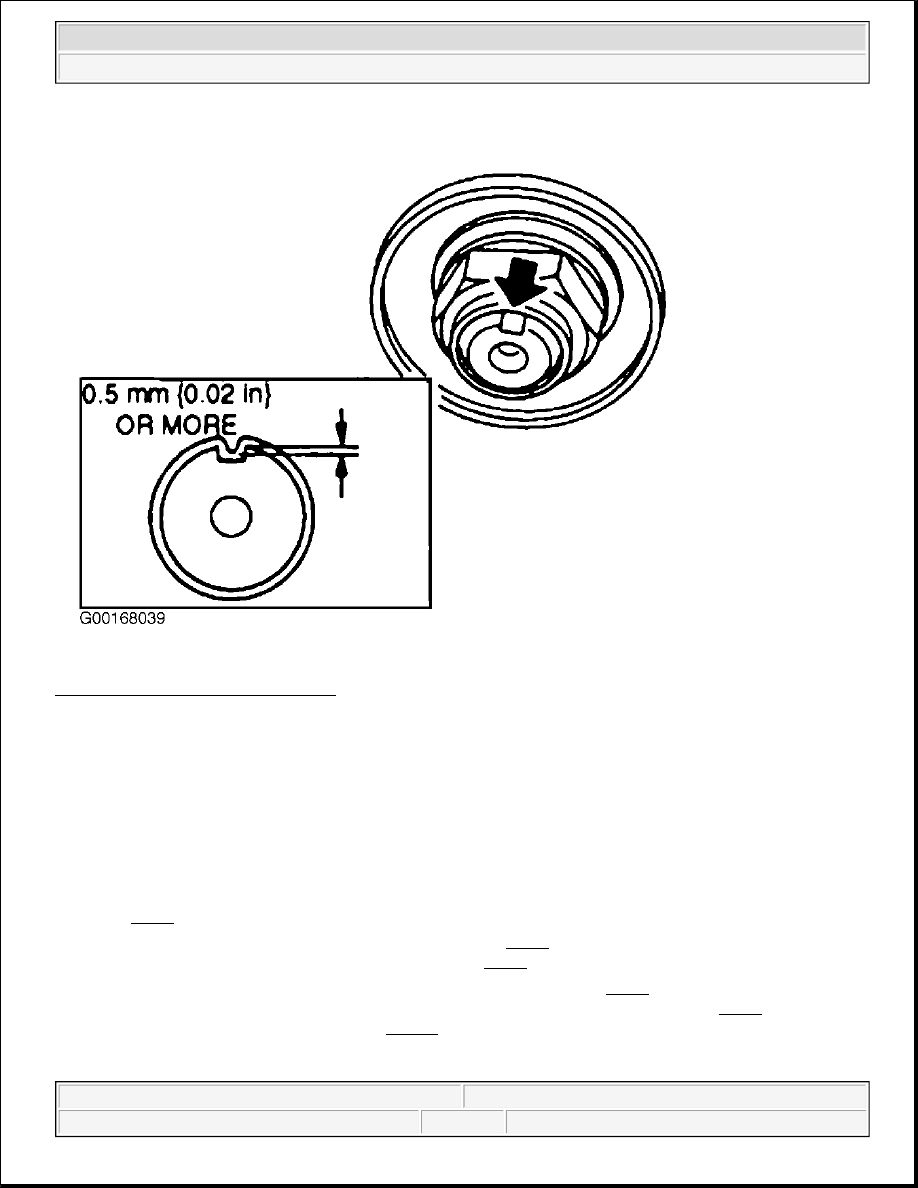

Fig. 4: Installing Axle Shaft Locknut
Courtesy of MAZDA MOTORS CORP.

OVERHAUL

AXLE SHAFTS

Disassembly

1. Place axle shaft assembly in soft-jawed vise. Keep axle shaft assembly clean during disassembly and

reassembly. To remove boot bands, pry up locking clip by using a screwdriver, then raise end of band.
See Fig. 5 .

2. Mark axle shaft and outer ring with paint as shown. See Fig. 6 . Remove clip. Remove outer ring. Mark

axle shaft end and inner ring with paint as show. See Fig. 7 . Remove snap ring by using snap ring pliers.

3. Insert a screwdriver between inner ring and cage to remove balls. See Fig. 8 . Mark inner ring and cage

with paint. Turn cage approximately 30 degrees and pull it away from inner ring. See Fig. 9 . Wrap shaft
splines with tape and remove boot. See Fig. 10 .

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

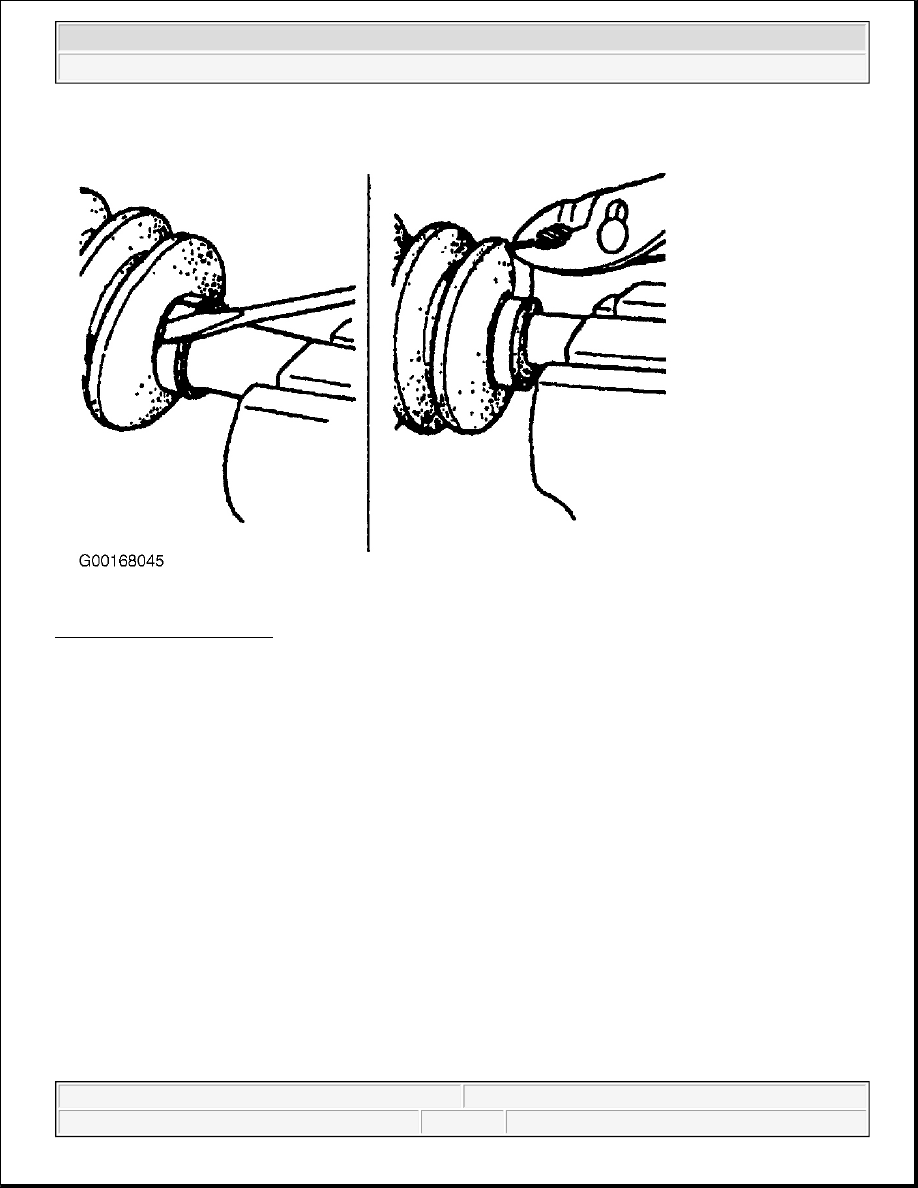

Fig. 5: Removing Boot Band
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata
