BODY STRUCTURE [WATER-PROOF AND RUST PREVENTIVE]

09–80C–5

09

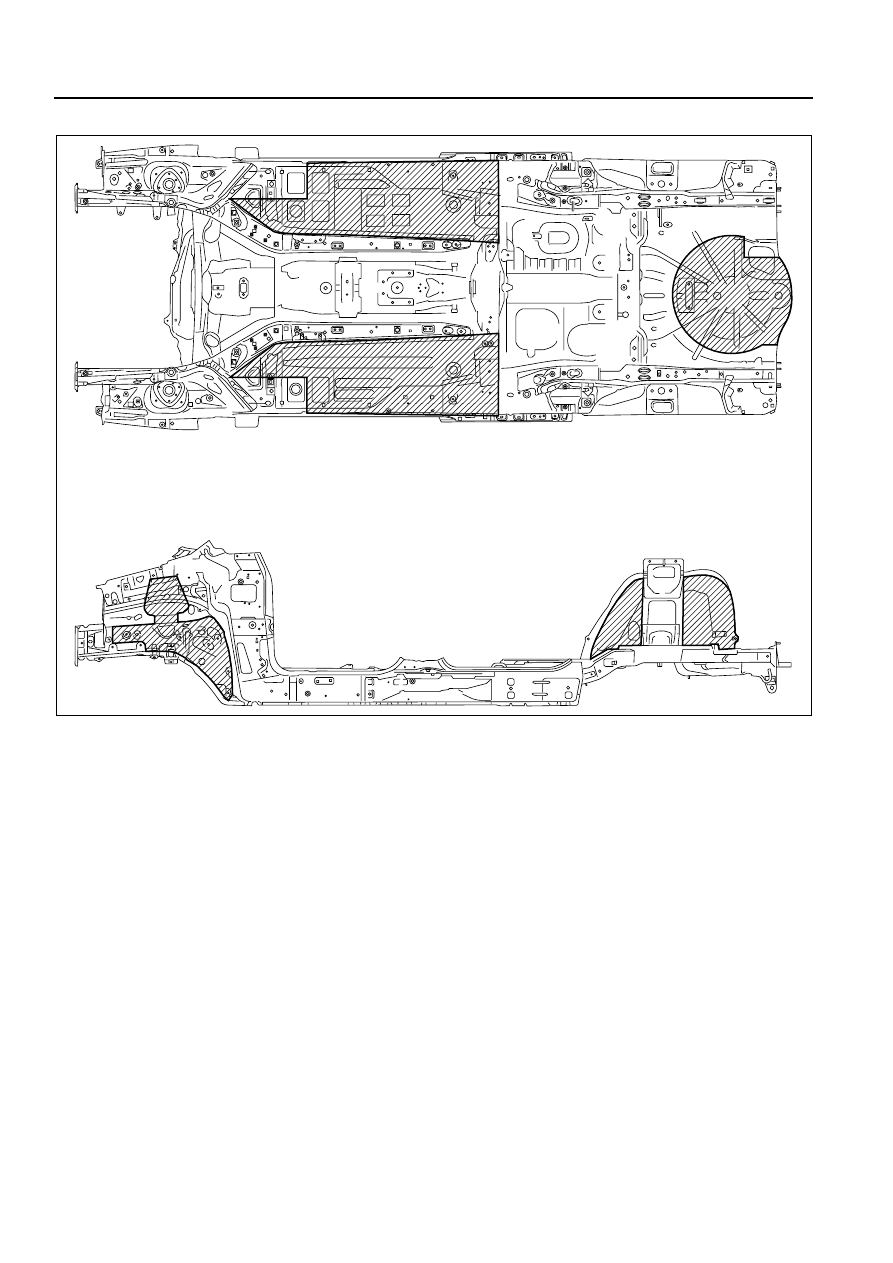

European (L.H.D. U.K.) specs

DPE0980B033

09–80C–6

BODY STRUCTURE [WATER-PROOF AND RUST PREVENTIVE]

General (L.H.D. R.H.D.) specs

End Of Sie

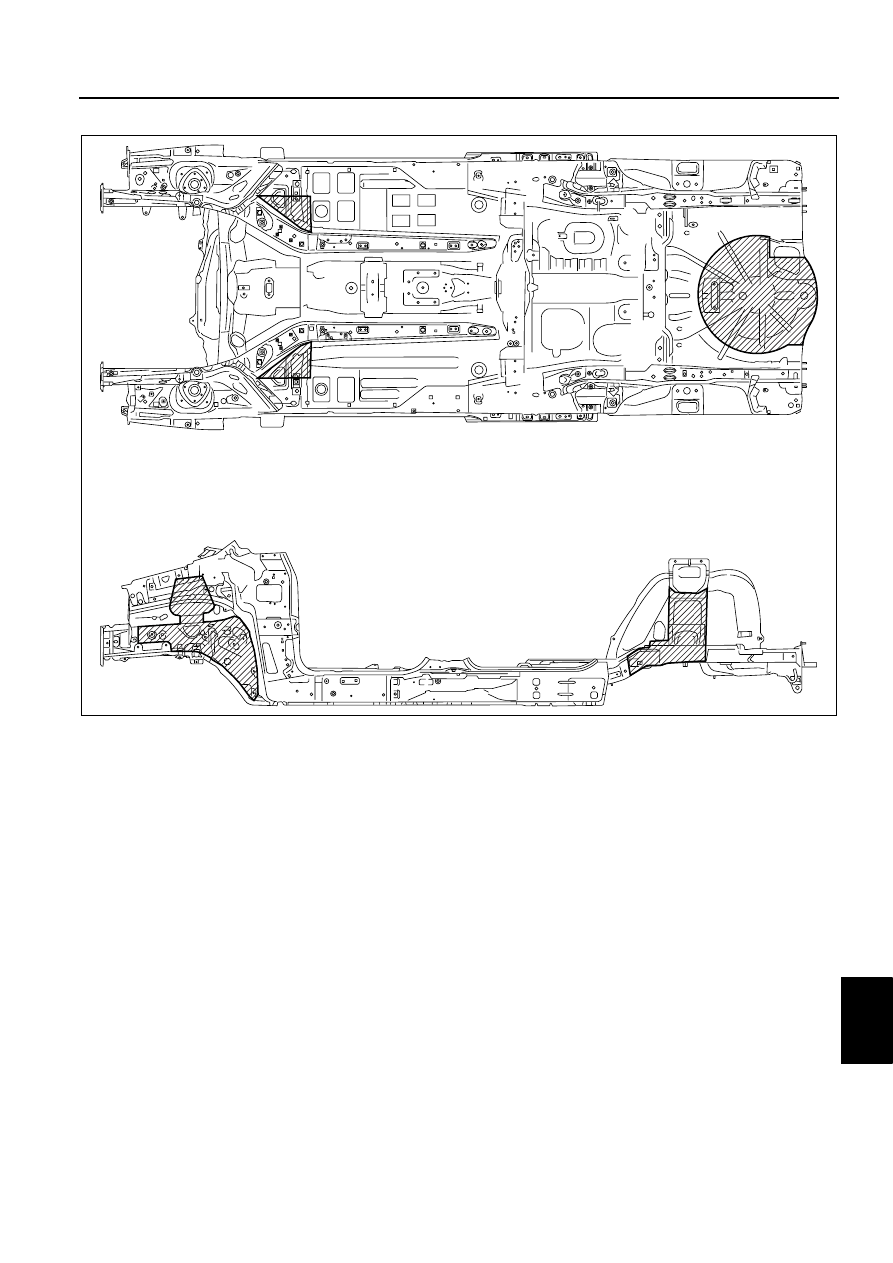

CHIPPING-RESISTANT COATING

DPE098007000B04

The coating locations are indicated by the shaded areas.

DPE0980B038

BODY STRUCTURE [WATER-PROOF AND RUST PREVENTIVE]

09–80C–7

09

With Side Step Molding

A

A

A-A

5mm

OVER SPRAY ALLOWED

URETHANE PAINT

OVER SPRAY ALLOWED

{0.20in}

DPE0980B034

09–80C–8

BODY STRUCTURE [WATER-PROOF AND RUST PREVENTIVE]

Without Side Step Molding

End Of Sie

A

A

A-A

5mm

OVER SPRAY ALLOWED

URETHANE PAINT

OVER SPRAY ALLOWED

{0.20in}

DPE0980B037
