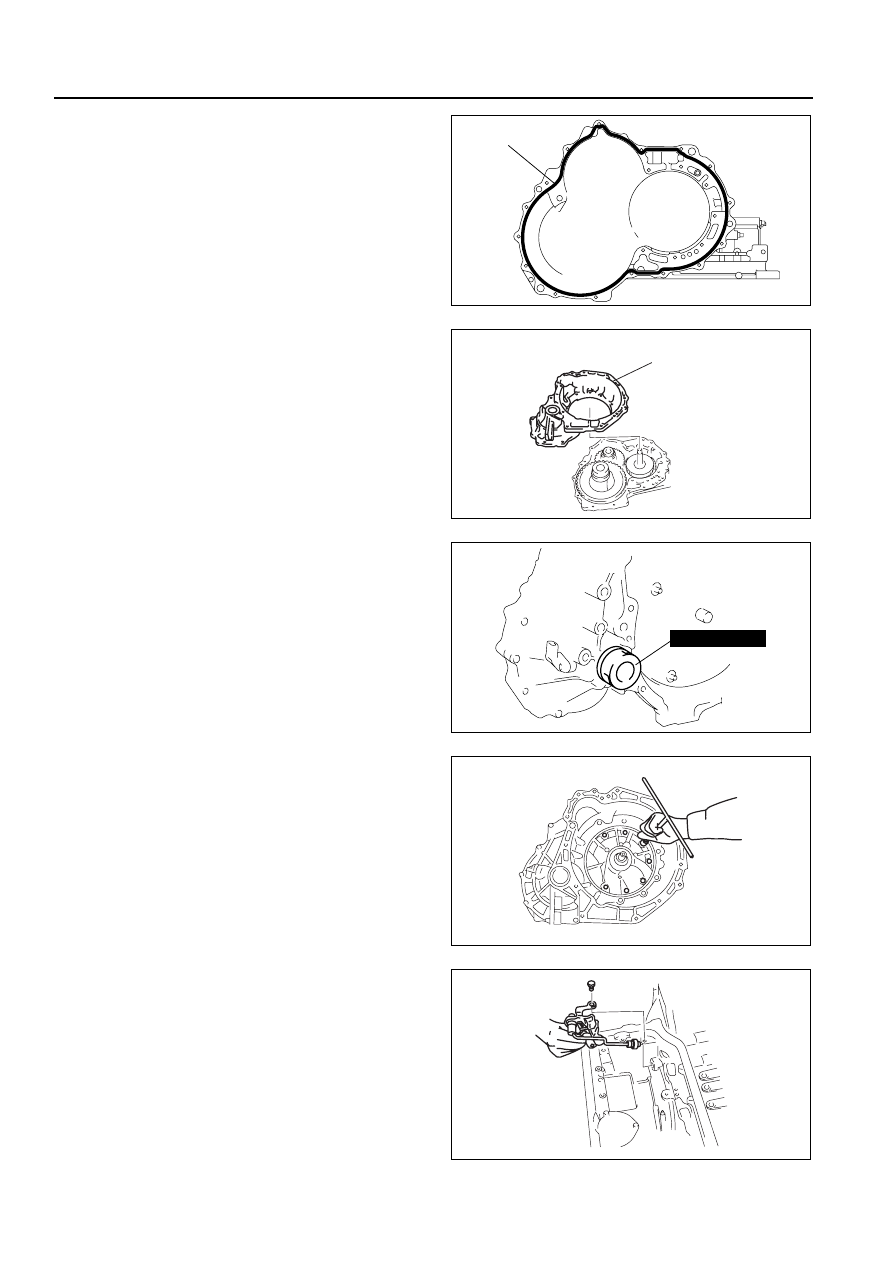

05–17–116

AUTOMATIC TRANSAXLE

38. Apply a light coat of silicone sealant to the contact

surfaces of the converter housing and the
transaxle case.

39. Install the converter housing.

Tightening torque

19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

40. Install the SST into the differential side gears.
41. Apply ATF to the new O-ring and install it to the oil

pump.

42. Install the oil pump.

Tightening torque

19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

43. Install the parking rod lever component.

Tightening torque

19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

44. Apply ATF to the new O-ring and install it to the

manual shaft.

45. Install the manual shaft.

SEALANT

B3E0517A305

CONVERTER
HOUSING

B3E0517A306

49 G030 455

B3E0517A307

B3E0517A308

B3E0517A309

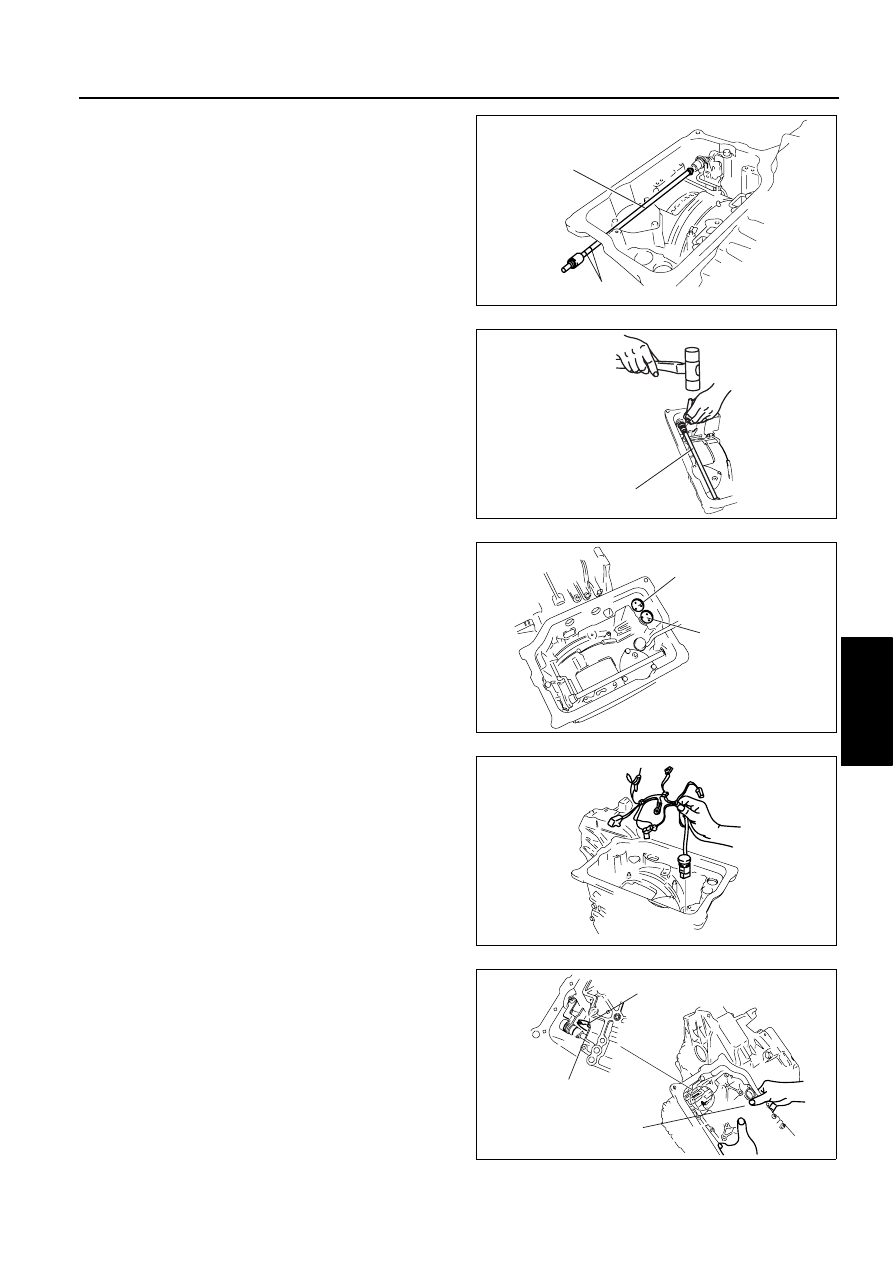

AUTOMATIC TRANSAXLE

05–17–117

05

(1) Install the manual shaft to the manual plate

and detent bracket component.

(2) Install the knock pin.

46. Install the accumulator component.

47. Install the coupler component.

Caution

• Make sure that the head of the manual

valve and the parking rod are assembled
properly. If they are not, the ranges
cannot be changed.







B3E0517A210





B3E0517A209












B3E0517A208

B3E0517A207

PARKING ASSIST
LEVER COMPONENT

MANUAL VALVE

CONTROL
VALVE BODY

B3E0517A310

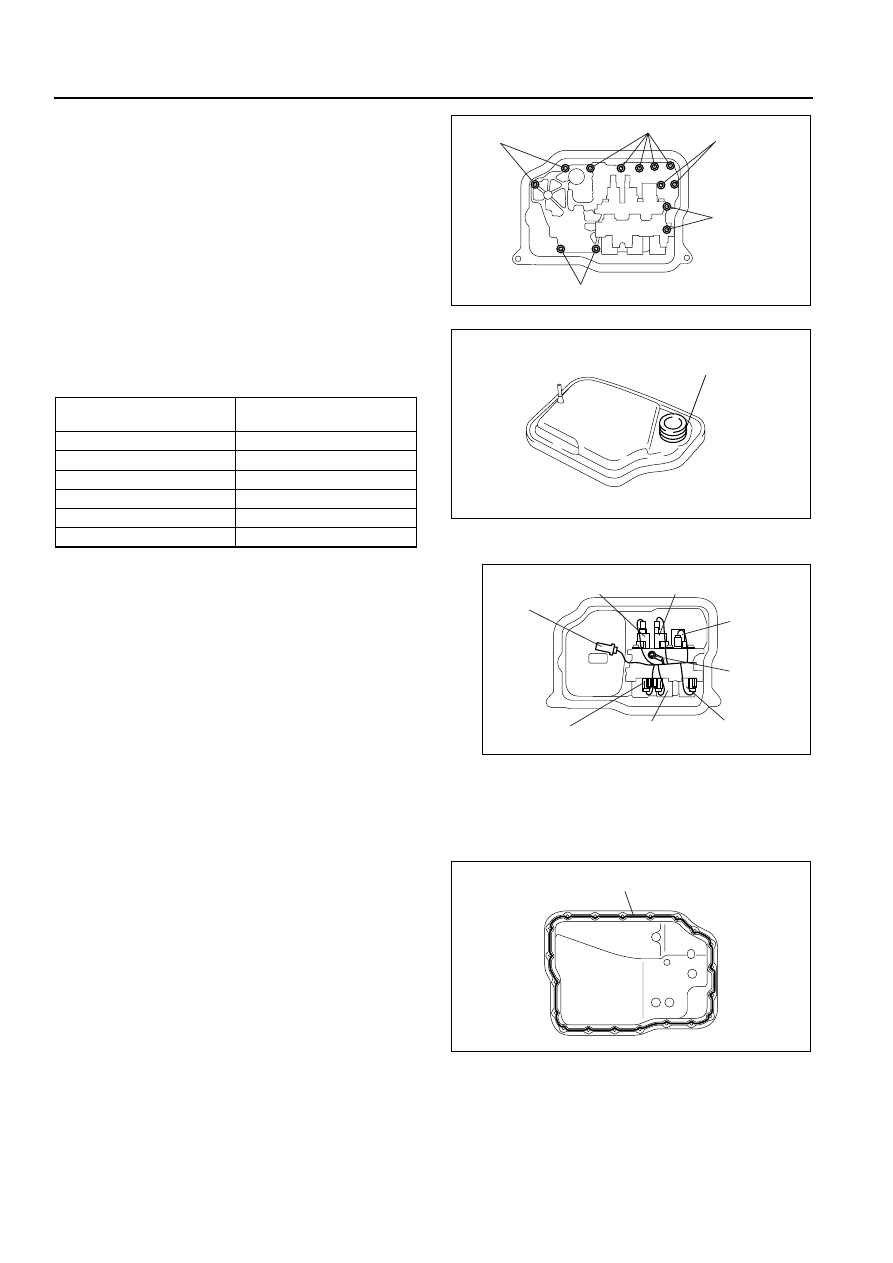

05–17–118

AUTOMATIC TRANSAXLE

48. Install the control valve body.

Tightening torque

7.8—10.8 N·m

{80—110 kgf·cm, 69—95.5 in·lbf}

Bolt length (measured from below the head)

B: 40 mm {1.575 in}
No mark: 70 mm {2.756 in}

49. Apply ATF to the new O-ring and install it to the oil

strainer.

50. Install the oil strainer.
51. Match the harness colors, then connect the

solenoid connector and transaxle fluid
temperature sensor.

52. Install the ground.

Tightening torque

7.8—10.8 N·m

{80—110 kgf·cm, 69—95.5 in·lbf}

Warning

• Using compressed air can cause dirt and

other particles to fly out, causing injury to the
eyes. Wear protective eye wear whenever
using compressed air.

Caution

• Clean the transaxle exterior thoroughly with a

steam cleaner or cleaning solvents before removal.

• If any old sealant gets into the transaxle during installation of the oil pan, trouble may occur in the

transaxle case and oil pan, and clean with cleaning fluids.

53. Apply a light coat of silicone sealant to the contact

surfaces of oil pan and transaxle case.

54. Install the oil pan.

Tightening torque

5.9—7.8 N·m

{60—80 kgf·cm, 53—69 in·lbf}

55. Install the oil pipe and connector bolt.

Tightening torque

24—35 N·m

{2.4—3.6 kgf·cm, 18—26 in·lbf}

56. Install the connector pipe.

Tightening torque

24—35 N·m

{2.4—3.6 kgf·cm, 18—26 in·lbf}

Solenoid valve

Color of connector

(harness side)

Pressure control solenoid

Black

Shift solenoid A

White

Shift solenoid B

Blue

Shift solenoid C

Green

Shift solenoid D

White

Shift solenoid E

Black

NO MARK

B

B

B

B

B3E0517A311

O-RING

B3E0517A204











































B3E0517A312

SEALANT

B3E0517A313

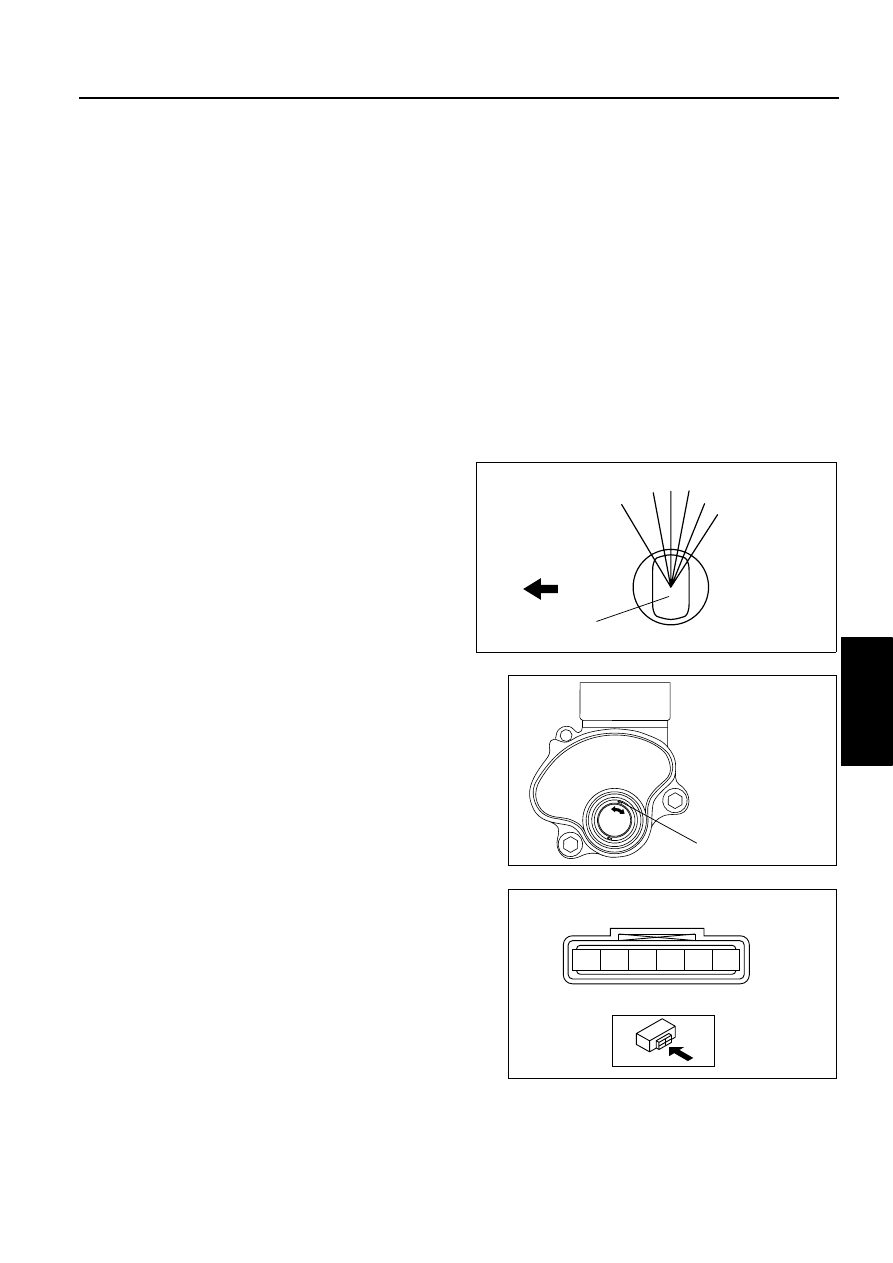

AUTOMATIC TRANSAXLE

05–17–119

05

57. Apply ATF to the new O-ring and install it to the vehicle speed sensor.
58. Install the vehicle speed sensor.

Tightening torque

8—11 N·m

{82—112 kgf·cm, 71—97 in·lbf}

59. Apply ATF to the new O-ring and install it to the input/turbine speed sensor.
60. Install the oil pressure switch.

Tightening torque

17.1—22.1 N·m

{1.75—2.25 kgf·m, 12.7—16.2 ft·lbf}

61. Install the input/turbine speed sensor.

Tightening torque

8—11 N·m

{82—112 kgf·cm, 71—97 in·lbf}

62. Install the transaxle range switch. (6-terminal connector type)

(1) Rotate the manual shaft to the N position.

(2) Turn the protrusion a resistance between the

terminals B and C become 750 ohms.

P

R

N

D, M*1

S*2

L*2

CONVERTER
HOUSING
SIDE

MANUAL SHAFT

*1: SPORT AT

*2: 4AT

BME0517W305

PROTRUSION

B3E0517A315

F

E

D

C

B

A

TR SWITCH

B3E0517A316
