ENTERTAINMENT

09–20–3

09–20

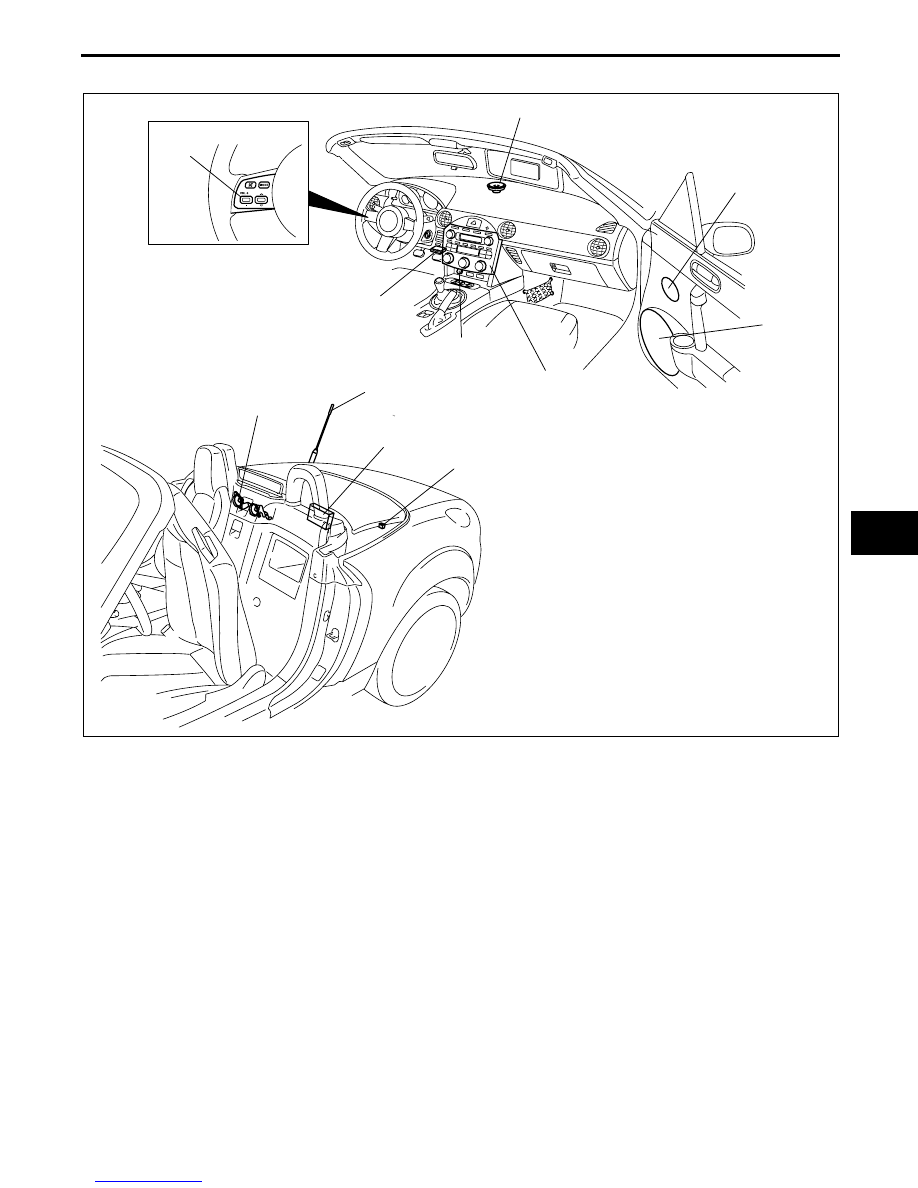

AUDIO SYSTEM STRUCTURAL VIEW

E5U092000001N02

End Of Sie

AUDIO CONTROL
SWITCH

CONDENSER

MANUAL
ANTENNA

TWEETER (STD) /

DOOR
SPEAKER

REAR
SPEAKER

AUDIO AMPLIFIER (BOSE)

AUDIOPILOT
MICROPHONE
(BOSE)

CENTER SPEAKER

(BOSE)

CENTER PANEL
UNIT

ACCESSORY
SOCKET

DOOR UPPER
SPEAKER (BOSE)

E5U920ZS5003

ENTERTAINMENT

09–20–4

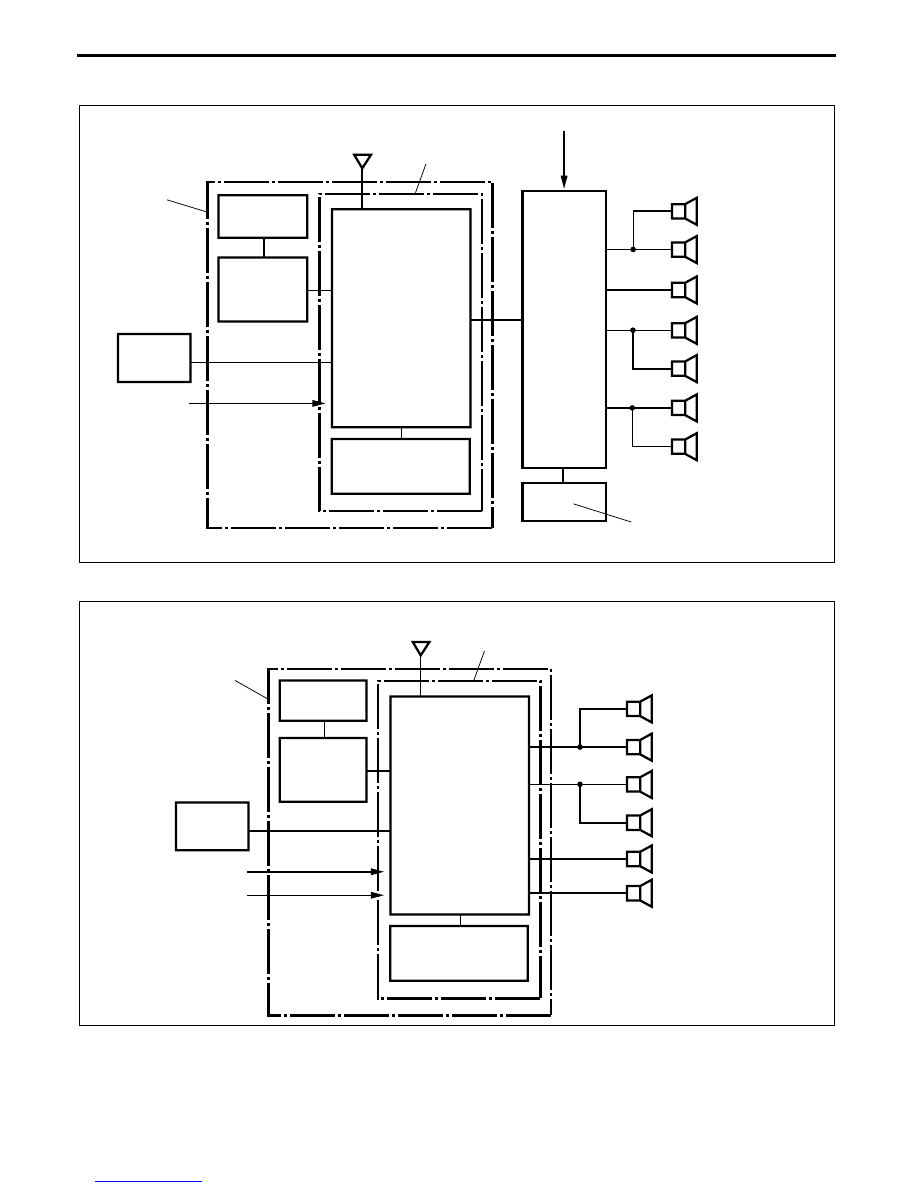

AUDIO SYSTEM BLOCK DIAGRAM

E5U092000001N06

Vehicles with BOSE

Vehicles with standard audio system

End Of Sie

CENTER PANEL
UNIT
(BUILT-IN
AUDIO UNIT)

INFORMATION
DISPLAY

AUDIO
CONTROL
CIRCUIT

AUDIO
CONTROL
SWITCH

TNS SIGNAL

AUDIO
UNIT

BASE UNIT

LOWER

MODULE

AUDIO
AMPLIFIER

AUDIOPILOT
MICROPHONE

DOOR SPEAKER
(RIGHT)

REAR SPEAKER
(LEFT)

REAR SPEAKER
(RIGHT)

DOOR UPPER
SPEAKER (LEFT)

DOOR SPEAKER
(LEFT)

DOOR UPPER
SPEAKER (RIGHT)

CENTER
SPEAKER

MANUAL
ANTENNA

CONVERTIBLE TOP OPEN/CLOSE SIGNAL

E5U920ZS5001

CENTER PANEL
UNIT
(BUILT-IN
AUDIO UNIT)

INFORMATION
DISPLAY

AUDIO
CONTROL
CIRCUIT

AUDIO
CONTROL
SWITCH

TNS SIGNAL

VEHICLE
SPEED
SIGNAL

MANUAL
ANTENNA

AUDIO
UNIT

BASE UNIT

LOWER

MODULE

DOOR SPEAKER
(RIGHT)

REAR SPEAKER
(LEFT)

REAR SPEAKER
(RIGHT)

TWEETER
(LEFT)

DOOR SPEAKER
(LEFT)

TWEETER
(RIGHT)

E5U920ZS5002

ENTERTAINMENT

09–20–5

09–20

CENTER PANEL UNIT OUTLINE

E5U092066900N01

• The center panel unit is composed of the installed audio unit and the audio switches built into the center panel.

End Of Sie

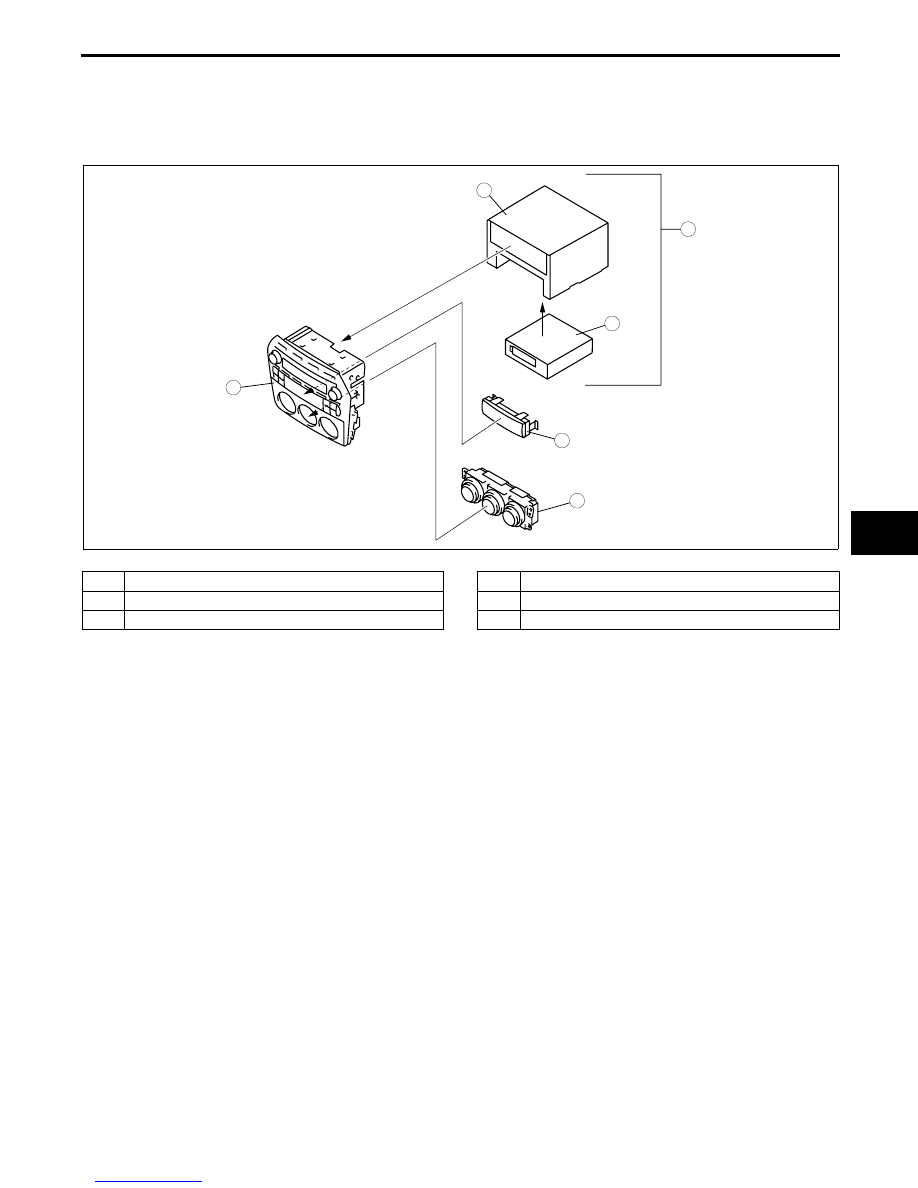

CENTER PANEL UNIT CONSTRUCTION

E5U092066900N02

Structural View

1

2

5

4

6

3

E5U920ZS5010

1

Center panel

2

Base unit

3

Audio unit

4

Lower module

5

Cover

6

Climate control unit

ENTERTAINMENT

09–20–6

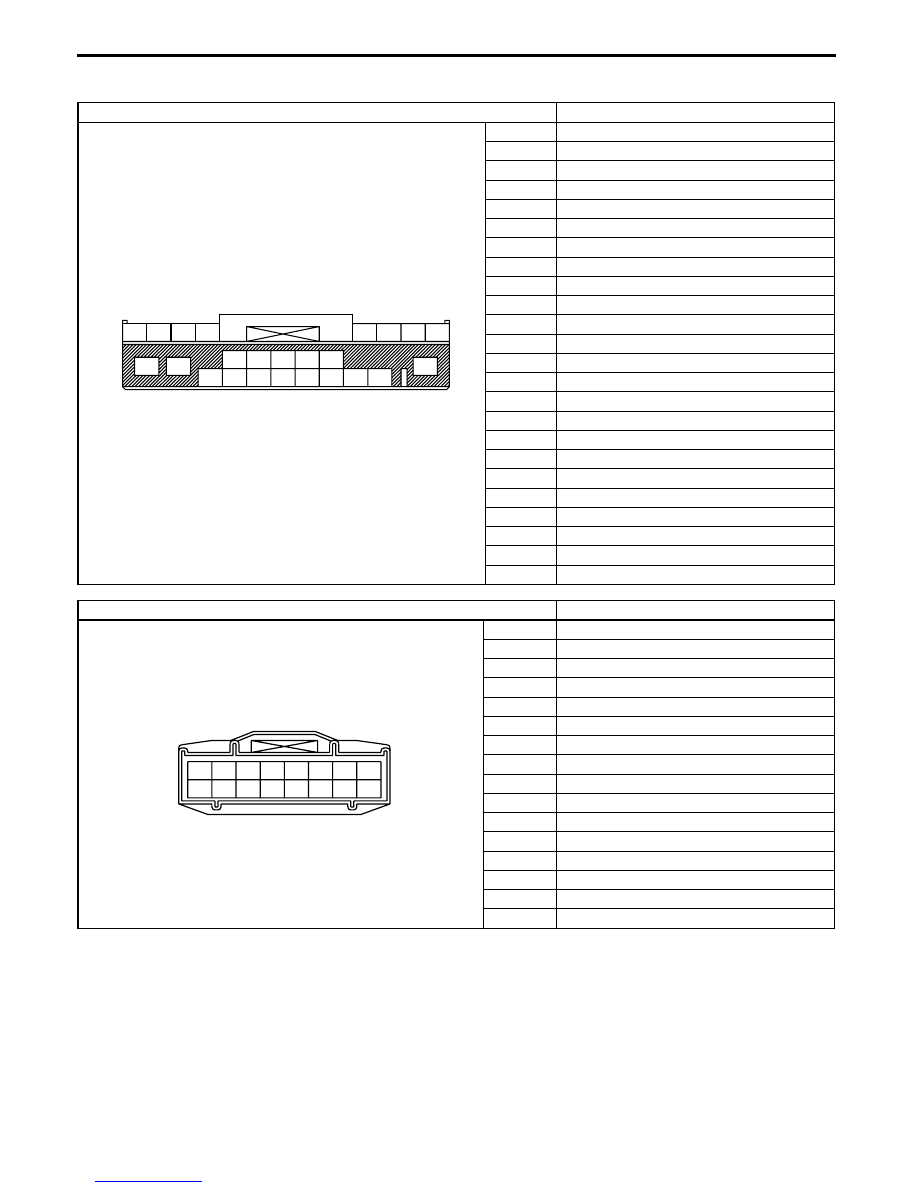

Terminal Layout and Signal
Audio unit

*1 : vehicles with BOSE

*2 : vehicles without BOSE

Terminal

Signal

1A

Door speaker LH (+)

1B

B+ (Power back up)

1C

Door speaker LH (–)

1D

Door speaker RH (+)

1E

TNS (+)

1F

Door speaker RH (–)

1G

Illumination (–)

1H

Antenna control

1I

Vehicle speed signal*2

1J

AMP control*1

1K

UART–1

1L

—

1M

UART–2

1N

Audio control switch 1

1O

—

1P

Audio control switch 2

1Q

—

1R

ACC

1S

Rear speaker LH (+)

1T

Audiopilot control*1

1U

Rear speaker LH (–)

1V

Rear speaker RH (+)

1W

Power ground

1X

Rear speaker RH (–)

Terminal

Signal

2A

Power ground

2B

System mute

2C

Input signal RH (+)

2D

Input signal RH (–)

2E

Input signal LH (+)

2F

Input signal LH (–)

2G

Signal ground

2H

TEXT DATA

2I

TEXT CLK

2J

TNS (+)

2K

BUS (–)

2L

BUS (+)

2M

AUX control

2N

Illumination (–)

2O

ACC

2P

+B

1A

1B

1C

1D

1F

1E

1G

1H

1I

1J

1K

1L

1M

1N

1O

1P

1Q

1R

1S

1U

1T

1W

1V

1X

2A

2C

2E

2G

2I

2K

2M

2O

2B

2D

2F

2H

2J

2L

2N

2P
