Mazda X-5. Manual - part 113





LIGHTING SYSTEMS

09–18–7

09–18

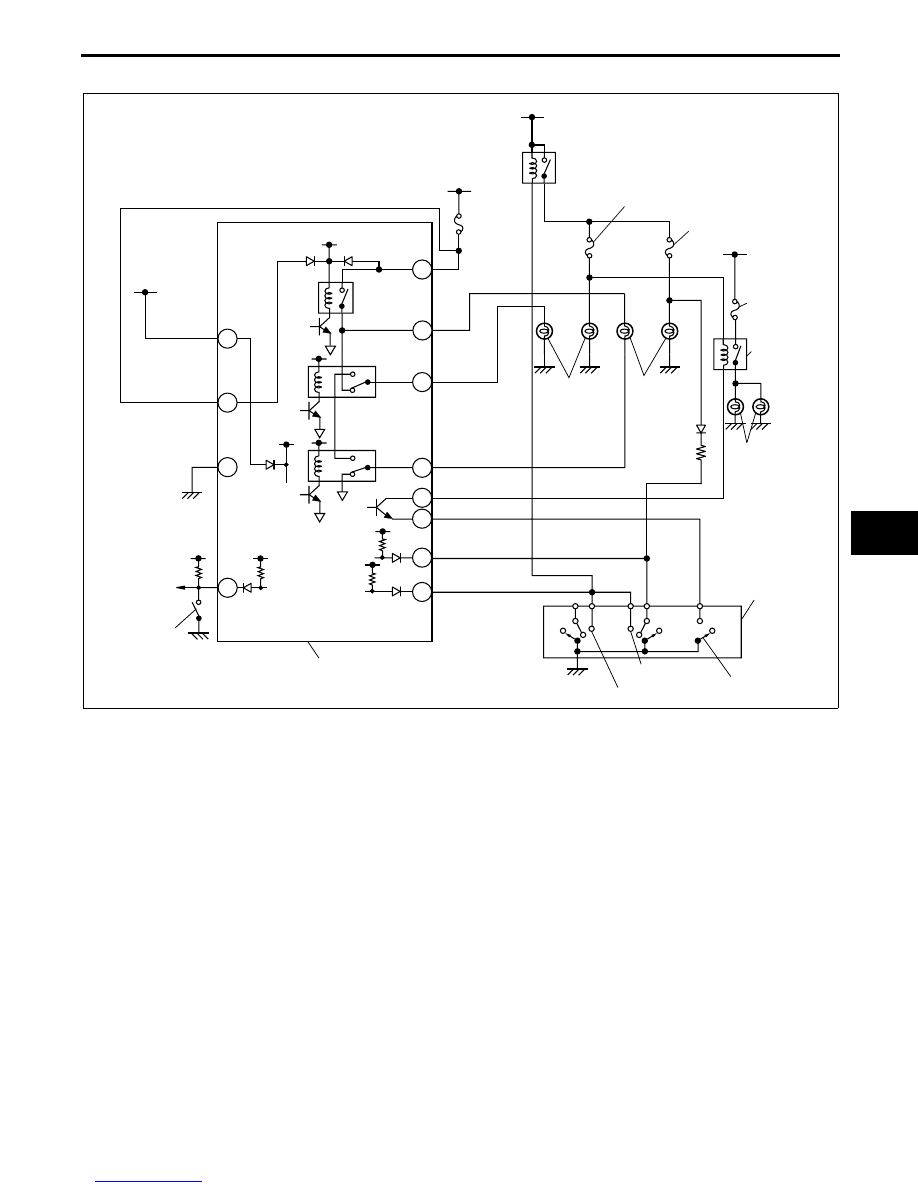

DRL SYSTEM WIRING DIAGRAM

E5U091800200N03

End Of Sie

B+

PARKING
BRAKE
SWITCH

HEADLIGHT

LIGHT SWITCH

TNS

OFF

OFF

HI

LO

FLASH-TO-PASS

FRONT FOG
LIGHT SWITCH

ON

B+

FRONT FOG
15 A FUSE

FRONT
FOG  LIGHT
RELAY

FRONT
FOG  LIGHT

B+

HEADLIGHT
RELAY

HIGH-BEAM
INDICATOR

HEADLIGHT
(LH)

HEADLIGHT
(RH)

HI

HI

LO

LO

DRL CONTROL MODULE

HEAD LOW L
15 A FUSE

HEAD LOW R
15 A FUSE

2G

2E

2C

2A

1N

1L

1K

1M

1B

2D

1A

1I

B+1

B+

HEADLIGHT
RELAY

DRL 1

DRL 2

IG1

IG1

DRL
15 A FUSE

INSTRUMENT
CLUSTER

E5U918ZS5110

LIGHTING SYSTEMS

09–18–8

IGNITION KEY ILLUMINATION FUNCTION

E5U091851311N05

• The illumination time of the ignition key

illumination is controlled by the microcomputer in
the instrument cluster.

• The ignition key illumination glows when the

ignition switch is at the LOCK or ACC position and
any door is open.

End Of Sie

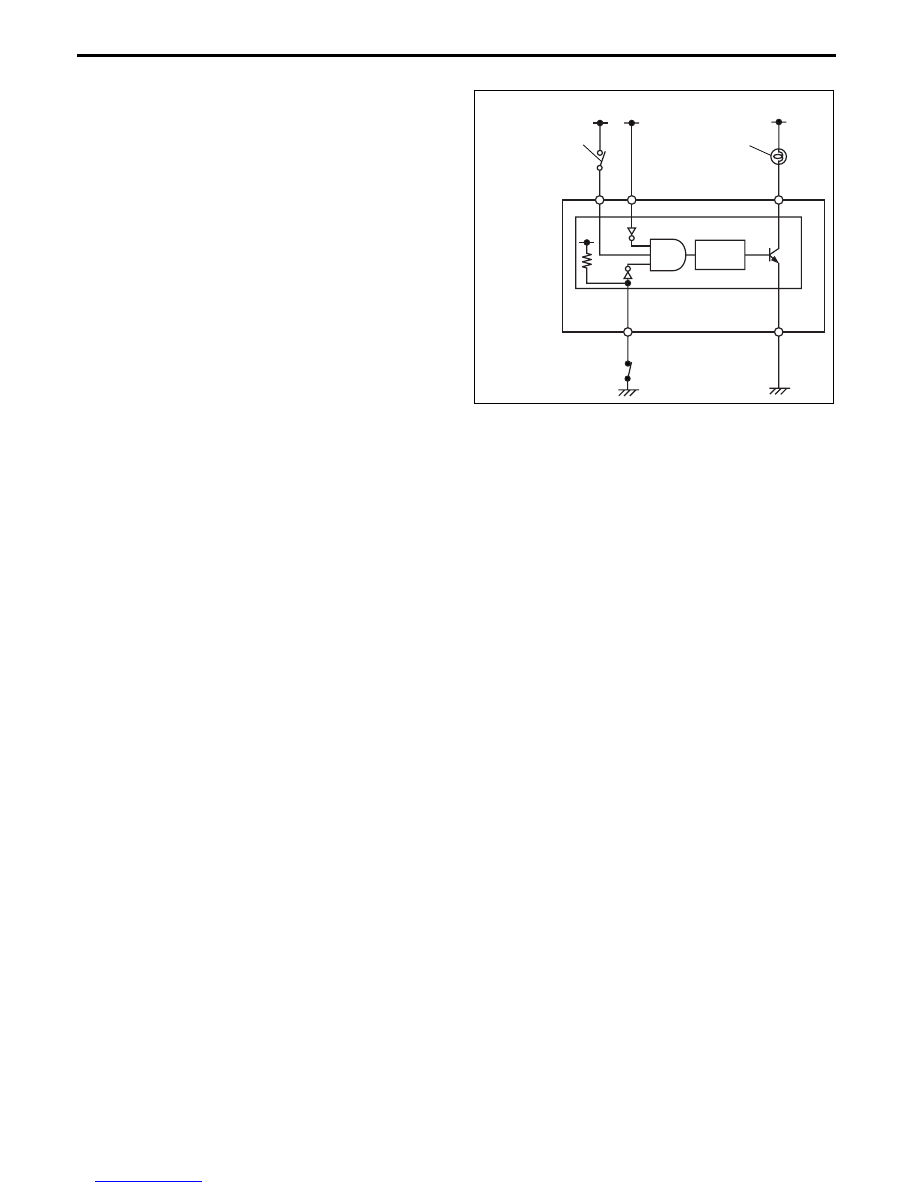

IGNITION KEY ILLUMINATION OPERATION

E5U091851311N06

Illumination Condition

• The ignition key illumination glows under all of the following conditions.

— Driver-side door is open. (Driver-side door switch is on.)

— Ignition switch is at the LOCK or ACC position. (IG1 off)

Cancel Condition

• The ignition key illumination goes out under any of the following conditions.

— Approx. 30 s after all doors are closed. (Approx. 30 s after all door switches are off.)

— Ignition switch is at the ON position. (IG1 on)

— Approx. 5 min after ignition key illumination begins.

End Of Sie

AND

IG1

MICRO COMPUTER

INSTRUMENT
CLUSTER

DOOR SWITCH
(DRIVER'S SIDE)

TIMER

KEY REMINDER
SWITCH

IGNITION KEY
ILLUMINATION
BULB

B+

B+

B+

E5U918ZS5011

WIPER/WASHER SYSTEM

09–19–1

09–19

09–19

WIPER/WASHER SYSTEM

WIPER/WASHER SYSTEM

OUTLINE . . . . . . . . . . . . . . . . . . . . . . . .  09–19–1

WIPER/WASHER SYSTEM

STRUCTURAL VIEW  . . . . . . . . . . . . . .  09–19–1

WIPER SYSTEM OUTLINE. . . . . . . . . . .  09–19–2
WIPER SYSTEM WIRING DIAGRAM . . .  09–19–2
WIPER SYSTEM OPERATION . . . . . . . .  09–19–2

Low Speed And High Speed

Operation  . . . . . . . . . . . . . . . . . . . . . . 09–19–2

Autostop Function . . . . . . . . . . . . . . . . . 09–19–3
One-touch Wiper Operation  . . . . . . . . . 09–19–3
Intermittent Wiper Operation . . . . . . . . . 09–19–4
Synchronized Washer And Wiper

Operation  . . . . . . . . . . . . . . . . . . . . . . 09–19–4

WASHER TANK SPECIFICATION . . . . . . 09–19–4

End of Toc

WIPER/WASHER SYSTEM OUTLINE

E5U091900000N01

End Of Sie

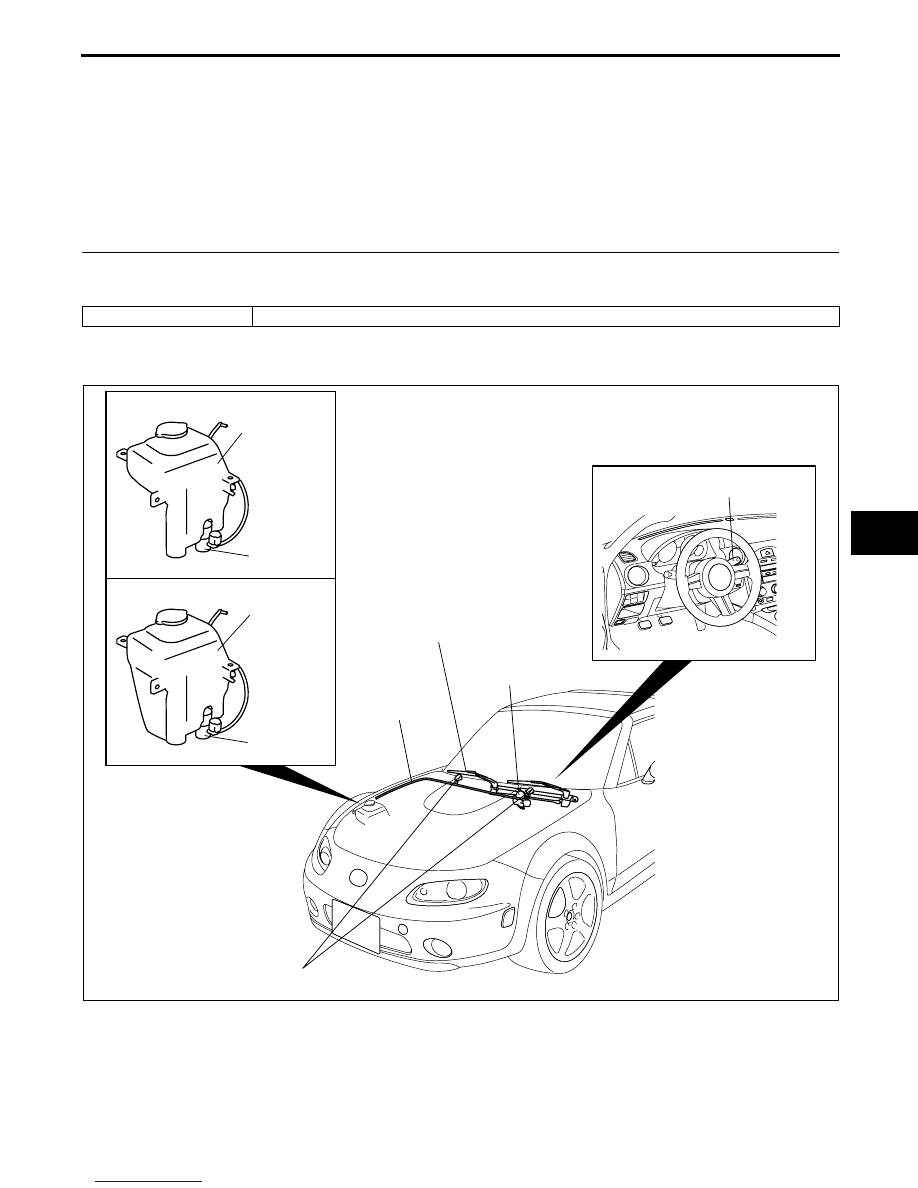

WIPER/WASHER SYSTEM STRUCTURAL VIEW

E5U091900000N02

End Of Sie

Improved marketability

• The intermittent wiper relay is built into the wiper and washer switch.

WIPER MOTOR

WIPER ARM AND BLADE

WASHER HOSE

WASHER
MOTOR

WASHER TANK

WASHER TANK

WIPER AND WASHER SWITCH

WASHER NOZZLE

WASHER
MOTOR

LARGE TYPE

STANDARD TYPE

E5U919ZS5101

WIPER/WASHER SYSTEM

09–19–2

WIPER SYSTEM OUTLINE

E5U091900000N03

• The wiper system has autostop function, one-touch function, and intermittent function with various timings.

End Of Sie

WIPER SYSTEM WIRING DIAGRAM

E5U091900000N04

End Of Sie

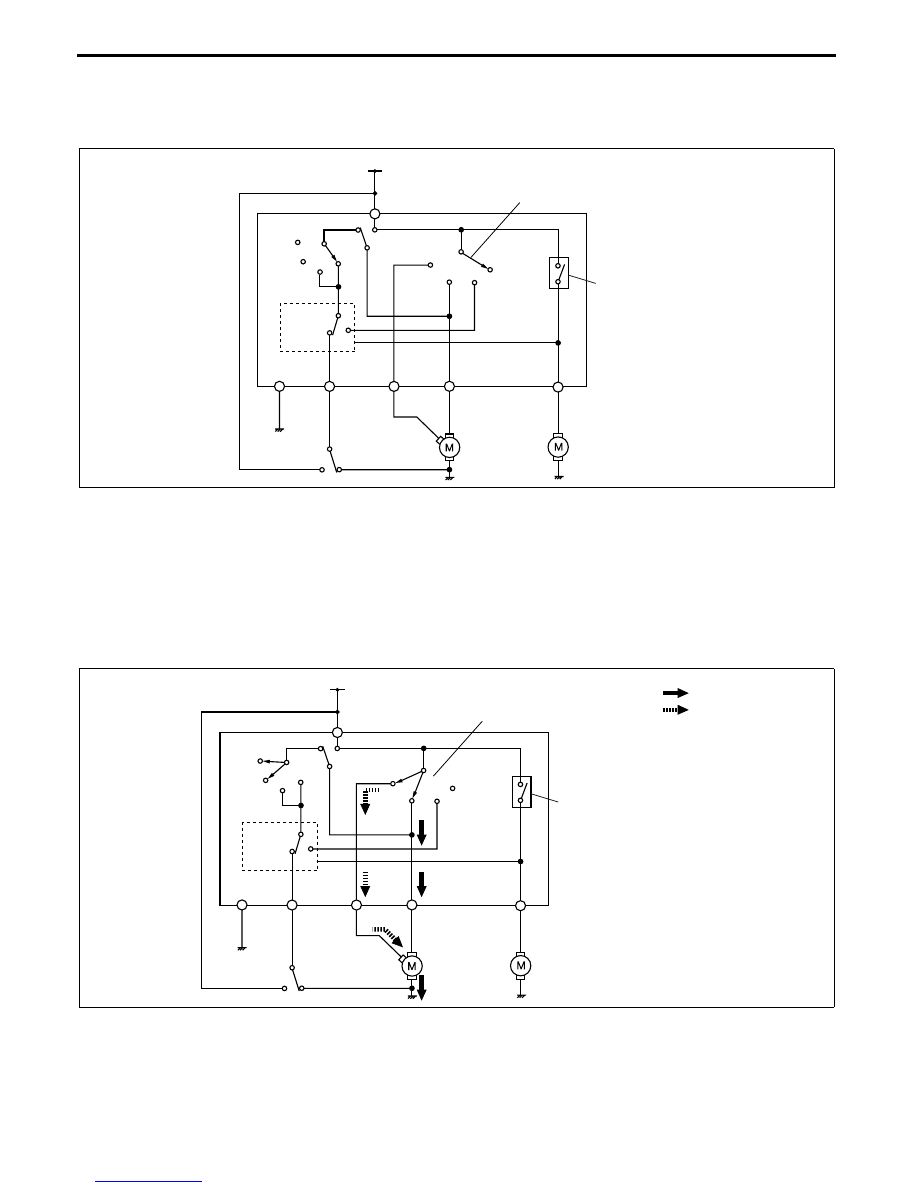

WIPER SYSTEM OPERATION

E5U091900000N05

Low Speed And High Speed Operation

• When the wiper switch moves to the 1 (low) position, current (1) flows through the wiper switch to the wiper

motor, then to ground. The wipers operate at low speed.

• When the wiper switch moves to the 2 (high) position, current (2) flows through the wiper switch to the wiper

motor, then to ground. The wipers operate at high speed.

• When the wiper switch returns to the OFF position, the autostop function activates and the wipers stop at the

park position.

IG1

INT
RELAY

AUTOSTOP
SWITCH

INT

INT

OFF

OFF

1

1

2

2

WASHER
SWITCH

WIPER SWITCH

WIPER
MOTOR

WASHER
MOTOR

ONE-TOUCH
SWITCH

E5U919ZS5002

IG1

INT
RELAY

AUTOSTOP
SWITCH

INT

INT

OFF

OFF

1

1

2

2

WASHER
SWITCH

WIPER SWITCH

WIPER
MOTOR

WASHER
MOTOR

ONE-TOUCH
SWITCH

(2)

(1)

E5U919ZS5003
