Mazda X-5. Manual - part 107





SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–23

09–14A

ON-BOARD DIAGNOSYS SYSTEM OUTLINE (IMMOBILIZER SYSTEM)

E5U091467000N07

• The immobilizer system is provided with a malfunction diagnosis function.

• Malfunction diagnosis of the immobilizer system occurs automatically when the start knob is turned from the

LOCK (ACC) to the ON (START) position.

• If the results of the malfunction diagnosis show a malfunction in the immobilizer system, the security light

indicates a DTC. At the same time, DTCs are stored in the PCM and keyless control module. The stored DTCs
can be verified using the WDS or equivalent.

Caution

• Always use the WDS or equivalent to verify DTCs even if the security light indicates a DTC. If the

security light itself has a malfunction, it is possible that a DTC may not be indicated properly.
There are certain DTCs which can only be verified using the WDS or equivalent, not the security
light.

Note

• If two or more malfunctions are detected as a result of malfunction diagnosis, only the DTC with the lowest

number of those detected will be indicated by the security light. The PCM and keyless control module
store multiple DTCs at the same time.

• If two or more immobilizer system DTCs are verified, first repair the part of the DTC indicated by the

security light. After completely repairing one location, turn the ignition switch from the LOCK to the ON
position and perform immobilizer system malfunction diagnosis.

DTC table

Note

• In the approx. 1 min after detecting a malfunction and before indicating the DTC, the security light

illuminates or flashes in the following patterns:

Security light flashing pattern

(Before indicating a DTC)

DTC

11, 12, 13, 14, 15, 16

21, 22, 23

DTC

Detection condition

Security light flashing pattern

Keyless

warning

light

WDS or equivalent display

Keyless

control

module

Instrument

cluster

PCM

11

Off

B1681

P1260

No communication detected
between keyless control module
and PCM

On

B1681

B1681

P1260

No communication detected
between coil antenna and
instrument cluster

12

On

B2103

B2103

P1260

Coil antenna malfunction

13

Off

B1600
B2431

P1260

Key ID number cannot be read

14

Off

B1602

P1260

Key ID number cannot be read

ILLUMINATED

GOES OUT

ILLUMINATED

GOES OUT

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–24

End Of Sie

ON-BOARD DIAGNOSYS SYSTEM PID DATA/MONITOR FUNCTION OPERATION (IMMOBILIZER SYSTEM)

E5U091467000N08

• The following item can be verified

— Number of keys programmed to the vehicle.

• Use the WDS or equivalent to read the PID/data monitor.

Note

• The engine cannot be started unless two or more keys are programmed to the vehicle.

• A maximum of eight keys can be programmed for one vehicle.

PID/DATA Monitor Table

End Of Sie

15

Off

B1601

P1260

Unprogrammed key ID number
detected

On

B1342

B1601

P1260

Keyless control module
malfunction

16

Off

U2510

P1260

Communication error between
instrument cluster and PCM (no
response)

21

On

B1213

B1213

P1260

Only one key ID number is
programmed to the instrument
cluster

22

On

B2141

P1260

Communication error between
instrument cluster and PCM (data
transfer error)

23

On

B2139

P1260

ID number data i the PCM and
instrument cluster do not match

On

B1213

P1260

Only one key ID number is
programmed to the keyless
control module

On

U0073

CAN malfunction

Off

U0323
U0100
U2023

CAN malfunction

DTC

Detection condition

Security light flashing pattern

Keyless

warning

light

WDS or equivalent display

Keyless

control

module

Instrument

cluster

PCM

PID name (definition)

Detection condition

NUMKEYS
(Number of key ID numbers programmed to the
keyless control module)

Number of programmed key ID numbers: 0

−8

SECURITY AND LOCKS [KEYLESS ENTRY SYSTEM]

09–14B–1

09–14B

09–14B SECURITY AND LOCKS [KEYLESS ENTRY
SYSTEM (RETRACTABLE KEY TYPE)]

SECURITY AND LOCKS OUTLINE . . . .  09–14B–1
SECURITY AND LOCKS

STRUCTURAL VIEW  . . . . . . . . . . . . . .  09–14B–2

SECURITY AND LOCKS SYSTEM

WIRING DIAGRAM . . . . . . . . . . . . . . . .  09–14B–3

POWER DOOR LOCK SYSTEM

OUTLINE . . . . . . . . . . . . . . . . . . . . . . . .  09–14B–3

POWER DOOR LOCK SYSTEM

OPERATION  . . . . . . . . . . . . . . . . . . . . .  09–14B–4

KEYLESS ENTRY SYSTEM

OUTLINE . . . . . . . . . . . . . . . . . . . . . . . .  09–14B–4

KEYLESS ENTRY SYSTEM

OPERATION  . . . . . . . . . . . . . . . . . . . . .  09–14B–4

Lock/unlock  . . . . . . . . . . . . . . . . . . . . .  09–14B–4

TRANSMITTER (RETRACTABLE KEY

TYPE) STRUCTURAL VIEW. . . . . . . . .  09–14B–5

IMMOBILIZER SYSTEM OUTLINE. . . . .  09–14B–5
IMMOBILIZER SYSTEM

STRUCTURAL VIEW  . . . . . . . . . . . . . .  09–14B–6

IMMOBILIZER SYSTEM

WIRING DIAGRAM . . . . . . . . . . . . . . . . . 09–14B–6

IMMOBILIZER SYSTEM

CONSTRUCTION/OPERATION . . . . . . . 09–14B–6

Immobilizer System

Release Operation  . . . . . . . . . . . . . . . 09–14B–7

Immobilizer System Setting. . . . . . . . . . 09–14B–8

KEY CONSTRUCTION . . . . . . . . . . . . . . . 09–14B–8
COIL ANTENNA CONSTRUCTION . . . . . 09–14B–9
SECURITY LIGHT

CONSTRUCTION/OPERATION . . . . . . . 09–14B–9

Construction  . . . . . . . . . . . . . . . . . . . . . 09–14B–9
Operation  . . . . . . . . . . . . . . . . . . . . . . . 09–14B–9

ON-BOARD DIAGNOSTIC SYSTEM

OUTLINE [IMMOBILIZER SYSTEM] . . . 09–14B–10

DTC Table . . . . . . . . . . . . . . . . . . . . . . . 09–14B–10

ON-BOARD DIAGNOSTIC SYSTEM

(IMMOBILIZER SYSTEM) PID/DATA
MONITOR FUNCTION . . . . . . . . . . . . . . 09–14B–11

PID/Data Monitor Table . . . . . . . . . . . . . 09–14B–11

End of Toc

SECURITY AND LOCKS OUTLINE

E5U091400001N04

End Of Sie

Improved marketability

• Power door lock system adopted

• Keyless entry system adopted

Improved security

• Theft-deterrent system adopted (See 09–14A–14 THEFT-DETERRENT SYSTEM OUTLINE)

• Immobilizer system adopted

SECURITY AND LOCKS [KEYLESS ENTRY SYSTEM]

09–14B–2

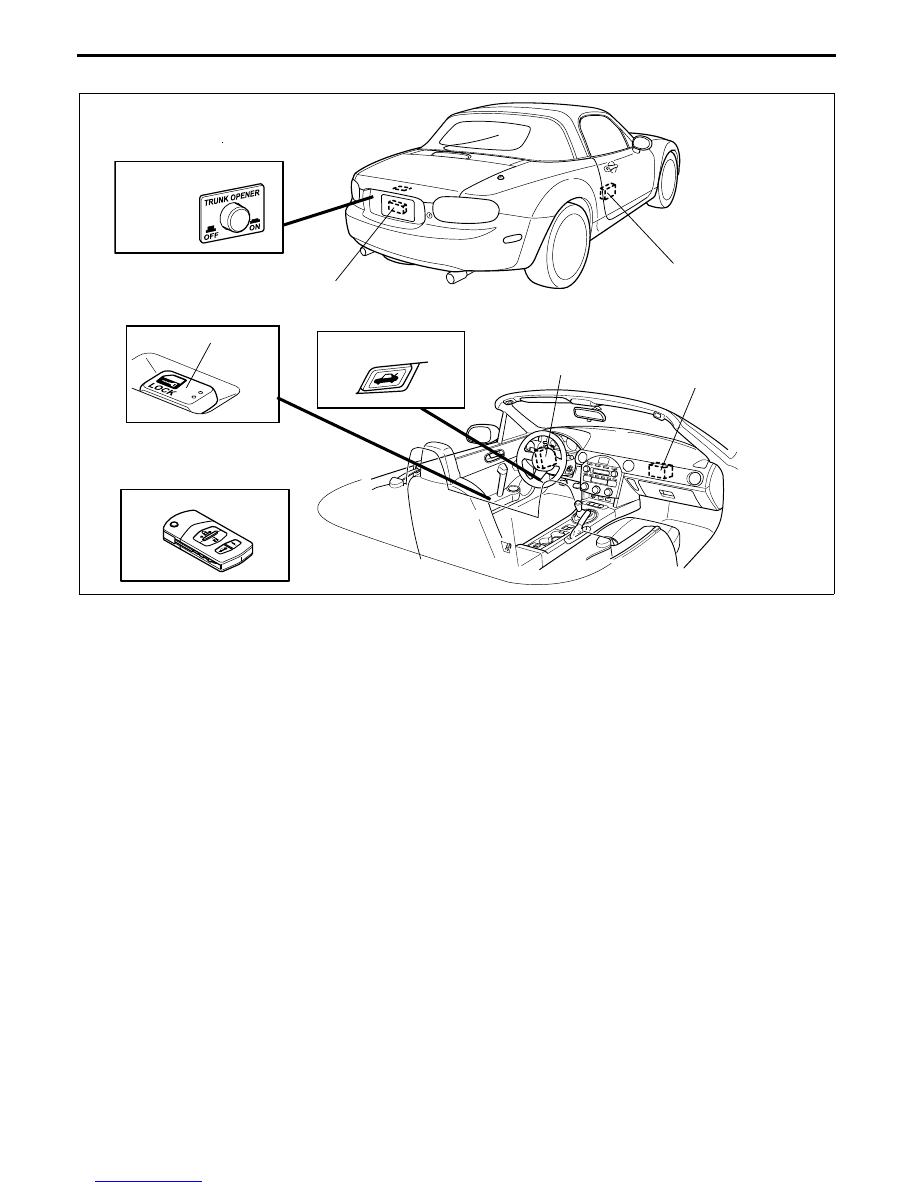

SECURITY AND LOCKS STRUCTURAL VIEW

E5U091400001N05

End Of Sie

TRUNK LID OPENR
SWITCH

KEYLESS CONTROL
MODULE

FRONT DOOR LATCH AND
LOCK ACTUATOR

TRUNK LID OPENER

DOOR LOCK SWITCH

TRUNK LID
OPENER
CANCEL
SWITCH

KEYLESS RECEIVER

TRANSMITTER

E5U914BS1001
