SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–11

09–14A

PID/data monitor table

*

: Vehicles with immobilizer system

Simulation Function

• The simulation function is used for optionally selecting simulation items of output parts preset in the keyless

control module, and to operate them regardless of control.

PID name

(definition)

Data contents

Unit/

Operation

Terminal

DTC_CNT

Number of continuous DTCs

−

−

RPM

Engine speed

RPM

4Z, 4AA

VSS

Vehicle speed

KPH

4Z, 4AA

VPWR

Supply voltage

V

1F

NUMCARD

Number of programmed card keys

−

−

NUMKEY

*

Number of programmed key ID numbers

−

−

DRSW_D

Door switch (driver’s door)

CLOSE/

OPEN

4T

DRSW_P

Door switch (passenger’s door)

CLOSE/

OPEN

4Q

REQ_SW_R

Request switch (right side door)

On/Off

4H

REQ_SW_L

Request switch (left side door)

On/Off

4J

REQ_SW_BK

Request switch (trunk lid)

On/Off

4L

LOCK_SW_D

Door lock-link switch (driver’s side)

On/Off

4I, 4E

CLS_LOCK

Door lock switch (lock)

On/Off

4B

CLS_UNLOCK

Door lock switch (unlock)

On/Off

4B

KCS_LOCK

Key cylinder switch (lock)

On/Off

4G

KCS_UNLOCK

Key cylinder switch (unlock)

On/Off

4G

IMMOBI

Immobilizer system equipped or not

On

*

/Off

−

TR/LG_SW

Trunk compartment light switch

CLOSE/

OPEN

3Z

IG_KEY_IN

Key reminder switch

Key-In/Key-

Out

3O

IG_SW_ST

Ignition switch (Push switch)

Pushed/Not

Pushed

3N

BUZZER

Keyless buzzer

On/Off

4Y

PWR_IG1

Power supply (IG1)

On/Off

3B

PWR_ACC

Power supply (ACC)

On/Off

3I

HOOD_SW

Hood latch switch

CLOSE/

OPEN

4V

LOCK_SW_P

Door lock-link switch (passenger’s side)

On/Off

4R

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–12

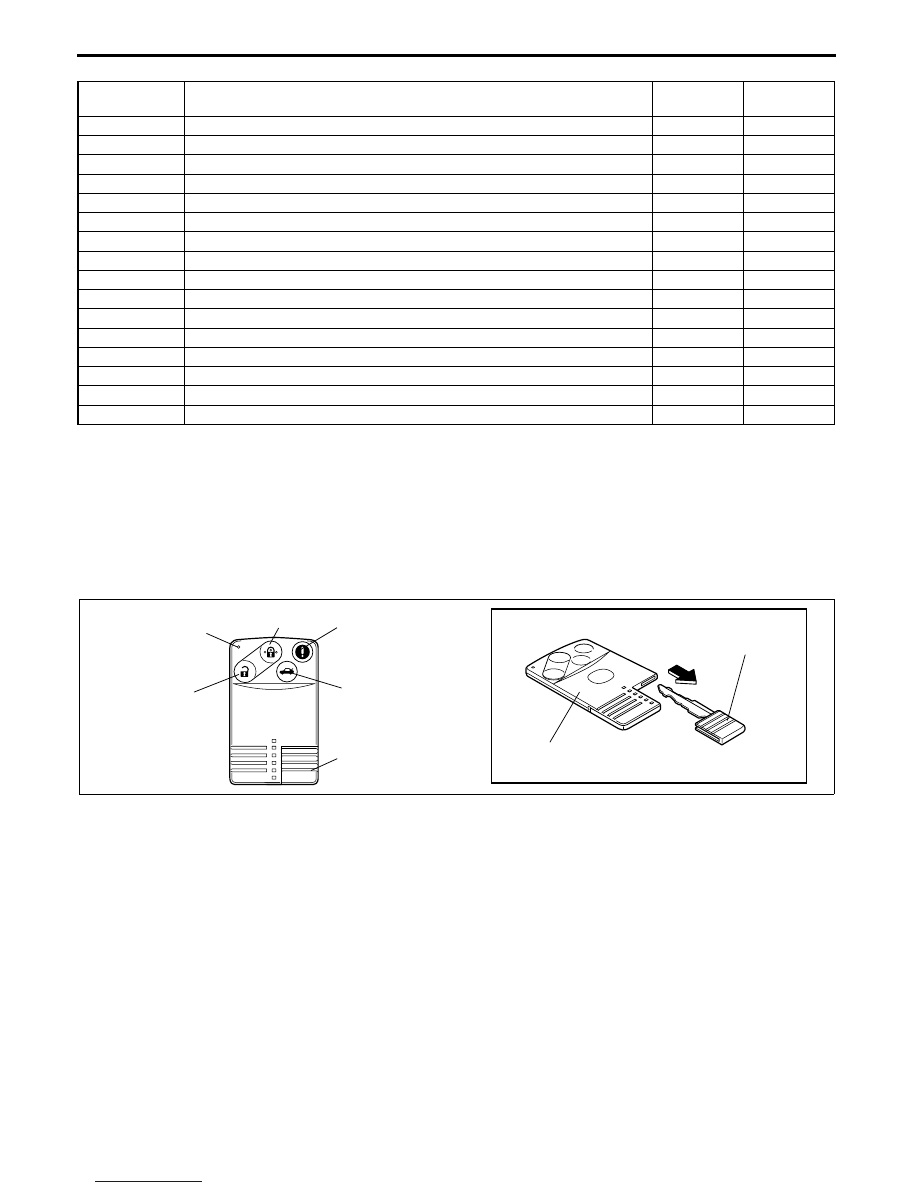

ACTIVE COMMAND MODE TABLE

End Of Sie

CARD KEY (TRANSMITTER) CONSTRUCTION/OPERATION

E5U091469000N08

• A card-type transmitter that is thin and convenient to carry has been adopted.

• A maximum of six transmitters can be programmed for one vehicle.

• A built-in operation indicator light illuminates according to LOCK/UNLOCK button operation and request signal

from the vehicle.

• In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked and the engine

can be started using the auxiliary key.

• A transponder is built into the auxiliary key for vehicles with the immobilizer system.

End Of Sie

Command

name

Output part name

Unit/

Operation

Terminal

BZR_OUT

Keyless beeper

On/Off

4Y

BZR_INN

Interior buzzer (Instrument cluster)

On/Off

4Z, 4AA

LNP_RED

Keyless warning light (red)

On/Off

4Z, 4AA

LNP_GREEN

Keyless indicator light (green)

On/Off

4Z, 4AA

HAZARD

Hazard warning light

On/Off

4N

HORN

Horn

On/Off

4U

ANT_RF

Keyless antenna (exterior, RF)

On/Off

2A, 2B

ANT_LF

Keyless antenna (exterior, LF)

On/Off

2C, 2D

ANT_BK

Keyless antenna (exterior, rear)

On/Off

2E, 2F

ANT_INN1

Keyless antenna (Interior, trunk)

On/Off

2G, 2H

ANT_INN2

Keyless antenna (Interior rear)

On/Off

2I, 2J

ANT_INN3

Keyless antenna (Interior, middle)

On/Off

2K, 2L

ANT_INN4

Keyless antenna (Interior, front)

On/Off

3G, 3H

DR_LOCK

All doors lock

Off/Lock

1A, 1C

DR_UNLOCK

All doors unlock

Off/Unlock

1A, 1C

2STG_UNLK

All doors unlock

Off/Unlock

1A, 1D

INDICATOR
LIGHT

UNLOCK BUTTON

LOCK BUTTON

PANIC BUTTON

TRUNK LID
BUTTON

AUXILIARY KEY

AUXILIARY KEY

TRANSMITTER

E5U914AS1008

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–13

09–14A

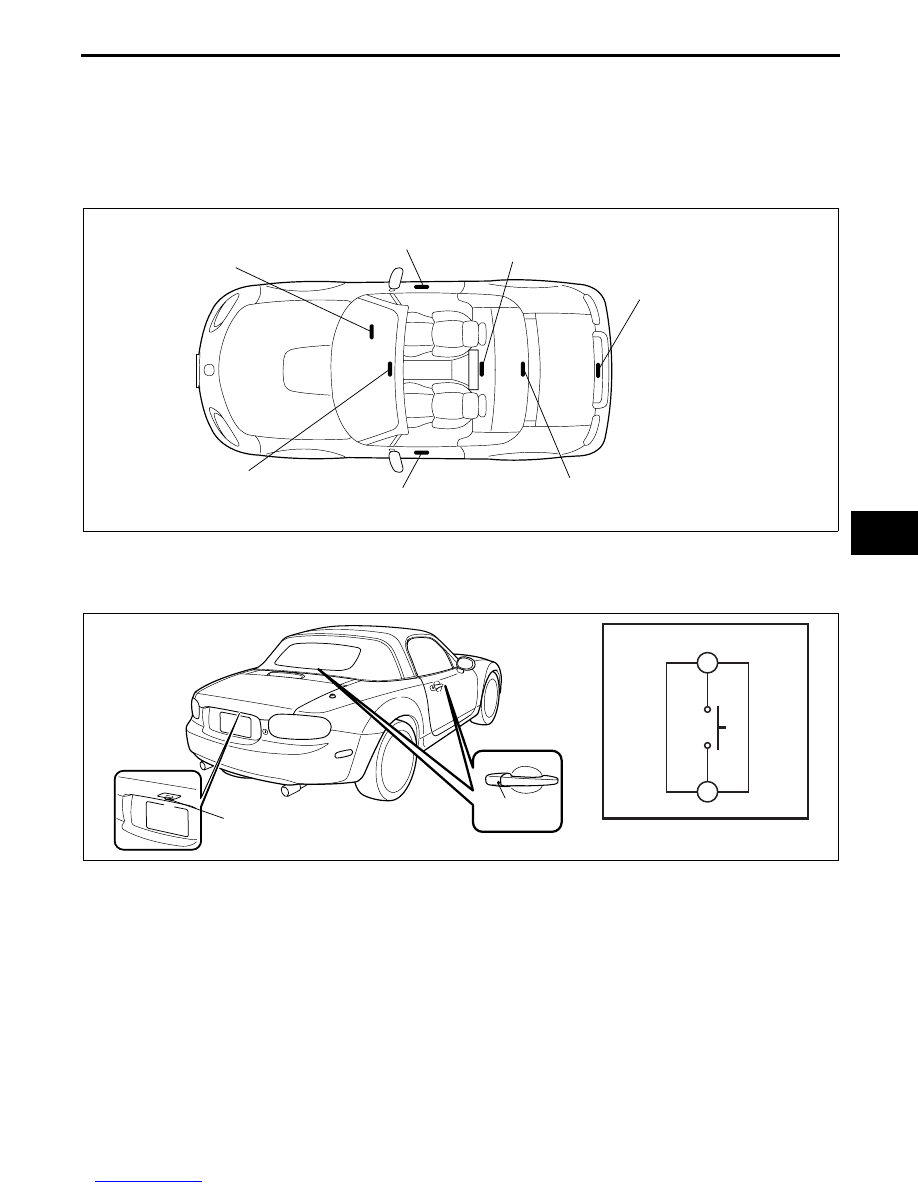

KEYLESS ANTENNA CONSTRUCTION/OPERATION

E5U091469000N09

• Consists of the antennas for request signal output (7 locations).

• Operated by the keyless control module, the keyless antennas send request signals to produce the reception

areas inside and outside the vehicle.

• The keyless antennas built-into the front doors can output signals to both inside or outside the vehicle, and

change the level of the radiowave (output to inside or outside the vehicle) according to operation conditions.

• The keyless control module locates the card key by determining the antenna which is receiving the signal the

strongest.

End Of Sie

REQUEST SWITCH CONSTRUCTION

E5U091469000N10

• Installed on both doors and trunk lid.

End Of Sie

KEYLESS ANTENNA
(INTERIOR, FRONT)

KEYLESS ANTENNA
(EXTERIOR, RF)

KEYLESS ANTENNA
(EXTERIOR, LF)

KEYLESS ANTENNA
(INTERIOR, MIDDLE)

KEYLESS ANTENNA
(EXTERIOR, REAR)

KEYLESS ANTENNA
(INTERIOR, REAR)

KEYLESS ANTENNA
(INTERIOR, TRUNK)

E5U914AS1009

REQUEST
SWITCH

REQUEST
SWITCH

B

A

INTERNAL CIRCUIT DIAGRAM

E5U914AS1010

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–14

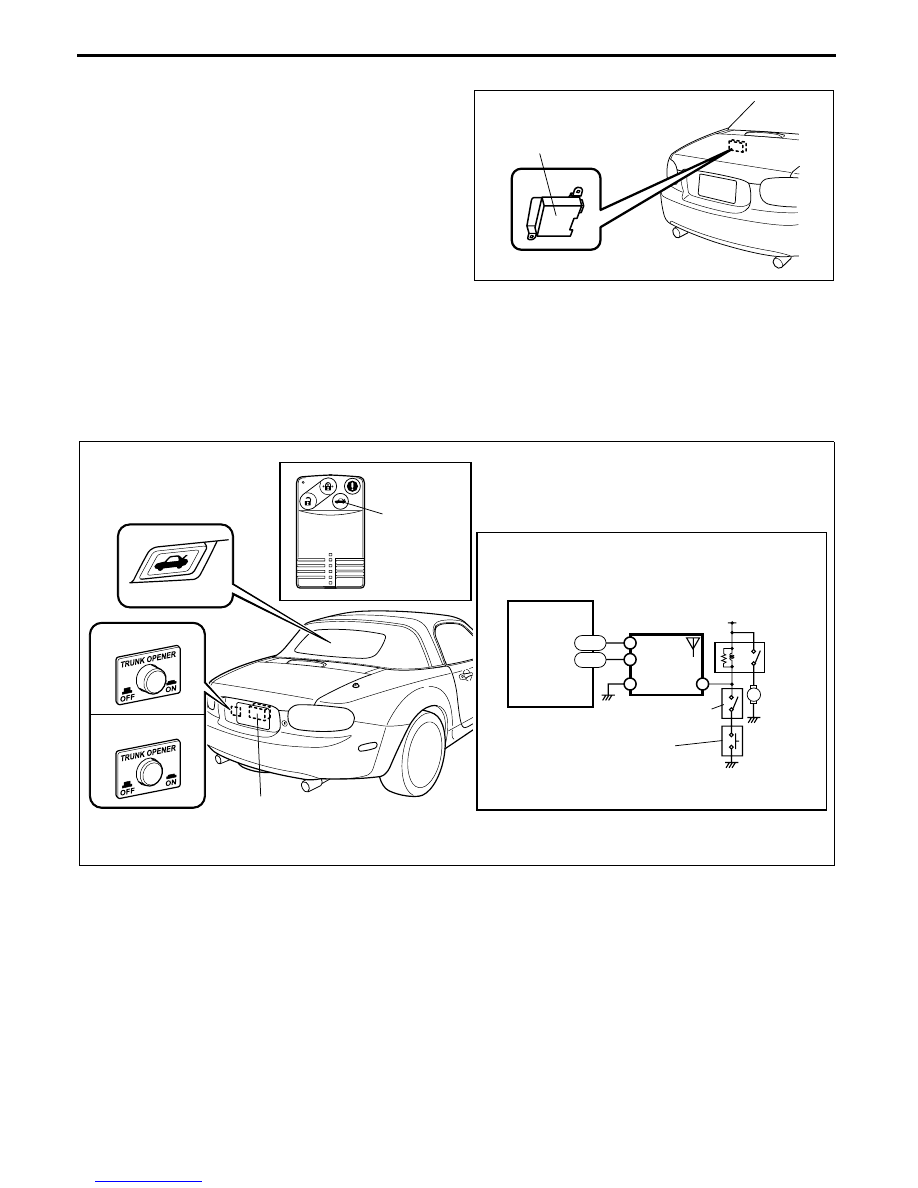

KEYLESS BEEPER CONSTRUCTION

E5U091469000N11

• Installed on the trunk compartment.

End Of Sie

TRUNK LID OPENER SYSTEM CONSTRUCTION/OPERATION

E5U091466000N03

• The trunk lid can be opened by following items:

— Key

— Transmitter

— Trunk lid opener switch

— Trunk lid request switch

• If the trunk lid opener cancel switch in the OFF position, the trunk lid opener cannot be operated to prevent

anyone from opening the trunk lid without the key.

End Of Sie

THEFT-DETERRENT SYSTEM OUTLINE

E5U091450000N01

• The theft-deterrent system includes sound and light alarms that activate when the hood, the trunk lid, or a door

is opened by means other than the ignition key or the transmitter. The hazard warning lights flash and the horn
sounds.

• When the ignition key is inserted into the door or trunk key cylinder and turned to unlock, the transmitter unlock

button is pressed, or request switch is pressed, the alarm stops.

End Of Sie

KEYLESS
BEEPER

E5U914AS1011

M

KEYLESS
RECEIVER
(REAR)

TRUNK
OPEN
RELAY

TRUNK LID OPENER
CANCEL SWITCH

TRUNK LID
OPENER SWITCH

TRUNK LID
OPENER

B+

KEYLESS
CONTROL
MODULE

TRUNK OPENER SYSTEM WIRING DIAGRAM

TRUNK LID
BUTTON

TRUNK LID OPENER
CANCEL SWITCH

TRUNK LID OPENER
SWITCH

TRUNK LID
OPENER

OFF POSITION

ON POSITION

E5U914AS1012
