SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–7

09–14A

Auto re-lock function

• The auto re-lock function automatically locks the doors if any of the following operations are performed within

approx. 30 s after the UNLOCK button of the card key is pressed, or after the request switch is pressed to
unlock the doors.

— A door or the trunk lid is opened.

— The auxiliary key is inserted in the ignition key cylinder.

— The start knob is pressed.

— The transmitter (card key) is operated. (If the UNLOCK button is pressed, the timer is reset.)

— A request switch is operated.

Out-of-area (reception area) autolock function

• When all doors are closed and the driver is out of the reception area carrying the card key, the doors are

automatically locked. (Initial setting is OFF.)

1. When all the following conditions are met and all doors are closed after any door or the trunk lid is open, the

keyless beeper sound is heard and the function starts operation. (The doors are not locked at this time.)

— The card key is not inside the vehicle.

— The card key is within the reception area outside the vehicle.

— The auxiliary key is not inserted in the ignition key cylinder.

— The start knob is in the LOCK position, and not being pressed.

2. After the operation has started, the card key is monitored within the reception area by the keyless antenna.

After about 2 s from where the card key has been determined to be out of the reception area, all lock actuators
activate to lock. If approx. 30 s have passed since the operation started, the doors also locks regardless of
whether the card key is within or out of the reception area.

3. The hazard warning light flashes once and keyless beep spund will be heard once at the same time the door

locks.

End Of Sie

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–8

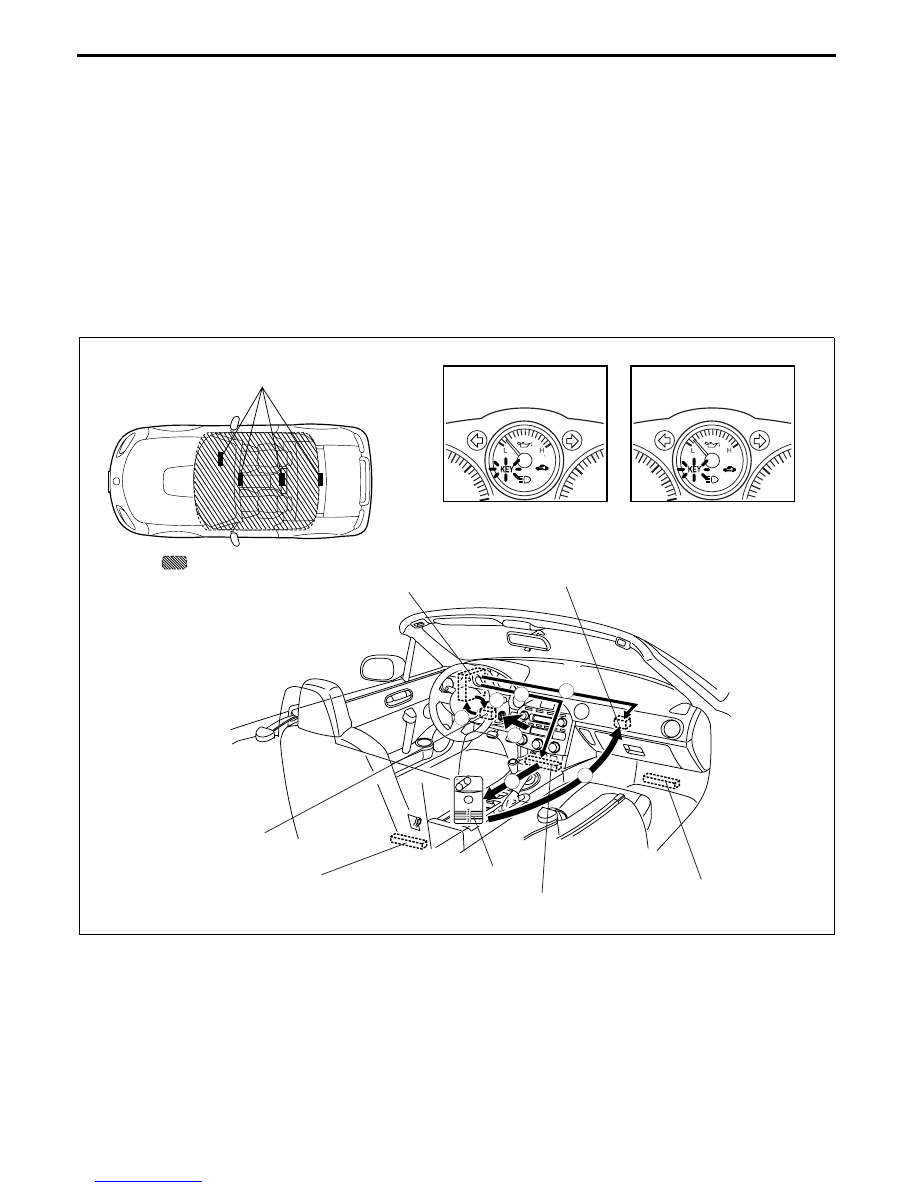

ADVANCED KEYLESS START FUNCTION OPERATION

E5U091469000N03

• The advanced start function activates to start the engine by operating the start knob, and not by inserting the

key but by the driver carrying the card key while in the vehicle.

1. When the start knob is pressed, the keyless control module sends a request signal from the keyless antennas

(interior).

2. The card key receives the request signal, and sends back ID data.
3. The ID data is received by the keyless receiver, and sent to the keyless control module.
4. When the ID data is verified by the keyless control module and the card key is determined to be inside the

vehicle, the start knob of the steering lock unit is released. The keyless indicator light (green) in the instrument
cluster illuminates at the same time to indicate that the start knob is operable.

— If the ID verification is not acceptable (for reasons such as an unprogrammed card key, or card key battery

depletion or transmitter interference), the start knob is not released and the keyless warning light (red)
illuminates to indicate that the start knob is inoperable.

— For vehicles with the immobilizer system, ID verification is performed when the start knob is turned to the

ON position, and if the verification is acceptable, permission is given to start the engine.

5. Turn the start knob to the START position to start the engine.

End Of Sie

RECEPTION RANGE
(INTERIOR)

KEYLESS ANTENNA

KEYLESS ANTENNA
(INTERIOR, FRONT)

2

1

1

2

3

4

1

CARD KEY

KEYLESS RECEIVER

KEYLESS CONTROL
MODULE

KEYLESS ANTENNA
(INTERIOR, MIDDLE)

KEYLESS ANTENNA
(INTERIOR, REAR)

STEERING
LOCK UNIT

KEYLESS INDICATOR LIGHT
(GREEN) (ILLUMINATED)

KEYLESS WARNING LIGHT
(RED) (FLASH)

ID VERIFICATION OK

ID VERIFICATION NG

E5U914AS1007

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–9

09–14A

WARNING/GUIDANCE FUNCTION OPERATION

E5U091469000N04

• If the system is operated improperly, it warns the driver using the indicator light in the instrument cluster, buzzer

sound, and keyless beeper in the trunk compartment.

• The operation condition of the advanced keyless system is indicated by the indicator light and beeper sound to

guide user’s operation.

*1 : If the start knob is turned to the LOCK position with the card key out of the vehicle, the start knob is inoperable

(the engine cannot be restarted). For vehicles with the immobilizer system, the engine cannot be restarted by
turning the start knob from the ACC position to the START position even though the start knob has not been
turned to the LOCK position.

*2 : Stops flashing and goes out if the card key is detected inside the vehicle.
*3 : Stops flashing and goes out if the card key is detected inside the vehicle and door is opened.

End Of Sie

CUSTOMIZE FUNCTION OUTLINE

E5U091469000N05

• The settings of the following functions, and warning and guidance functions for the advanced keyless entry

system can be turned ON/OFF optionally.

• The WDS or equivalent is necessary for settings. Refer to the Workshop Manual for the detailed setting

procedure.

End Of Sie

Item

Operation condition

Keyless

buzzer

(outside

the vehicle)

Instrument cluster

Buzzer

(Interior)

Keyless

warning

light (red)

Keyless

indicator

light

(green)

Warning

Start knob not in
LOCK warning

Driver’s door is open with start knob in
ACC position

−

Continuous

Flashes

−

Card key out of
vehicle
warning

*1

Card key cannot be detected inside
vehicle with driver’s door open and
start knob not in LOCK position

−

Continuous

Flashes

*2

−

Card key cannot be detected inside
vehicle with all doors closed and start
knob not in LOCK position

Sounds 6

times



Flashes

*3

−

Card key cannot be detected inside
vehicle with start knob not in LOCK
position and under any condition other
than above

−



Flashes

*2

−

Card key left in
vehicle warning

Door/trunk lid is open with proper card
key inside vehicle and another card
key carried

Continuous

for 10 s

−

−

−

Door lock
inoperable
warning

Request switch is pressed with card
key carried and a door open or start
knob not in LOCK position

Sounds 6

times

−

−

−

Battery voltage
low indication

Card key battery voltage depleted

−

−

−

Flashes

(Approx. 30

s after IG

OFF)

Guidance

Start knob
operable
guidance

Start knob is operable (lock released)
when it is pressed

−

−

−

On

(Max. 3 s)

Start knob
inoperable
guidance

Start knob is inoperable (locked) when
it is pressed

−

−

Flashes

−

Lock/unlock
answer back

Doors are locked/unlocked with
normal/advanced keyless entry
function

Locked:

Once

Unlocked:

Twice

−

−

−

Function name

WDS or equivalent display

Initial

setting

Auto lock function (Out-of-area type)

Auto Lock

OFF

Keyless buzzer answer back

Answer Back Buzzer

OFF

Battery voltage low indication

Low Battery Warning

ON

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–10

ON-BOARD DIAGNOSYS SYSTEM OUTLINE (ADVANCED KEYLESS ENTRY SYSTEM)

E5U091469000N06

Special Features

• The keyless entry system has an on-board diagnostic function to facilitate system diagnosis.

• The on-board diagnostic function consists of the following functions: a malfunction detection function, which

detects overall malfunctions in the keyless entry system-related parts; a memory function, which stores
detected DTCs; a display function, which indicates system malfunctions by DTC display; and a PID/data
monitoring function, which reads out specific input/output signals.

• Using the WDS or equivalent, DTCs can be read out and cleared, and the PID/data monitoring function can be

activated.

End Of Sie

ON-BOARD DIAGNOSYS SYSTEM PID DATA/MONITOR FUNCTION OPERATION (ADVANCED KEYLESS
ENTRY SYSTEM)

E5U091469000N07

On-board Diagnostic Function
Malfunction detection function

• Detects overall malfunctions in the keyless entry system-related parts.

Display function

• If any malfunction is detected, the keyless warning light (red) in the instrument cluster illuminates to inform the

driver of a system malfunction.

Memory function

• Stores malfunctions in the keyless entry system-related parts detected by the malfunction detection function,

and the stored malfunction contents are not cleared even if the ignition switch is turned to the LOCK position or
the negative battery cable is disconnected.

DTC table

*

: With immobilizer system

PID/data monitor function

• The PID/data monitor function is used for optionally selecting input/output signal monitor items preset in the

keyless control module and reading them out in real-time.

• Use the WDS or equivalent to read the PID/data monitor.

DTC

System malfunction location

WDS or equivalent

display

B1342

Keyless control module internal malfunction

B1134

Unprogrammed card key

B2477

Configuration error

B1317

Keyless control module power supply voltage increases.

B1318

Keyless control module power supply voltage decreases

B2170

Push switch (Steering lock unit)

B1126

Steering lock unit internal malfunction

U0236

Steering lock unit communication system

B1093

Steering lock unit communication error

U0214

Keyless receiver

B1133

Keyless antenna (exterior, RF)

B1132

Keyless antenna (exterior, LF)

B1127

Keyless antenna (Interior, trunk)

B1128

Keyless antenna (Interior, rear)

B1131

Keyless antenna (exterior, rear)

B1129

Keyless antenna (Interior, middle)

B112A

Keyless antenna (Interior, front)

U0323

Communication error to instrument cluster

U0100

Communication error to PCM

U0073

Control module communication error

U2023

Error signal from CAN related module

B1681

*

No detected communication with the coil antenna.

B2103

*

Coil malfunction

B1213

*

Only one key ID number is programmed.
